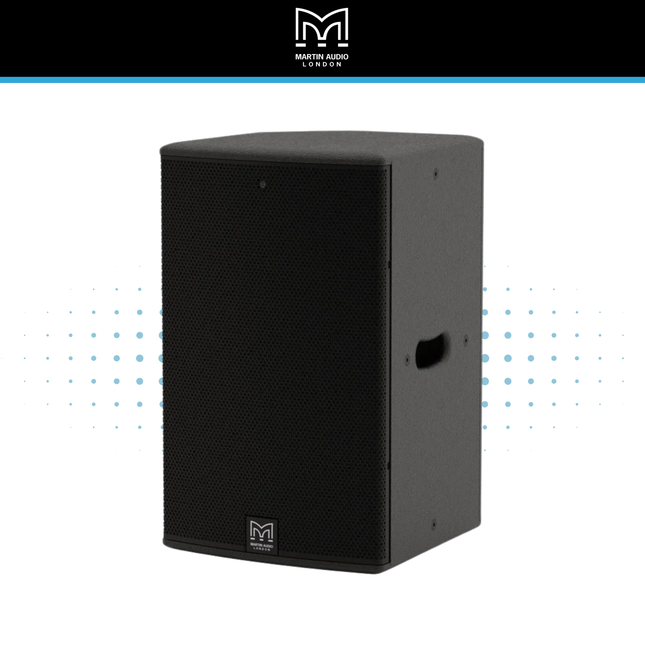

The Martin Audio CDD-LIVE 15 is a high-output active powered loudspeaker designed for professional sound reinforcement, portable AV systems and fixed installation projects where strong projection, premium audio quality and flexible deployment are required. As the largest full-range model in the CDD-LIVE range, it is built for applications that demand the performance of a serious professional loudspeaker with the convenience of onboard amplification, DSP and networking. Using a 15" low frequency driver with a 3" voice coil and a 1.4" exit high frequency compression driver with a 3" voice coil, the CDD-LIVE 15 delivers powerful full-range output with clear vocal intelligibility and detailed music reproduction. It is well suited to medium-scale live sound, theatre, corporate AV, houses of worship, performance venues, bars, clubs, event spaces and premium commercial installations. The CDD-LIVE 15 uses Martin Audio’s Coaxial Differential Dispersion technology to provide more consistent audience coverage than a conventional fixed-pattern loudspeaker. Its coverage pattern is designed to deliver wider horizontal dispersion close to the cabinet and more focused projection further into the listening area. This helps create a smoother level balance across the room, improving the listening experience for people positioned both near to and further away from the speaker. A major advantage of the CDD-LIVE 15 is its self-powered architecture. The built-in two-channel Class D amplifier delivers 2500W peak output, with 2000W assigned to the low frequency driver and 500W to the high frequency driver. This removes the need for separate amplifier racks and ensures the amplifier, DSP and loudspeaker components are engineered to work together as a complete system. Onboard DSP provides advanced processing and system control, including EQ, delay, gain, muting and preset selection. Rear panel presets make it suitable for straightforward plug-and-play operation, while Martin Audio’s VU-NET software provides deeper remote control over Ethernet for more complex systems. This makes the CDD-LIVE 15 practical for both standalone use and integrated professional AV environments. Dante digital audio networking is included, allowing high-quality audio distribution over network cabling using compatible Dante-enabled equipment. This is particularly useful for modern event production, corporate AV and fixed installations where digital routing, reduced analogue cable runs and cleaner infrastructure are important. Analogue XLR input and link connections are also provided for conventional audio setups. The multi-angle enclosure allows the loudspeaker to be used vertically, horizontally or as a high-output stage monitor. The user-rotatable coaxial driver allows the dispersion pattern to be aligned correctly for the chosen orientation. This gives the CDD-LIVE 15 excellent flexibility across portable live sound, install and monitor applications. The cabinet is constructed from braced multi-laminate plywood and finished in a hard-wearing textured black PU coating. It includes a top hat for pole mounting and 15x M8 mounting points for compatible wall, yoke and universal bracket accessories. An IP24 factory option is also available with a rain cowl for applications where additional weather protection is required. With a frequency response of 55Hz–20kHz ±3dB, 132dB peak SPL capability and a substantial 37kg cabinet weight, the CDD-LIVE 15 is designed for professional users who need serious output from a self-contained powered loudspeaker. It can be used as a powerful full-range cabinet or partnered with suitable Martin Audio powered subwoofers for extended low frequency performance. The Martin Audio CDD-LIVE 15 is a strong choice for demanding professional applications where sound quality, output, control and deployment efficiency are all key requirements. It provides a premium active loudspeaker solution for live events, venues, theatre, corporate AV and high-performance fixed installations.

Read more less

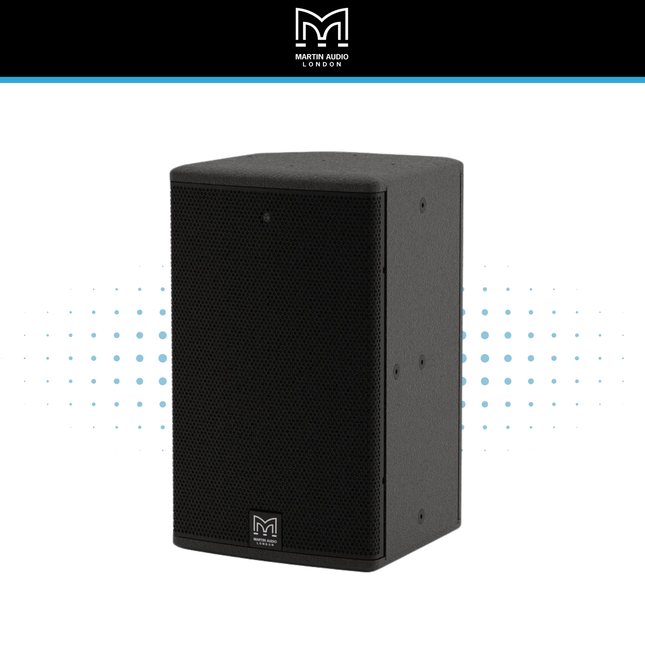

The Martin Audio CDD-LIVE 8 is an ultra-compact active powered loudspeaker designed for professional sound reinforcement, portable AV systems and fixed installation projects where high output and premium audio quality are required from a compact cabinet. Built around Martin Audio’s Coaxial Differential Dispersion technology, the CDD-LIVE 8 delivers controlled, consistent coverage from a small-format powered enclosure. Using an 8" low frequency driver and a 1" exit high frequency compression driver, the CDD-LIVE 8 is capable of producing a full, clear and detailed sound suitable for music playback, speech reinforcement, corporate AV, live sound, theatre, frontfill, infill, monitoring and distributed commercial audio. Its compact cabinet makes it easy to deploy where space is limited, while its output capability gives it the performance required for more demanding applications. A key advantage of the CDD-LIVE 8 is its self-powered design. The built-in two-channel Class D amplifier delivers 1300W peak output in total, with 1000W dedicated to the low frequency section and 300W to the high frequency section. This removes the need for external amplifier racks and allows the speaker to be used as a streamlined, high-performance system with onboard amplification, DSP and networking built directly into the cabinet. The onboard DSP provides processing, presets and system control, helping optimise performance for different applications. Presets can be selected from the rear panel for straightforward standalone use, while more advanced control is available via Martin Audio’s VU-NET software over Ethernet. This gives system designers, technicians and installers access to functions such as EQ, delay, gain, muting and preset management. Dante digital audio networking is also built in, allowing audio to be distributed over a network connection using compatible Dante-enabled equipment. This makes the CDD-LIVE 8 suitable for modern AV systems where digital audio routing, clean cabling and network-based infrastructure are preferred. For conventional setups, analogue XLR input and link connections are also provided. The CDD-LIVE 8 features a user-rotatable coaxial driver, allowing the coverage pattern to be aligned for either vertical or horizontal cabinet orientation. With 110°–80° horizontal dispersion and 60° vertical coverage, the speaker is designed to deliver wider coverage close to the cabinet while projecting effectively further into the listening area. This helps create a more consistent audience experience compared with conventional fixed-pattern loudspeakers. The cabinet is constructed from braced multi-laminate plywood and finished in a durable textured black PU coating. Its multi-angle enclosure allows it to be used vertically, horizontally or as a compact stage monitor, making it suitable for both installed and portable applications. A top hat is included for pole mounting, while 15x M8 mounting points provide compatibility with suitable wall, yoke and universal bracket accessories. With a frequency response of 70Hz–20kHz ±3dB and a maximum SPL of 123dB peak, the CDD-LIVE 8 offers strong performance from a compact active loudspeaker. It can be used as a standalone full-range speaker or partnered with suitable Martin Audio powered subwoofers where additional low frequency extension and impact are required. The Martin Audio CDD-LIVE 8 is a strong choice for professional users who need a compact active speaker with high-quality sound, Dante networking, onboard DSP and flexible deployment options. It is equally suitable for live sound, corporate AV, installation projects, theatre systems, hospitality venues and compact performance spaces where premium performance and operational efficiency are important.

Read more less

The Martin Audio XP12 is a compact, self-powered two-way loudspeaker engineered to deliver class-leading performance in small to mid-sized indoor venues, combining high-output capability with advanced DSP control in a portable and installation-friendly format. It features a 12-inch low-frequency driver with a 2.5-inch voice coil and powerful magnet assembly for tight, controlled bass response, paired with a 1-inch exit high-frequency compression driver utilising a 1.75-inch polyimide diaphragm for extended, distortion-free high-frequency reproduction. An onboard Class D amplifier module delivers a combined 1300W peak output, with 1000W allocated to the low-frequency section and 300W to the high-frequency driver. Integrated DSP is accessed via a rear-panel rotary control interface and multi-function colour display, offering crossover management, a three-channel mixer with three-band EQ per input, high-pass filtering on channels one and two, and three selectable voicing and operating presets for flexible deployment without external processing. Independent RMS and peak limiters on both LF and HF sections ensure consistent performance and long-term reliability. The XP12 features a user-rotatable 80° x 50° high-frequency horn, enabling vertical or horizontal orientation for PA or stage monitor use, supported by a symmetrical multi-angle enclosure design. Bluetooth functionality allows wireless control and audio streaming where required. Constructed from durable plywood and finished in hard-wearing black textured paint, the cabinet is protected by a screw-free, cloth-backed steel grille that prevents dust ingress while maintaining low-frequency airflow. Integrated ergonomic handles support portability, while M8 flying inserts, a pole-mount socket with removable cap, and compatibility with wall brackets provide flexible mounting options. The XP12 represents a powerful and adaptable loudspeaker solution for professional applications from Martin Audio.

Read more less

The Martin Audio XP15 is a high-output, self-powered two-way loudspeaker designed to deliver exceptional sonic performance and impactful low-frequency response for professional portable and installed sound applications. It features a 15-inch low-frequency driver with a 3-inch voice coil, paired with a 1-inch exit high-frequency compression driver utilising a 1.75-inch polyimide diaphragm, providing powerful bass extension alongside clear, detailed high-frequency reproduction within a precisely defined 80° x 50° coverage pattern. An integrated Class D amplifier module provides a combined 1300W peak output, delivering 1000W to the low-frequency section and 300W to the high-frequency driver. Both LF and HF sections are independently protected by RMS and peak limiters to ensure consistent performance and long-term reliability. Onboard DSP is controlled via a rear-panel rotary encoder and multi-function colour display, offering crossover management, a three-channel mixer with three-band EQ per input, high-pass filtering on channels one and two, and a choice of three voicing presets and operating modes for flexible standalone operation without external processing. Bluetooth functionality enables wireless control and streaming where required. The symmetrical multi-angle enclosure is constructed from birch and poplar plywood and finished in textured black paint for durability in professional environments. A spring-fit, cloth-backed steel grille protects the drivers while allowing easy access to rotate the high-frequency horn for vertical or horizontal orientation. Integrated ergonomic handles enhance portability, while M8 flying inserts and a pole-mount socket with removable cap provide versatile mounting options. With its combination of high output, refined control and robust construction, the XP15 is a powerful loudspeaker solution from Martin Audio.

Read more less
