Description

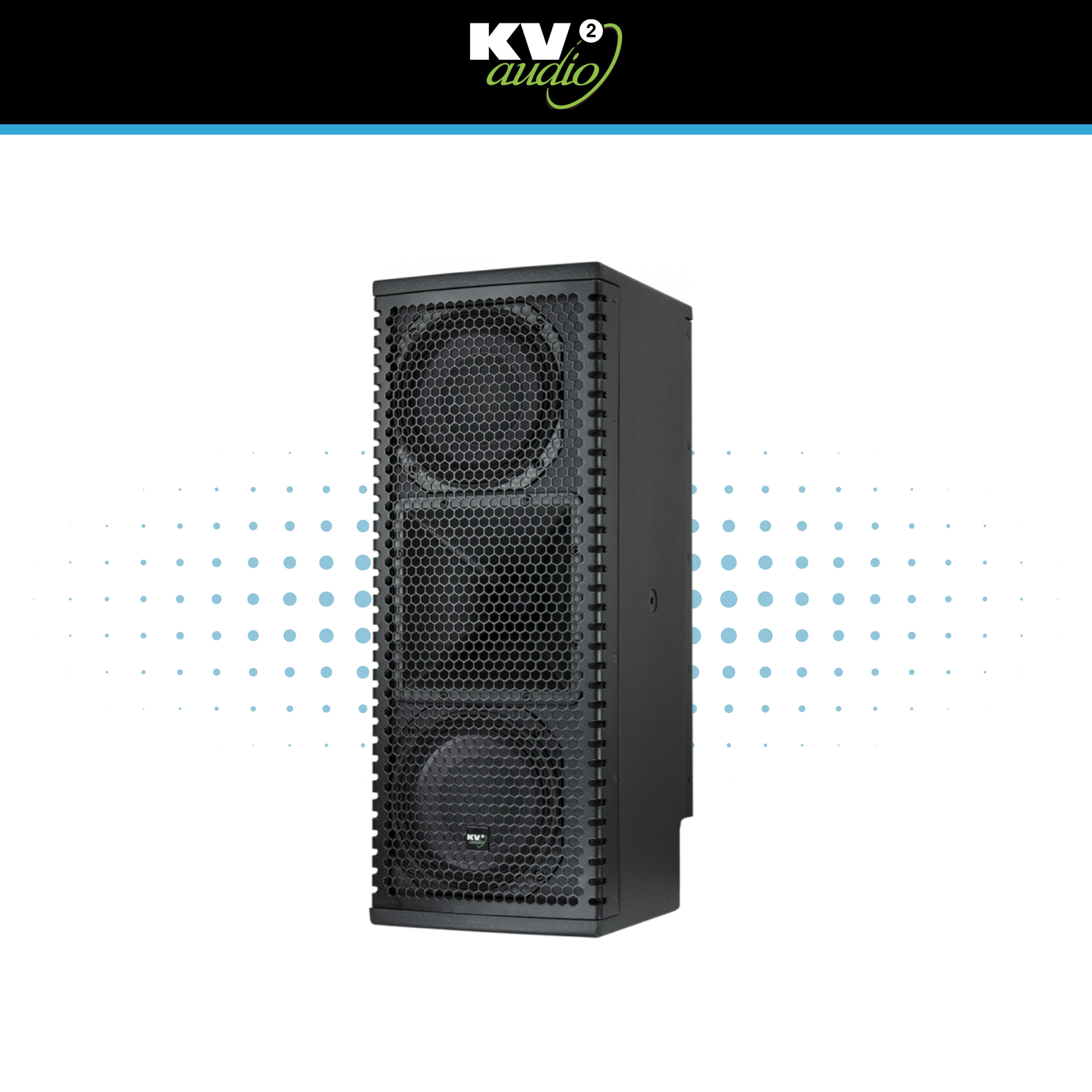

The KV2 Audio EX26 is a compact 2-way active full-range loudspeaker engineered to deliver exceptional vocal intelligibility and high-quality musical reproduction in professional environments. Featuring a dual 6-inch driver configuration and integrated DSP, it is designed for applications where clarity, coverage, and discreet installation are critical.
Developed as part of KV2 Audio’s EX Series, the EX26 combines advanced transducer design, onboard amplification, and precision processing into a single enclosure, ensuring optimised performance with minimal system complexity.
Dual 6-Inch Driver Configuration for Enhanced Clarity
The EX26 incorporates two 6-inch neodymium mid-bass drivers paired with a high-frequency compression driver, delivering a balanced and articulate sound profile. This configuration improves midrange definition and extends low-frequency response while maintaining exceptional vocal clarity.
This makes the EX26 particularly effective for:
- Speech-focused environments
- Vocal reinforcement
- High-clarity background music systems
High-Output Active Performance
With 370W total amplification and a maximum SPL of up to 124dB continuous (130dB peak), the EX26 delivers impressive output for its size.
The bi-amplified design includes:
- High-efficiency low-frequency amplifier
- Low-distortion Class AB high-frequency amplifier
This ensures:
- High dynamic range
- Low distortion at elevated levels
- Consistent performance across varying output levels
Wide 100° x 100° Coverage
A constant directivity horn provides wide and even 100° x 100° dispersion, ensuring consistent sound coverage across audience areas.
This makes the EX26 ideal for:
- Conference rooms and meeting spaces
- Houses of worship
- Retail and hospitality environments
- Balcony fill and front-fill applications
The wide dispersion allows fewer speakers to cover larger areas effectively.
Integrated DSP and Speaker Management
The EX26 includes full onboard DSP processing, providing:
- Electronic crossovers
- Phase alignment and time correction
- Equalisation and system optimisation
- Advanced protection circuitry
This ensures:
- Plug-and-play optimisation
- Reduced need for external processing
- Consistent audio performance across installations
Optimised for Speech and Installation Applications
The EX26 has been purpose-built for environments where speech clarity is paramount. Its design focuses on delivering articulate vocals with minimal distortion, even in acoustically challenging spaces.
Typical applications include:
- Churches and houses of worship
- Corporate AV and presentations
- Theatres and conference venues
- Under-balcony and delay fill systems
When used horizontally, it is particularly effective as a discreet fill speaker.
Compact and Installation-Friendly Design

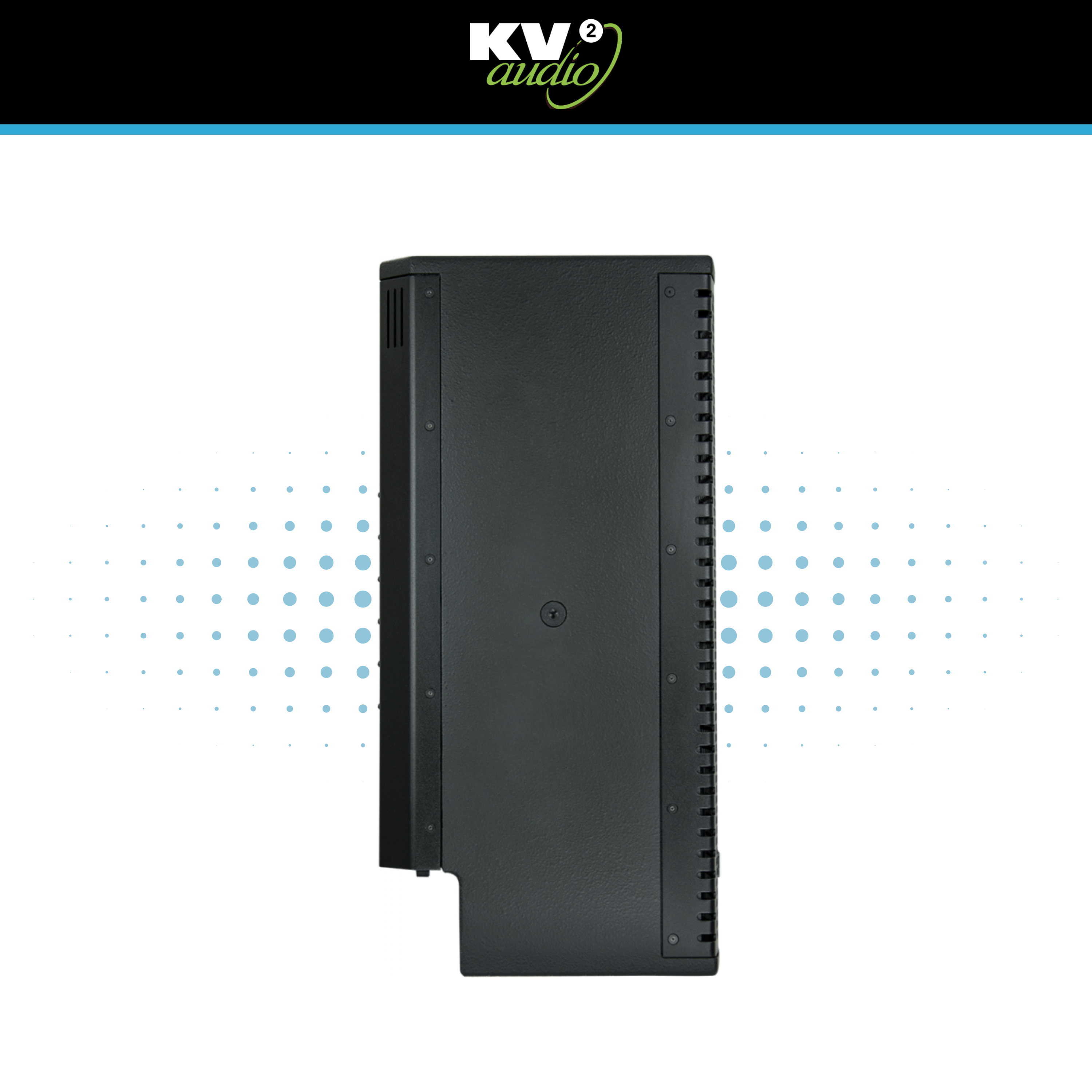

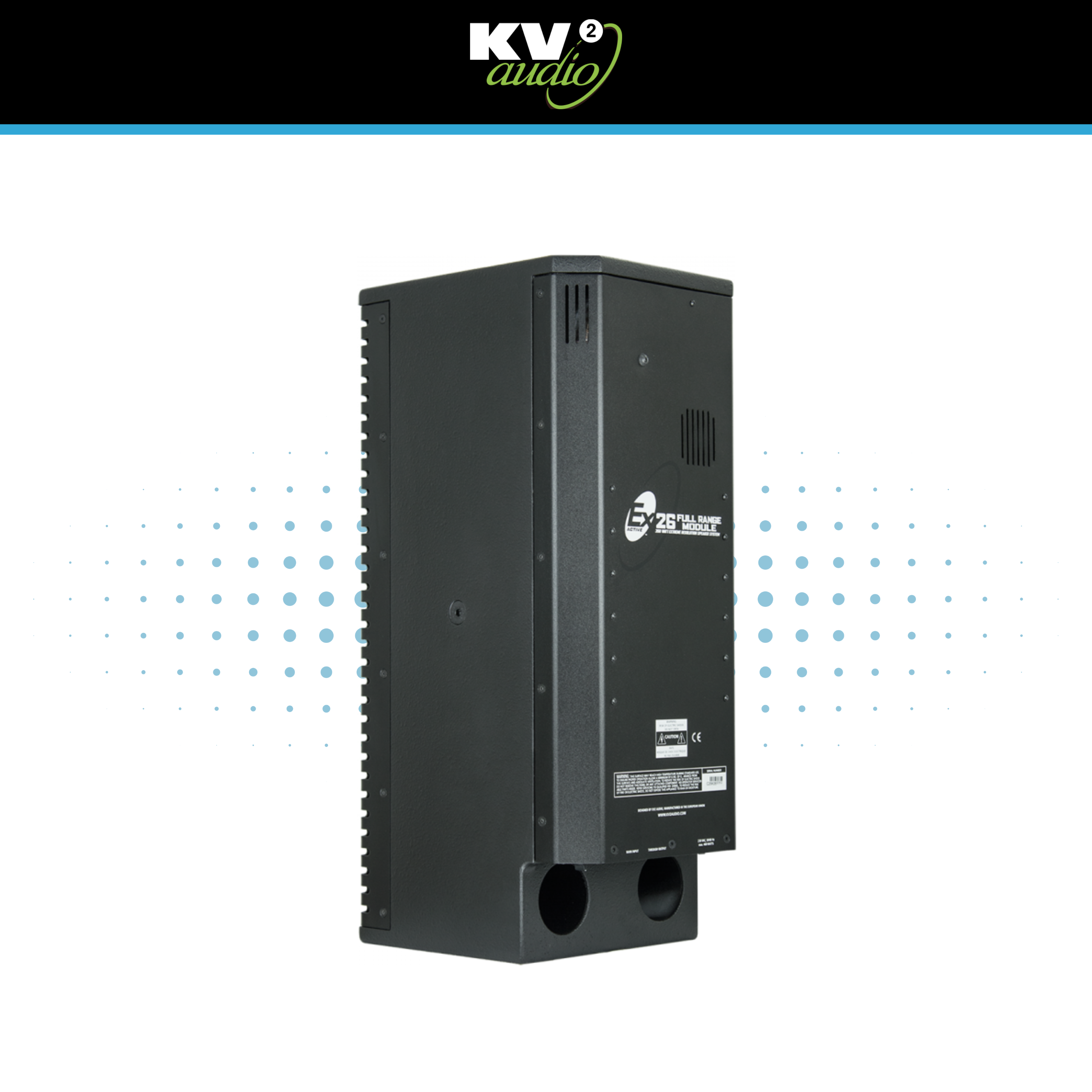

The EX26 features a low-profile, asymmetrical enclosure constructed from durable Baltic birch plywood with a protective coating.
Installation options include:
- Pole mounting
- Wall brackets and rigging points
- Suspension via integrated mounting hardware
Its compact footprint allows it to be deployed in space-restricted environments while maintaining high performance.
Scalable System Integration
While the EX26 performs exceptionally as a standalone loudspeaker, it can also be paired with subwoofers to create a full-range system for larger applications.
This allows:
- Expansion for live sound and events
- Enhanced low-frequency performance
- Scalable system design
The KV2 Audio EX26 delivers outstanding vocal clarity, wide coverage, and reliable performance in a compact form factor. Its dual-driver design and integrated DSP make it a preferred choice for professional AV installations where speech intelligibility and consistent coverage are essential.
Whether used for presentations, worship spaces, or as part of a larger sound system, the EX26 provides a refined and scalable audio solution.
