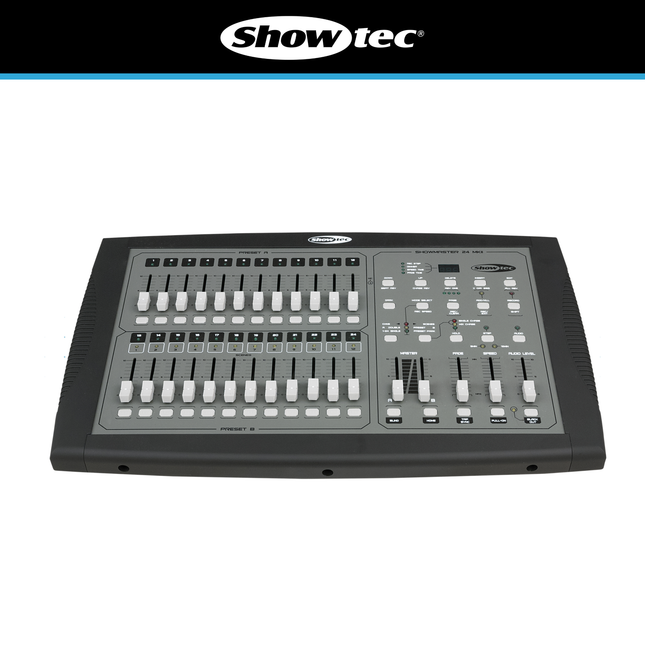

The Showtec Showmaster 24 MKII is a 24 channel DMX lighting control desk designed for users who need hands-on fader control, programmable scenes and reliable show playback in a compact hardware console. It provides a practical control solution for conventional dimmers, LED fixtures and simple DMX lighting rigs where a tactile desk is preferred over software-based control. The desk can control 24 DMX channels from a single DMX universe. It can be operated as two banks of 12 faders or as one bank of 24 faders, giving users flexibility depending on the lighting setup and preferred workflow. This makes it useful for straightforward dimmer control, basic stage lighting, small venue rigs, theatre lighting, rehearsal spaces and multi-purpose lighting systems where direct channel access is important. Programming capability includes 48 scenes and 48 chase programs, with each chase able to contain up to 999 steps. This allows users to store static looks, lighting states, colour changes and movement sequences, then recall them during a performance or event. The console can also run programs automatically or via internal or external music input, making it suitable for both structured playback and audio-triggered lighting operation. The Showmaster 24 MKII also includes MIDI functionality, allowing lighting programs to be triggered as part of a wider real-time control setup. MIDI in and out connections are useful where lighting needs to interact with compatible controllers, sequencing equipment or show control workflows. This adds flexibility beyond basic manual operation while keeping the console approachable for users who prefer physical controls. The control surface includes 29 faders and 44 buttons, giving users direct access to channels, scenes, chases and playback functions. Two independent continuous crossfaders are provided, supporting smoother transitions between programmed looks. A 3-digit LCD display gives clear feedback during operation, while LED indicators show operation mode, output level and signal status. DMX output is provided on a 3-pin XLR connector, allowing the desk to connect directly into a standard DMX lighting chain. The unit also includes DMX inversion functionality, which can be useful when working with certain fixtures or control configurations. Power is supplied via a low-voltage DC plug from the included AC-DC adapter, with a 12V DC output and 6W power consumption. The Showmaster 24 MKII is housed in a black and grey metal/plastic chassis and can be used as a desktop controller or rack-mounted in a 6U space. Side panels and a power adapter are included, allowing the console to be deployed as part of a fixed control position or portable lighting control setup. The IP20 rating means the desk is intended for indoor use only. The console measures 530 x 330 x 150mm and weighs 4.8kg, making it compact enough for control desks, AV racks, lighting booths and portable production setups. Its physical fader layout makes it a straightforward option for users who want immediate control without relying on a computer, touchscreen or complex programming environment. For customers looking for a traditional 24 channel DMX lighting console with scene storage, chase programming, MIDI control and sound-triggered playback, the Showtec Showmaster 24 MKII provides a practical and familiar control surface. With 48 scenes, 48 chases, 24 DMX channels, physical faders, crossfaders, 3-pin DMX output and 6U rack compatibility, it is a dependable choice for simple to mid-level lighting control applications.

Read more less

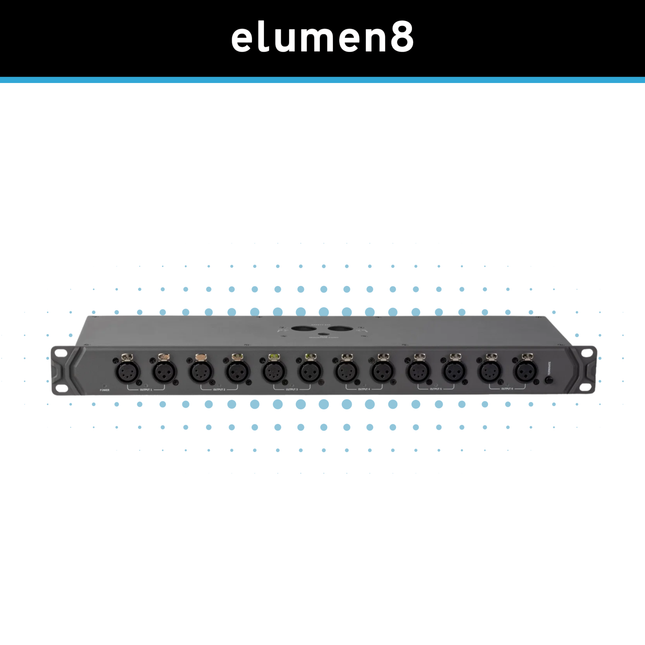

Reliable DMX Signal Distribution for Professional Lighting Systems The Elumen8 Cygnus SPLIT6 DMX Splitter is engineered to deliver stable, reliable DMX signal distribution across demanding lighting environments. Designed for professional AV installers, production companies and venue operators, this 6 way DMX splitter ensures consistent data transmission across multiple fixtures without signal degradation. In modern lighting systems, maintaining signal integrity is critical. The SPLIT6 enables clean DMX distribution from a single controller to multiple outputs, supporting structured cabling layouts while reducing the risk of data errors or signal loss. Optimised for Clean and Scalable DMX Networks This unit allows lighting systems to be deployed in a star wiring configuration, improving system organisation and simplifying cable runs. By splitting a single DMX input into six independently driven outputs, it supports scalable lighting setups across stages, venues and architectural installations. For installers working across theatres, hospitality venues, schools or live event environments, this approach ensures greater flexibility when expanding or modifying lighting systems over time. Opto-Isolated Outputs for System Protection Each of the six outputs is electronically opto-isolated from both the input and other outputs, protecting connected fixtures and control equipment from electrical faults and interference. This level of isolation is essential in professional environments where multiple lighting circuits and power sources are in use. It safeguards the wider system while maintaining signal stability across all connected devices. Simple, Intuitive Connectivity The Cygnus SPLIT6 has been designed with practical installation in mind. With both 3 pin and 5 pin XLR connections available on all inputs and outputs, it offers compatibility with a wide range of lighting fixtures and controllers without the need for additional adaptors. Clear DMX status indicators provide immediate visual feedback, enabling technicians to quickly identify signal presence and troubleshoot issues on site. This reduces downtime and supports efficient system commissioning. Flexible Installation Across Venues Housed in a robust 1U 19 inch rack mount chassis, the SPLIT6 integrates seamlessly into standard rack systems used in fixed installations and touring racks. Whether installed in a theatre control room, a school stage rack, or a mobile production rig, the unit offers a compact and durable solution for DMX signal management. The addition of a passthrough output with switchable termination further enhances flexibility when linking multiple devices in a chain. Built for Demanding Commercial Environments The Cygnus range has been developed to support complex lighting infrastructures across live production, architectural lighting and permanent installations. For AV professionals, this translates to a dependable, professional-grade solution that aligns with the expectations of commercial projects. The SPLIT6 ensures that lighting control signals are delivered accurately and consistently, even in high-demand scenarios. Ideal for Installers and Technical Teams This DMX splitter is particularly suited to integrators and technicians managing multi-zone lighting systems. From dividing control signals across multiple trusses to feeding separate areas of a venue, it provides a practical solution for maintaining organised and efficient lighting networks. In education settings, it simplifies stage lighting distribution across school halls and theatres. In hospitality venues, it enables clean signal routing for ambient and feature lighting. For live events and touring applications, it supports rapid deployment and reliable performance under pressure. Future-Proof Your Lighting Infrastructure As lighting systems grow in complexity, robust signal distribution becomes increasingly important. DMX splitters play a key role in protecting signal integrity, extending cable runs and ensuring consistent performance across all fixtures. The Elumen8 Cygnus SPLIT6 positions itself as a dependable core component within any professional lighting system, enabling scalable, well-structured installations that are built to perform both now and in the future.

Read more less

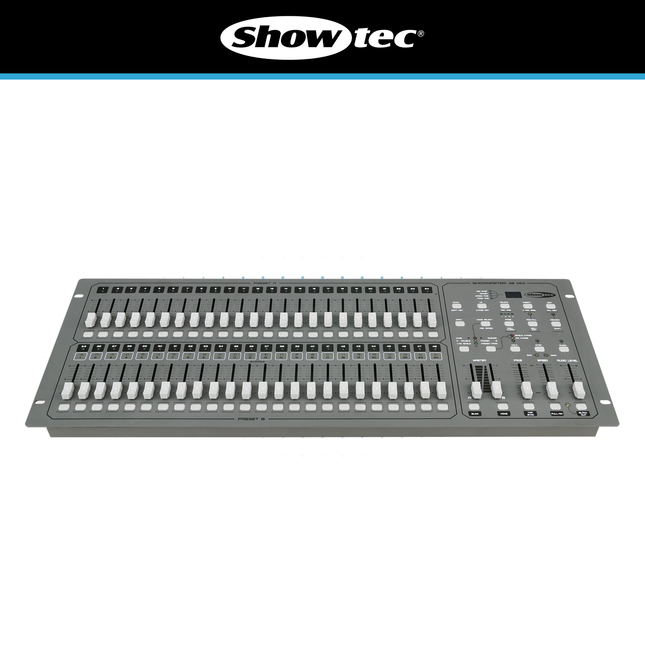

The Showtec Showmaster 48 MKII is a 48 channel DMX lighting control desk designed for users who need hands-on control of conventional dimmers, LED fixtures and straightforward DMX lighting systems. It offers a familiar physical fader layout, programmable scenes, chase playback, MIDI control and sound-triggered operation, making it a practical control solution for stage, venue, theatre, rehearsal and multipurpose lighting environments. The console can be operated as two banks of 24 faders or as one 48 channel control surface, giving users flexibility depending on the lighting setup. This allows direct access to 48 DMX channels when required, while also supporting a more compact banked workflow for smaller rigs. The physical fader layout makes it well suited to users who prefer tactile control over software-based lighting operation. Programming capability is one of the main strengths of the Showmaster 48 MKII. The desk can store 96 scenes or chases, with each chase supporting up to 999 steps. It also offers a total memory capacity of 23976 steps, allowing users to create more detailed cue sequences, lighting looks and playback routines for structured show control. This is useful where multiple lighting states need to be recalled quickly during performances, presentations or events. The console supports manual, MIDI and sound control modes. Manual operation gives direct fader control over connected channels, while MIDI functionality allows the desk to interact with compatible external control systems or triggering devices. Sound-triggered playback allows programs to respond to an audio source, providing a simple way to create music-responsive lighting without detailed cue programming. DMX output is provided via a 3-pin XLR connector, allowing the desk to connect directly into a standard DMX lighting chain. The 5-pin MIDI interface supports real-time programme control and file dump functionality for compatible workflows. An audio input is also included for sound-triggered operation, with a listed input range of 100mV–1Vpp. The Showmaster 48 MKII is built into a 6U rack-compatible format, making it suitable for both desktop and rack-mounted control positions. This is useful where the desk needs to be installed into a control booth, AV rack, portable flight case or fixed lighting control area. Its larger surface gives more direct fader access than the Showmaster 24 MKII while still remaining practical for compact control spaces. The console uses a metal and plastic housing with a grey finish and is rated IP20 for indoor use. It is designed for use in controlled indoor environments and should be protected from moisture, dust-heavy locations and outdoor exposure. The maximum ambient operating temperature is listed at 40°C. Power is supplied from an external PSU, with product specification showing a 12V–20V DC, 500mA requirement. Power consumption is low, making it practical for fixed and portable lighting control setups. The Showtec Showmaster 48 MKII measures 710 x 267 x 90mm and weighs 6.2kg. Its 6U rack size should be considered when planning installation into a rack or flight case. The wider 710mm control surface provides the physical space required for 48 channel control while still remaining manageable for transport and storage. For customers looking for a traditional 48 channel DMX lighting desk with physical faders, scene memory and chase programming, the Showtec Showmaster 48 MKII provides a practical and dependable control surface. With 48 DMX channels, 96 programmable scenes or chases, up to 999 chase steps, MIDI control, sound-triggered playback, 3-pin DMX output and 6U rack compatibility, it is a strong choice for straightforward DMX lighting control.

Read more less

The D512S is a compact and cost-effective USB DMX interface designed for DJs, small venues and compact architectural lighting projects. Delivering a full 512-channel DMX universe, it provides an accessible entry point into professional lighting control while maintaining reliable performance for mobile and fixed installations. In addition to standard USB DMX output, the D512S supports up to 1024 Art-Net channels (two universes) via the host computer’s Ethernet port, offering expanded control capabilities for network-based lighting systems. This dual-protocol functionality allows users to scale their lighting setup without upgrading hardware. A built-in standalone function enables storage of one auto-run scene directly within the interface. This scene automatically activates whenever the unit is not connected to or controlled by software, making it ideal for maintaining a base lighting state before events, after shows, during setup periods or for safety illumination. Constructed with a durable metal casing, the D512S is built for dependable use in portable and installed environments. Electrical protection on the DMX output enhances system reliability and safeguards connected fixtures. Affordable, practical and easy to deploy, the D512S offers an effective solution for users seeking straightforward DMX and Art-Net lighting control in a compact format.

Read more less

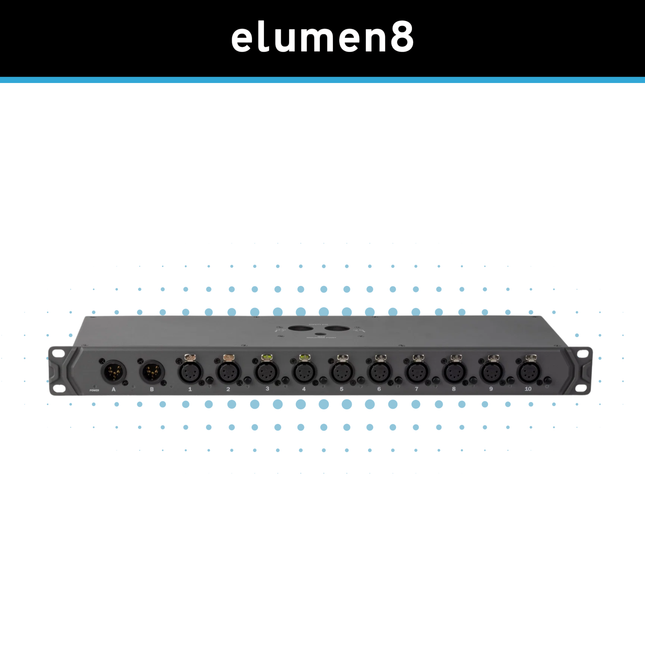

High-Capacity DMX Distribution for Complex Lighting Systems The Elumen8 Cygnus SPLIT10 DMX Splitter is designed to support large-scale lighting systems where reliable signal distribution is critical. With ten independently driven outputs, this unit provides a scalable solution for distributing DMX signals across multiple fixtures, zones or trusses without compromising performance. For AV installers and lighting professionals managing complex environments, the SPLIT10 ensures consistent data delivery across extended networks, supporting both permanent installations and live production setups. Dual Input Flexibility for Redundancy and Control A key advantage of the SPLIT10 is its dual DMX input architecture. With two selectable inputs and A/B switching available on each output, users can route signals with greater control and flexibility. This functionality is particularly valuable in professional environments where redundancy is required. Whether operating a primary and backup controller or switching between control sources, the unit enables seamless signal management without system disruption. Opto-Isolated Outputs for System Protection Each of the ten outputs is electronically opto-isolated from both the inputs and one another, protecting the wider lighting system from electrical faults, interference and ground loops. This level of protection is essential in commercial installations where multiple power circuits and long cable runs are common. By isolating each output, the SPLIT10 safeguards connected fixtures and ensures consistent signal integrity across the entire network. Designed for Structured and Scalable Cabling The SPLIT10 simplifies DMX infrastructure by enabling a star wiring topology. This approach improves cable management, reduces troubleshooting complexity and enhances overall system reliability. For installers, this means cleaner rack builds, more organised cable runs and a future-proofed system that can be expanded with ease. It is particularly effective in venues where multiple lighting zones require independent signal distribution. Clear Visual Feedback and Operational Confidence Each output features dedicated status indicators, allowing technicians to quickly identify active signal paths and diagnose issues in real time. Combined with A/B input indicators, this provides immediate visibility of system behaviour during setup and operation. In fast-paced environments such as live events or theatre productions, this level of clarity supports efficient troubleshooting and minimises downtime. Built for Professional Installation and Touring Housed within a robust 1U 19 inch rack mount chassis, the Cygnus SPLIT10 integrates seamlessly into standard rack systems. Its durable construction ensures suitability for both fixed installations and mobile production rigs. An integrated M10 mounting point also allows for flexible rigging options, making the unit equally viable for truss-mounted applications where rack space may be limited. Versatile Application Across Commercial Sectors The SPLIT10 is well suited to a wide range of commercial AV environments. In theatres and performance venues, it enables reliable distribution across multiple lighting positions and universes. In education settings, it supports structured stage lighting systems within school halls and auditoriums. Hospitality venues benefit from its ability to segment lighting zones across bars, dining areas and feature spaces, while live production teams can rely on its stability when deploying temporary or touring systems. Future-Ready DMX Infrastructure As lighting systems become more advanced, the importance of robust DMX signal distribution continues to grow. Splitters play a critical role in maintaining signal integrity, extending cable runs and protecting equipment within modern lighting networks. The Elumen8 Cygnus SPLIT10 provides a dependable foundation for these systems, ensuring accurate and consistent data transmission across even the most demanding applications. For installers and integrators, it represents a practical and scalable solution that aligns with the evolving requirements of professional lighting control.

Read more less
