The Showtec Showmaster 48 MKII is a 48 channel DMX lighting control desk designed for users who need hands-on control... Read more
£260.00 Incl. VAT
Guaranteed secure & safe checkout.

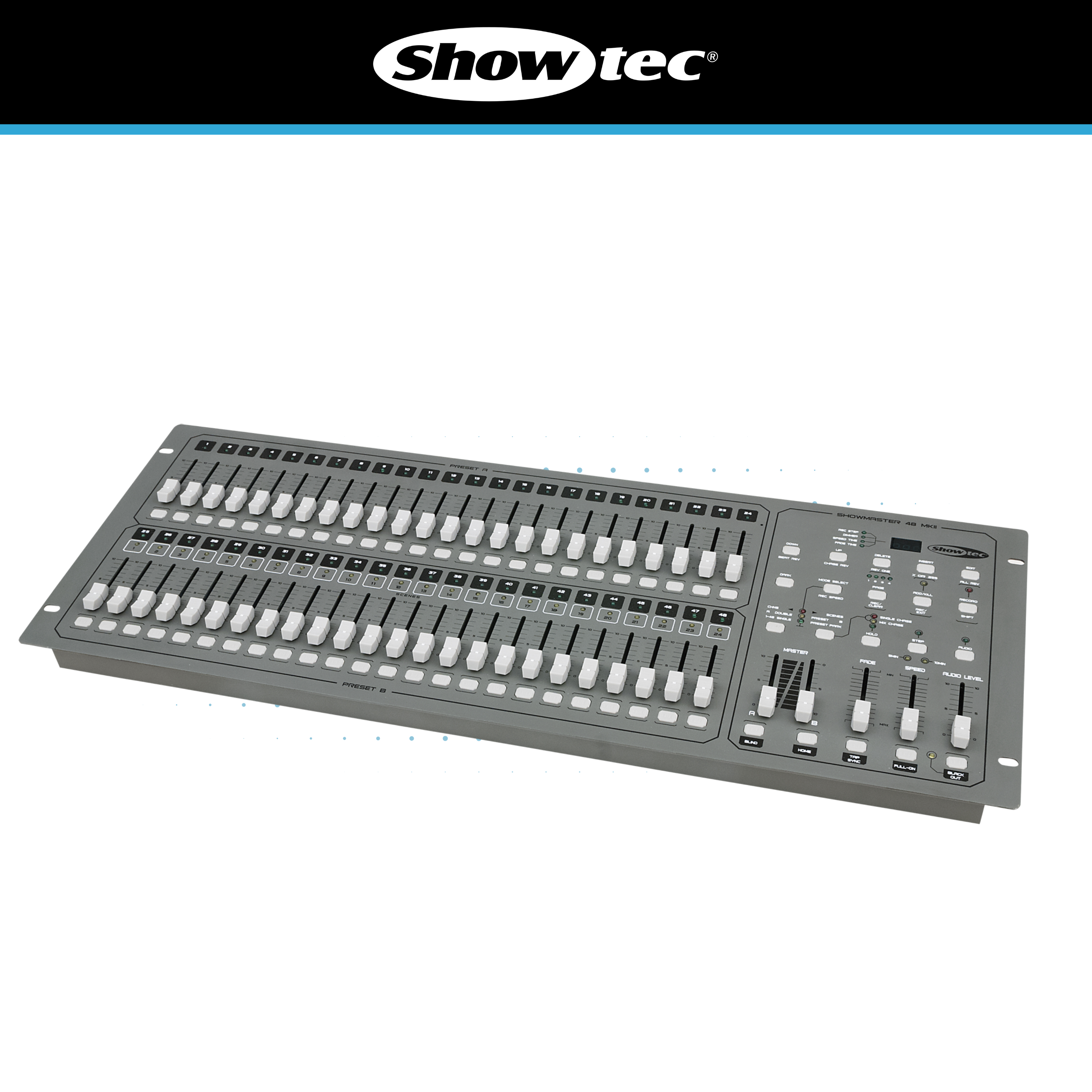

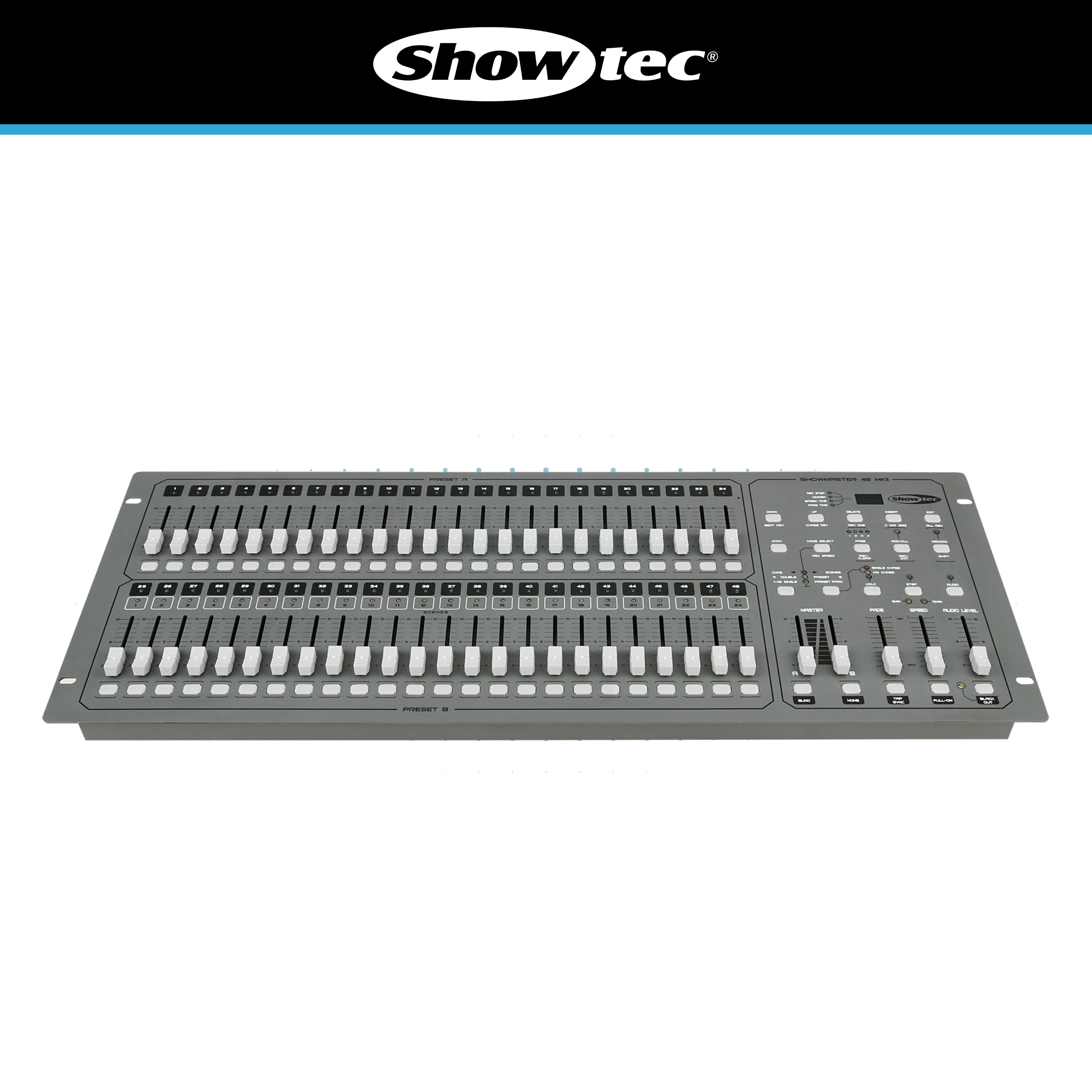

The Showtec Showmaster 48 MKII is a 48 channel DMX lighting control desk designed for users who need hands-on control of conventional dimmers, LED fixtures and straightforward DMX lighting systems. It offers a familiar physical fader layout, programmable scenes, chase playback, MIDI control and sound-triggered operation, making it a practical control solution for stage, venue, theatre, rehearsal and multipurpose lighting environments.
The console can be operated as two banks of 24 faders or as one 48 channel control surface, giving users flexibility depending on the lighting setup. This allows direct access to 48 DMX channels when required, while also supporting a more compact banked workflow for smaller rigs. The physical fader layout makes it well suited to users who prefer tactile control over software-based lighting operation.
Programming capability is one of the main strengths of the Showmaster 48 MKII. The desk can store 96 scenes or chases, with each chase supporting up to 999 steps. It also offers a total memory capacity of 23976 steps, allowing users to create more detailed cue sequences, lighting looks and playback routines for structured show control. This is useful where multiple lighting states need to be recalled quickly during performances, presentations or events.
The console supports manual, MIDI and sound control modes. Manual operation gives direct fader control over connected channels, while MIDI functionality allows the desk to interact with compatible external control systems or triggering devices. Sound-triggered playback allows programs to respond to an audio source, providing a simple way to create music-responsive lighting without detailed cue programming.

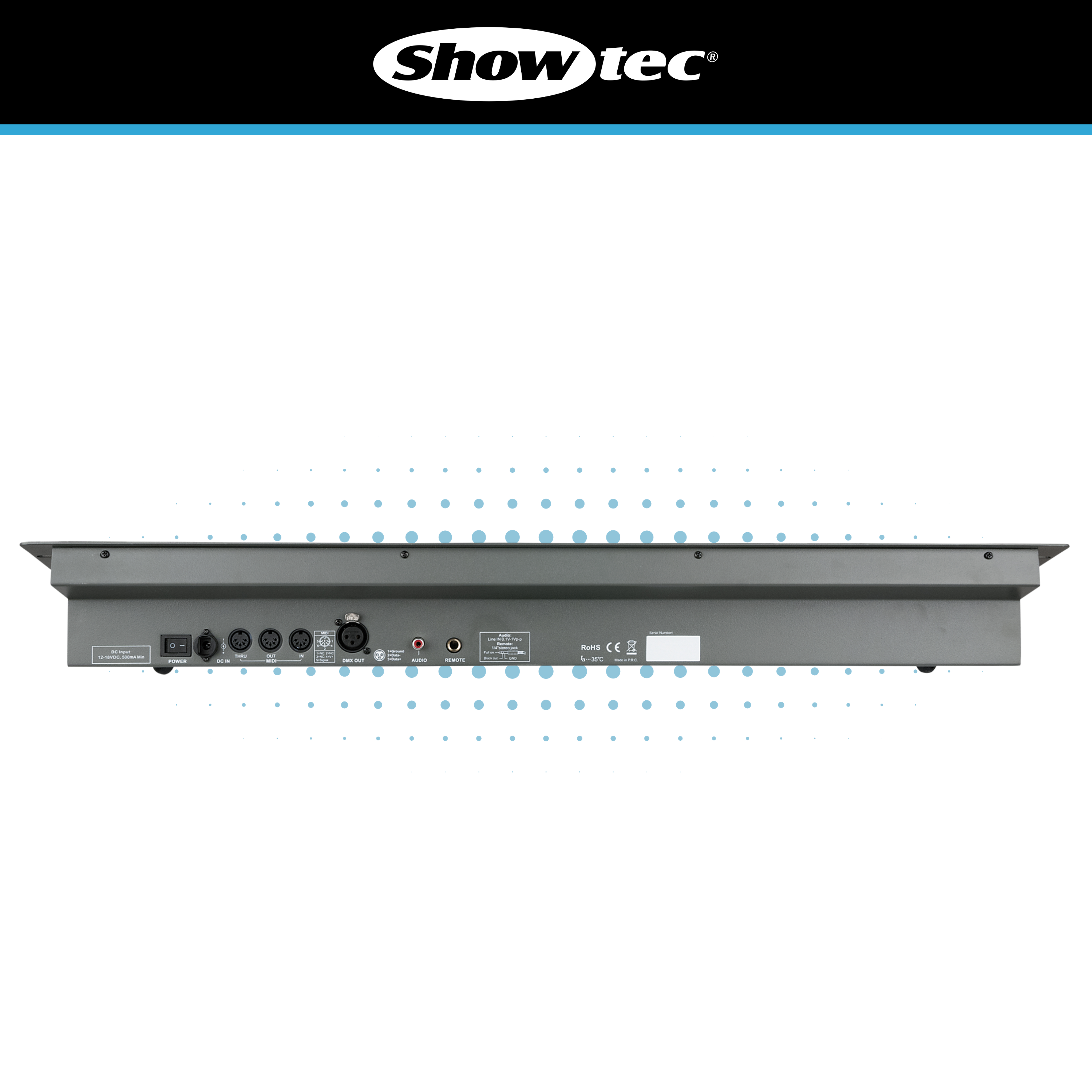

DMX output is provided via a 3-pin XLR connector, allowing the desk to connect directly into a standard DMX lighting chain. The 5-pin MIDI interface supports real-time programme control and file dump functionality for compatible workflows. An audio input is also included for sound-triggered operation, with a listed input range of 100mV–1Vpp.
The Showmaster 48 MKII is built into a 6U rack-compatible format, making it suitable for both desktop and rack-mounted control positions. This is useful where the desk needs to be installed into a control booth, AV rack, portable flight case or fixed lighting control area. Its larger surface gives more direct fader access than the Showmaster 24 MKII while still remaining practical for compact control spaces.
The console uses a metal and plastic housing with a grey finish and is rated IP20 for indoor use. It is designed for use in controlled indoor environments and should be protected from moisture, dust-heavy locations and outdoor exposure. The maximum ambient operating temperature is listed at 40°C.
Power is supplied from an external PSU, with product specification showing a 12V–20V DC, 500mA requirement. Power consumption is low, making it practical for fixed and portable lighting control setups.
The Showtec Showmaster 48 MKII measures 710 x 267 x 90mm and weighs 6.2kg. Its 6U rack size should be considered when planning installation into a rack or flight case. The wider 710mm control surface provides the physical space required for 48 channel control while still remaining manageable for transport and storage.
For customers looking for a traditional 48 channel DMX lighting desk with physical faders, scene memory and chase programming, the Showtec Showmaster 48 MKII provides a practical and dependable control surface. With 48 DMX channels, 96 programmable scenes or chases, up to 999 chase steps, MIDI control, sound-triggered playback, 3-pin DMX output and 6U rack compatibility, it is a strong choice for straightforward DMX lighting control.
