The Showtec AirDrive 2.4 Pocket is a compact wireless DMX512 transceiver designed for creating reliable wireless DMX links without running... Read more
£165.00 Incl. VAT
Guaranteed secure & safe checkout.

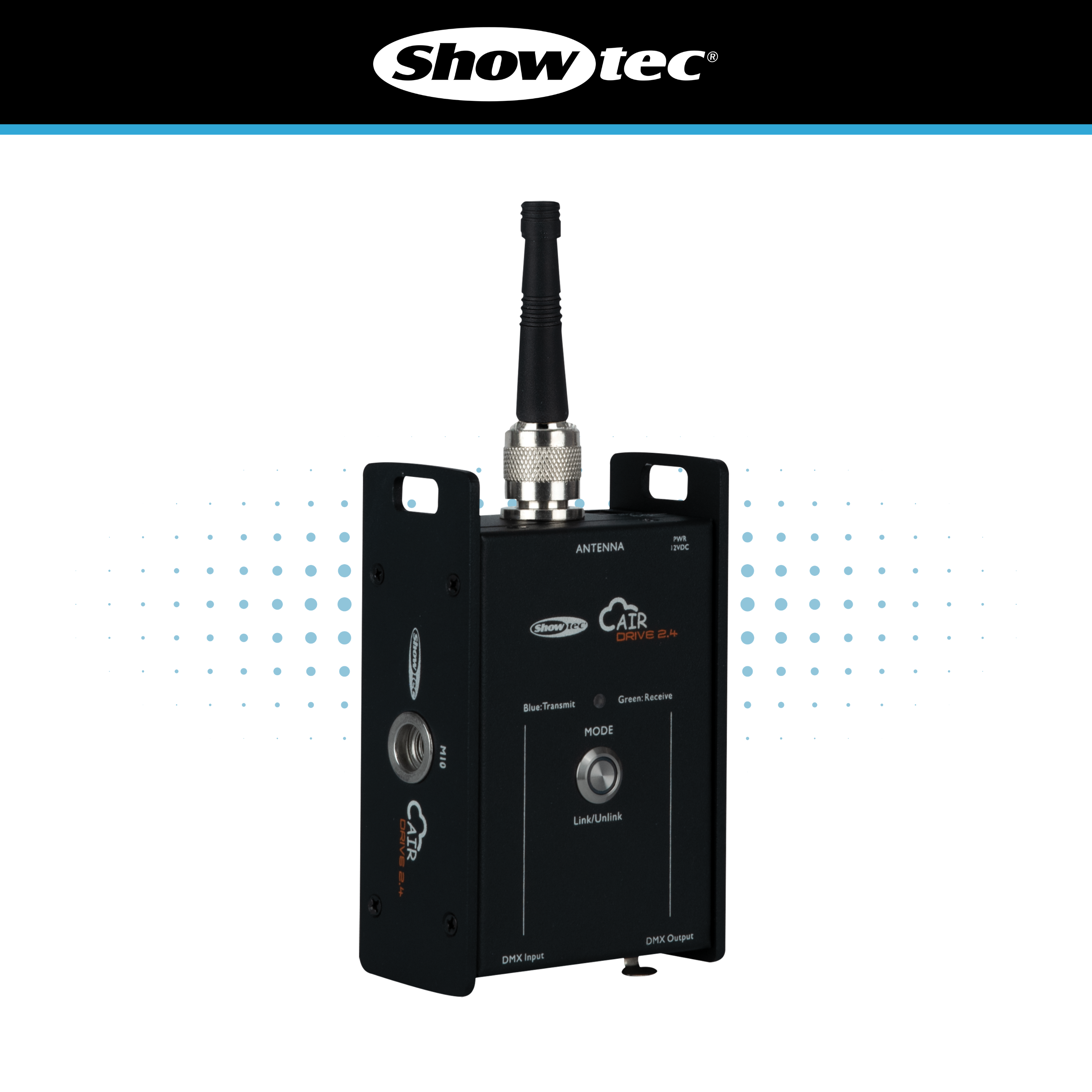

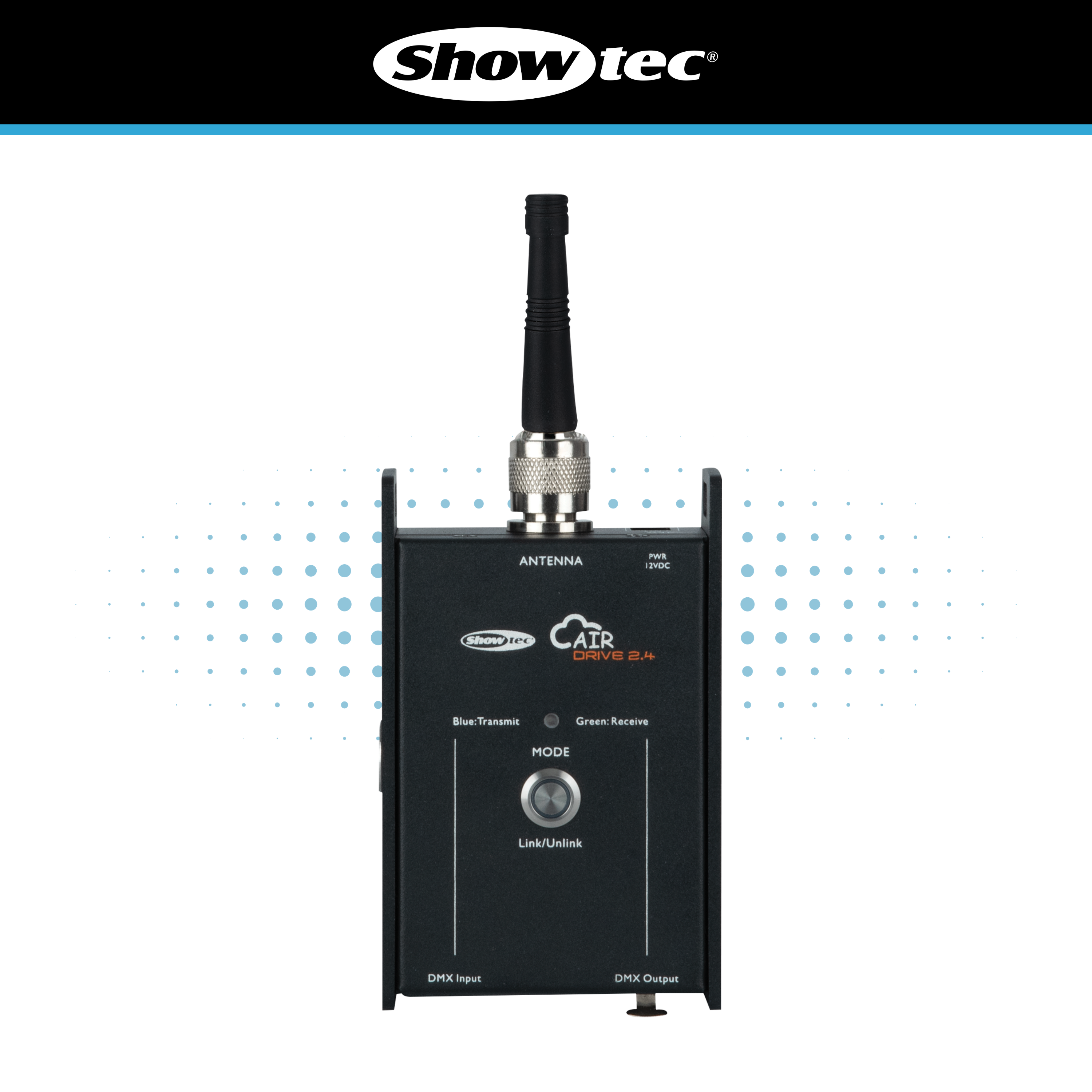

The Showtec AirDrive 2.4 Pocket is a compact wireless DMX512 transceiver designed for creating reliable wireless DMX links without running long control cables across a venue, stage or production space. It can be switched between transmitter and receiver operation, making it a flexible solution for sending DMX from a controller to one or more compatible receiver units.

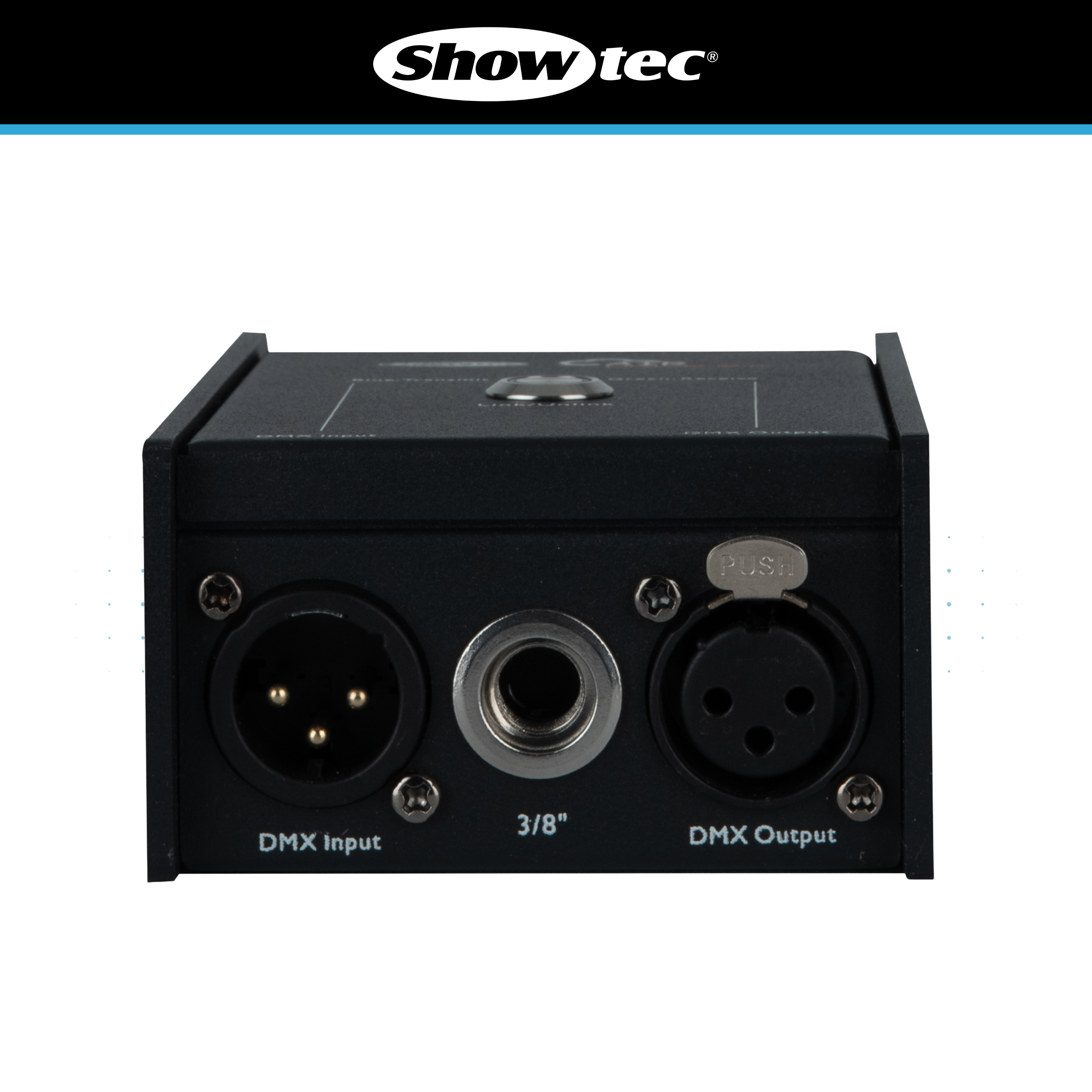

This listing covers both available variants: the 3-pin XLR version and the 5-pin XLR version. Both versions provide the same core wireless DMX functionality, with the main difference being the DMX connector format. The 3-pin version is suitable for lighting systems using 3-pin DMX cabling, while the 5-pin version is suitable for systems using the professional 5-pin DMX standard.
The AirDrive 2.4 Pocket supports transmitter operation in G3 and G4 modes, with receiver operation in G3 and G4S modes. A working wireless DMX system requires at least two units, with one configured as the transmitter and one or more units configured as receivers. Multiple receiver units can be paired to a transmitter, allowing a wireless DMX signal to be distributed to several fixture positions where compatible operation is required.
With support for 512 DMX channels, the AirDrive 2.4 Pocket can transmit a full DMX universe. This makes it suitable for lighting control applications where fixtures, dimmers or control devices need to be linked wirelessly while retaining standard DMX control. The listed reaction time is 5ms, supporting responsive control for typical lighting cues, fades and fixture operation.
The compact metal housing is designed for practical use in professional lighting environments. Measuring 125 x 78 x 44mm and weighing 0.38kg, the unit is easy to position around a lighting rig, control area or fixture location. The black finish keeps it visually discreet, while the IP20 rating confirms it is intended for indoor use.

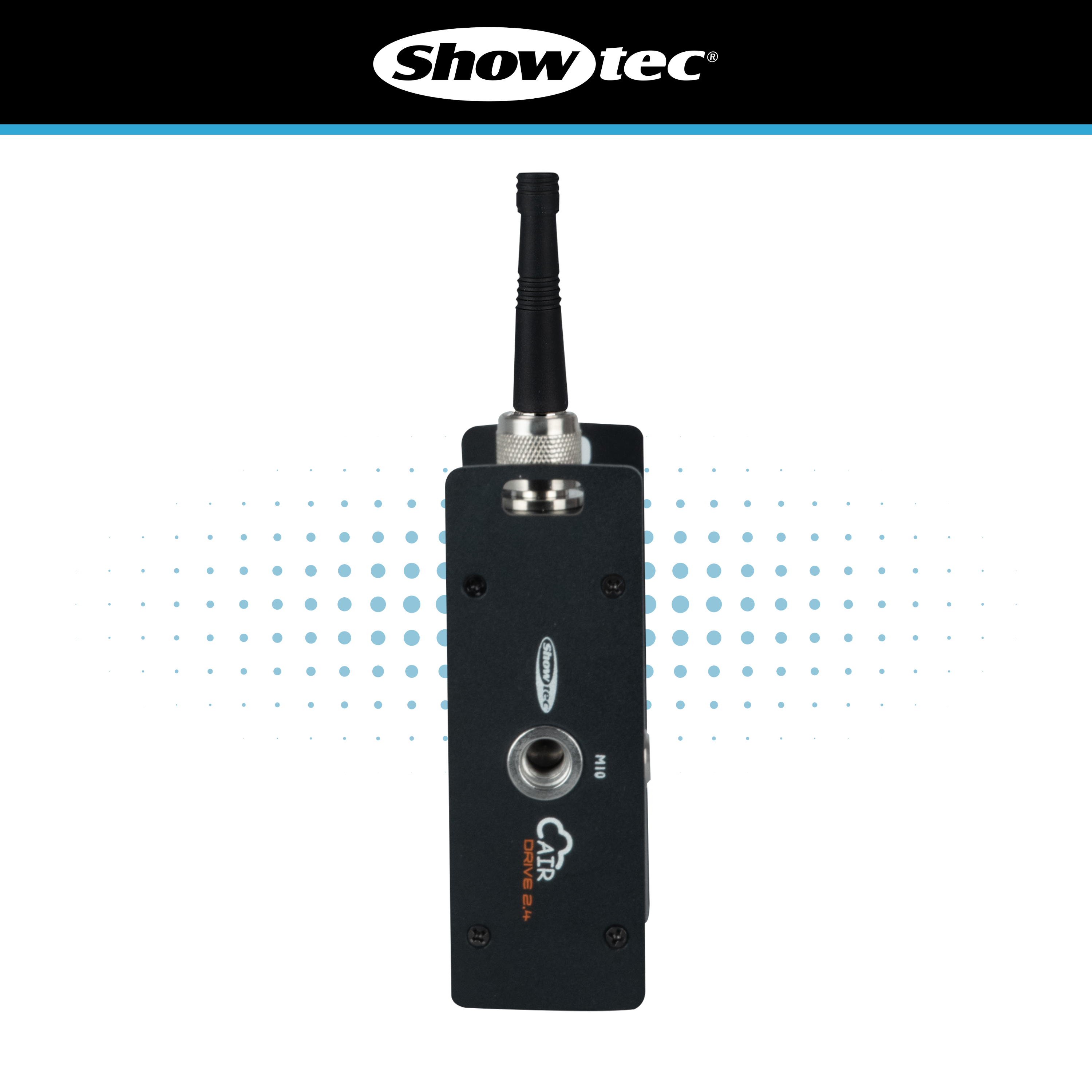

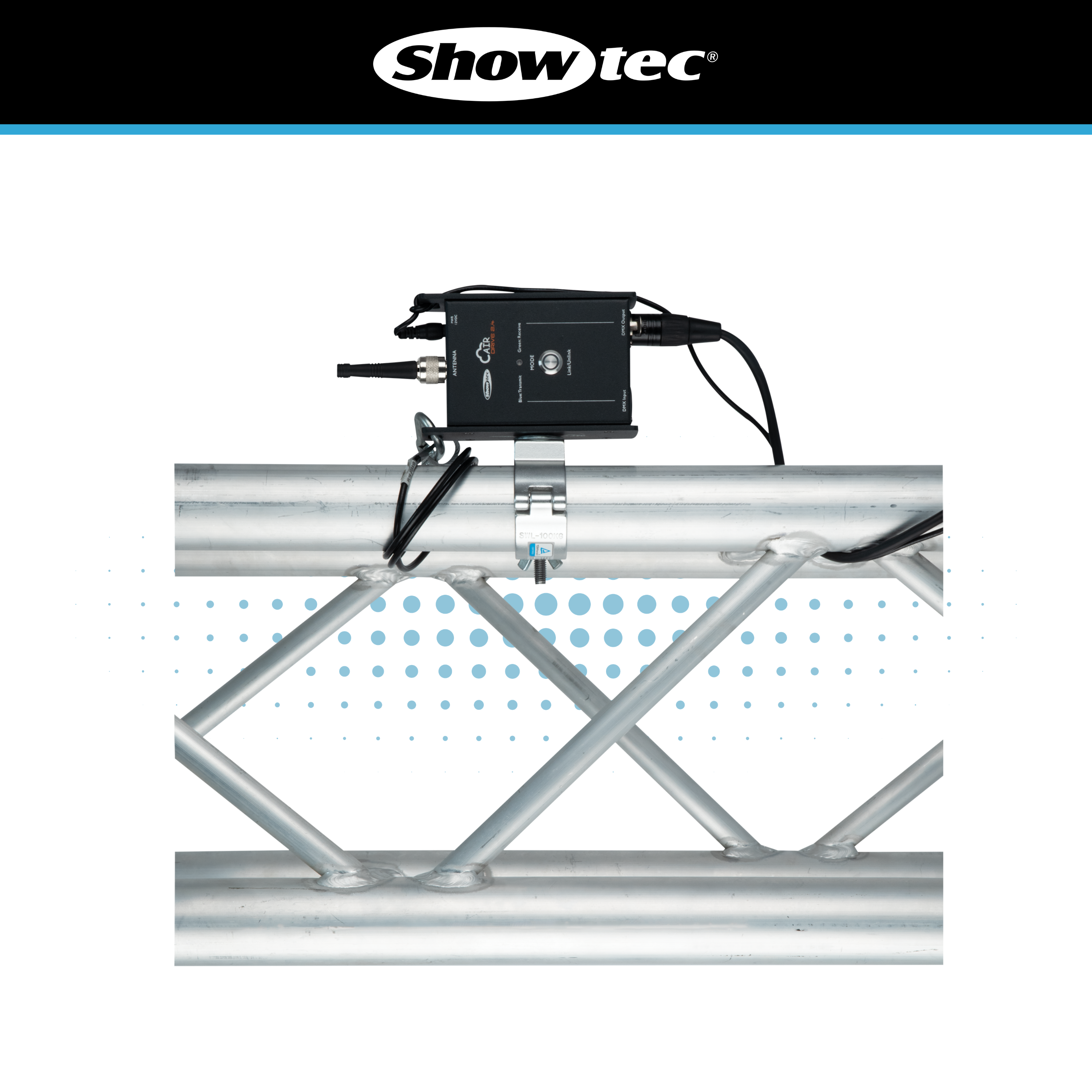

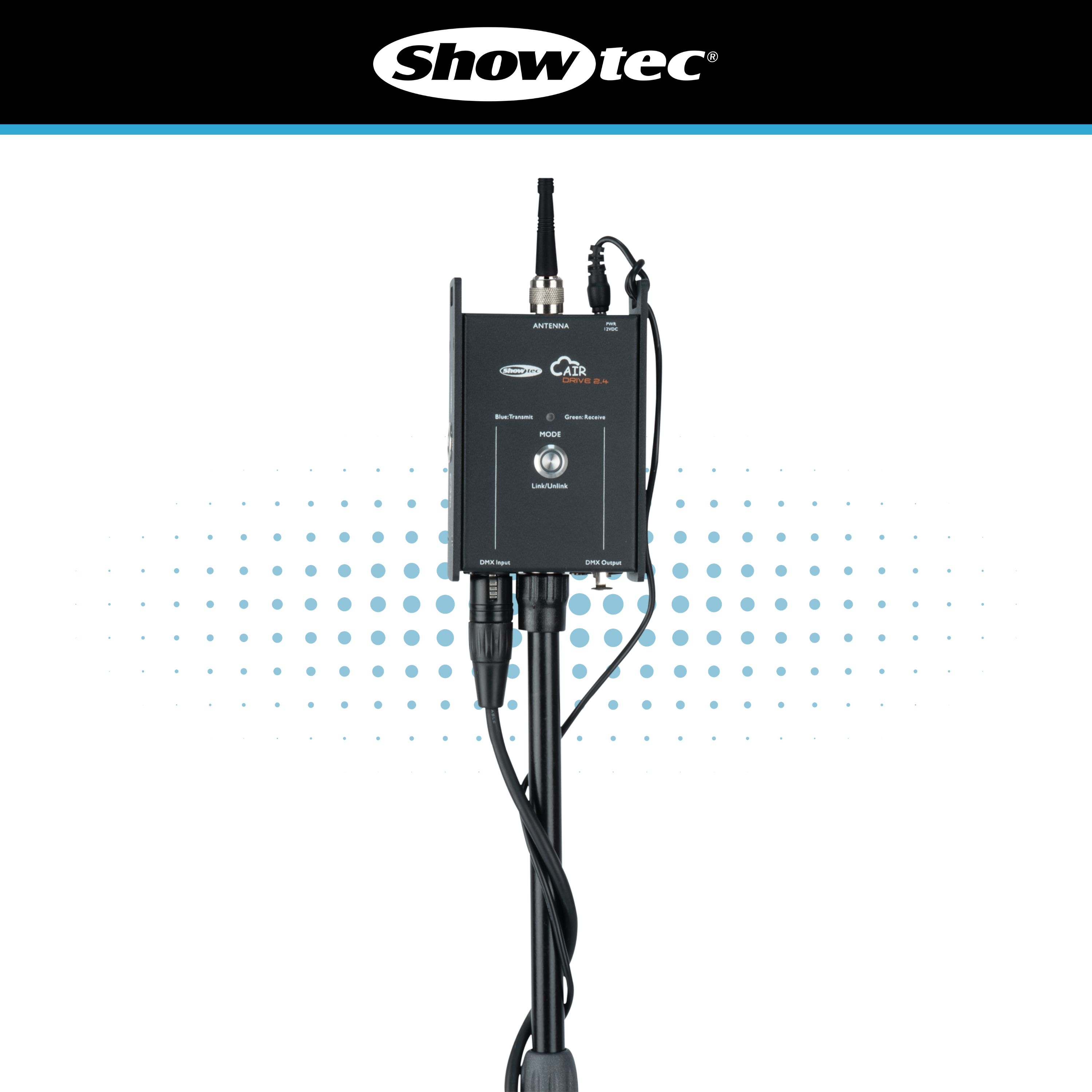

Mounting flexibility is built in. The AirDrive 2.4 Pocket includes both M10 and 3/8" mounting threads, allowing it to be fitted to a clamp or mounted on a microphone stand where required. This is particularly useful when the unit needs to be raised for better line-of-sight performance. Line-of-sight operation is recommended for optimum wireless reception and maximum range.
The unit uses an omni-directional antenna with 360° x 180° radiation, giving practical coverage for wireless DMX deployment. The product is also compatible with the Showtec AirDrive 2.4 IP, making it useful within wider Showtec wireless DMX systems where compatible devices are already in use.

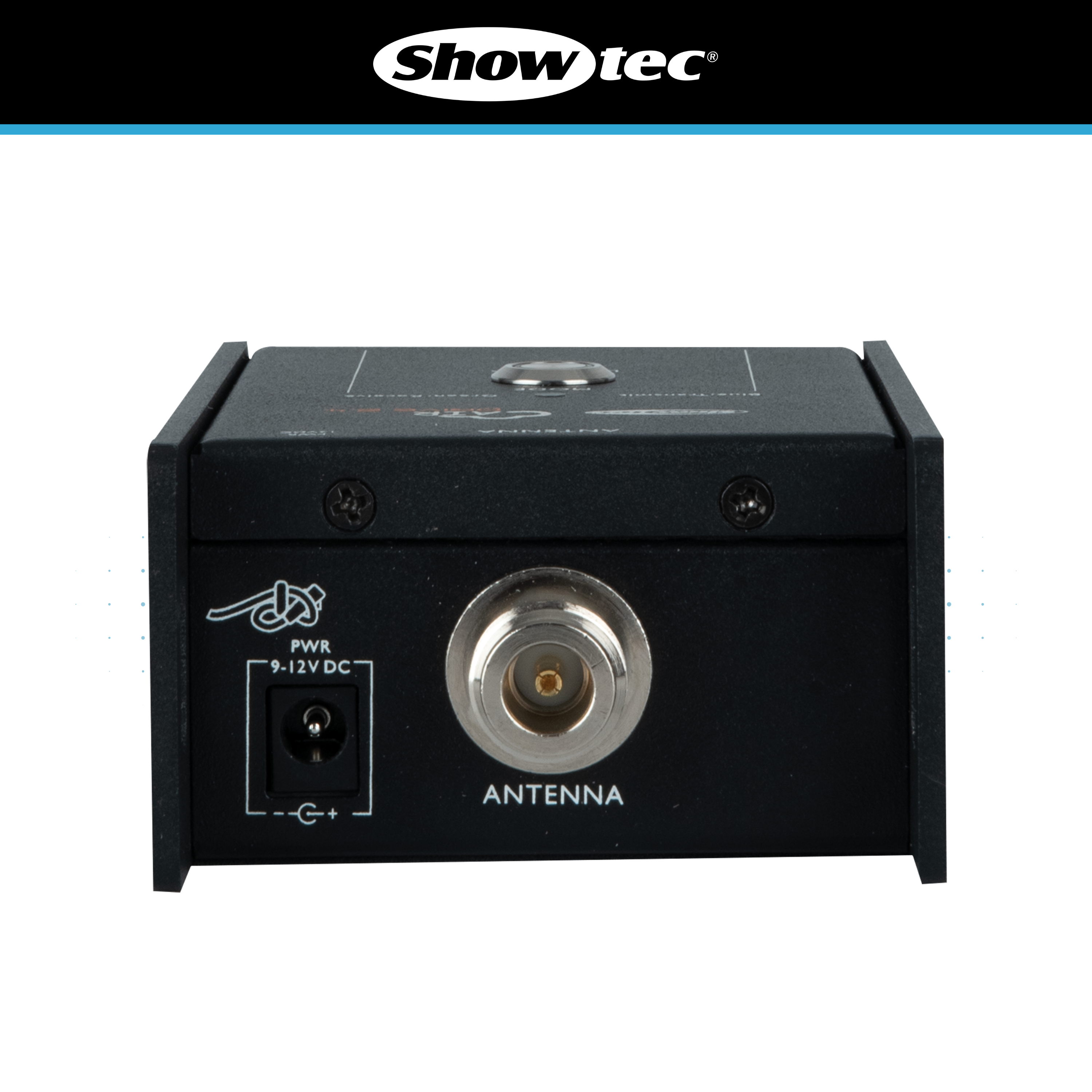

A universal power supply is included, allowing the unit to be powered easily as part of a fixed or temporary setup. The compact design, quick setup process and selectable transceiver operation make the AirDrive 2.4 Pocket a practical solution for reducing DMX cable runs and creating cleaner lighting control layouts.
The Showtec AirDrive 2.4 Pocket is a strong choice for users who need a compact wireless DMX transceiver with flexible connector options. With 3-pin and 5-pin variants available, G3/G4 wireless support, 512 DMX channels, M10 and 3/8" mounting threads, universal power supply and compatibility with the AirDrive 2.4 IP, it provides a practical wireless control accessory for modern lighting systems.
