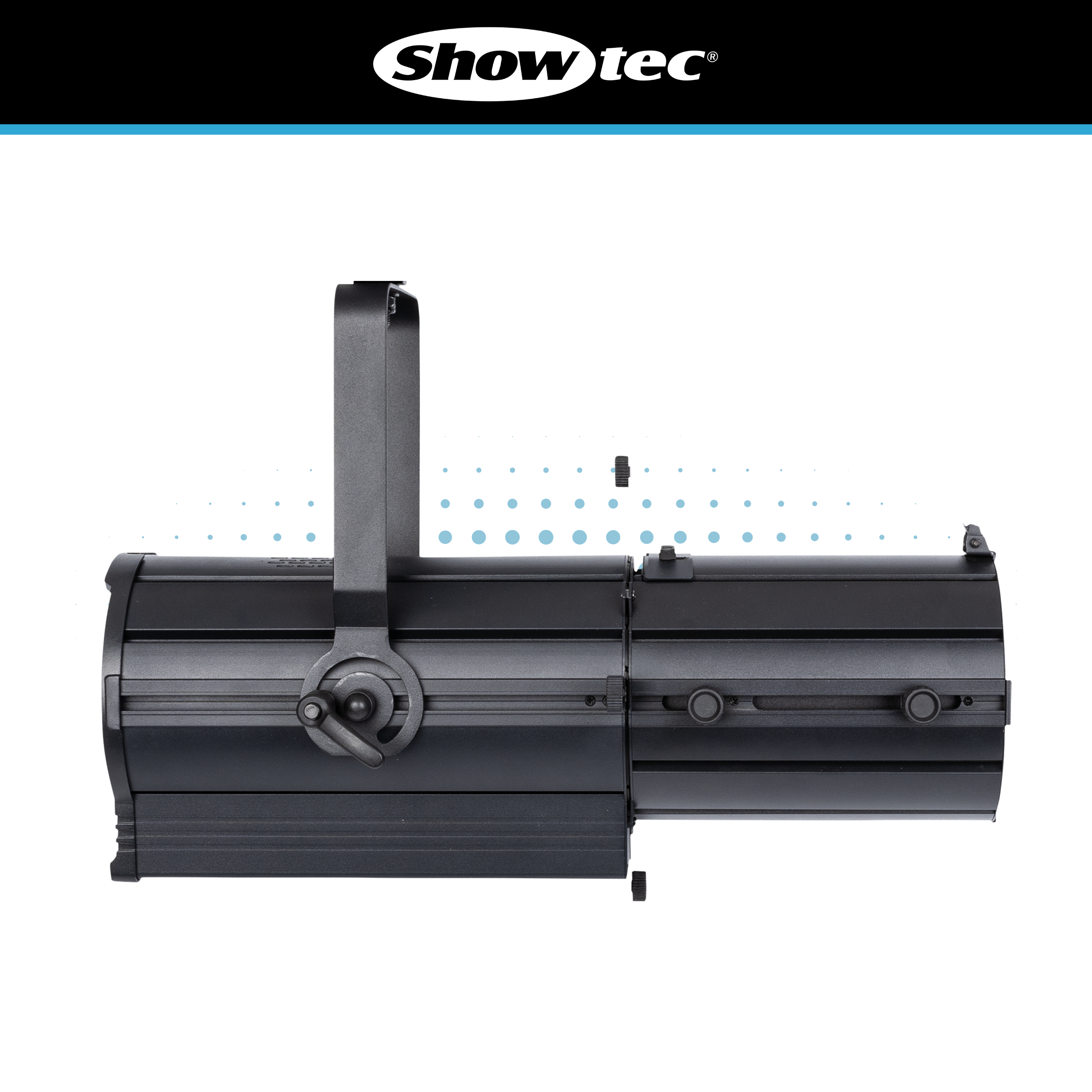

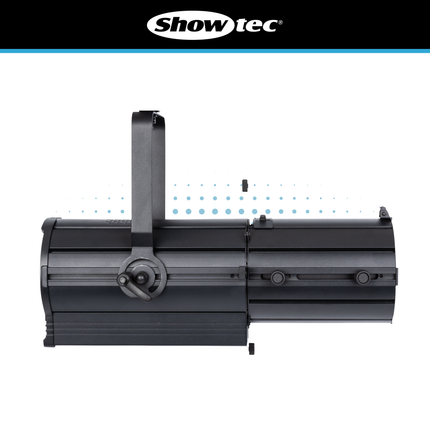

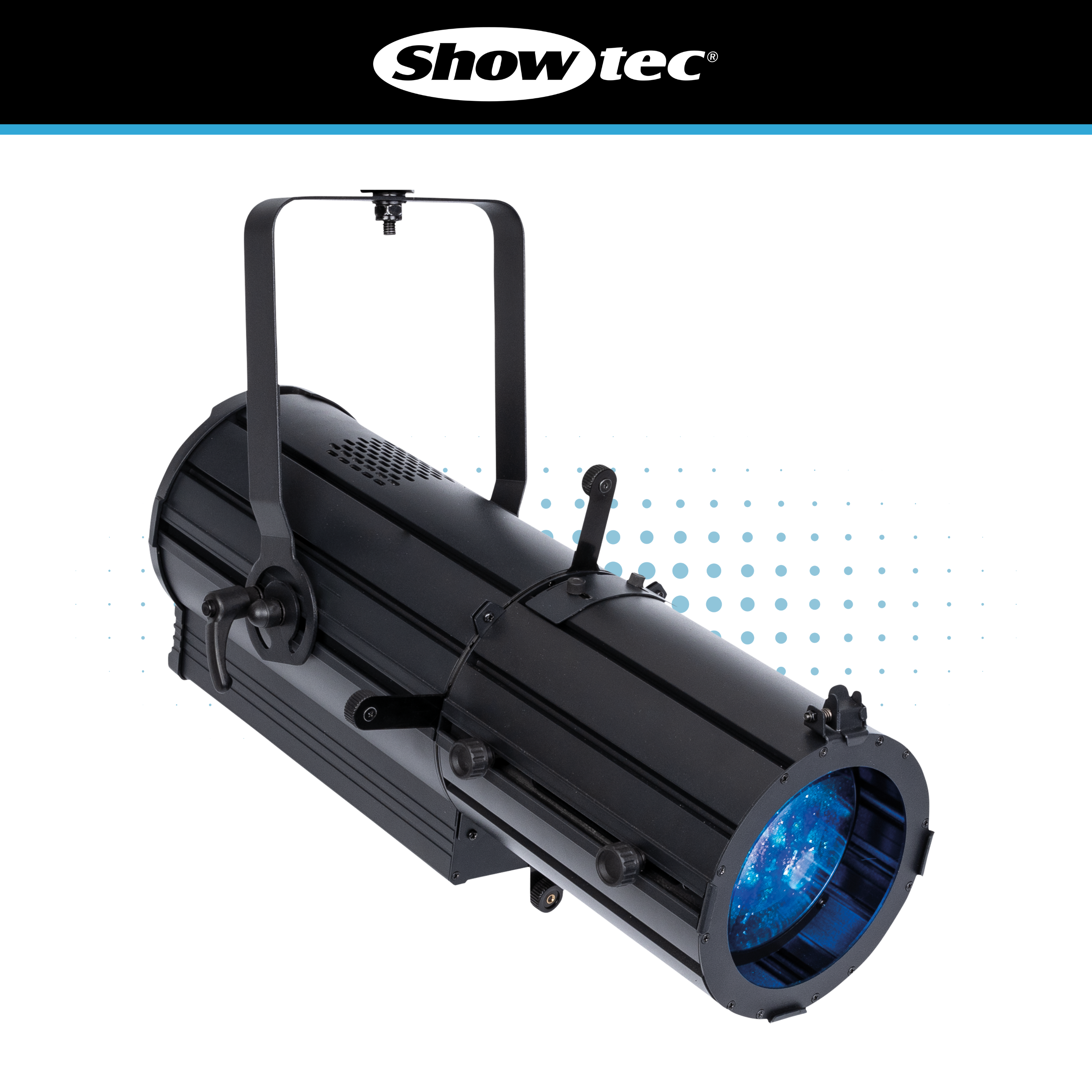

The Showtec ACT Profile 150W RGBAL is a compact LED profile spotlight designed for precise, hard-edged lighting with refined RGBAL colour mixing and variable white output. Built around a 150W RGBAL LED source, it provides a professional profile fixture option for users who need controlled beam shaping, strong colour flexibility and accurate light placement from a compact housing.
The RGBAL colour system combines red, green, blue, amber and lime LEDs, giving the fixture a wider and more balanced colour palette than standard RGB or RGBW fixtures. Amber helps create warmer tones and richer mixed colours, while lime supports improved colour rendering and more natural white balance. With a colour temperature range from 2700K to 10000K, the ACT Profile 150W RGBAL can produce warm white, cool white and a broad range of coloured looks from the same fixture.
The fixture has a CRI of 91, making it suitable where accurate colour reproduction is required. This is particularly useful when lighting people, scenery, fabrics, products, artwork or display areas where colour quality needs to remain convincing. Its 3571 lumen output provides a capable level of brightness for a compact LED profile, while the 150W source keeps power use efficient compared with traditional lamp-based profile fixtures.

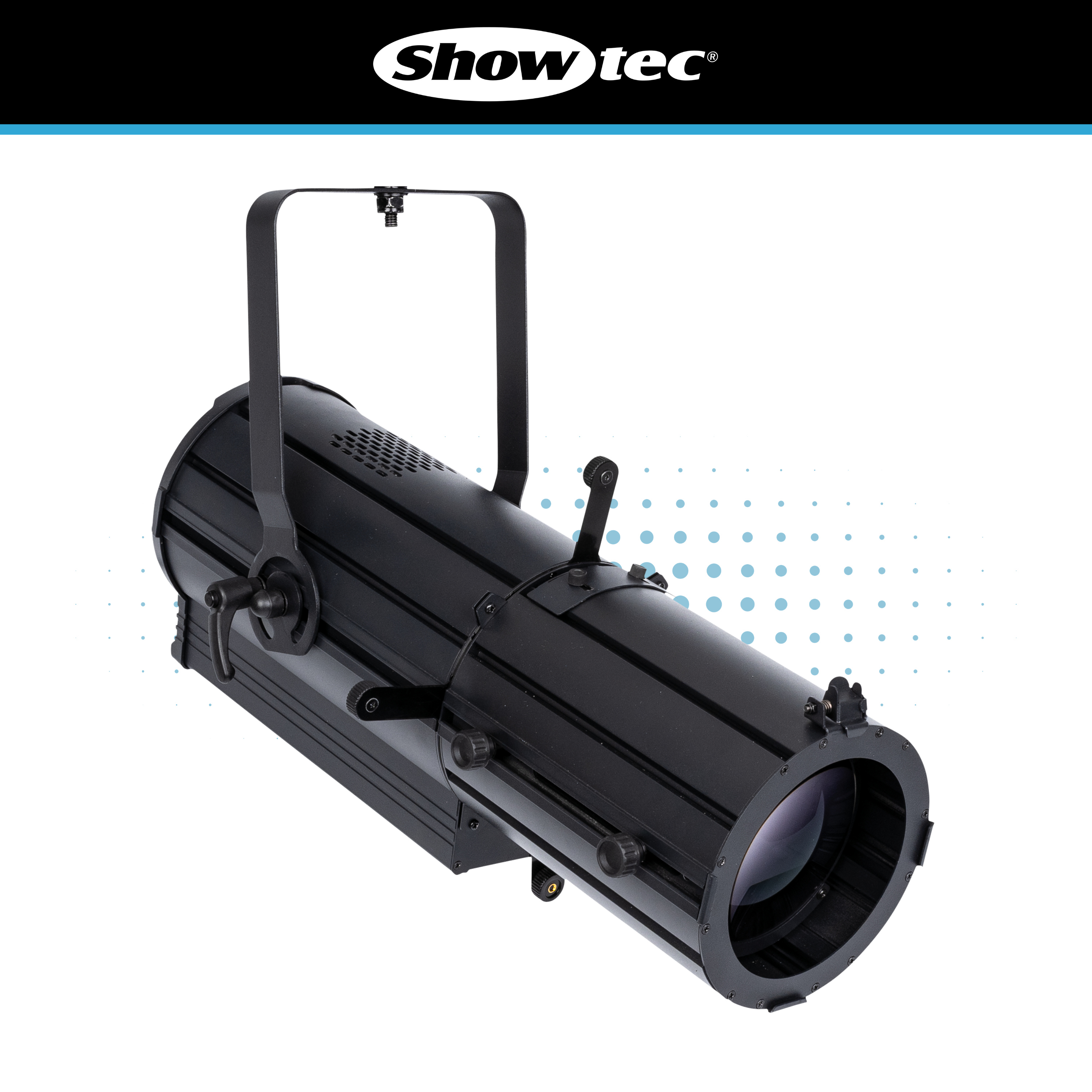

A key feature of the ACT Profile 150W RGBAL is its manually adjustable 23°–46° zoom range. This allows the beam to be adjusted from a tighter profile spot to a wider coverage area without changing lens tubes or accessories. The profile design creates a bright, hard-edged beam that can be accurately shaped and focused, making it useful for controlled lighting positions where a soft wash fixture would not provide enough definition.
The fixture includes a 4-blade manual shutter system, allowing the beam to be cropped and shaped directly at the unit. This is essential for profile-style lighting, as it allows users to keep light away from unwanted areas, frame specific zones or create clean-edged lighting for stages, sets, lecterns, displays and performance spaces. The included shutter system gives the ACT Profile 150W RGBAL practical beam control straight out of the box.

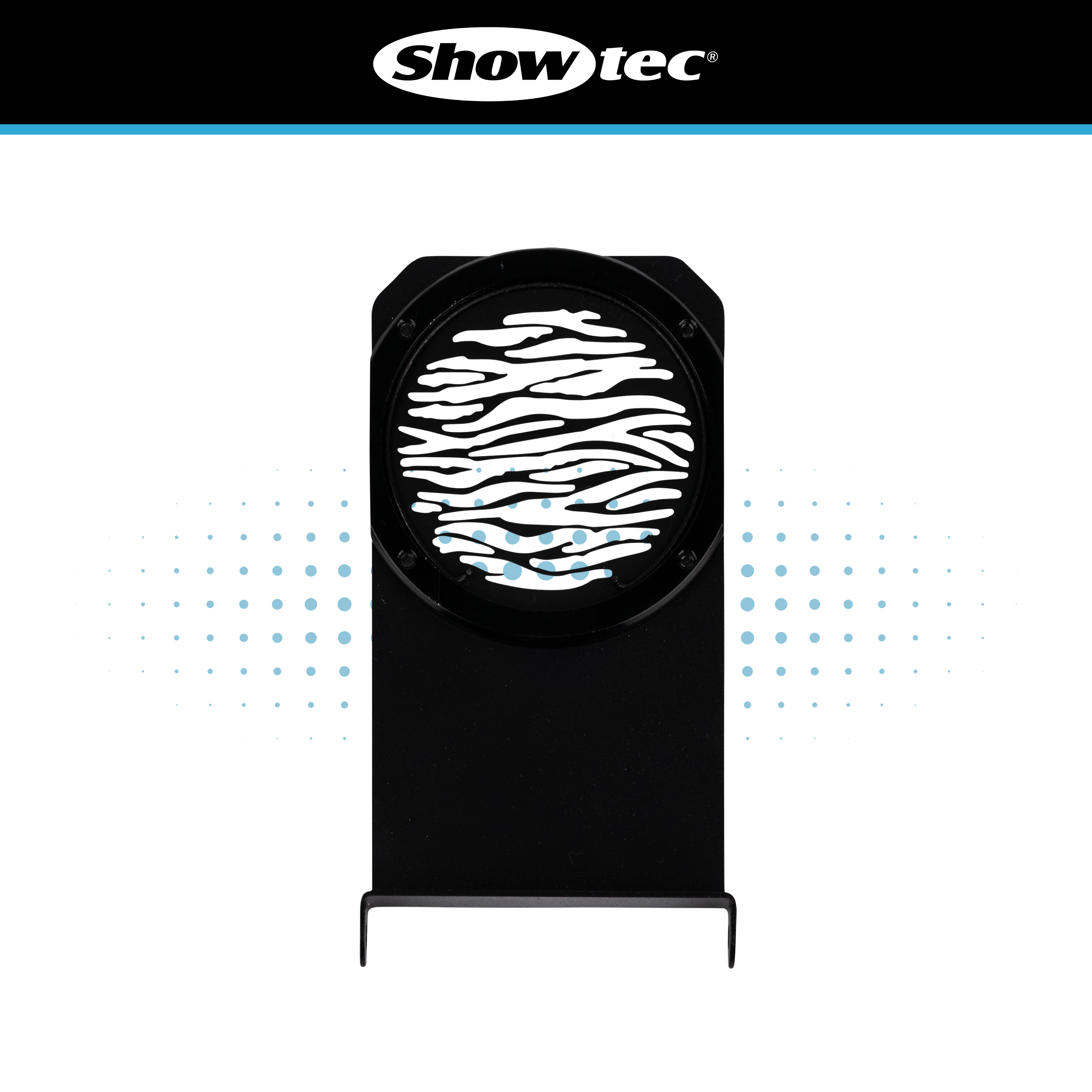

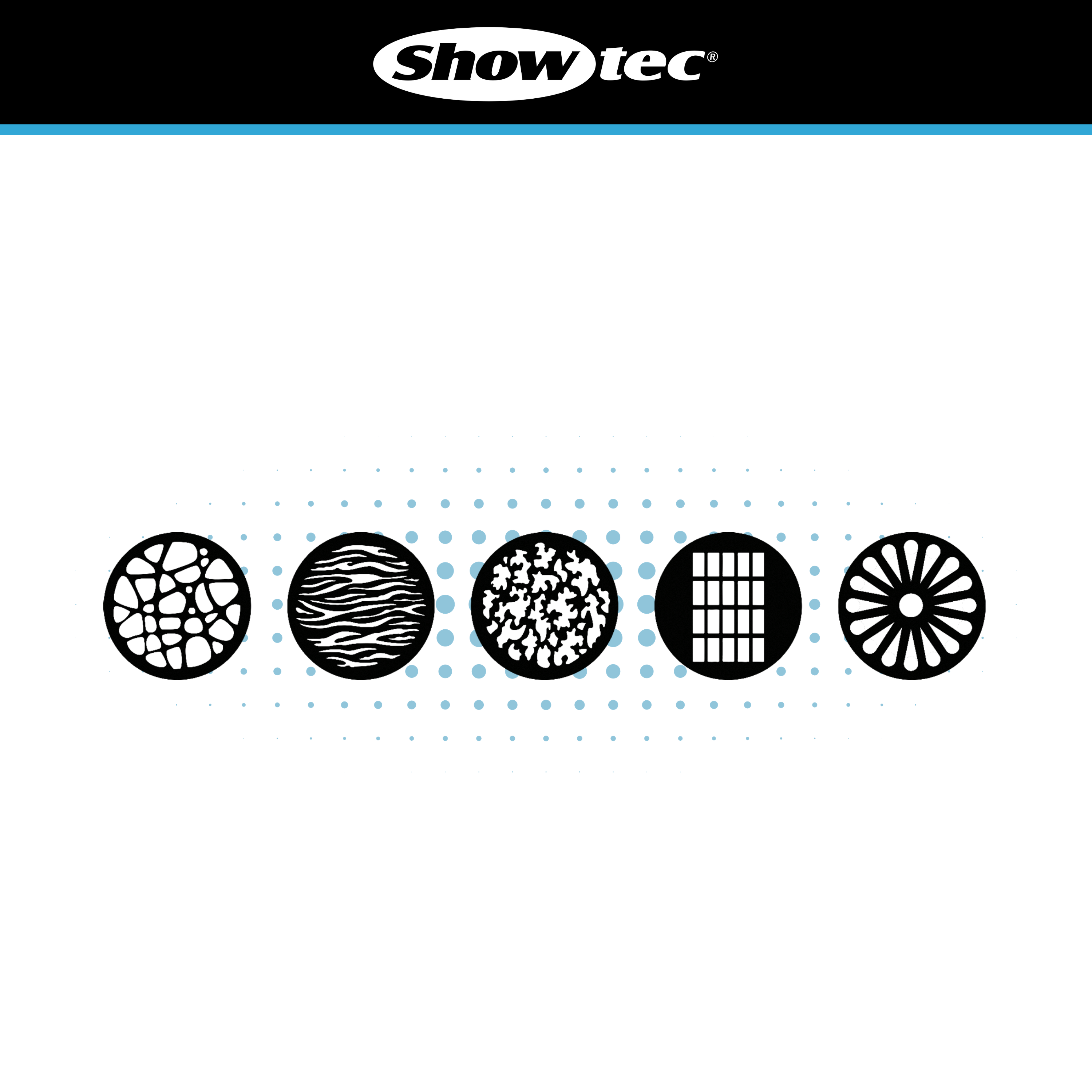

Five design gobos are also included, expanding the creative options available from the fixture. Gobos can be used to project patterns, textures or defined visual elements, making the profile suitable for both functional lighting and decorative effects. The gobo size is listed as 55.7mm, with a 49mm image size. This gives users a practical profile spotlight that can support both shaped white light and creative coloured projections.
Control is available via DMX, RDM and manual operation. The fixture supports 5, 8 and 12 channel DMX modes, giving flexibility for different control requirements. Simpler control modes can be used where fewer parameters are required, while expanded modes provide more detailed access to colour, dimming and fixture functions. RDM support allows compatible systems to manage fixture settings remotely, which is useful in installed or multi-fixture lighting rigs.

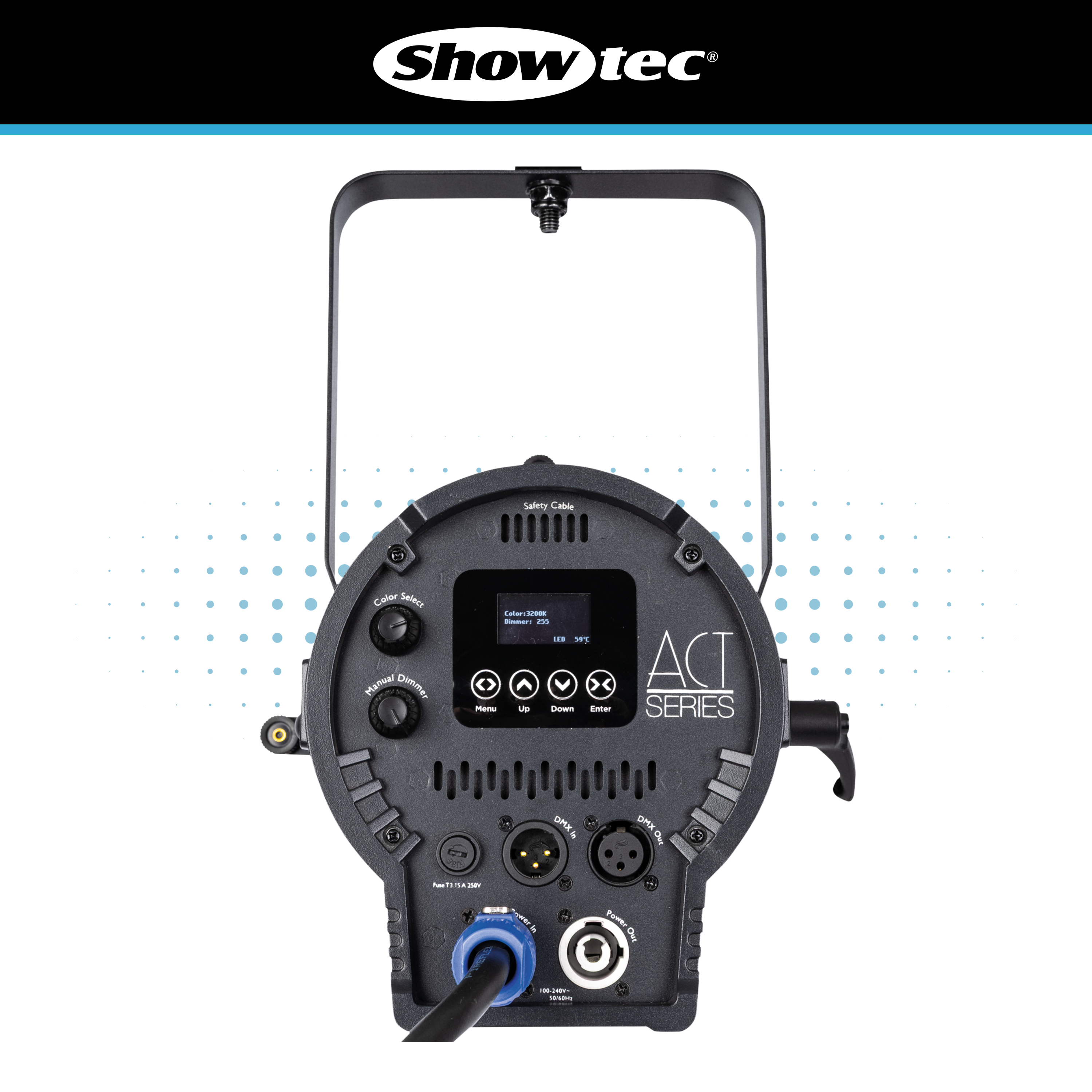

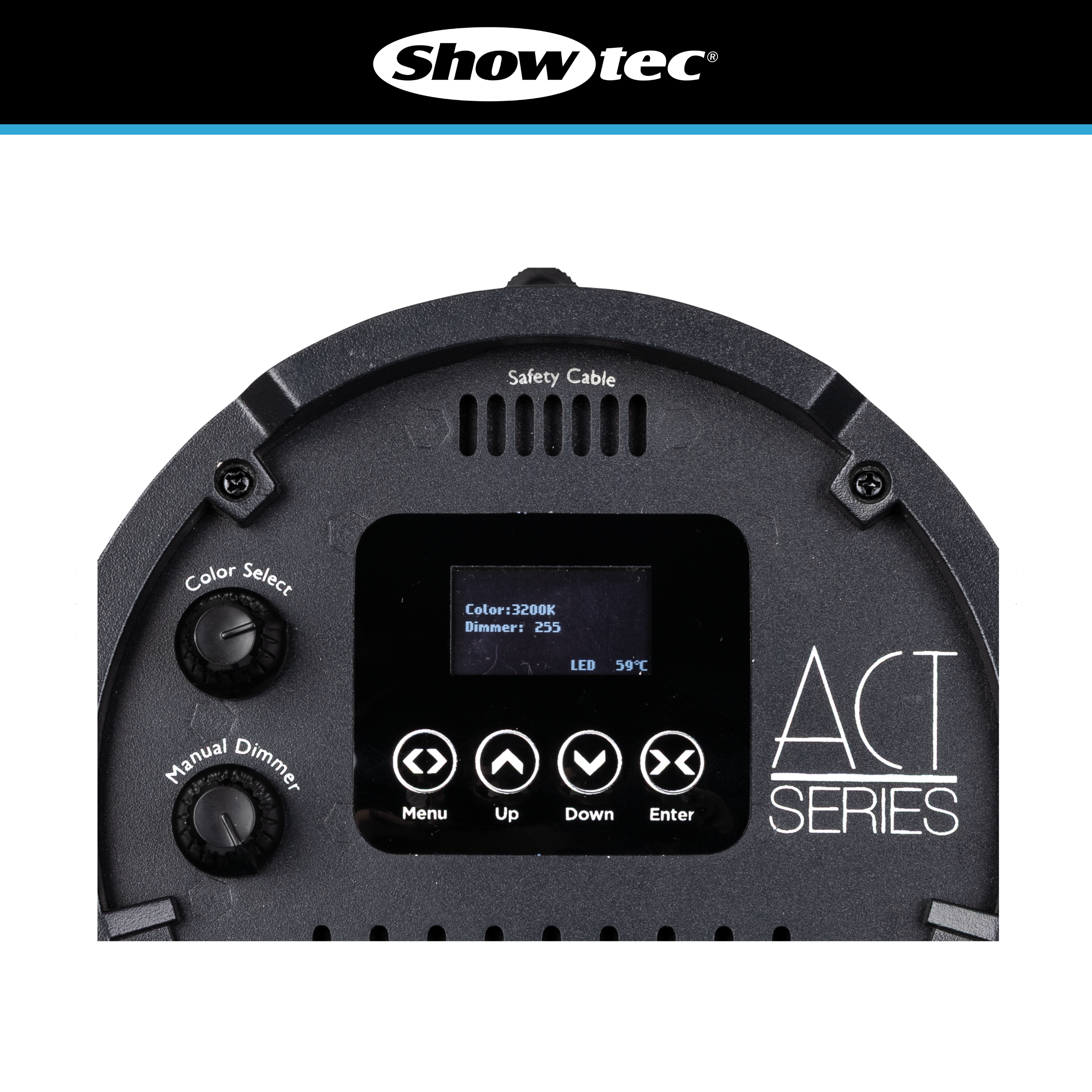

Manual control is available through the onboard OLED display and rotary control, allowing the fixture to be configured or operated without a full DMX control system. This is useful for quick setup, smaller installations or standalone operation. The fixture also includes 16-bit dimmer resolution with 0–100% dimming, giving smoother intensity control for fades, transitions and controlled scene changes.
Power is supplied from a 100–240V AC, 50/60Hz input, with a listed power consumption of 180W. The fixture uses Power Pro input and output connectors for mains power, with 3-pin XLR input and output connections for DMX. The housing is made from aluminium and metal with a black finish, giving it a professional appearance suitable for stage, studio and installation environments. It is rated IP20, so it is intended for indoor use.
The Showtec ACT Profile 150W RGBAL measures 531 x 226 x 373mm and weighs 6.15kg. Its compact size and manageable weight make it practical for fixed rigs, temporary productions and venue lighting systems where a colour-mixing profile fixture is required.
For users looking for a compact LED profile with hard-edged beam control, RGBAL colour mixing, variable white output, manual zoom, shutters, gobos and DMX/RDM control, the Showtec ACT Profile 150W RGBAL provides a versatile and professional lighting solution. It combines the beam-shaping benefits of a traditional profile spotlight with the colour flexibility and efficiency of modern LED technology.
