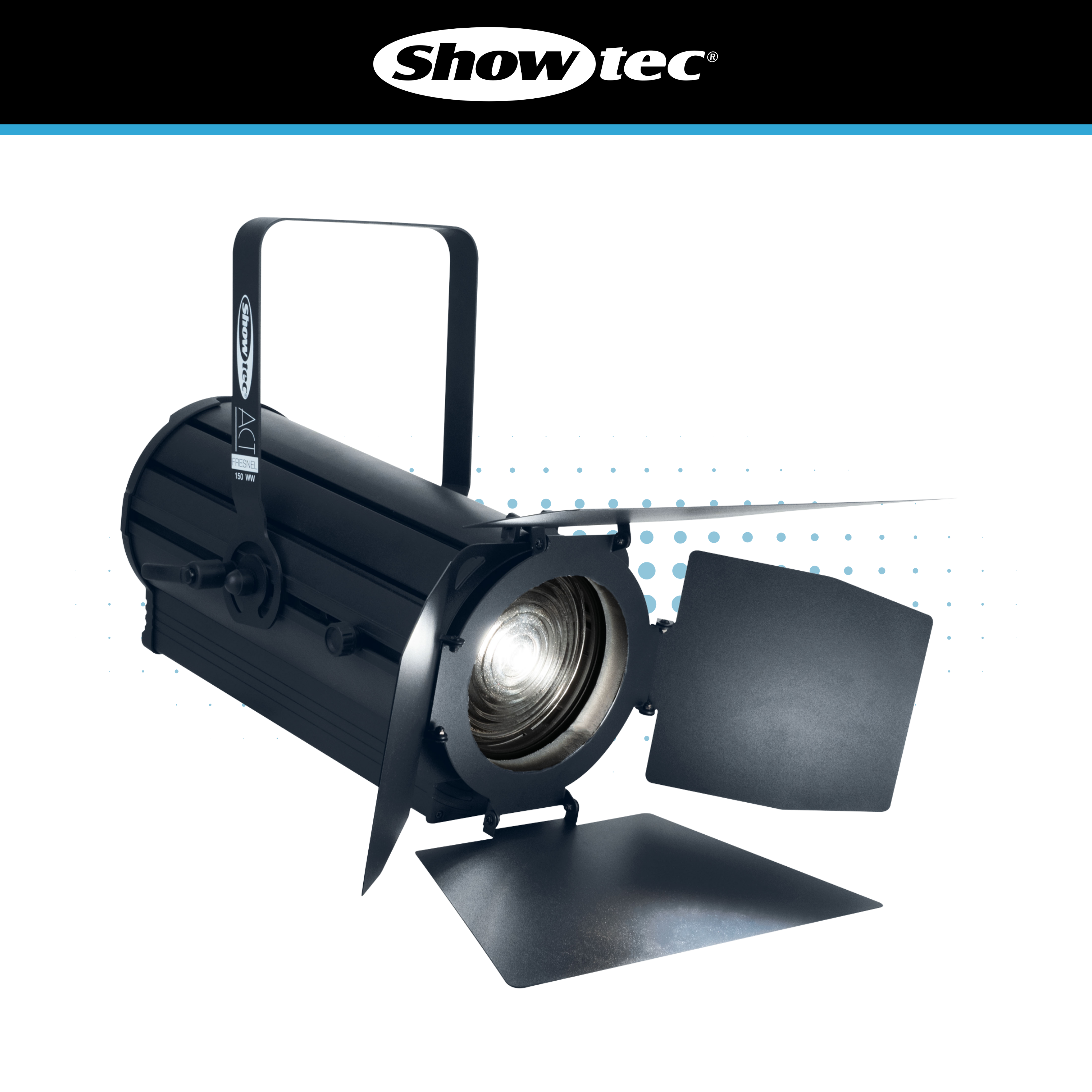

The Showtec ACT Fresnel 150 WW is a compact warm white LED Fresnel designed for users who need a soft, controlled theatrical beam with accurate colour rendering and straightforward operation. Built around a 150W warm white COB LED source, it provides a clean 3000K output that is well suited to stage lighting, presentation lighting, display lighting and fixed performance spaces where a tungsten-style white light is preferred over a colour-mixing fixture.

With a CRI of 96, the ACT Fresnel 150 WW is designed to render colours accurately and naturally. This makes it a strong option for lighting people, sets, fabrics, props and display environments where skin tones and surface colours need to look consistent under white light. The fixture produces 8780 lumens, with illuminance listed at 24117 lux at 2m, 10719 lux at 3m and 3859 lux at 5m, giving it strong output for a compact LED Fresnel.

The manually adjustable zoom range of 14°–44° gives the fixture practical beam control without needing interchangeable lenses. It can be tightened for a more focused Fresnel-style spot or widened for a softer wash across a larger area. The circular field angle ranges from 22° to 57°, helping create the familiar soft-edged output expected from a Fresnel fixture. This makes it suitable for front light, side light, key light, stage washes and general-purpose warm white coverage.

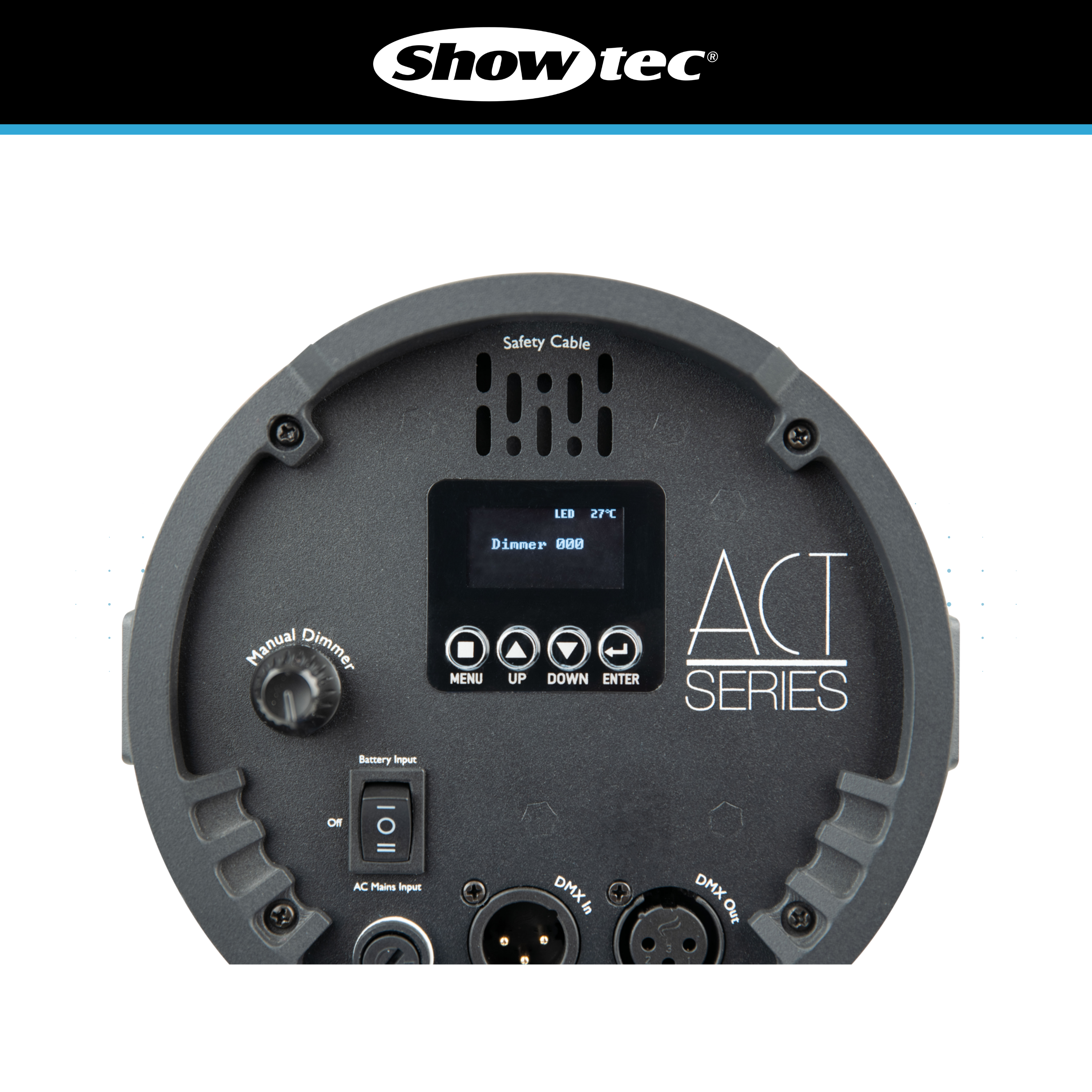

Control is available via DMX, RDM and manual operation. The fixture supports 1 and 2 channel DMX modes, making it easy to integrate into both simple and more structured lighting control systems. RDM support provides remote fixture management in compatible systems, while the onboard OLED display and manual controls allow local setup and operation. A manually controllable 0–100% dimmer gives direct intensity control without requiring a full lighting desk.

Four dimmer curve options are available, including Linear, Square, I-Square and S-Curve. These allow the response of the fixture to be matched more closely to the required lighting style or control preference. Smooth dimming is particularly important for theatrical fades, scene transitions and live performance work where abrupt level changes would be unsuitable.

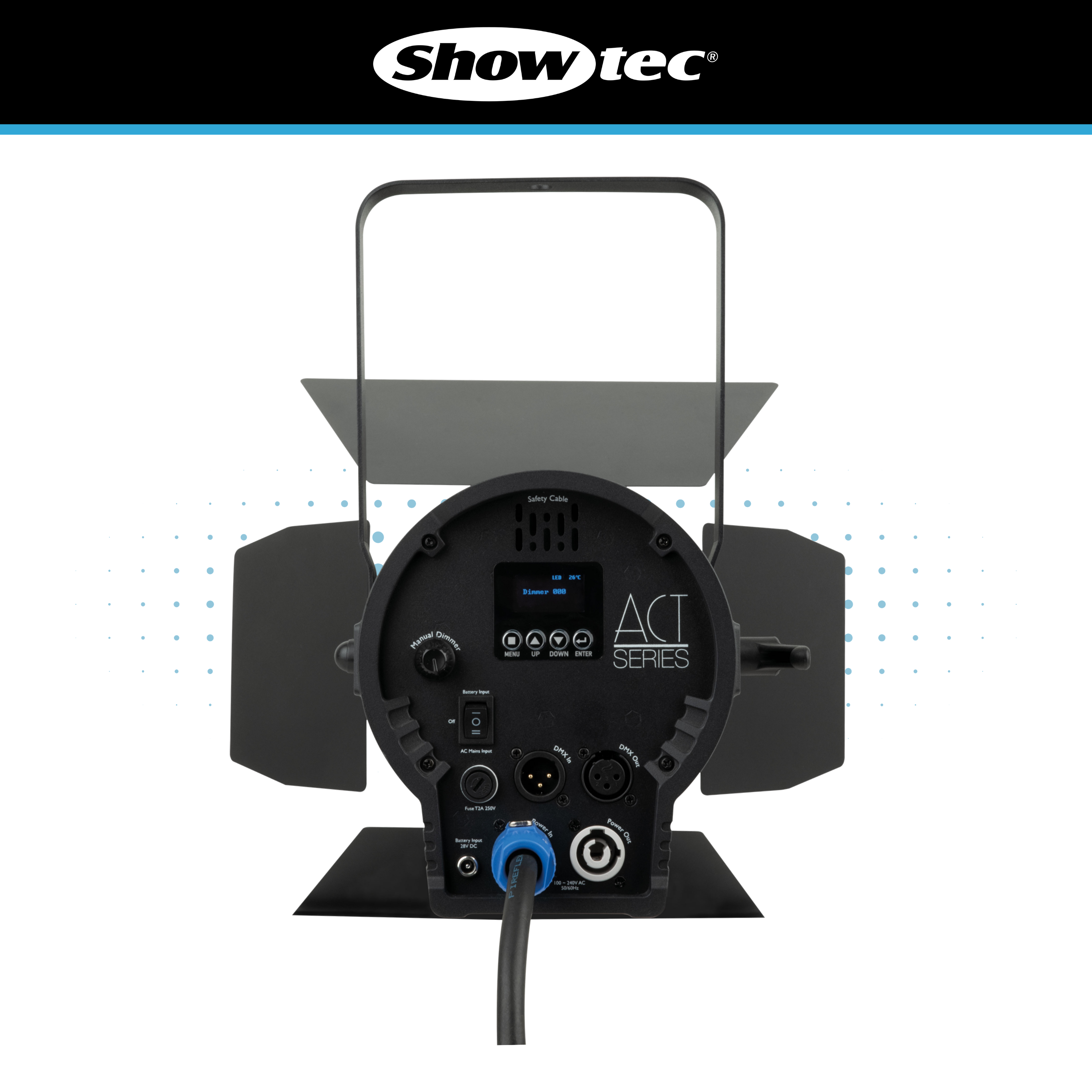

The ACT Fresnel 150 WW can operate from standard AC mains power and also supports operation from an optional external 28V battery. This gives the fixture added flexibility for temporary setups, locations where mains access is limited, or applications where a cleaner cable-free working area is helpful. The fixture uses Power Pro input and output connectors, with 3-pin XLR input and output for DMX connection.

A barndoor and filter frame are supplied with the unit, allowing the beam to be shaped and controlled straight out of the box. The barndoor helps reduce spill and direct the output more accurately, while the filter frame provides a holder for suitable diffusion or filter material where required. This makes the fixture more practical for stage and venue users who need controlled warm white lighting rather than a basic open wash.

The housing is made from aluminium and finished in black, giving the fixture a professional appearance for theatre, studio and venue environments. It is designed for indoor use with an IP20 rating and includes a mounting bracket and safety attachment point. Cooling is handled through convection and axial fan operation, with silent mode available for quieter environments.

The Showtec ACT Fresnel 150 WW measures 415 x 225 x 345mm and weighs 4.1kg. Its compact size and manageable weight make it suitable for fixed rigs, temporary lighting setups and spaces where traditional Fresnels may be too hot, power-hungry or maintenance-heavy. Power consumption is listed at 170W, giving the fixture the efficiency advantages of LED while still providing strong warm white output.

For customers looking for a compact warm white LED Fresnel with high CRI, manual zoom, DMX/RDM control and included beam-shaping accessories, the Showtec ACT Fresnel 150 WW provides a professional and efficient alternative to traditional tungsten Fresnels. It combines soft 3000K output, accurate colour rendering, smooth dimming and practical control in a compact fixture suitable for modern stage and venue lighting systems.
