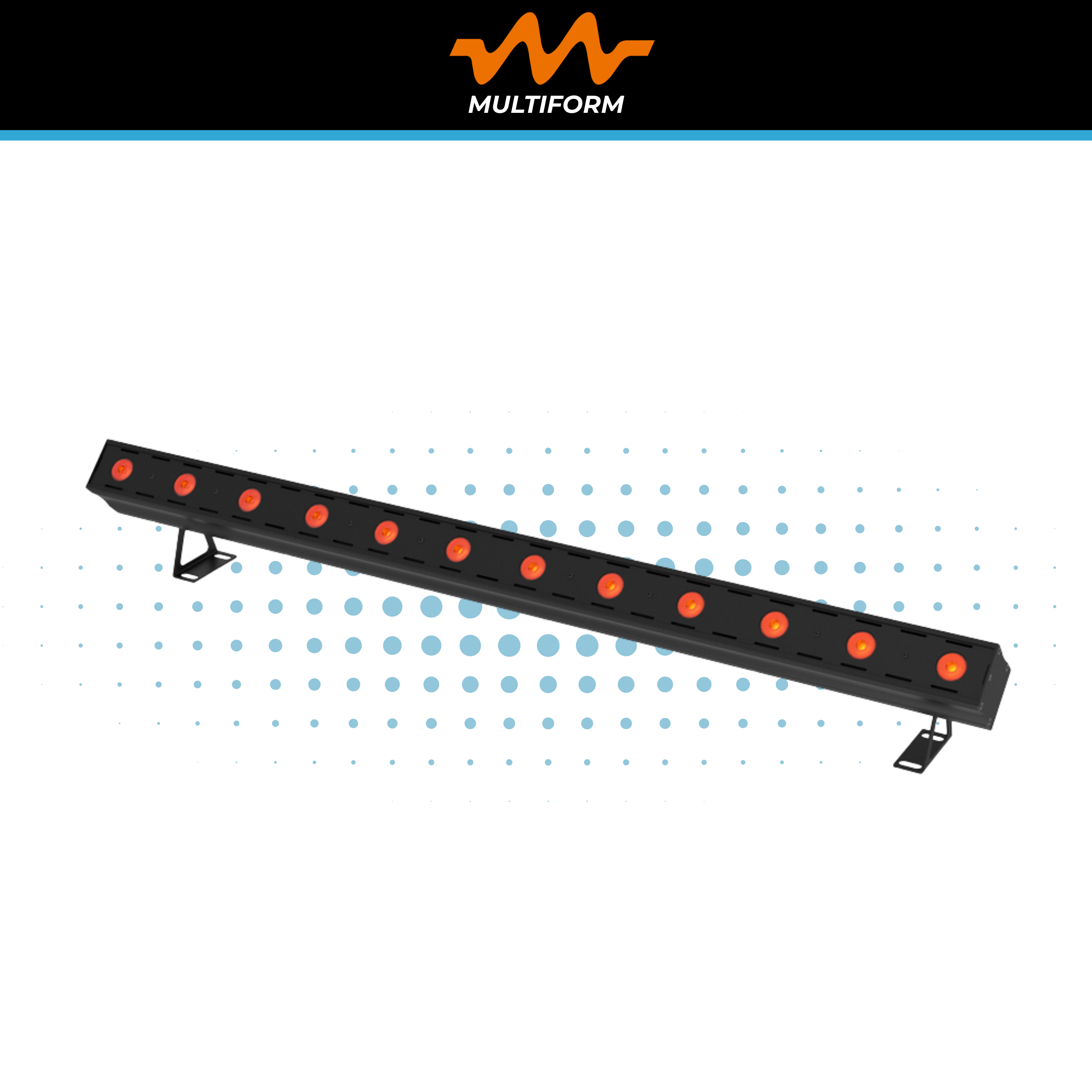

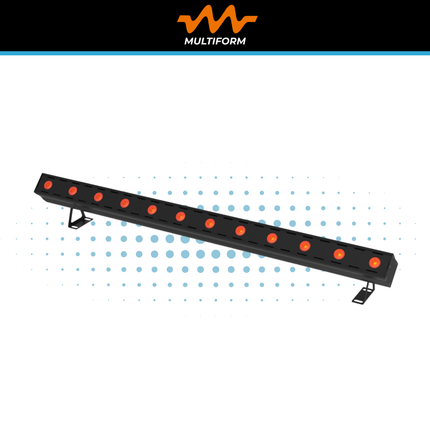

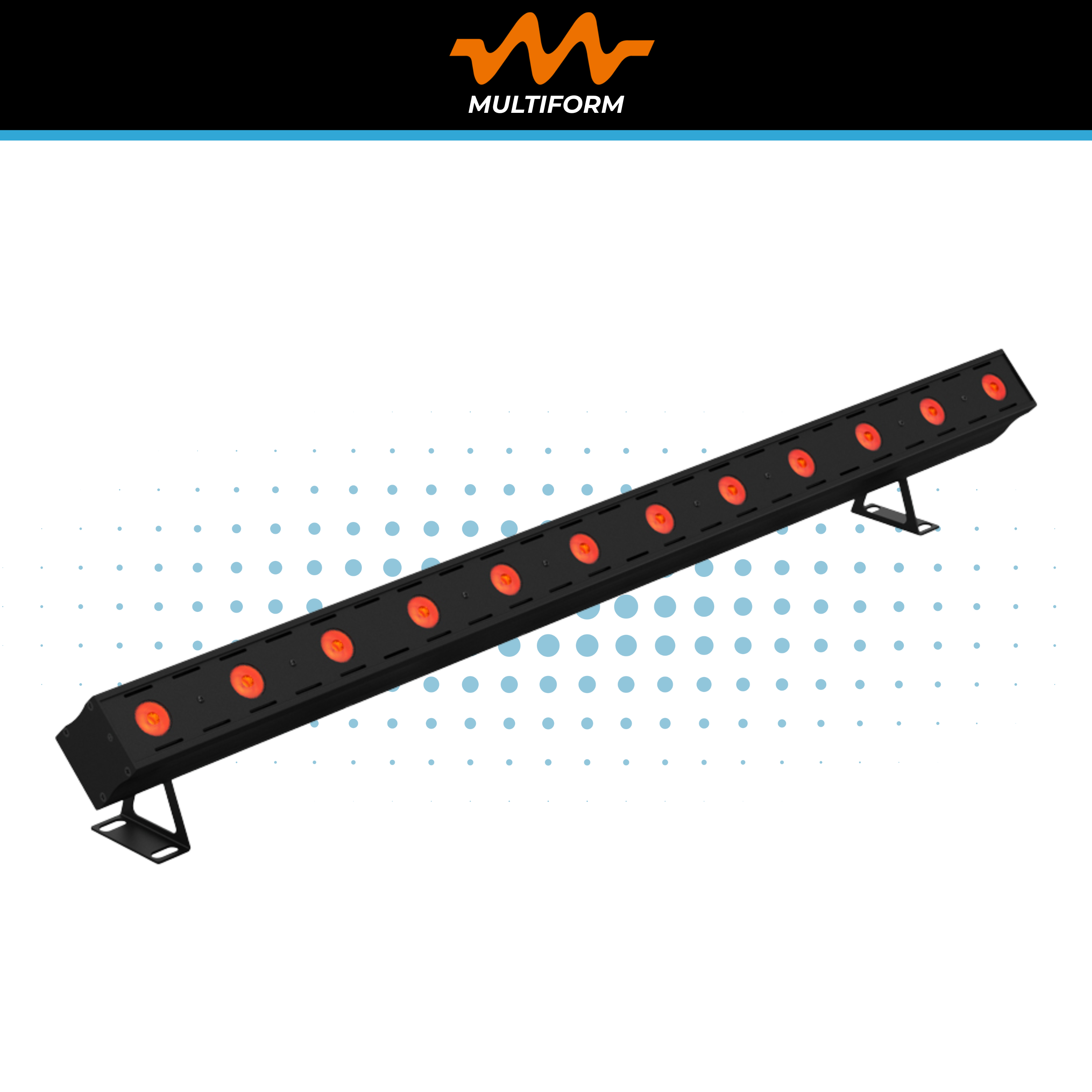

The Multiform MULTIWALL™-12A-V3 is a professional RGBA LED batten designed for wall washing, backdrop illumination and architectural accent lighting. Engineered for consistent colour blending and reliable long-term performance, it delivers smooth and even coverage across vertical surfaces in stage, theatre and event environments.

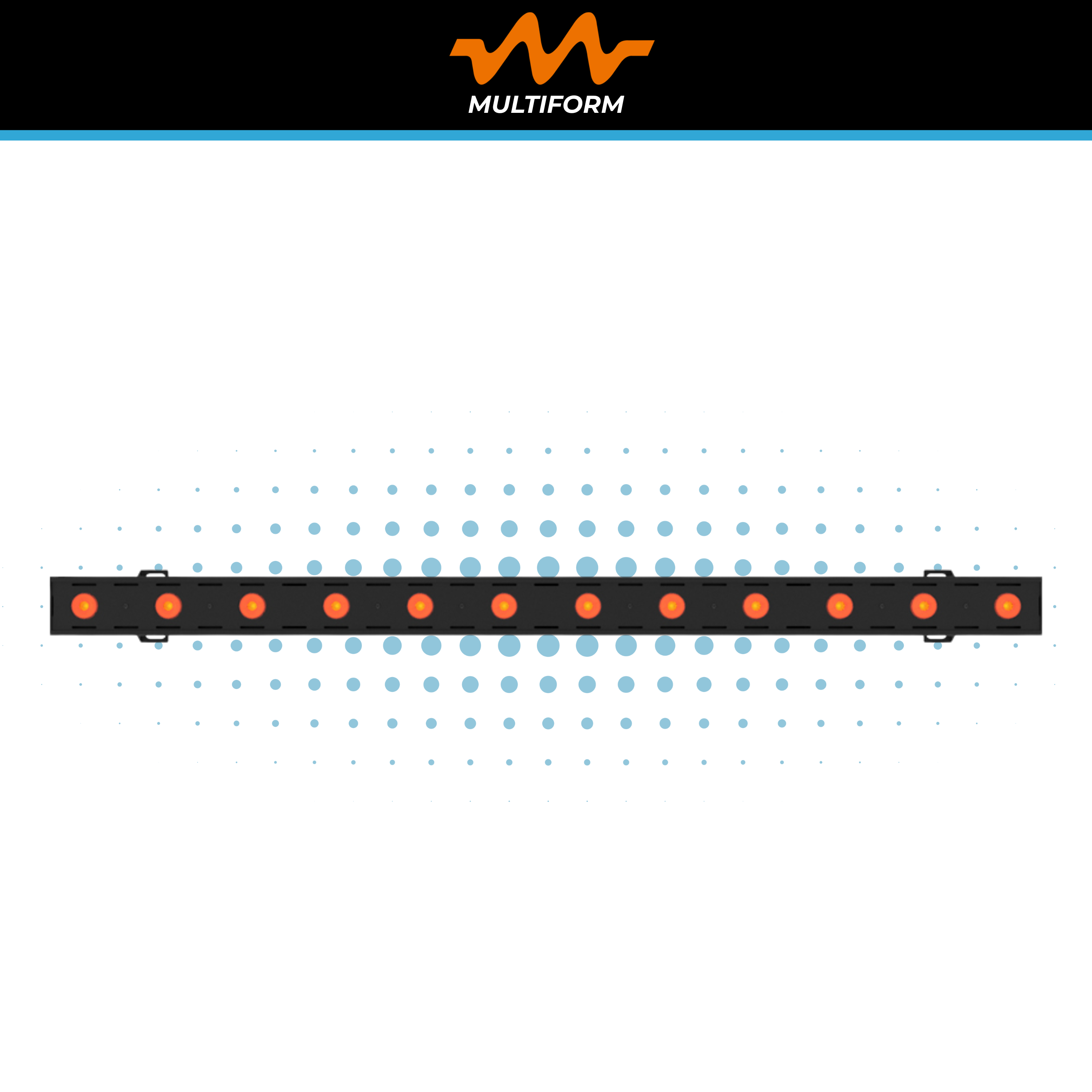

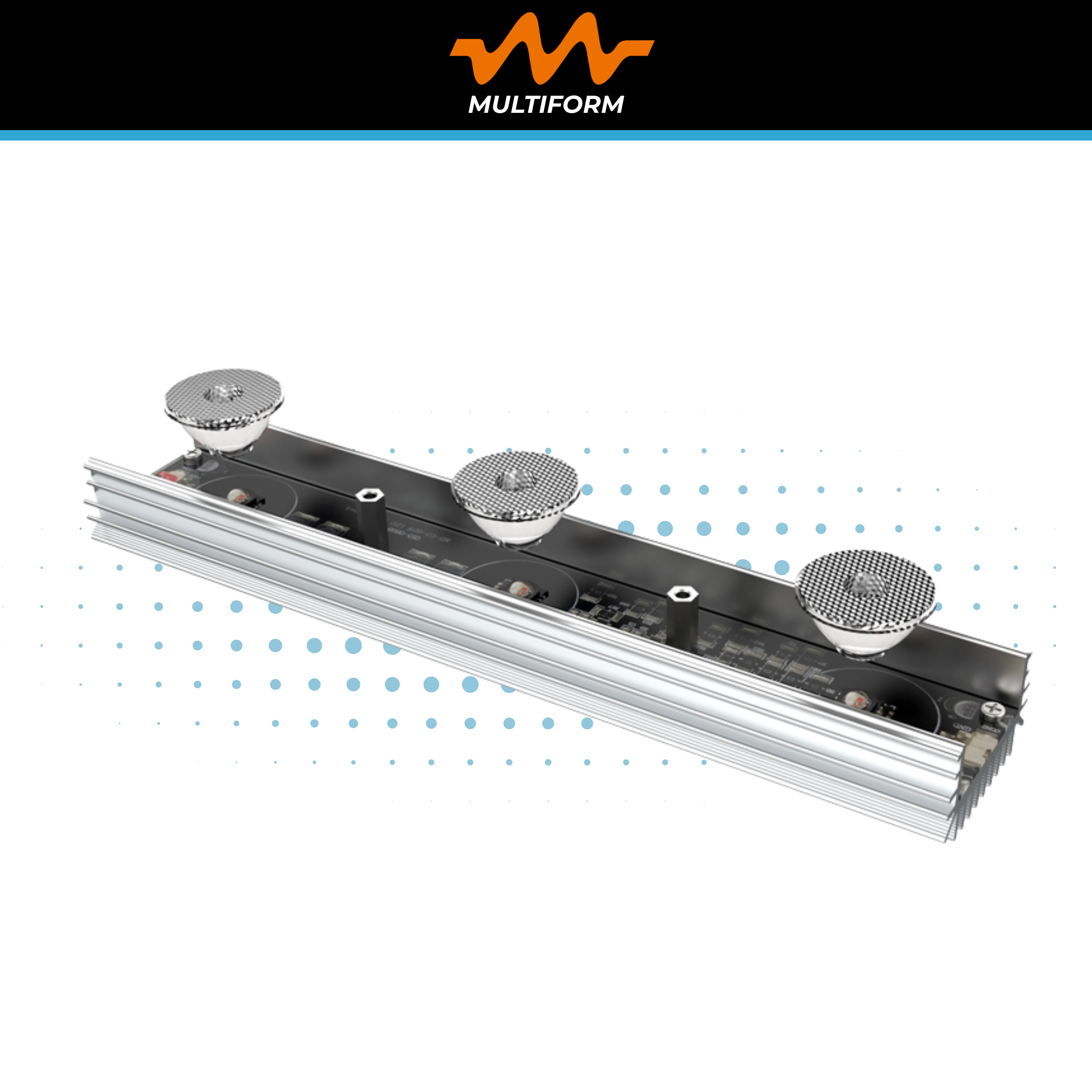

The fixture incorporates 12 MultiQuad 4-in-1 RGBA LEDs arranged across four independently controllable segments. Each 3W chip operates at 1W to maximise reliability and longevity while delivering up to 3150 lumens of output. The segmented layout enables creative lighting effects and zoned control, while ensuring seamless colour mixing across a wide spectrum. PMMA lenses provide a focused 15-degree beam angle for controlled wash applications.

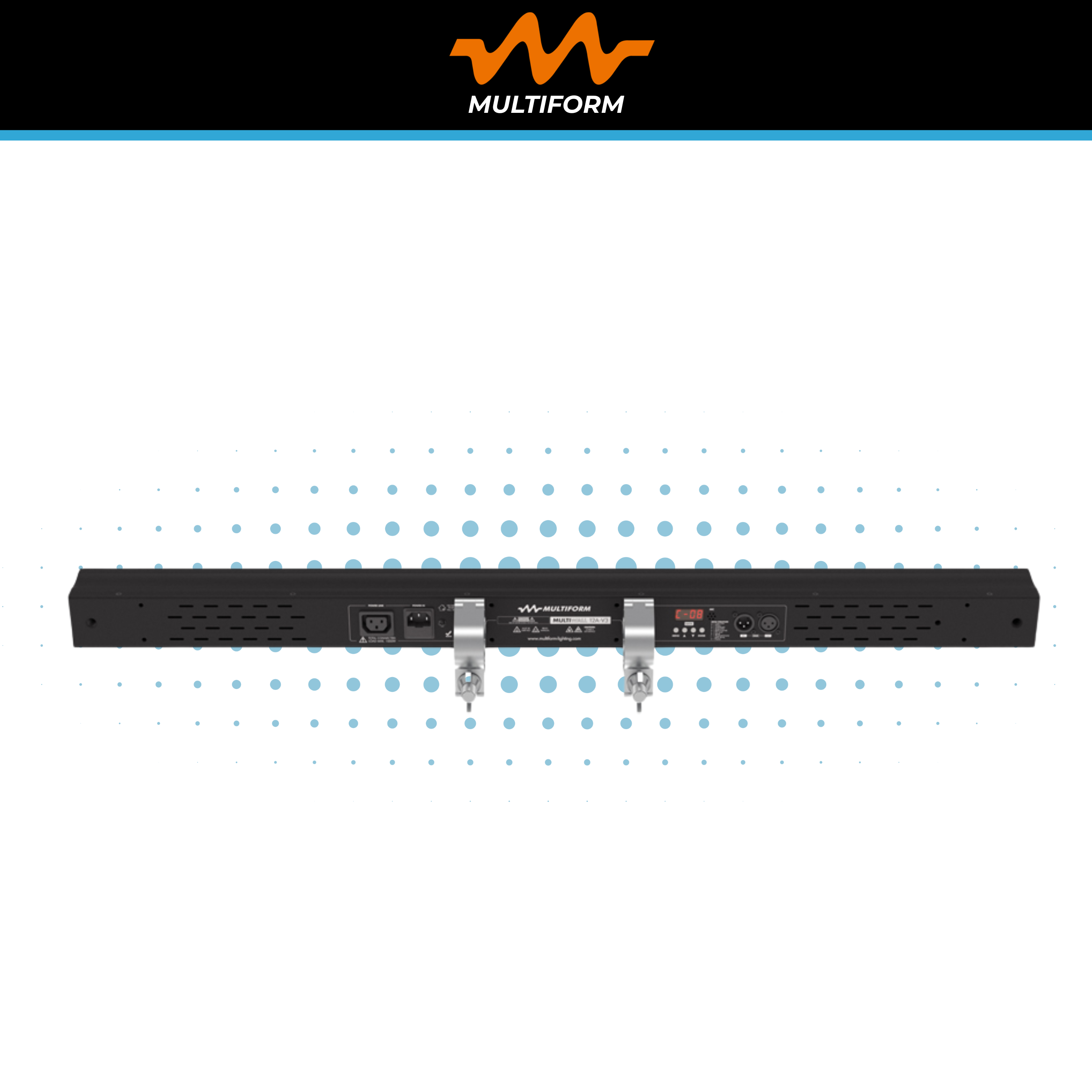

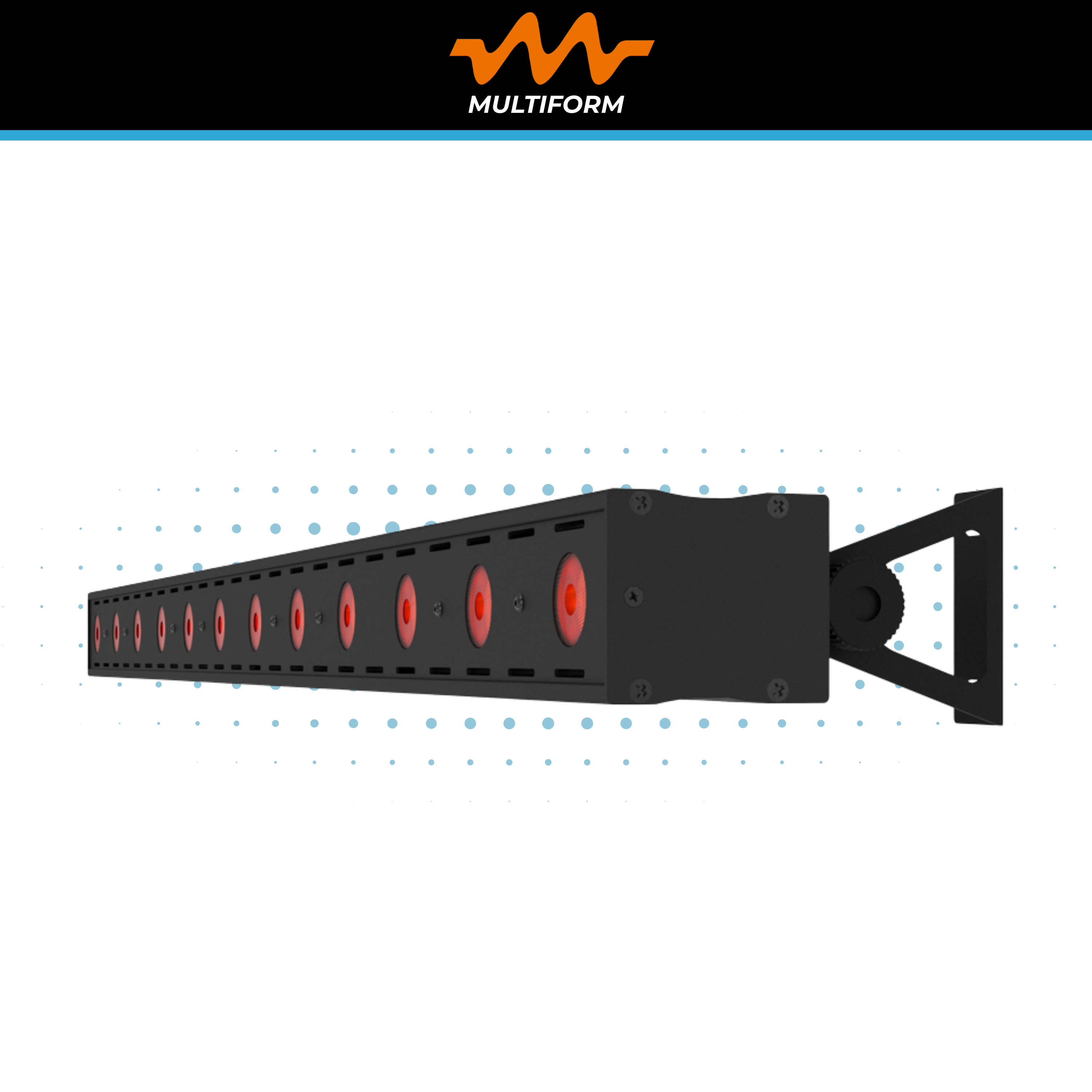

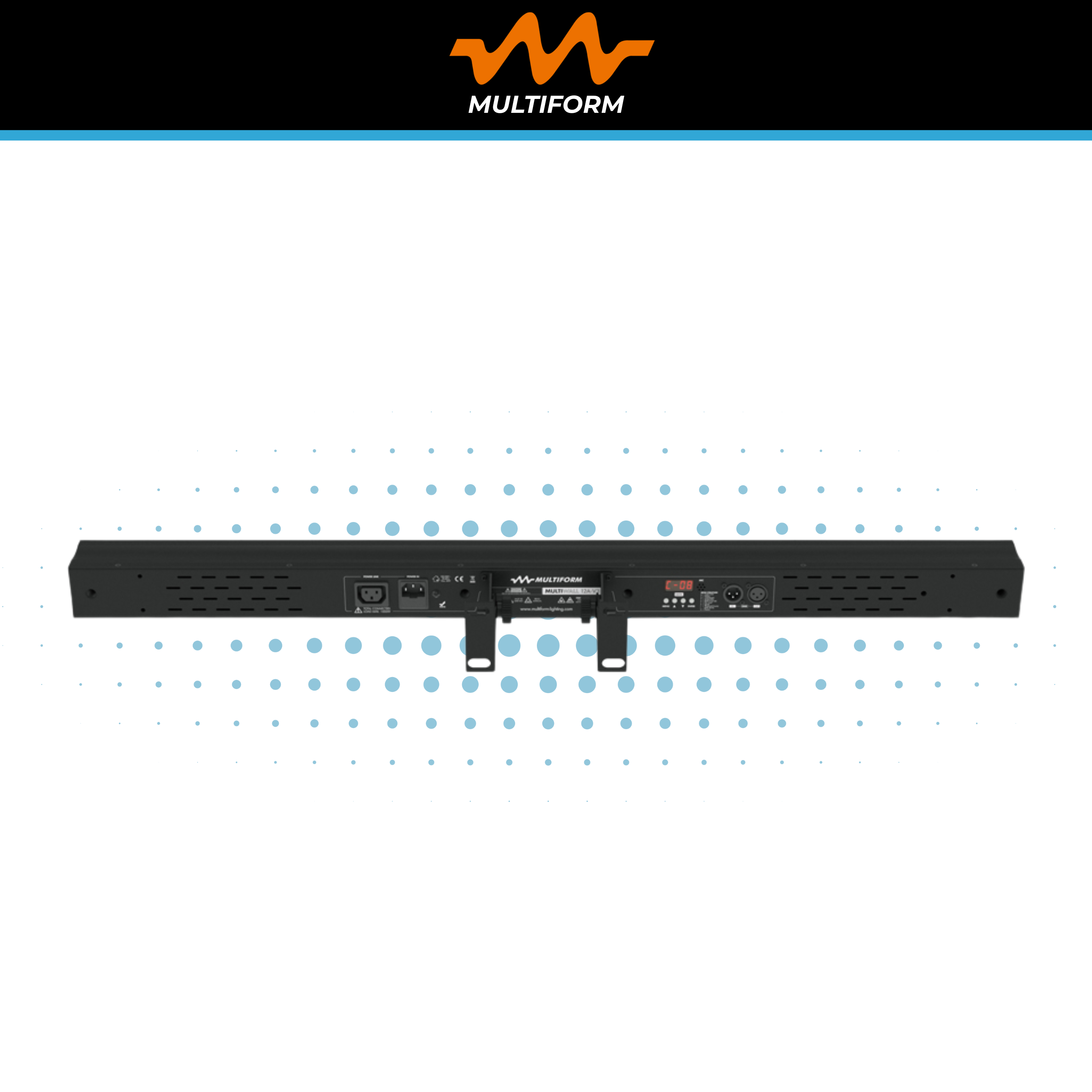

Cooling is achieved through silent convection, with airflow moving bottom-to-top through the housing to ensure efficient heat dissipation without fan noise. CDA™ Current Drive Array Technology maintains constant LED current regulation for stable performance and consistent output. The full metal body construction provides exceptional durability, complemented by an M6 security lug and dual M10 threads for secure mounting. Multi-purpose brackets allow flexible inner or outer mounting options, with compatibility for optional truss couplers.

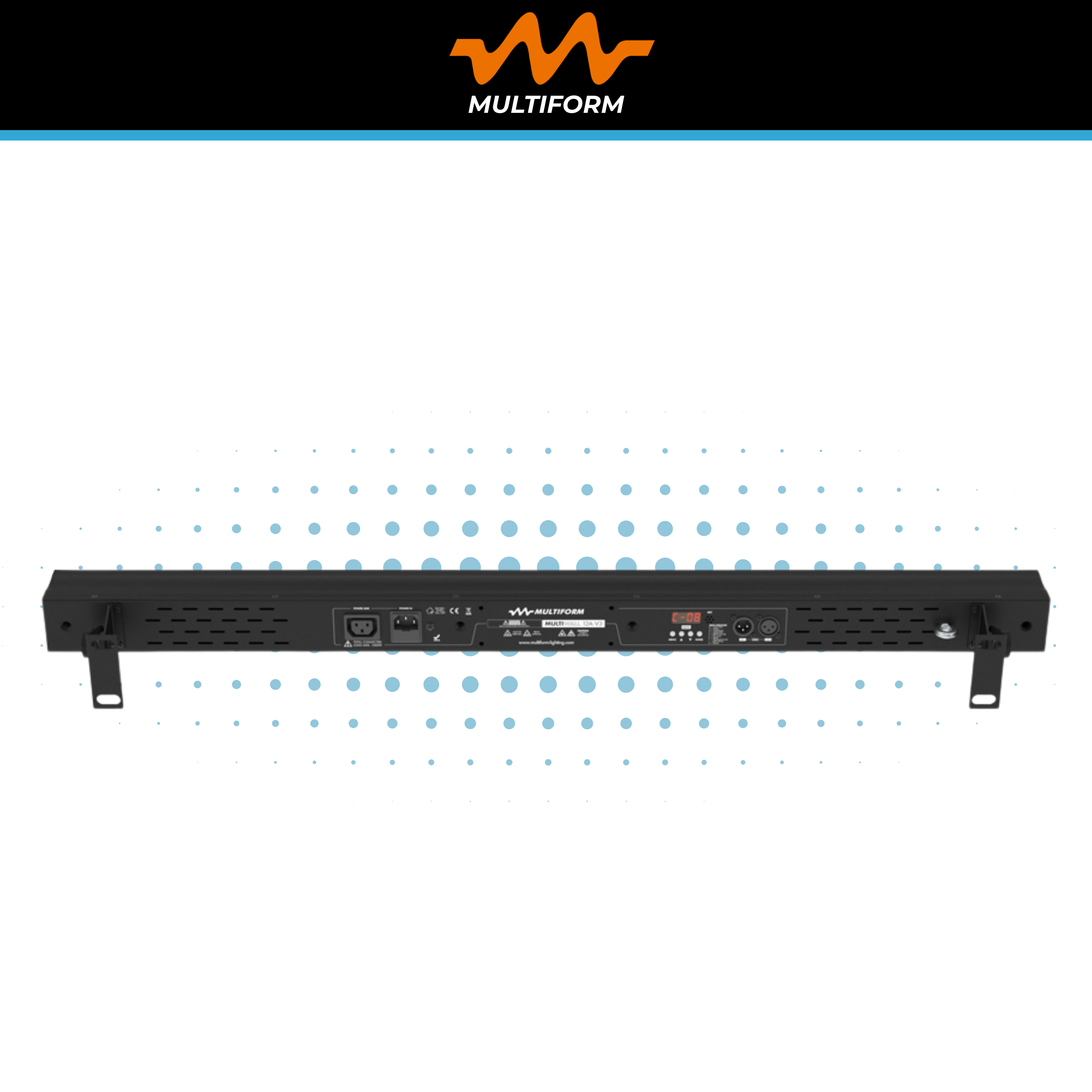

The MULTIWALL™-12A-V3 supports multiple operating modes including static preset colours, pattern modes with chase and fade options, sound-to-light functionality and strobe effects. Four DMX control modes are available, including a 3-channel mode with 4-colour emulation and options for combined or separate segment control. Connectivity includes IEC C14 power input with IEC C13 power link and 3-pin XLR DMX input and output. A 4-button interface with LED display enables straightforward configuration.
Powered by a 60W industrial-grade switch mode power supply and compliant with CE and RoHS standards, the MULTIWALL™-12A-V3 delivers robust, flexible and camera-compliant lighting performance for professional wall wash applications.
