The Multiform MULTISPOT™-12A-V3 represents the third generation of the original Multispot series, widely regarded as one of the pioneering flat... Read more
£95.00 Incl. VAT
Guaranteed secure & safe checkout.

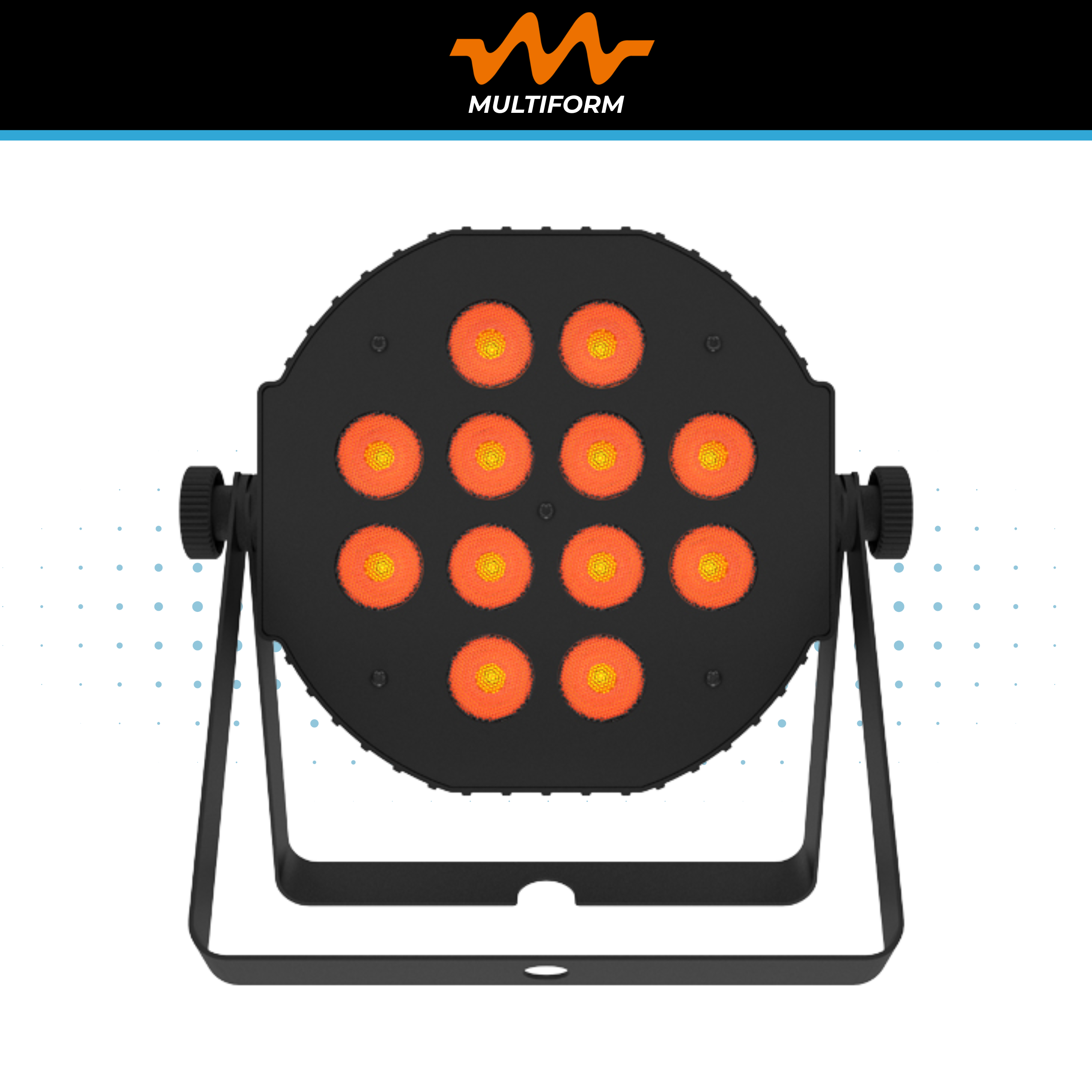

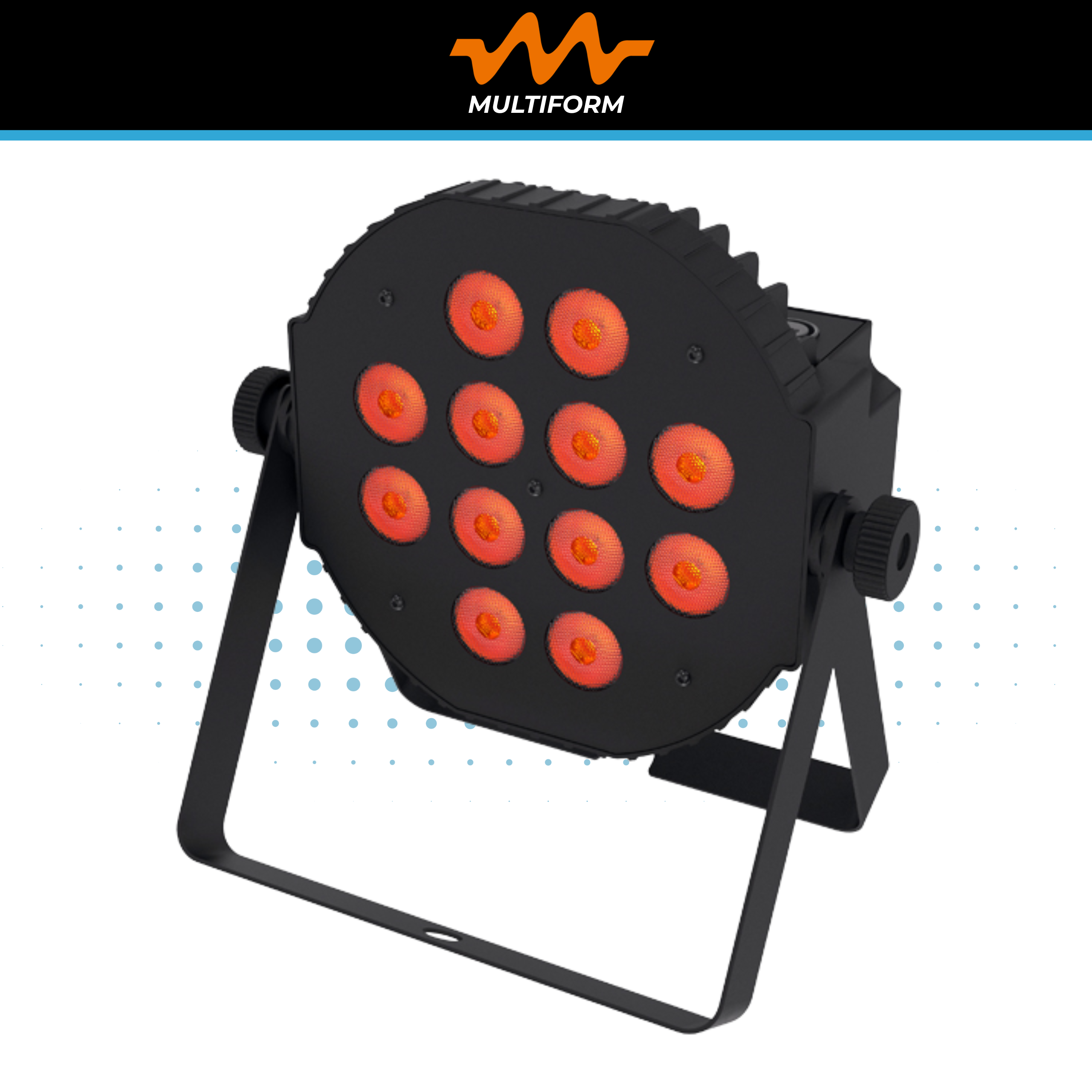

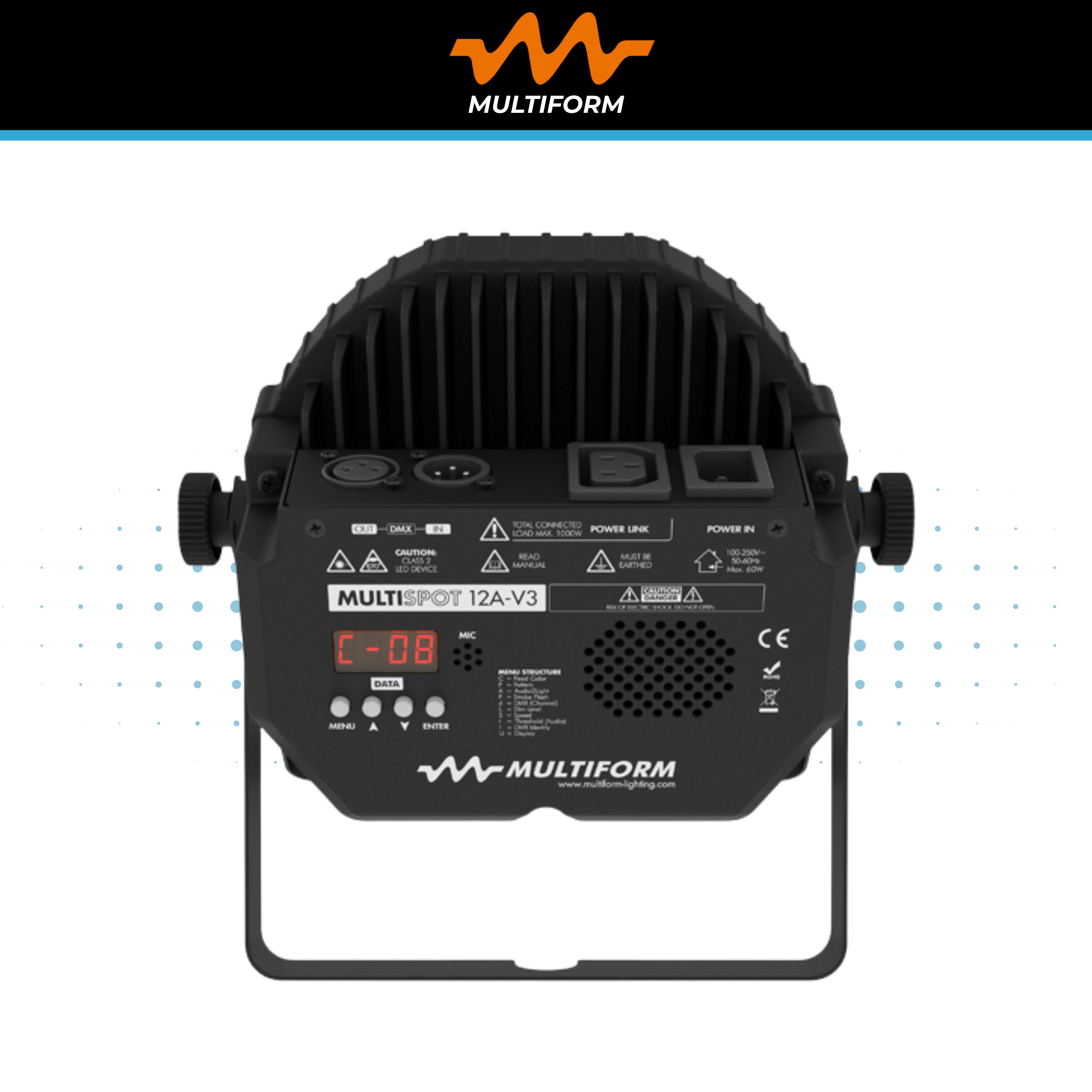

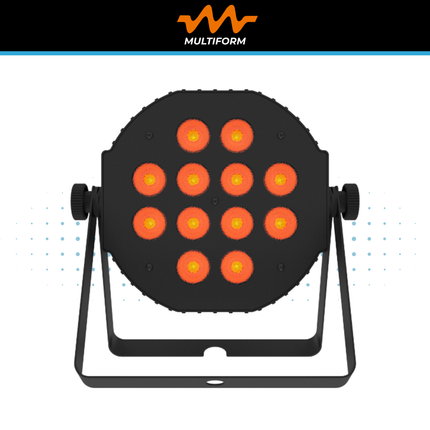

The Multiform MULTISPOT™-12A-V3 represents the third generation of the original Multispot series, widely regarded as one of the pioneering flat PAR LED fixtures. Designed as a true flat-format unit, all power and signal connections are aligned in parallel on the rear panel, enabling streamlined rigging and space-efficient installations for stage, theatre and event environments.

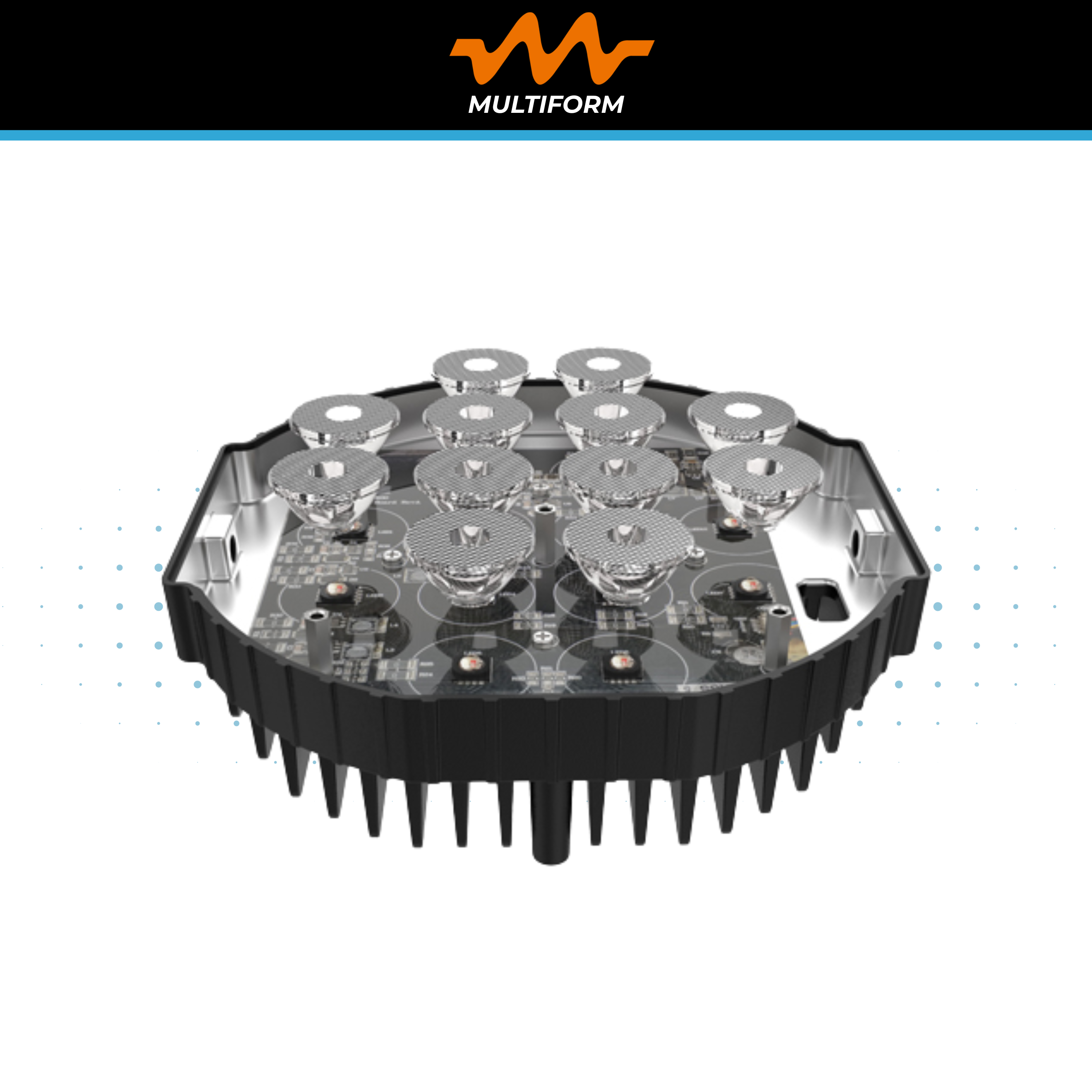

Equipped with 12 x 4W RGBA 4-in-1 LEDs, the fixture delivers smooth and consistent colour mixing across a wide spectrum. Each LED operates below its maximum rated output to enhance long-term reliability and maintain stable performance. Secondary PMMA optics provide a controlled 15-degree beam angle, ideal for focused washes and accent lighting applications.

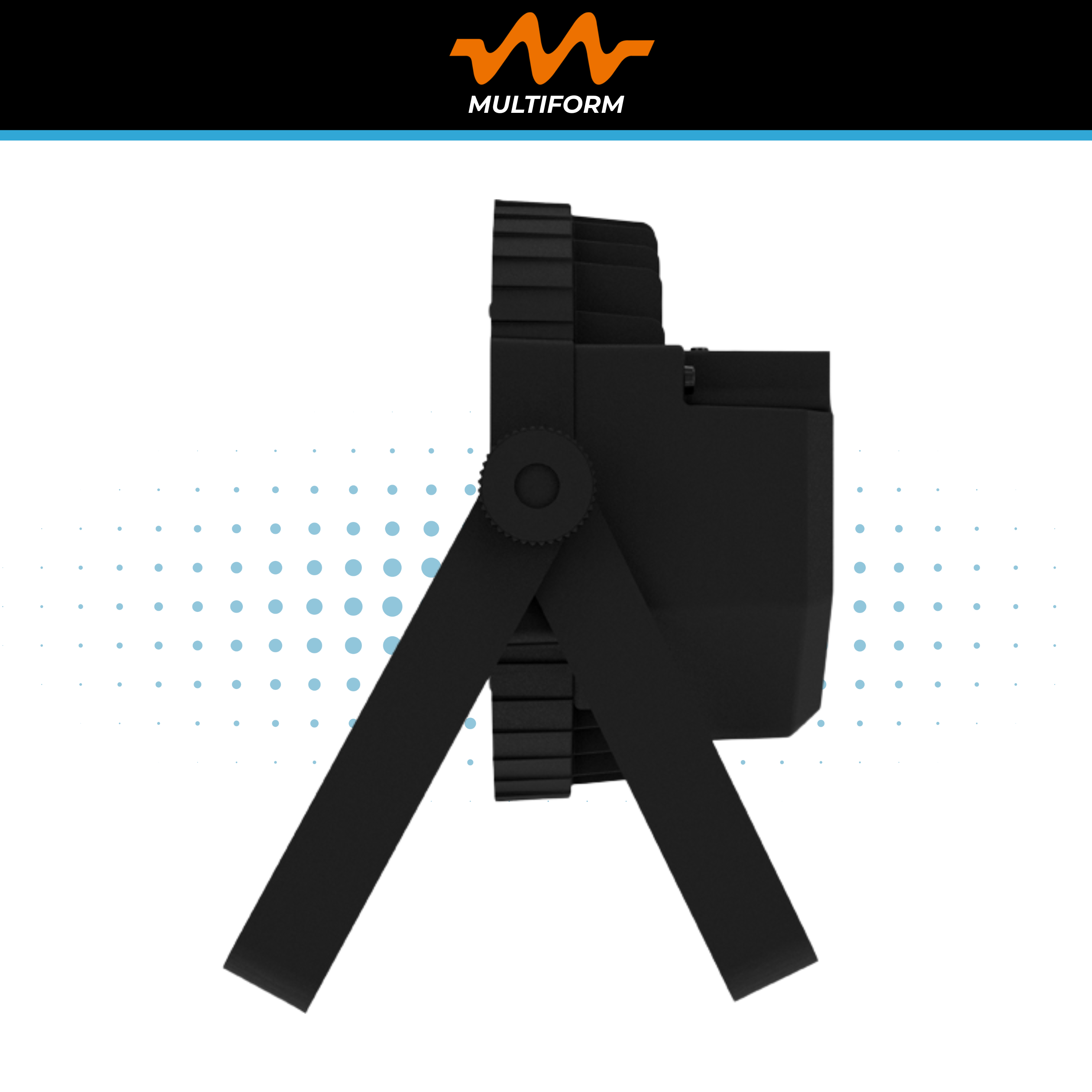

Cooling is achieved through silent convection, with airflow directed between the LED panel body and electronics compartment. This fan-free design ensures noiseless operation while promoting efficient heat dissipation and extended LED lifespan. The rugged die-cast housing offers durability for professional use, and the dual split bracket allows flexible positioning for hanging or floor-standing deployment.
The MULTISPOT™-12A-V3 supports DMX 512 (1990) protocol with 3 to 6 channel control modes, offering adaptable configuration for varying lighting setups. Operating from a wide-range AC100–250V switch mode power supply, the fixture maintains stable performance across different power environments. With an average power consumption of 36W and an IP20 rating for indoor use, it is suited to venues, production companies and fixed installations.
Measuring 180 x 230 x 94 mm (with straight bracket) and weighing 2.15 kg, the MULTISPOT™-12A-V3 delivers robust performance and installation flexibility in a compact and professional-grade lighting solution.
