The Multiform MULTIPIN™-6A-V3 is a compact, high-performance RGBA LED flat fixture developed from the third generation of Multiform’s renowned Multispot... Read more
£69.00 Incl. VAT
Guaranteed secure & safe checkout.

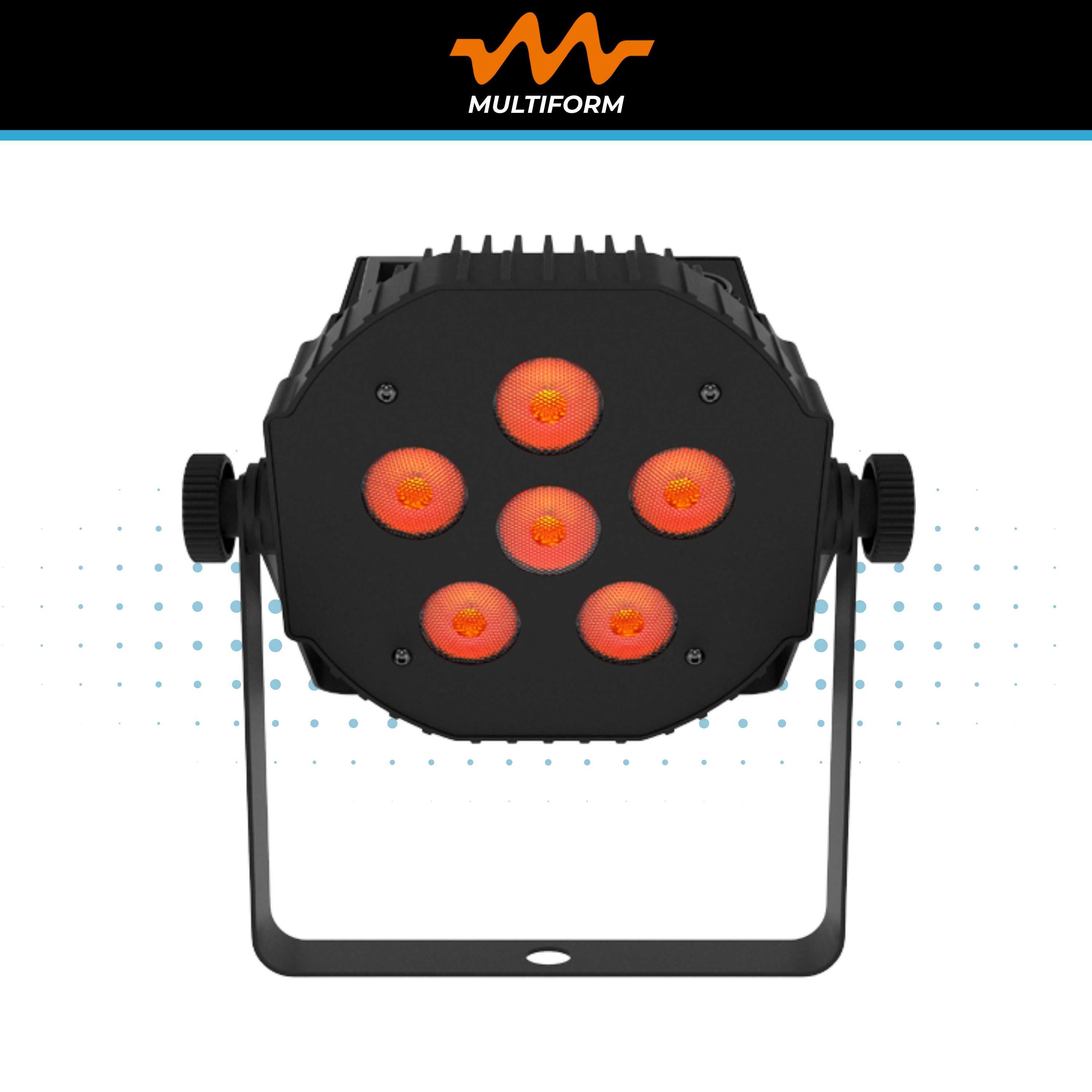

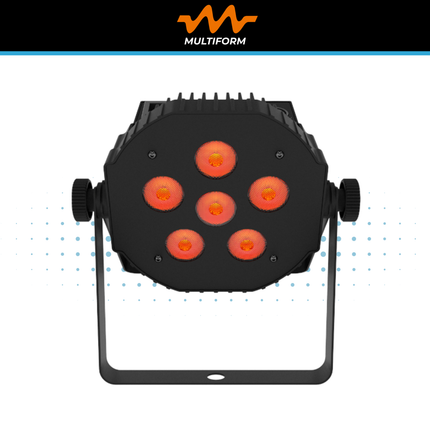

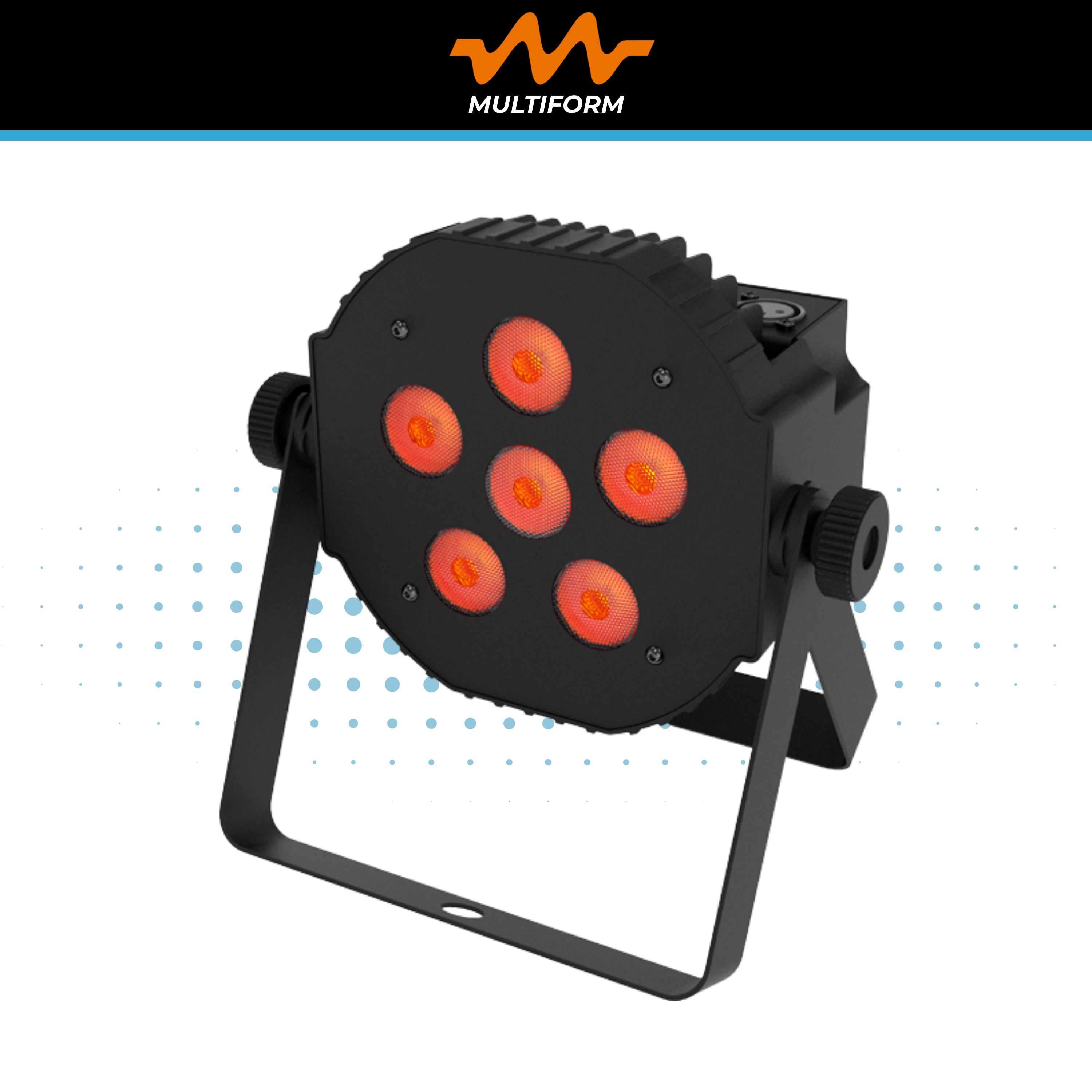

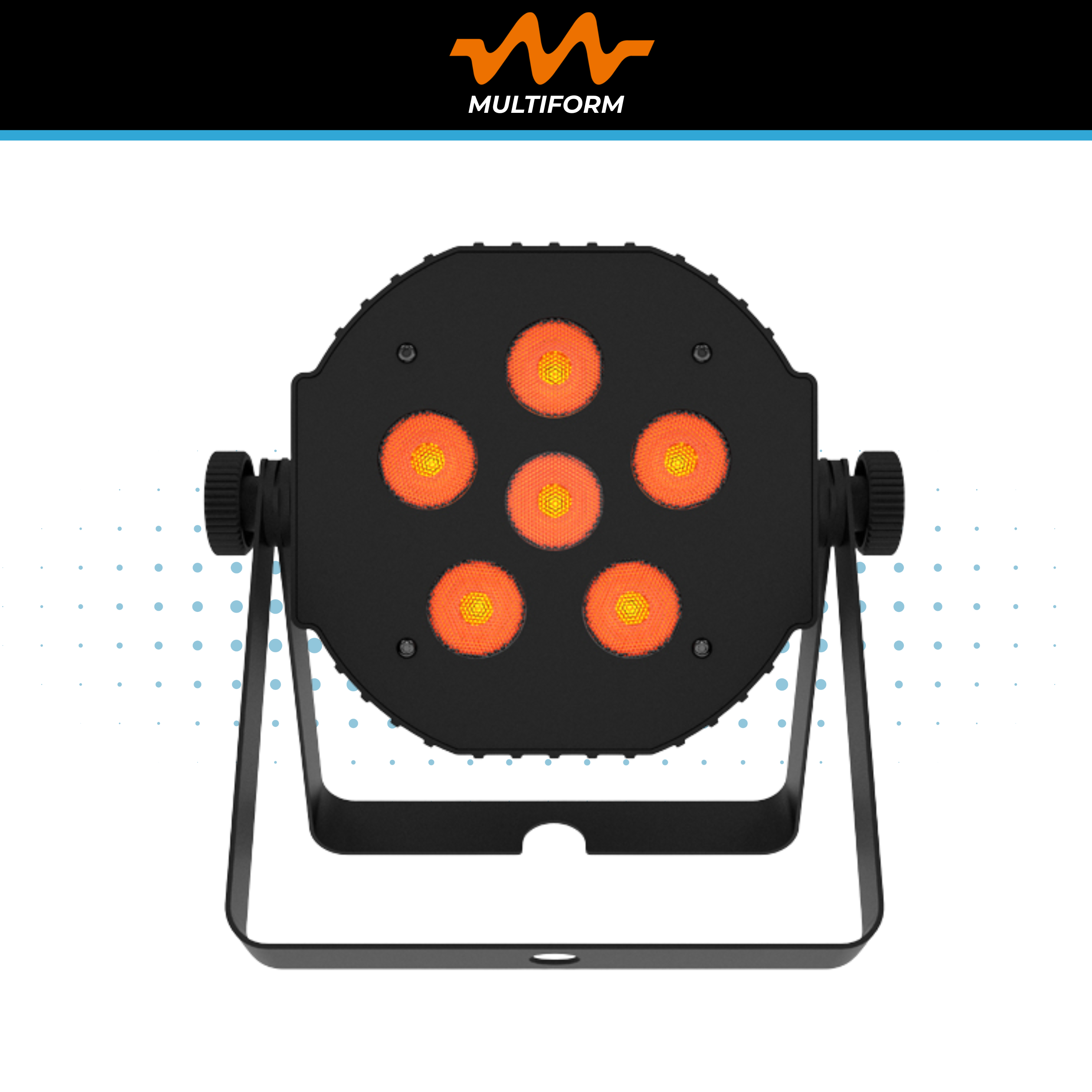

The Multiform MULTIPIN™-6A-V3 is a compact, high-performance RGBA LED flat fixture developed from the third generation of Multiform’s renowned Multispot series. Designed with a true flat profile, all connections are positioned in parallel on the rear panel, enabling clean installation and efficient space utilisation for stage, architectural and event lighting applications.

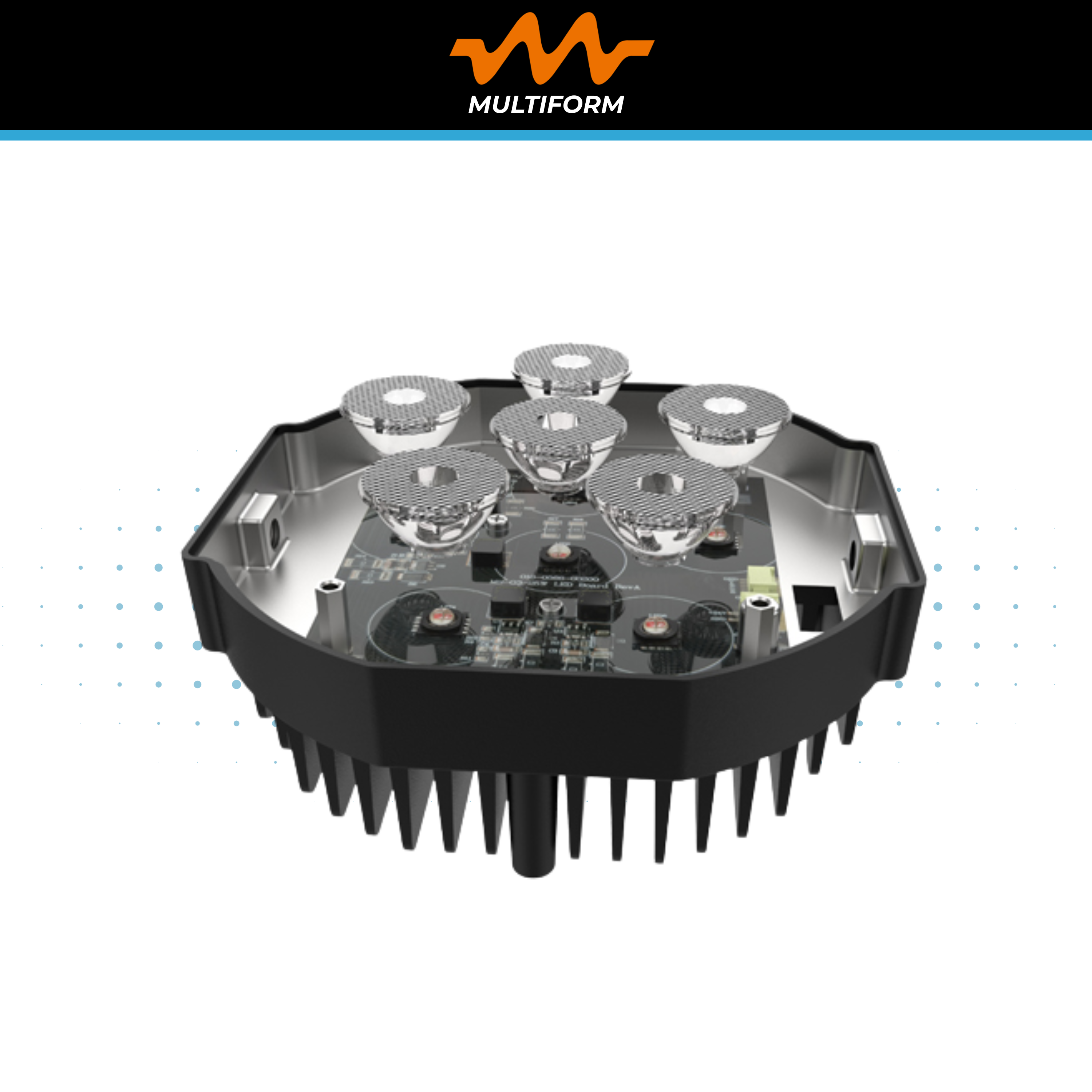

Equipped with six MultiQuad 4-in-1 RGBA LEDs, each featuring a 3W chip operated at 1W, the fixture delivers up to 1575 lumens while prioritising long-term reliability. The 4-chip LED configuration ensures smooth colour mixing across a wide spectrum, while operating below maximum rating to extend LED lifespan. PMMA lenses provide a focused 15-degree beam angle for controlled wash and accent lighting.

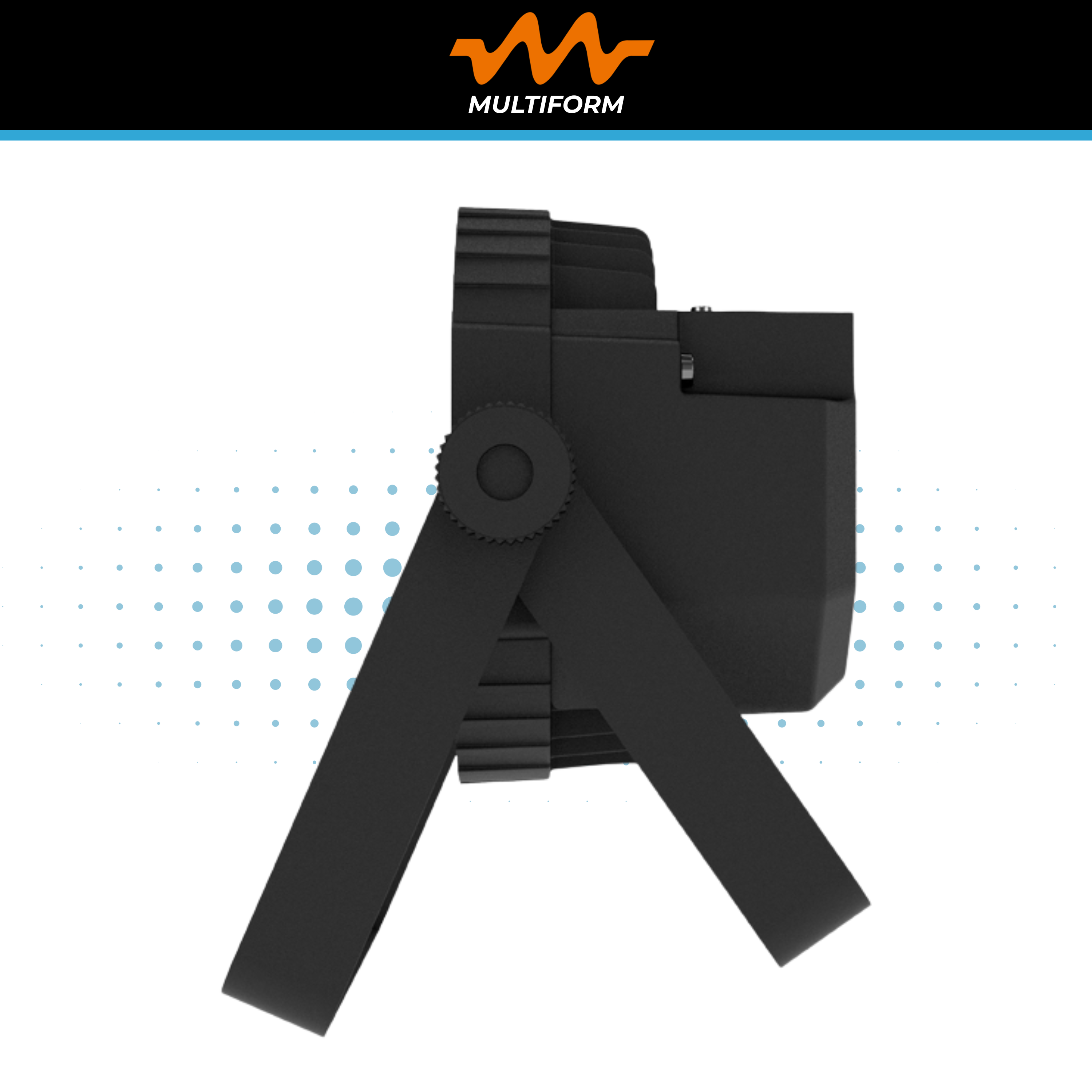

Cooling is achieved through silent convection, with airflow channelled between the LED panel body and electronics compartment. This passive cooling system eliminates fan noise and enhances durability. The die-cast housing offers exceptional ruggedness, while the multi-purpose dual split bracket allows flexible mounting for hanging or floor-standing configurations. An M6 security lug further supports safe installation.
The MULTIPIN™-6A-V3 incorporates CDA™ Current Drive Array Technology for constant LED current regulation and stable output. It supports PDM modulation for camera compliance and offers multiple operating modes including static colours, pattern presets with chase and fade options, sound-to-light functionality and strobe effects. Four DMX control modes are available, including a 3-channel mode with 4-colour emulation and options for combined or separated dimmer and strobe control.

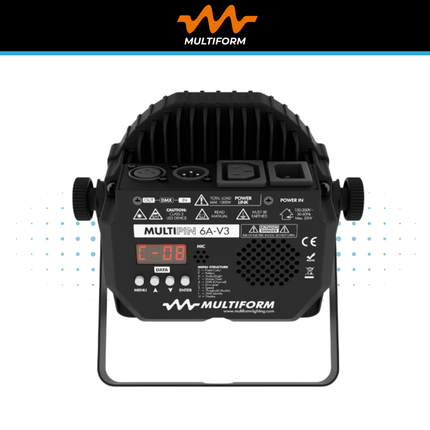

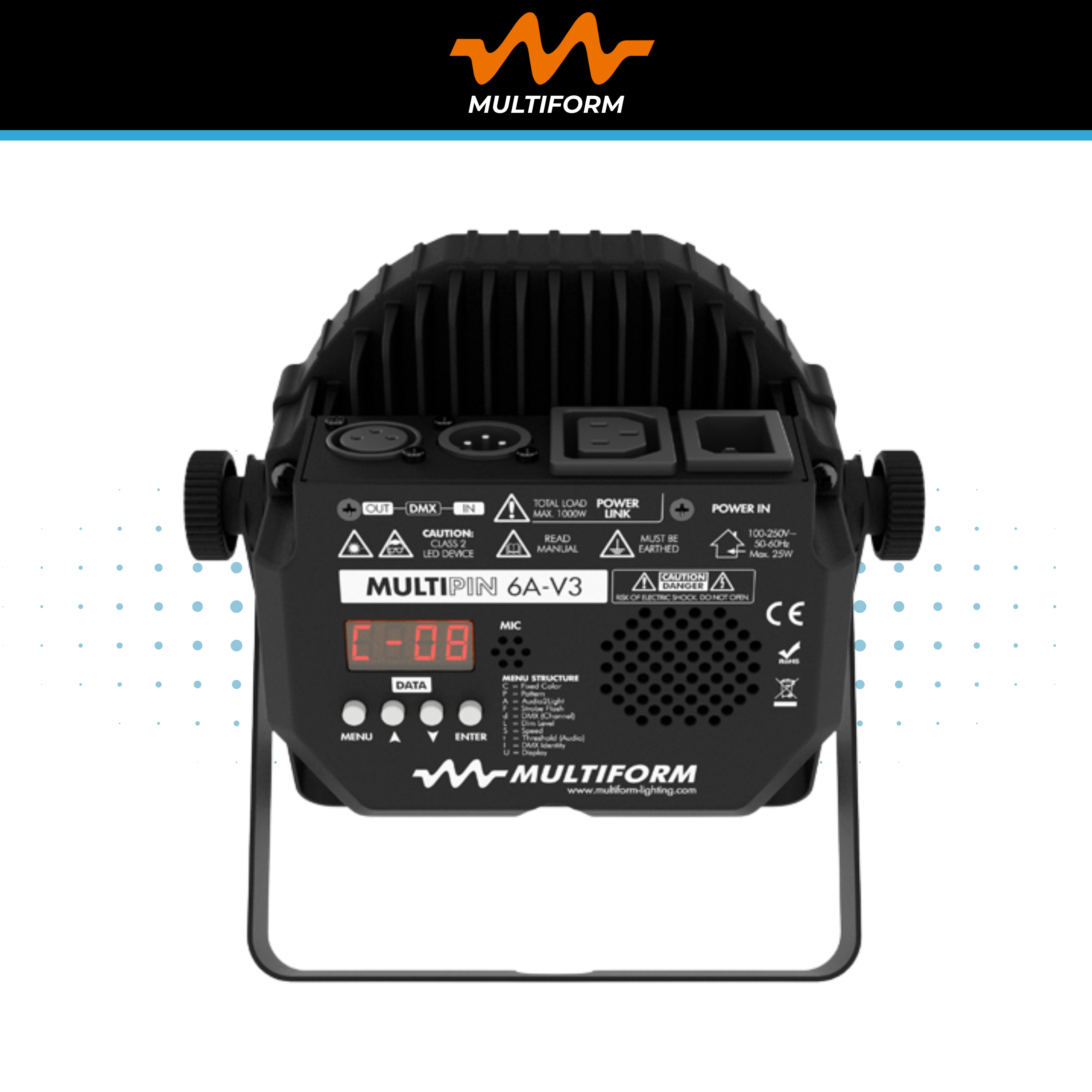

Connectivity includes IEC C14 power input with IEC C13 power link, along with 3-pin XLR DMX in and output. A user-friendly interface featuring four buttons and an LED display allows straightforward configuration. Powered by a 25W industrial-grade switch mode power supply and compliant with CE and RoHS standards, the MULTIPIN™-6A-V3 delivers impressive output, versatility and durability within a compact footprint.
