Description

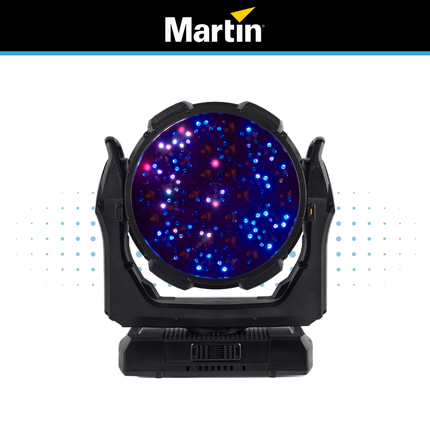

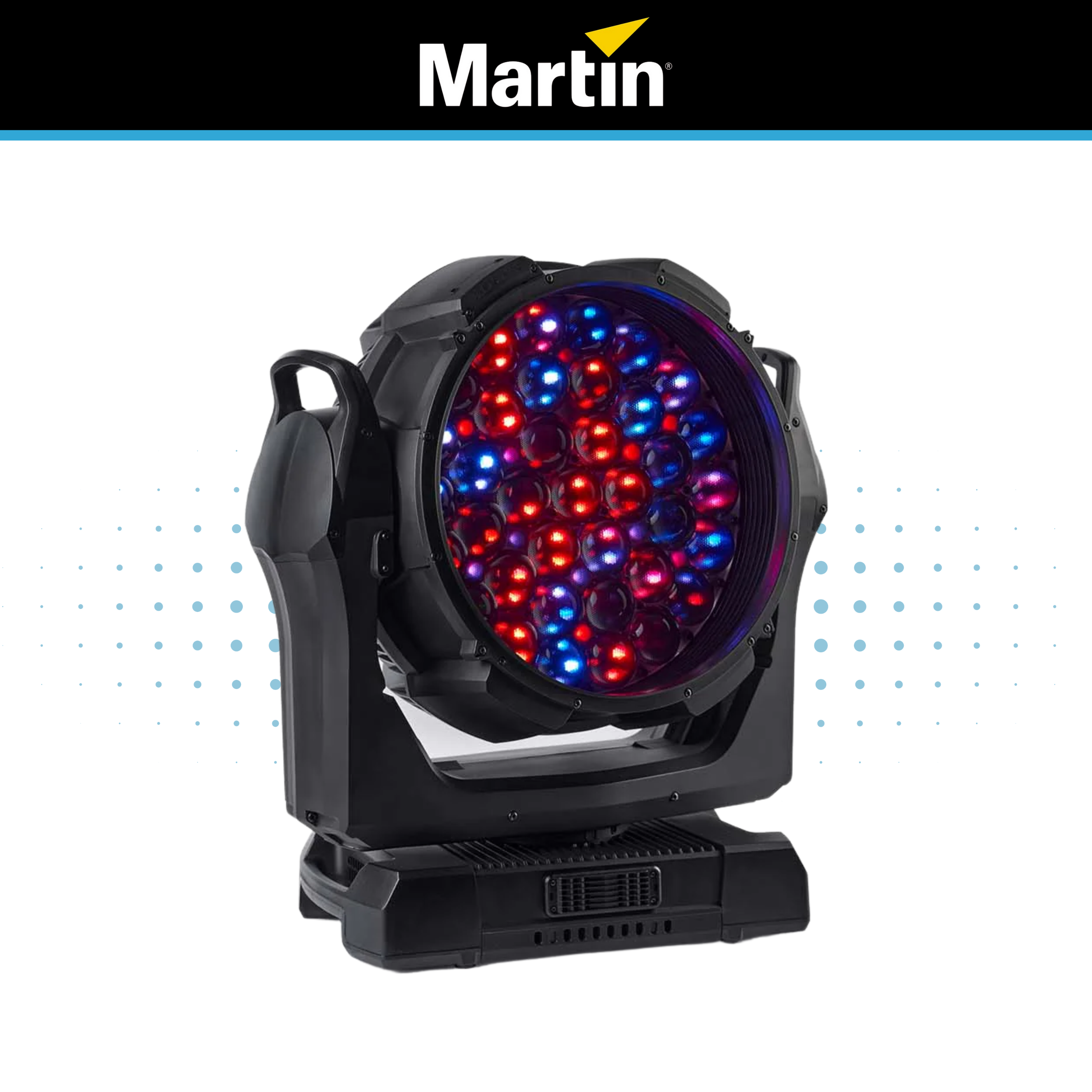

The Martin MAC Aura Raven XIP is a flagship moving head fixture engineered to deliver exceptional wash, beam and eye-candy effects in both indoor and temporary outdoor environments. As the largest and most powerful model in the MAC Aura family, it combines high-output performance with advanced control and smart weatherproof functionality.

Producing over 24,000 lumens of output, the fixture utilises a cutting-edge RGBL (Red/Green/Blue/Lime) LED engine for enhanced colour rendering and superior white light quality, achieving improved CRI, TM-30 and TLCI metrics. A large 343mm front lens and silent, ultra-fast motorised zoom system provide a versatile beam range from 6° to 50°, enabling seamless transitions from tight beams to expansive washes.

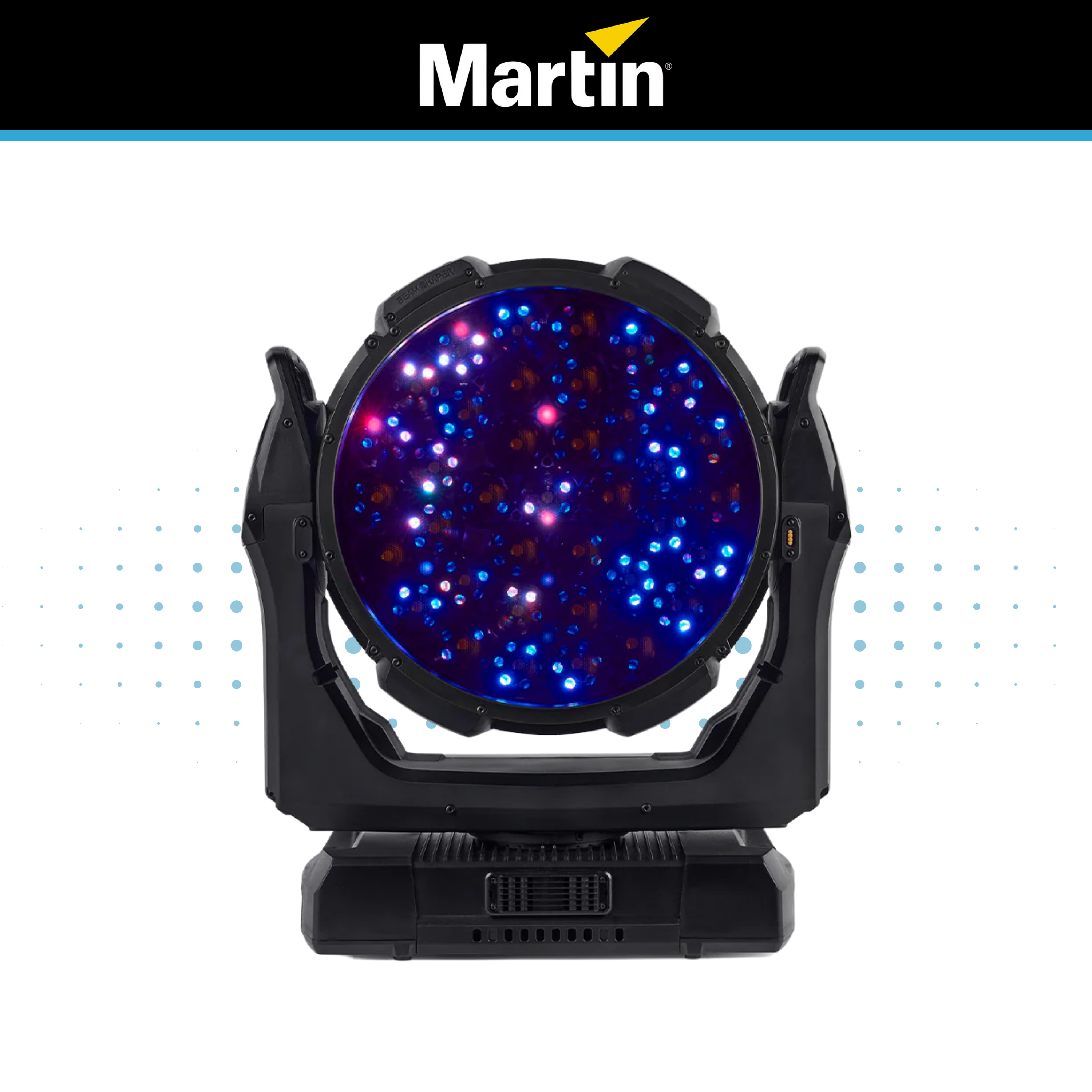

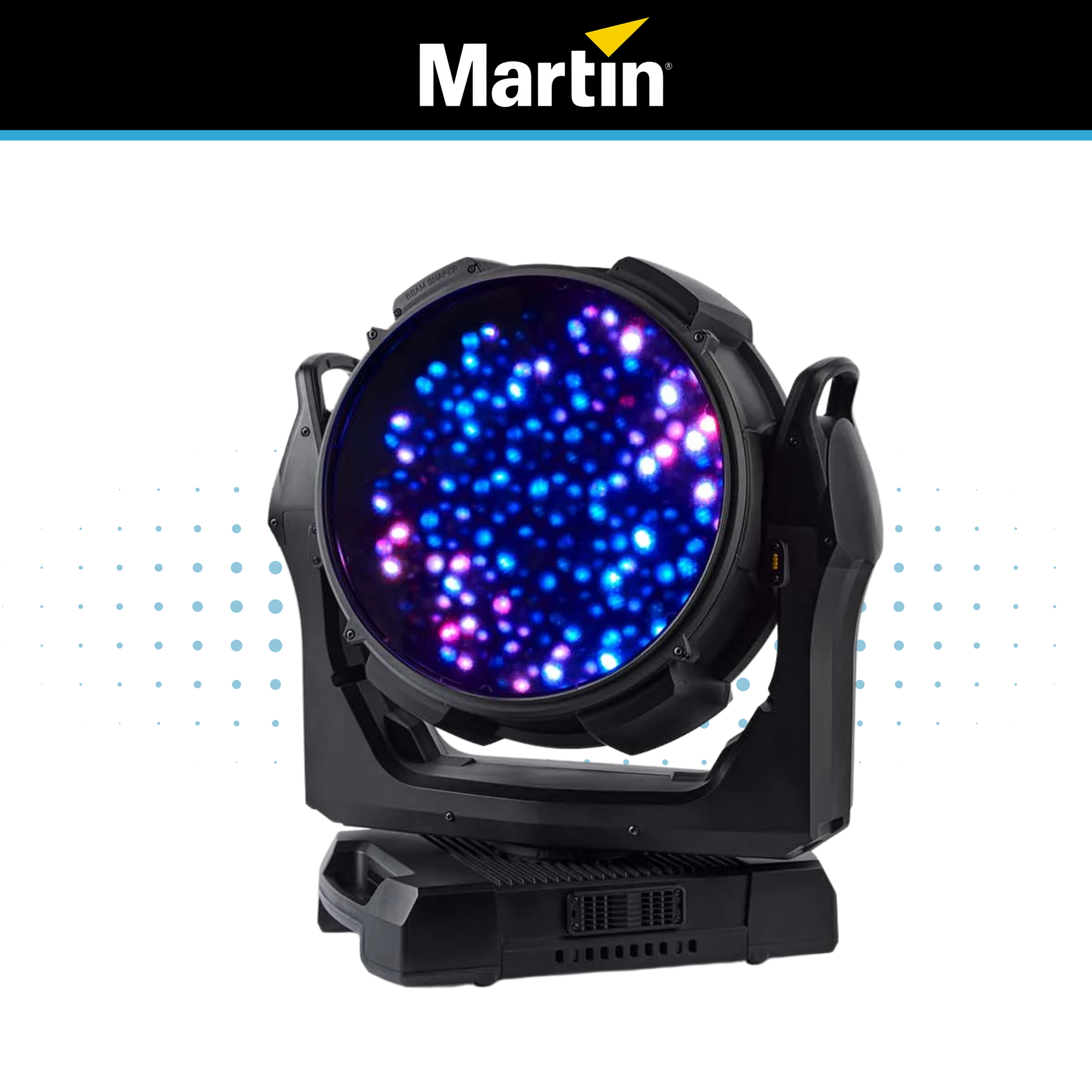

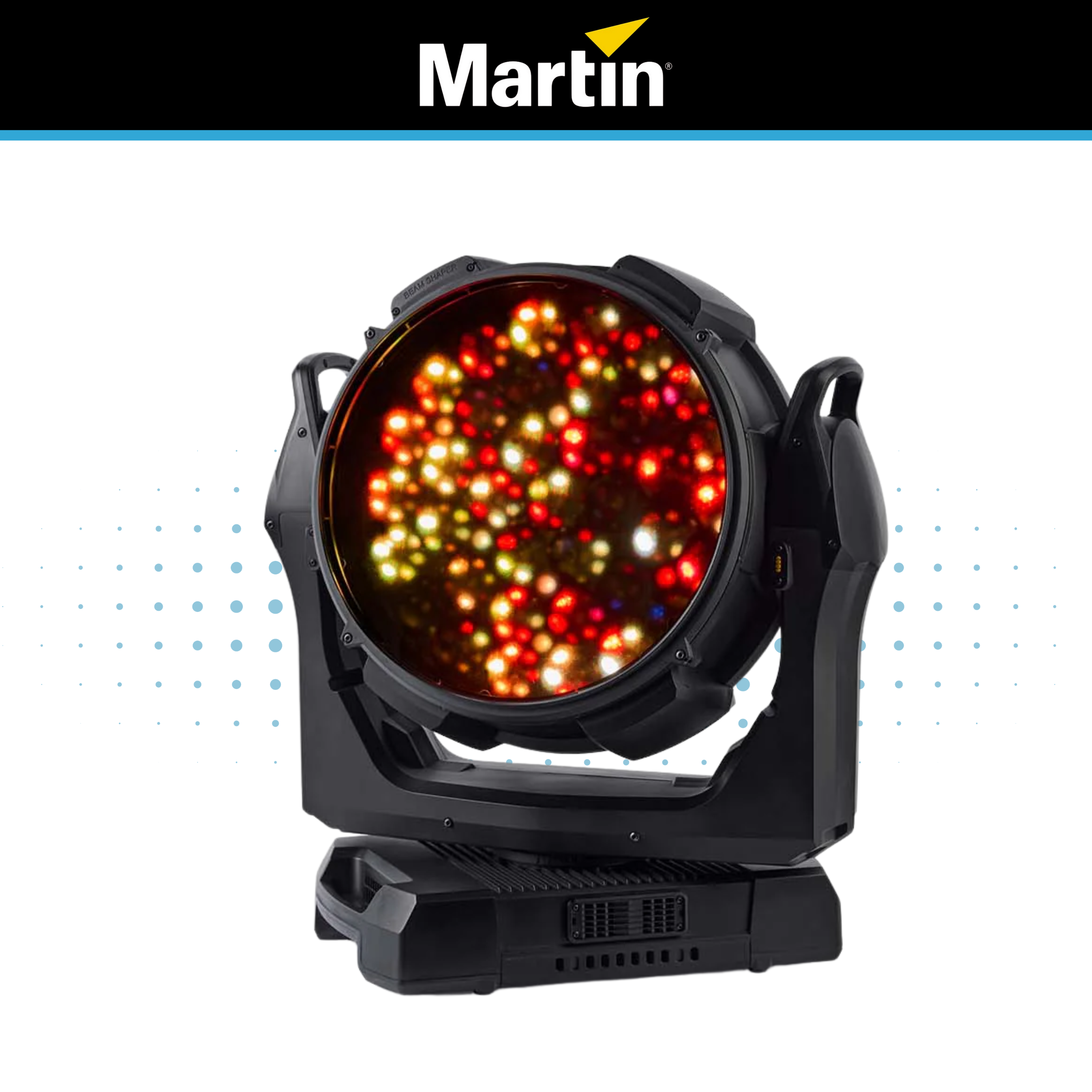

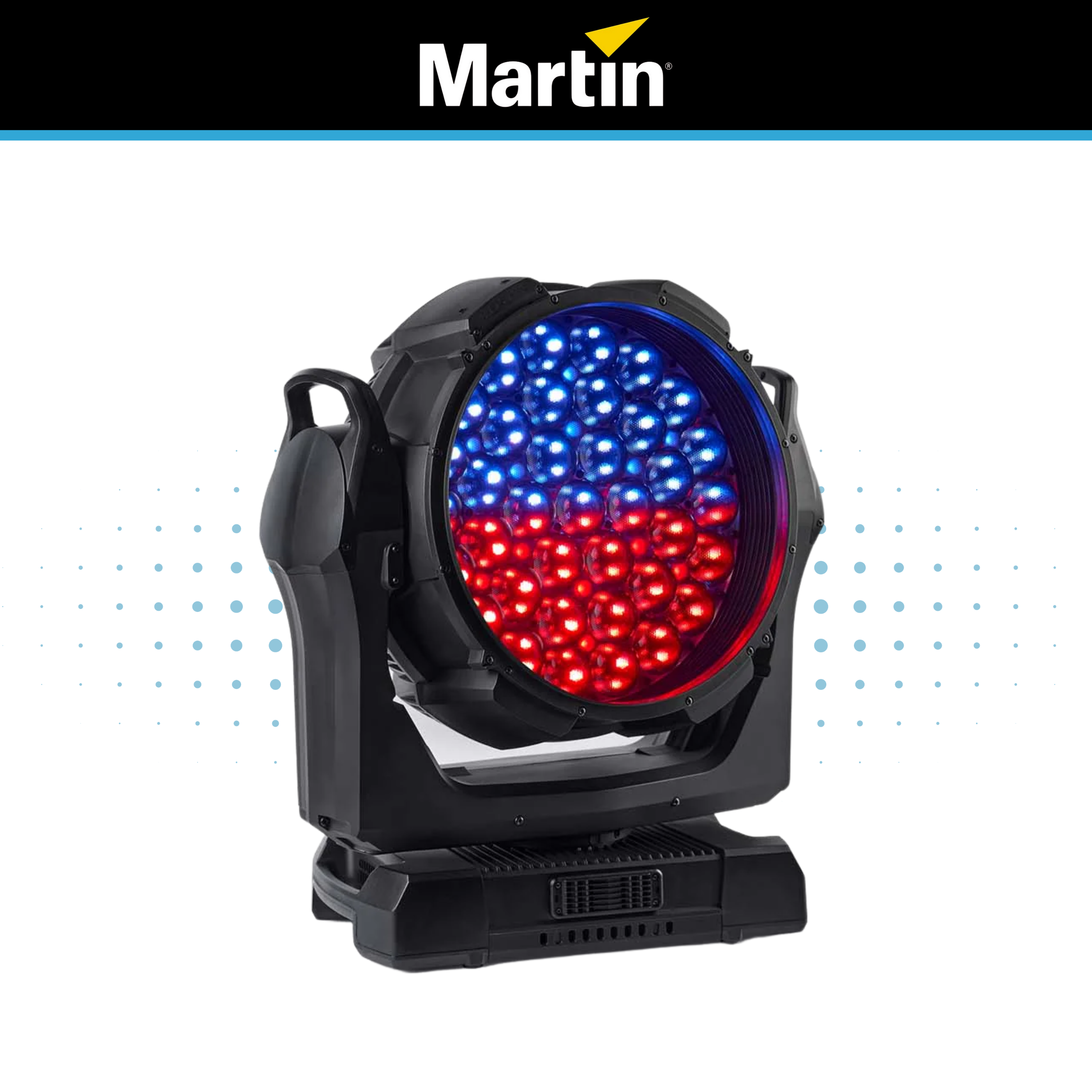

The Raven XIP features 37 main LEDs complemented by 234 RGB Aura backlight LEDs, all offering full pixel control for dynamic visual effects. The dark front lens enhances contrast and delivers a discreet aesthetic while intensifying the pixelated Aura backlight effect.

Designed for professional touring, rental and installation applications, the fixture supports DMX, Art-Net, sACN and Martin P3 control protocols. XIP smart weatherproof technology provides IP54-rated protection for temporary outdoor use. Additional features include a battery-powered display for easy setup, NFC interface for configuration and diagnostics via the Companion Mobile App, a Universal Connect Module slot for third-party wireless modules, and compatibility with an optional BeamShaper module for precise beam shaping.

Compact and lightweight within its class, the MAC Aura Raven XIP also incorporates ergonomic yoke handles for safe handling and quick rigging.

A premium, high-output moving head solution delivering versatility, durability and advanced pixel control for festivals, theatre, corporate events and broadcast environments.

Enquire for availability.

Specifications

• Source: 7x 40W RGBL LEDs
• Source (Aura): 234x 0.25W RGB LEDs
• Full Zoom Range at Half Peak (Beam Angle): 6.5° - 34.2°
• Full Zoom Range at Tenth Peak (Field Angle): 9.7° - 50.0°
• Max. Total Beam LED Engine Power: 830 W
• Max. Total Aura LED Engine Power: 70 W
• Light Engine Luminous Output: 37,000 lumens
• Protection rating: IP54
• Power Consumption: Max. 1120 W - Typical. 1020W
• Width (across yoke): 528 mm (20.8 in.)
• Height (head forward): 588 mm (23.1 in.)
• Height (maximum): 603 mm (23.7 in.)
• Depth (head): 241 mm (9.5 in.)
• Weight: 28.8 kg (63.5 lbs.)
