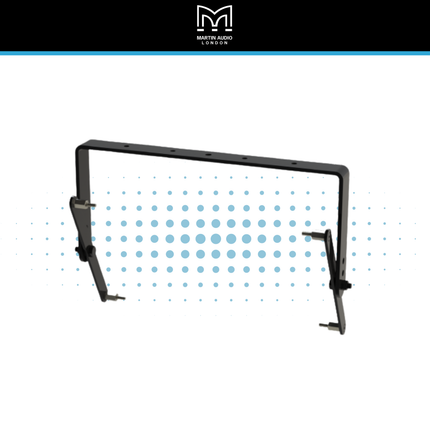

The Martin Audio CDD Yoke Assembly range provides a robust mounting solution for CDD10, CDD12 and CDD15 installation loudspeakers. Designed for professional fixed installations, these yoke brackets allow compatible CDD Series speakers to be mounted securely while providing practical adjustment for accurate positioning and coverage alignment.

This single listing covers three model-specific yoke assembly options: CDDY10 for CDD10 loudspeakers, CDDY12 for CDD12 loudspeakers and CDDY15 for CDD15 loudspeakers. Each version is available in black or white, allowing the bracket finish to be matched to the selected loudspeaker and surrounding installation environment. Black is typically suited to darker entertainment spaces, exposed structures and performance-led venues, while white is often preferred for lighter interiors, architectural installations and discreet commercial spaces.

Each yoke assembly is manufactured from weatherised polyester powder coated steel, making it suitable for both indoor and appropriate outdoor or semi-exposed installations when paired with compatible loudspeakers and installed correctly. This makes the range suitable for hospitality venues, bars, restaurants, leisure spaces, education facilities, houses of worship, event rooms, covered external areas and larger commercial audio systems.

The yoke design provides vertical and horizontal tilt and pan adjustment, allowing the loudspeaker to be aimed towards the required listening area. This is particularly useful in fixed installations where accurate speaker positioning is critical for achieving consistent coverage, clear intelligibility and controlled sound distribution. Whether the speaker is being mounted on a wall, overhead structure or suitable architectural fixing point, the yoke assembly gives installers a practical way to align the cabinet correctly.

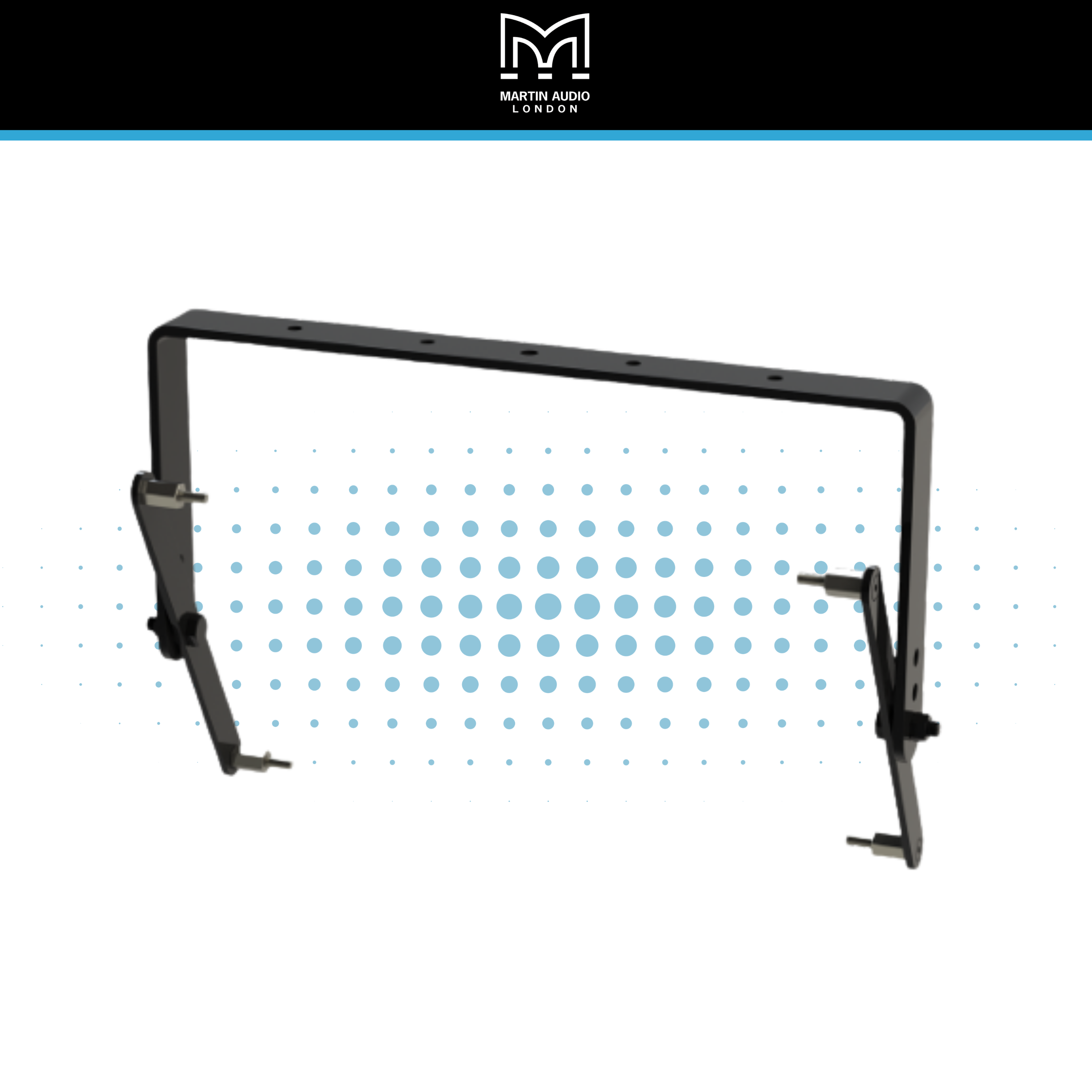

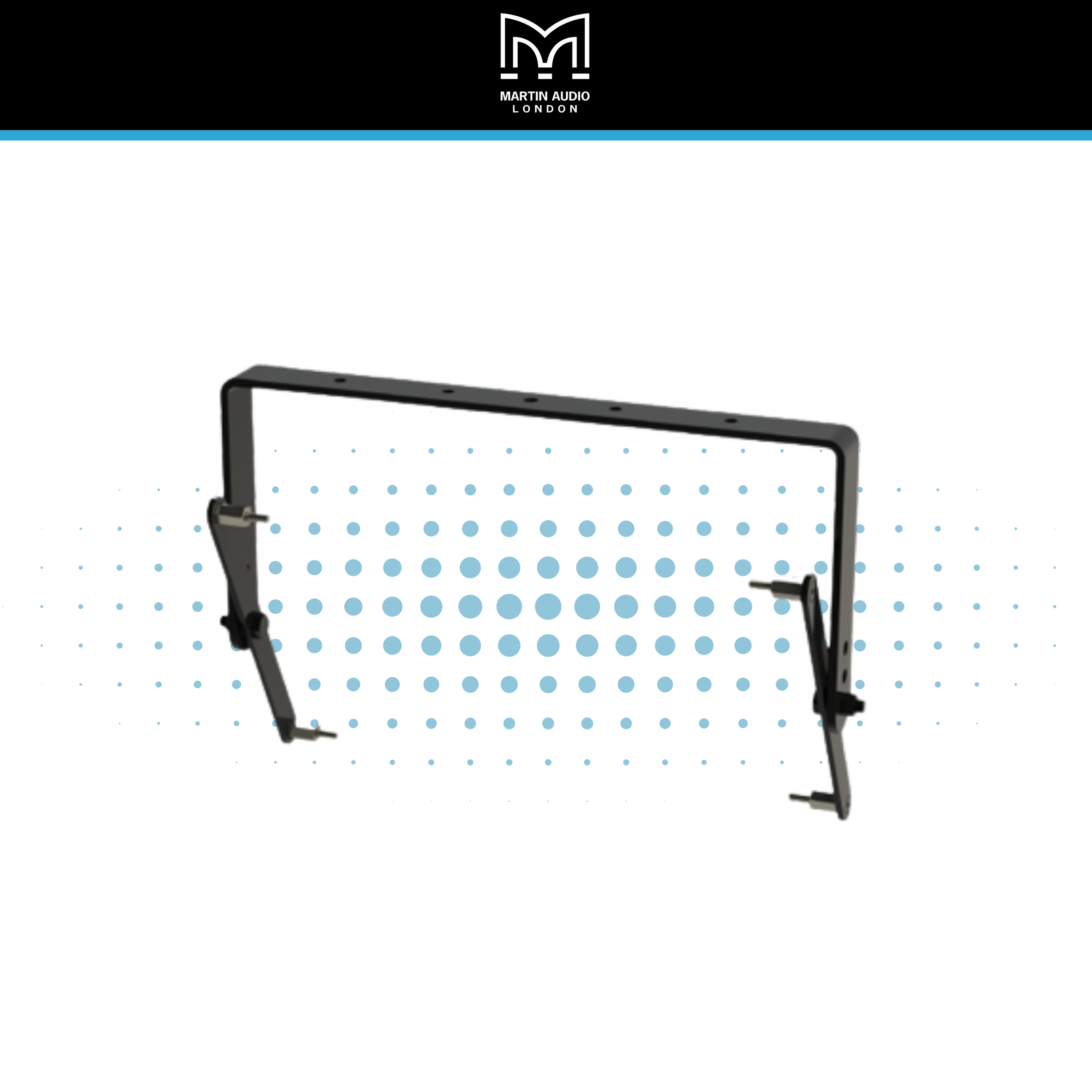

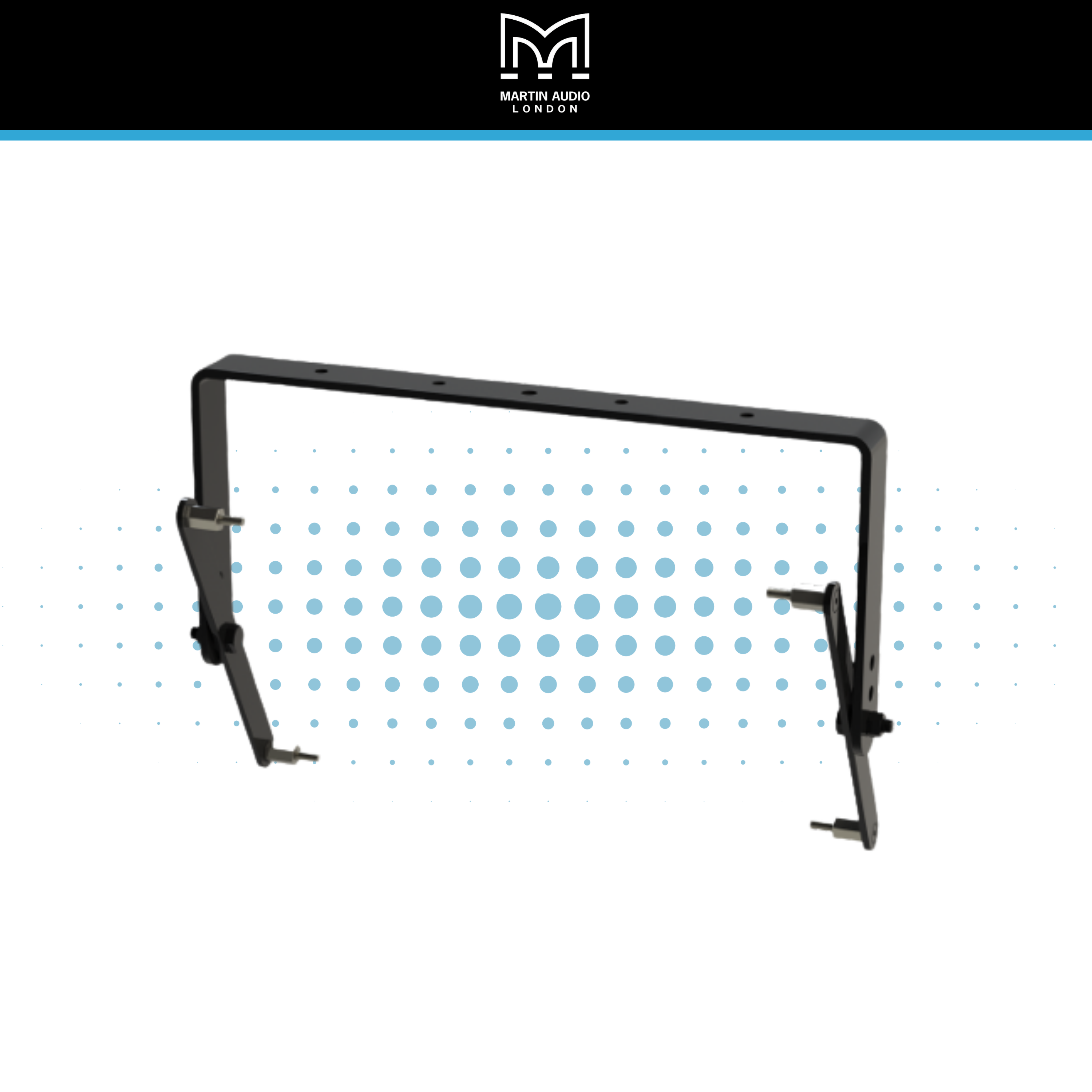

The CDDY10 variant is designed for Martin Audio CDD10 loudspeakers and weighs 4.05kg. The CDDY12 variant is designed for CDD12 loudspeakers and weighs 5.46kg. The CDDY15 variant is designed for CDD15 loudspeakers and weighs 7.35kg. Each version uses model-specific dimensions and fixing geometry to suit the relevant speaker cabinet, ensuring the correct fit and installation support for the chosen CDD loudspeaker.

Each kit includes the main yoke, two yoke arms, four M8 threaded spacers, two M12 nyloc nuts, two M12 plastic washers and two M12 flat washers. This provides the core hardware required for the yoke assembly, helping installers complete a clean and professional loudspeaker mounting arrangement.

The Martin Audio CDD Yoke Assembly range is a practical accessory for projects requiring secure, adjustable mounting of CDD10, CDD12 or CDD15 loudspeakers. With black and white finish options, weatherised steel construction and model-specific compatibility, it provides a professional mounting solution for commercial AV installations where performance, reliability and installation flexibility are all important.
