The Martin Audio CDD-LIVE Yoke Assembly range provides a robust and adjustable mounting solution for CDD-LIVE 8, CDD-LIVE 12 and CDD-LIVE 15 active loudspeakers. Available in black or white, these model-specific yoke brackets are designed to support professional installations where accurate loudspeaker positioning, secure mounting and clean system presentation are required.
This single listing covers the CDDLYA8, CDDLYA12 and CDDLYA15 yoke assembly options. The CDDLYA8 is designed for the CDD-LIVE 8, the CDDLYA12 is designed for the CDD-LIVE 12 and XD12, and the CDDLYA15 is designed for the CDD-LIVE 15 and XD15. Each version is available in a black or white finish, allowing the bracket to be matched to the loudspeaker colour and surrounding installation environment.
These yoke assemblies are suitable for ceiling, truss or wall mounting, making them a practical choice for a wide range of professional AV applications. They are well suited to theatres, performance venues, live event spaces, hospitality venues, corporate AV systems, education facilities, houses of worship and fixed commercial audio installations where CDD-LIVE loudspeakers need to be mounted securely and aimed accurately.
The yoke design provides flexible adjustment depending on the selected model, loudspeaker orientation and mounting method. Landscape and portrait configurations are supported, with 360° adjustment available in selected ceiling, truss and wall-mounted setups. This gives installers the ability to position the loudspeaker precisely, helping achieve better audience coverage, improved intelligibility and a cleaner overall system design.
Each yoke is manufactured from powder coated steel, providing a strong and durable mounting platform for professional use. The black finish is suitable for darker stages, exposed structures, entertainment venues and low-visibility installations, while the white finish is ideal for lighter architectural spaces, corporate environments and discreet AV projects.

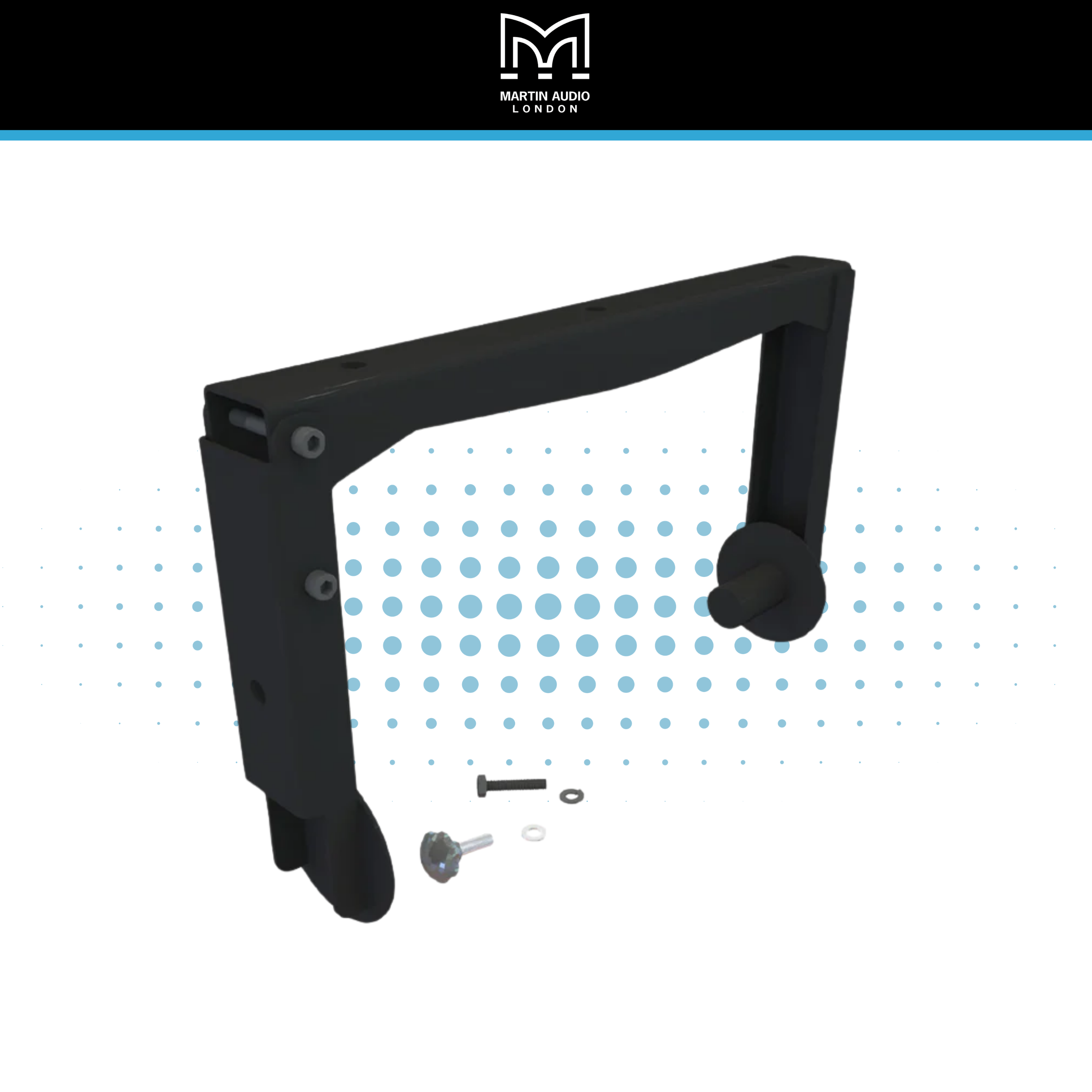

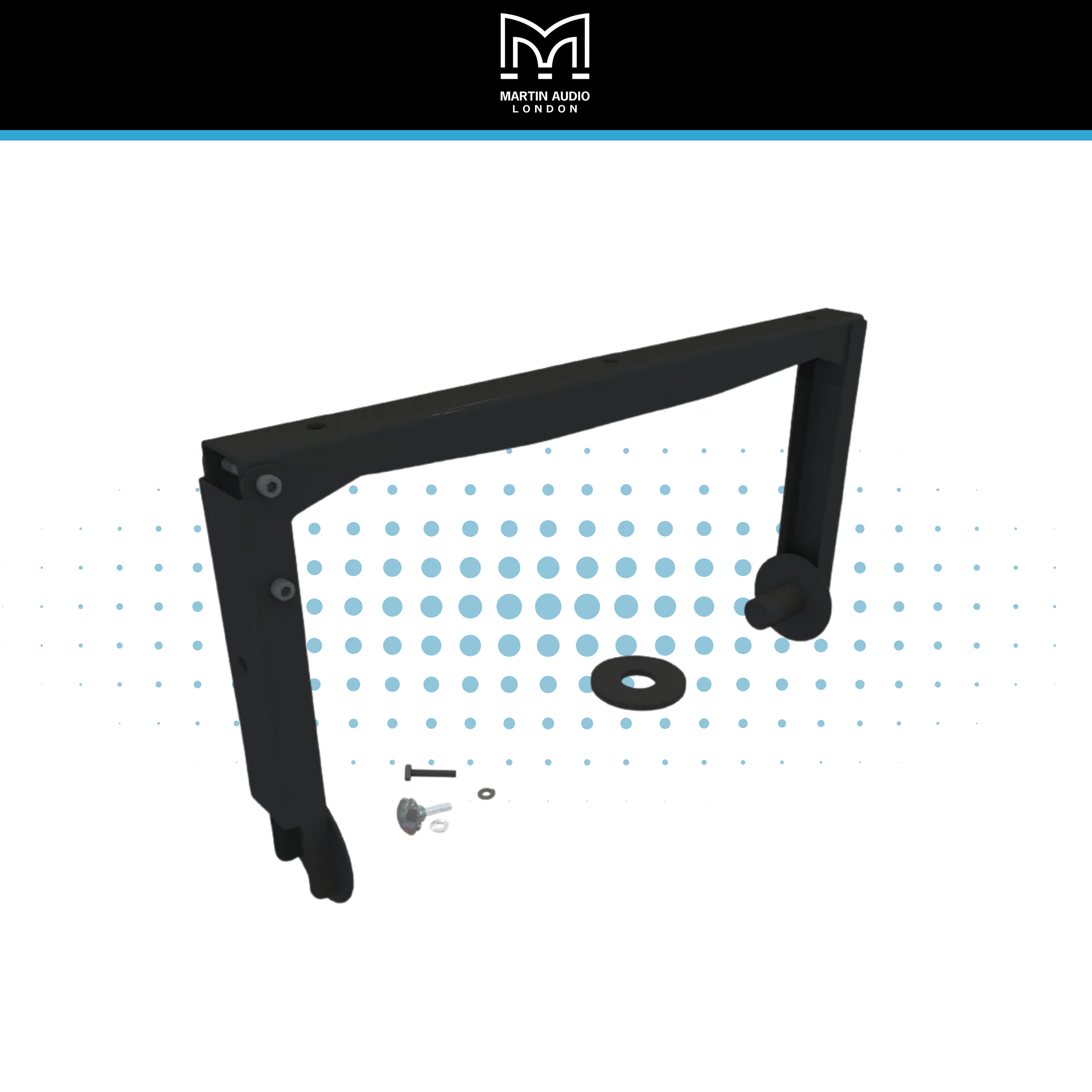

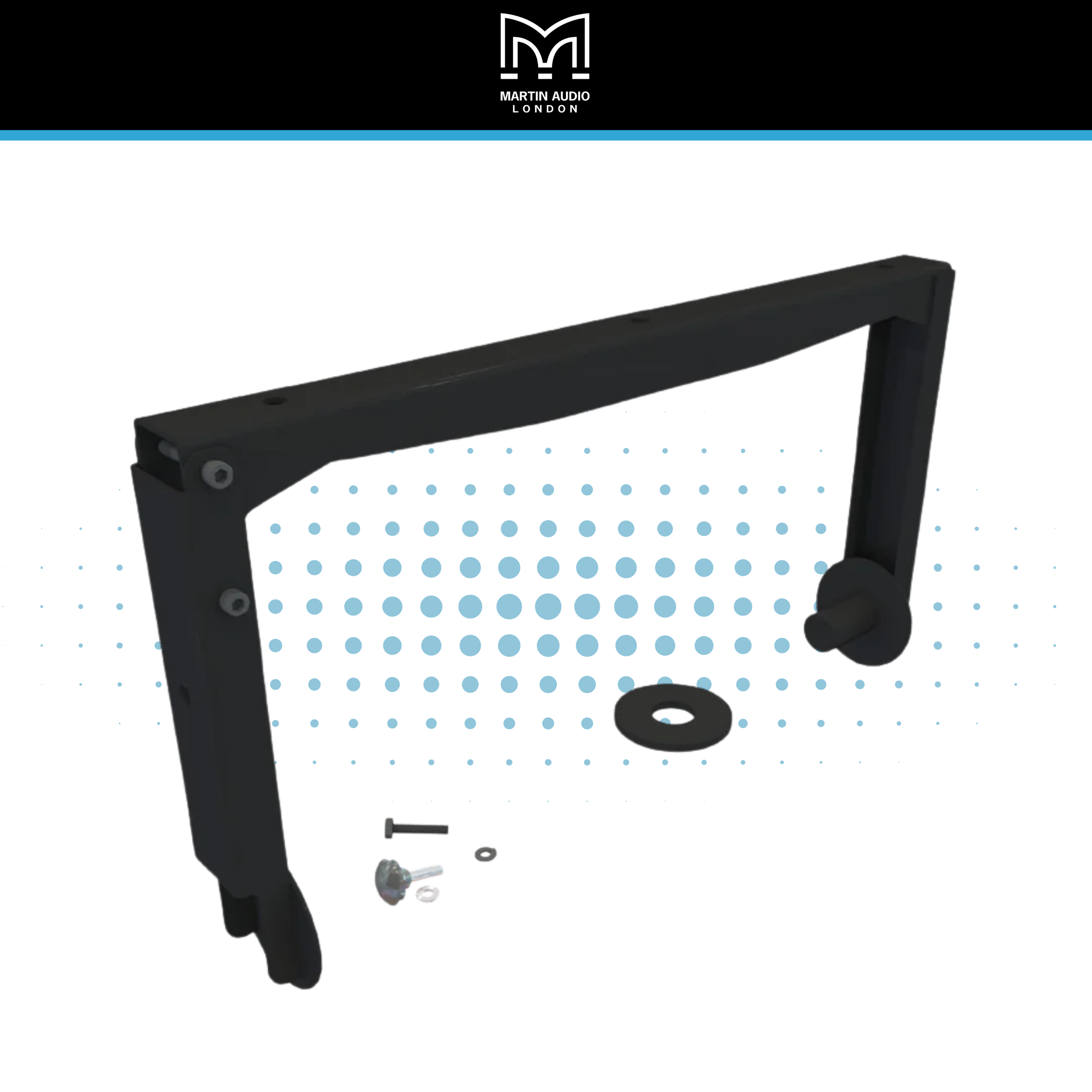

The CDDLYA8 yoke weighs 5.6kg and is designed for the compact CDD-LIVE 8 active loudspeaker. The CDDLYA12 yoke weighs 7.2kg and is suitable for the CDD-LIVE 12 and XD12. The CDDLYA15 yoke weighs 9.8kg and is designed for the larger CDD-LIVE 15 and XD15 loudspeakers. Each version uses model-specific dimensions and fixing geometry to suit the relevant loudspeaker cabinet.
The kit includes the main yoke frame components and associated fixing hardware, including handwheel and hex bolt adjustment options. The handwheel is useful for portable or temporary applications where the loudspeaker angle may need to be adjusted more regularly, while the hex bolt option is better suited to fixed installations where a more secure permanent setting is required.
The Martin Audio CDD-LIVE Yoke Assembly range is an essential accessory for projects requiring secure, adjustable mounting of CDD-LIVE active loudspeakers. With black and white finish options, model-specific compatibility and powder coated steel construction, it provides a professional mounting solution for both portable and installed AV systems.
