Description

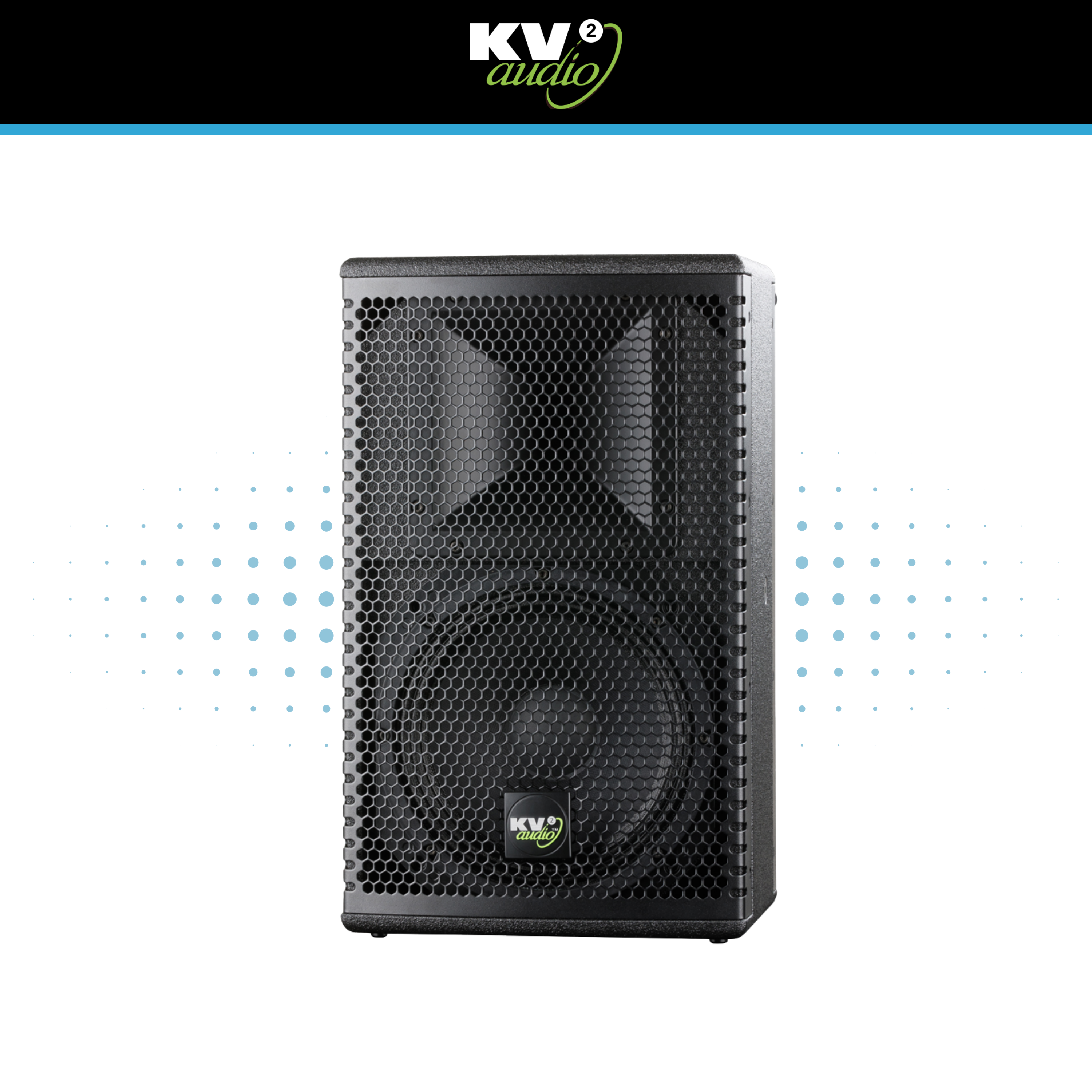

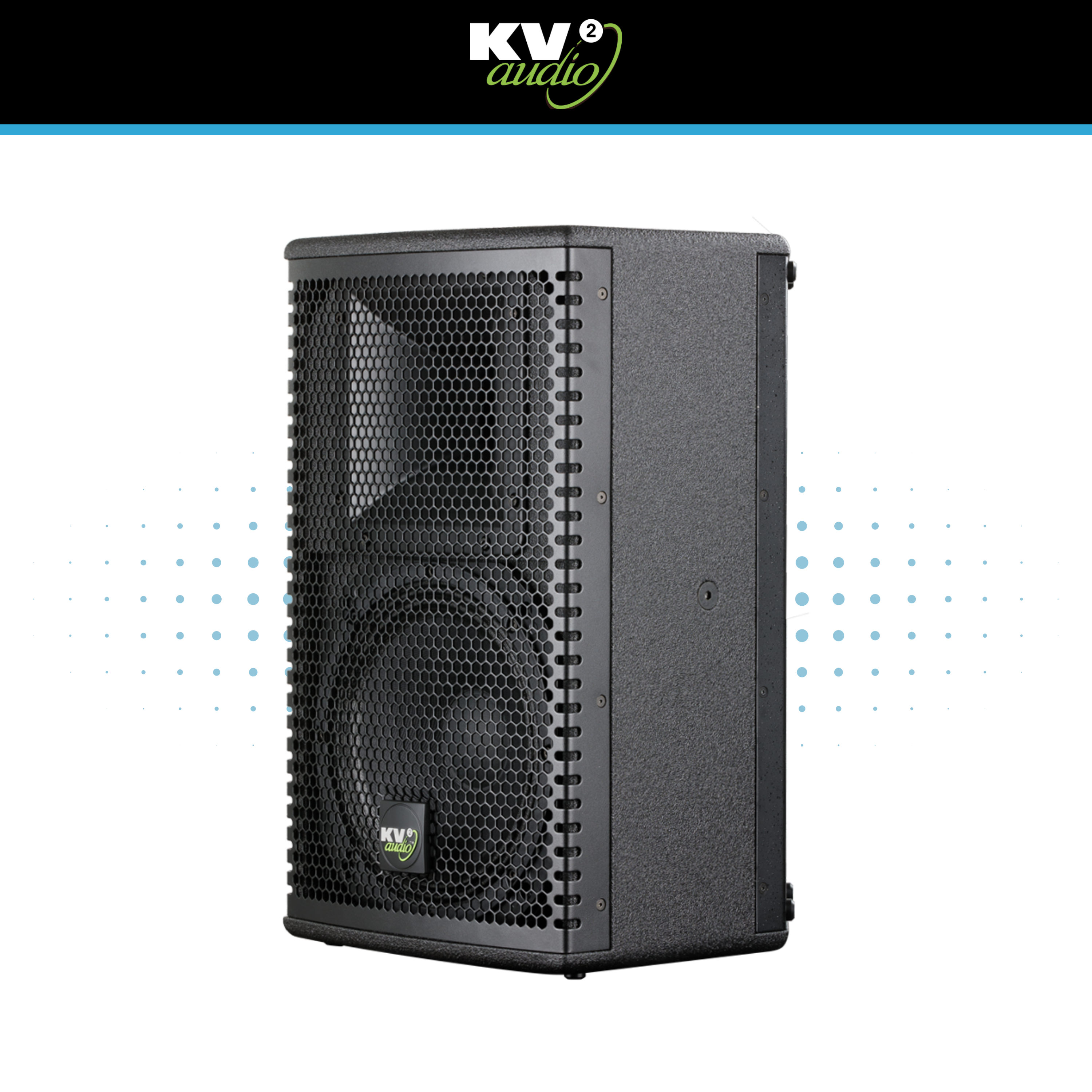

The KV2 Audio EX10 is a high-performance 2-way active full-range loudspeaker with integrated DSP, designed to deliver exceptional clarity, dynamic range, and output in a compact enclosure. Featuring a 10-inch low-frequency driver and precision-engineered high-frequency compression driver, it offers professional-grade sound suitable for both portable and fixed installation applications.

Engineered as part of KV2’s acclaimed EX Series, the EX10 integrates amplification, crossover processing, and system protection into a single unit, ensuring optimised performance and simplified setup.

High-Output Compact Design

Despite its compact footprint, the EX10 delivers impressive output levels that rival larger 12-inch systems, making it a preferred choice for AV professionals and rental companies.

With up to 126dB sustained output and strong dynamic range, it is well suited to:

• Small to medium live performance venues
• Corporate AV and conference environments
• High-quality background and foreground audio

Its compact size enables discreet installation without compromising on performance.

Professional 2-Way Active System

The EX10 features:

• 10-inch low-frequency driver
• 1.75-inch titanium compression driver
• Wide dispersion horn (approx. 100° x 80°)

This configuration ensures:

• Clear and detailed high frequencies
• Strong midrange presence for speech
• Controlled and responsive low-frequency performance

The rotatable horn allows flexible deployment in both vertical and horizontal orientations.

500W Bi-Amplified Power Design

The speaker delivers a total of 500W of onboard amplification, with dedicated amplification for low and high frequencies.

This includes:

• High-efficiency low-frequency amplifier
• Class AB high-frequency amplifier for low distortion

This bi-amplified design ensures improved clarity, efficiency, and consistent performance at all volume levels.

Integrated DSP and Speaker Management

The EX10 includes advanced onboard DSP, providing:

• Electronic crossovers
• Phase alignment and time correction
• Equalisation and system optimisation
• Comprehensive speaker protection

This ensures:

• Plug-and-play optimisation
• Reduced need for external processing
• Consistent sound quality across applications

Wide Application Flexibility

The EX10 is designed as a multi-purpose loudspeaker suitable for a wide range of professional uses:

• Standalone PA systems
• Corporate AV and presentations
• DJs and mobile performers
• Stage monitoring and side fills
• Fixed installations and distributed audio systems
• Infill for larger sound systems

It can also be paired with subwoofers such as the KV2 EX2.2 to create a full-range system for larger venues.

Robust Construction and Installation Options

Constructed from durable Baltic birch plywood with a protective polymer coating, the EX10 is built for both touring and installation environments.

Installation features include:

• Multiple M10 rigging points
• Pole mount socket for stand use
• Bracket mounting compatibility
• Asymmetrical cabinet design for monitor use

This makes it highly adaptable across different system configurations.

Compact Yet Powerful Form Factor

The EX10’s compact design allows it to be used in space-constrained environments while still delivering high-output performance. Its ergonomic handles and lightweight construction support easy transport and deployment.

Specifications

• Driver: 1x 10" / 1.75" HF
• Power: 500W RMS
• SPL: 126dB Continuous
• Freq. Response: 65Hz to 20kHz -3dB
• Dispersion: 100° x 80°
• Dimensions: 514 x 310 x 326mm
• Weight: 20.5Kg
