The INTUSONIC INTUPAK VRE11 is a compact RS485 remote wall panel designed to provide convenient local control for compatible INTUSONIC... Read more
£59.00 Incl. VAT
Guaranteed secure & safe checkout.
The INTUSONIC INTUPAK VRE11 is a compact RS485 remote wall panel designed to provide convenient local control for compatible INTUSONIC installed audio systems. Acting as a room-based user interface, it allows source selection, volume adjustment and local audio input from a discreet wall-mounted control point.
Designed for commercial AV installations, the VRE11 provides a clean and professional way for staff or users to control audio within a specific zone without needing access to the main equipment rack.

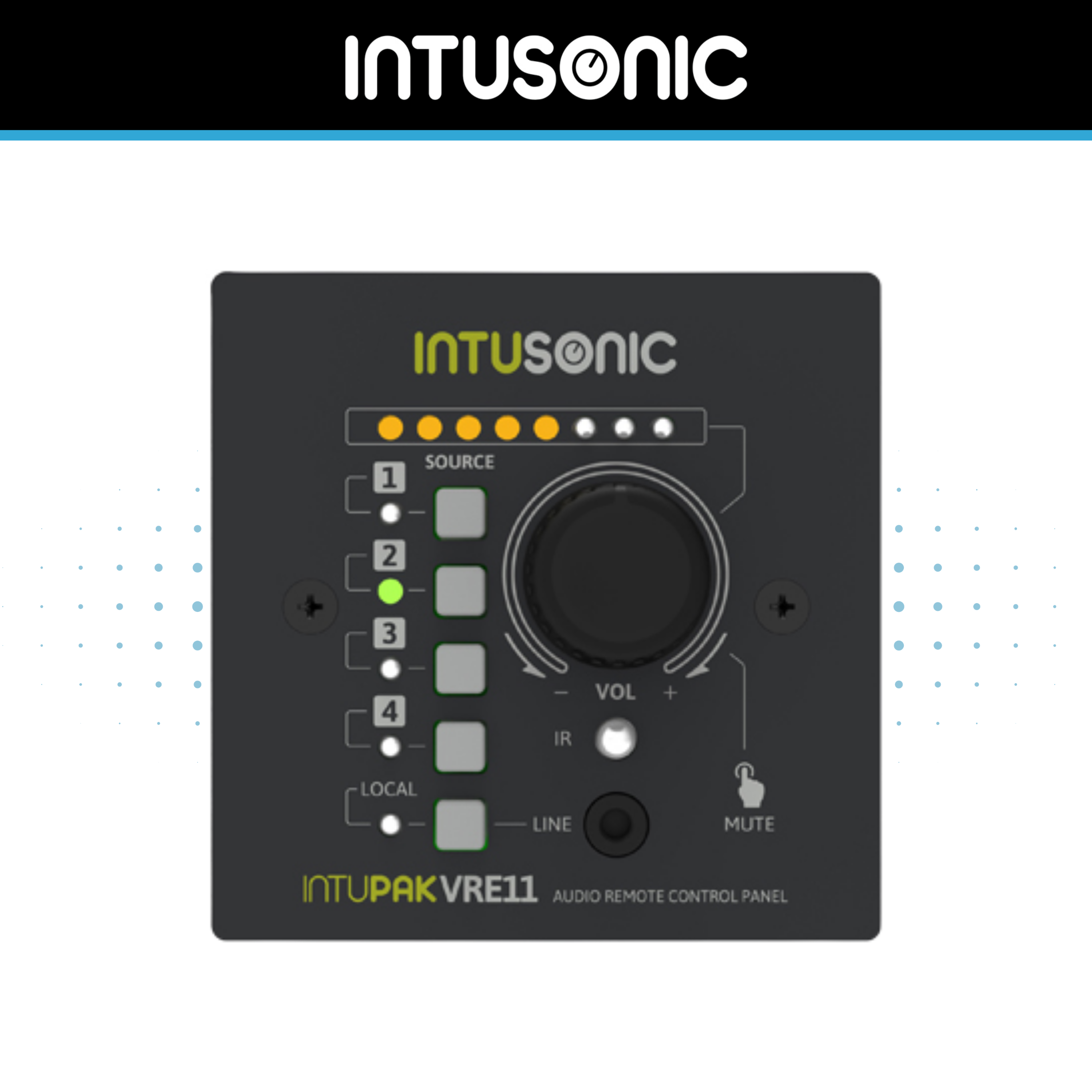

The VRE11 replicates key front-panel controls from compatible INTUSONIC systems, giving users simple access to everyday functions directly from the room being controlled. Volume level is displayed via an 8-segment LED indicator, while the rotary encoder provides intuitive adjustment.
This makes it particularly suitable for:
The remote panel provides direct control over source selection and volume, allowing each assigned area to be managed locally. This is particularly useful in venues where different zones require independent control without giving users access to the central audio equipment.

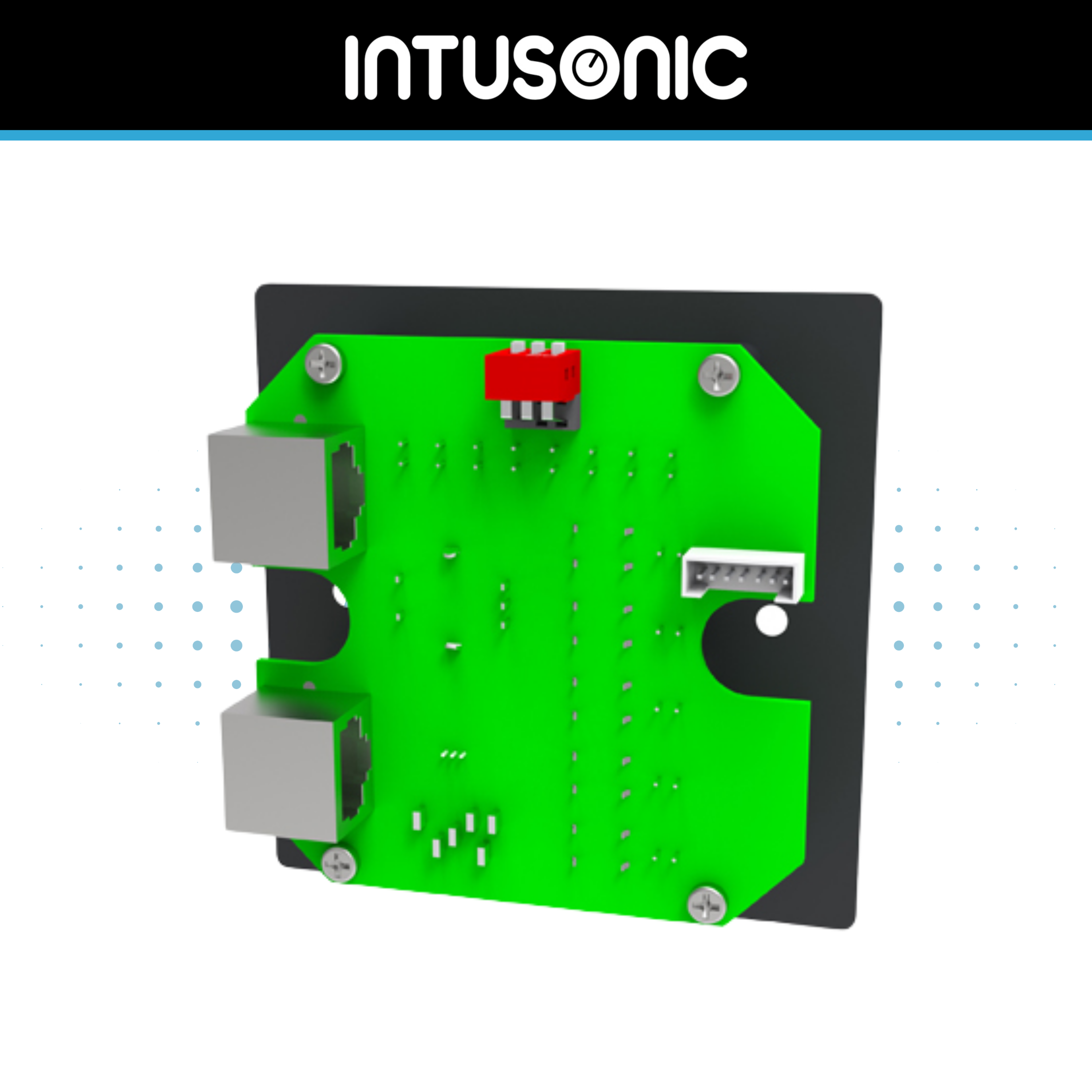

The panel can be assigned to one of up to eight zones using onboard DIP switches, making it suitable for scalable multi-zone audio systems.
A front-panel 3.5mm stereo TRS input allows users to connect a local audio source directly at the wall panel. The incoming stereo signal is summed to mono and transmitted back to the main system, making it a practical option for presentations, temporary playback sources or room-based media devices.
This provides flexibility for:
The VRE11 connects to the main system using standard Cat5 or Cat6 cable via INTUSONIC’s Intulink RS485 bus. No separate local power supply is required, as power is supplied through the bus connection from the main unit.
This simplifies installation, reduces cabling requirements and keeps the wall panel neat and efficient.
Multiple VRE11 panels can be daisy-chained within a system, allowing more than one control point to be installed in the same room or zone. The system follows a “last setting rules” approach, meaning the most recently adjusted panel updates the main unit and any other connected panels.
This is useful in:

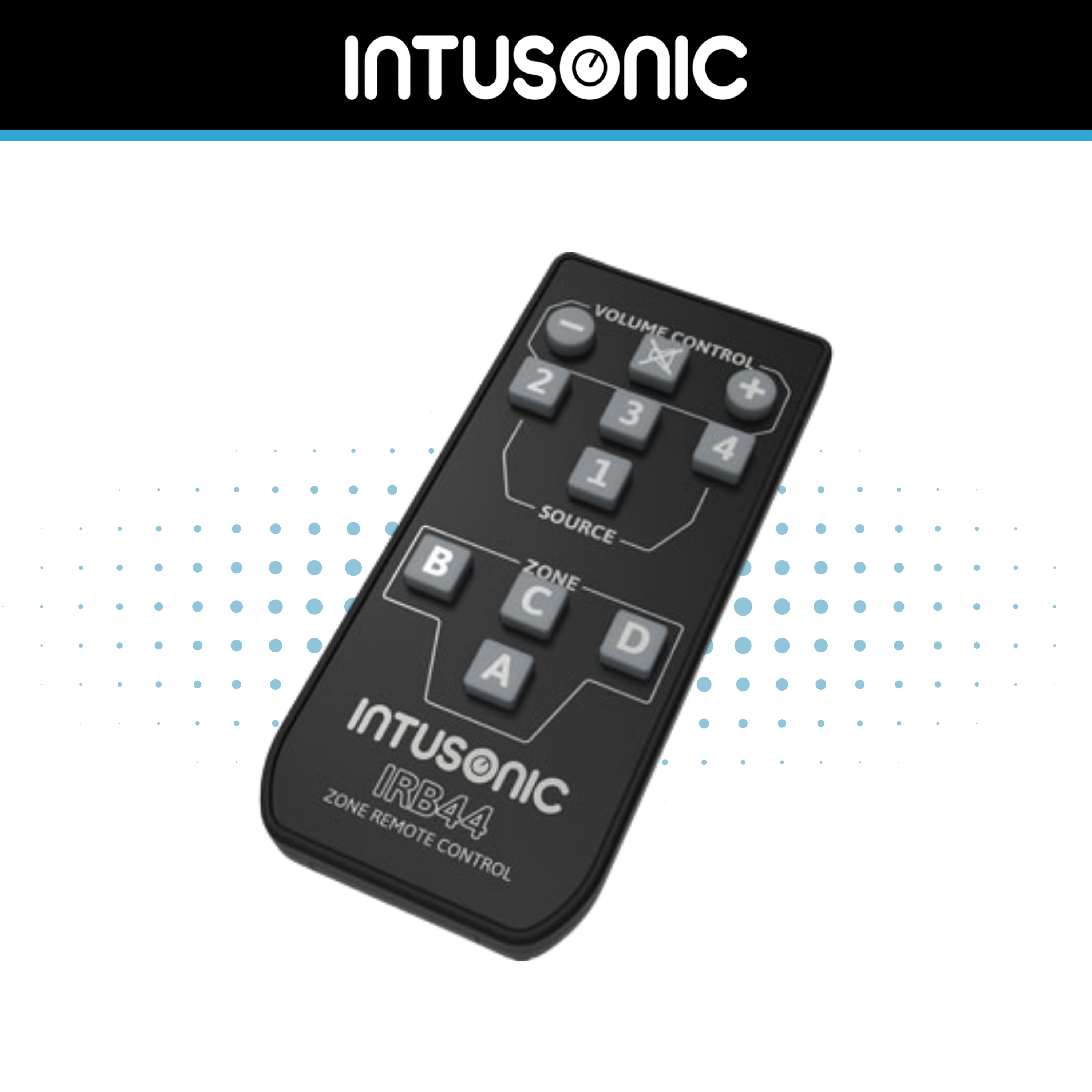

For added convenience, the VRE11 includes an infrared receiver and is supplied with the INTUSONIC IRB44 remote control. This allows users to make adjustments without physically touching the wall panel, providing a practical control option for meeting rooms, hospitality spaces and user-operated environments.
The VRE11 is supplied with two metal panels and is designed to fit common EU and UK wall box formats. Its shallow mounting depth makes it suitable for a wide range of installation environments, including retrofit projects where wall depth may be limited.
The INTUPAK VRE11 is compatible with the INTUSONIC VLA42 control node and other INTUSONIC products supporting RS485 source and volume control. Its combination of local control, audio input, daisy-chain capability and simple CAT cable connectivity makes it a practical interface for modern installed audio systems.
Typical applications include:
The INTUSONIC INTUPAK VRE11 provides a clean, intuitive and installation-friendly control solution for compatible RS485-enabled audio systems. With source selection, volume control, local audio input, IR remote operation and daisy-chain support, it gives commercial audio installations a professional room-based user interface.
