The INTUSONIC INTUPAK VLA42 is a compact volume control node designed to add practical source selection and master volume control... Read more
£130.00 Incl. VAT
Guaranteed secure & safe checkout.
The INTUSONIC INTUPAK VLA42 is a compact volume control node designed to add practical source selection and master volume control to installed audio systems. Built for commercial AV environments, it provides a simple way to manage up to four audio sources from the unit itself, by infrared remote control, or via a compatible RS485 wall panel.
Designed for contractors, integrators and venue operators, the VLA42 provides flexible control in systems where local operation, remote access and clean audio performance are required.
The VLA42 allows users to switch between four line-level audio inputs, making it a practical control point for systems with multiple music or playback sources. It is particularly useful where several source devices need to feed a single amplifier, mixer or audio system without requiring a larger control unit.
This makes it suitable for:

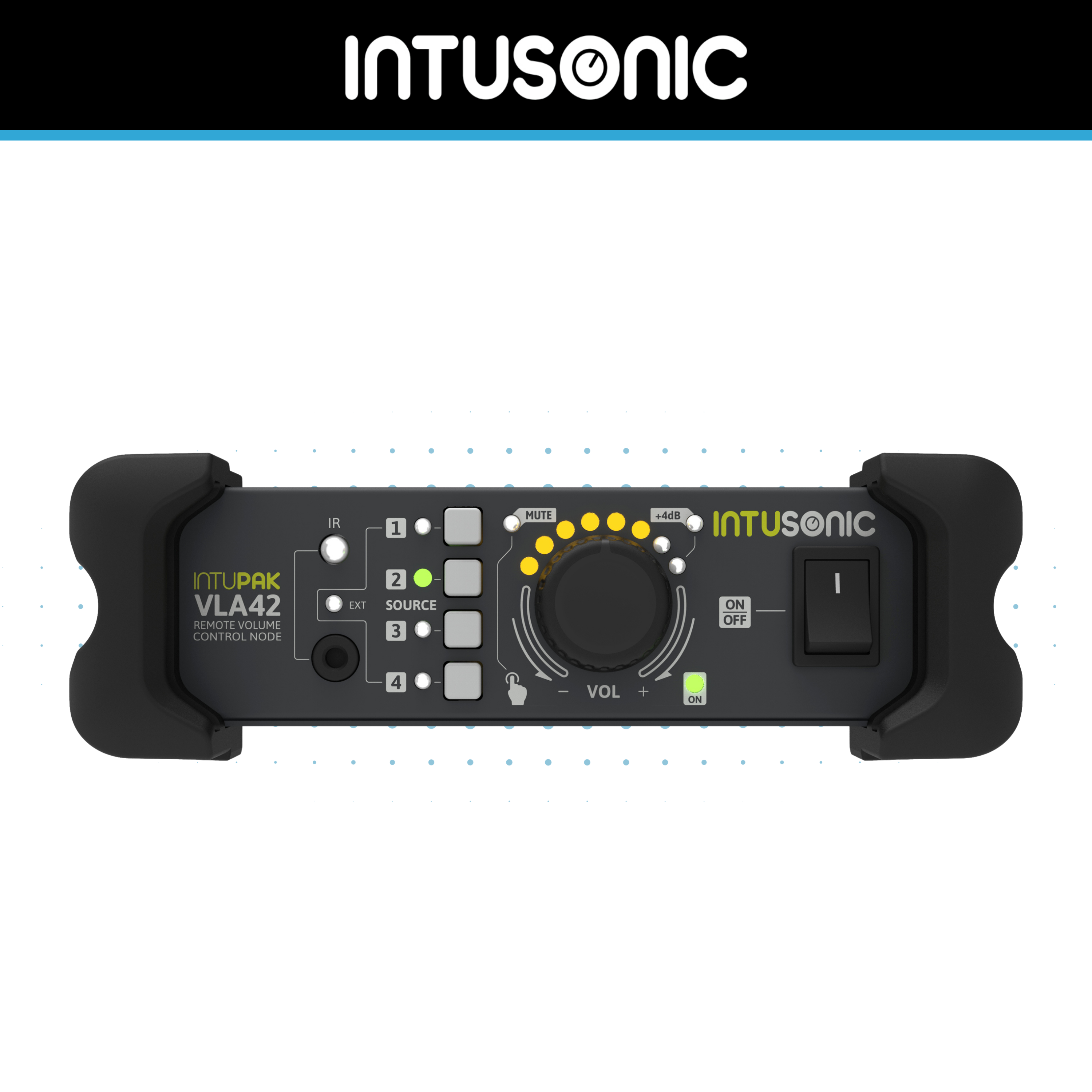

A front-panel volume control and 8-LED level indicator provide straightforward master level adjustment. This gives users a clear visual reference for system level while keeping operation simple and intuitive.
The unit also includes source selector buttons with front-panel LED indicators, making it easy to identify which source is currently active.
Input 1 features ultra-high CMRR balanced input circuitry, allowing the VLA42 to receive audio over longer cable runs while maintaining signal integrity. This is useful where a source is located away from the main audio equipment or where a central audio feed needs to be brought into a local control point.
This makes the VLA42 well suited to installations where both local and remote source signals need to be managed from one compact device.
The VLA42 is designed to work with the optional INTUSONIC VRE11 wall panel via RS485 connection. When paired with the VRE11, users can control source selection and volume from a room-based wall control point, while also gaining access to a local 3.5mm audio input on the wall panel.
This provides a professional solution for:
The VLA42 includes an IR receiver and is supplied with an INTUSONIC IRB44 infrared remote control, allowing convenient operation without direct interaction with the unit. A 3.5mm IR extension port is also provided, enabling the control node to be hidden away in a ceiling void, cabinet or equipment location while still allowing IR operation.

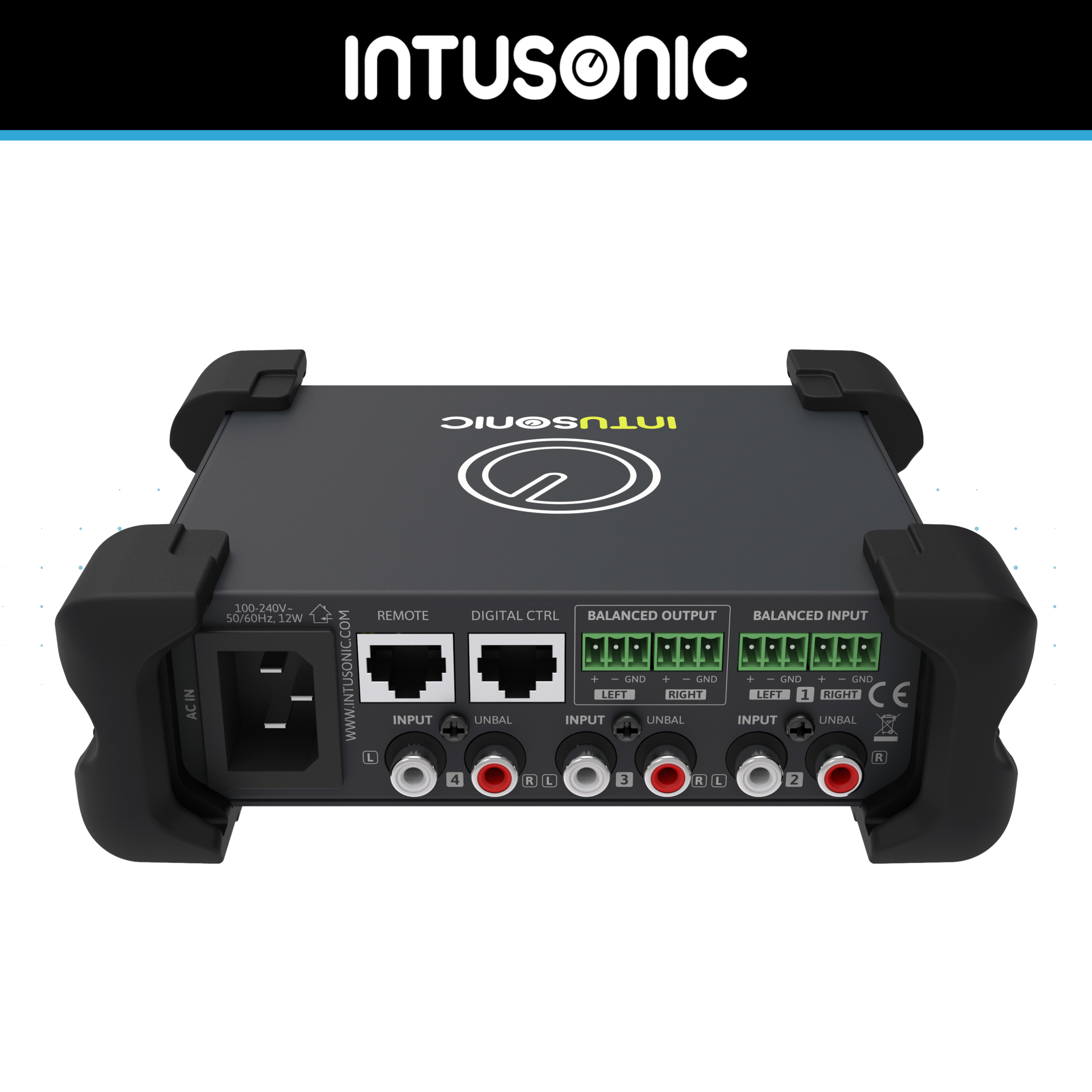

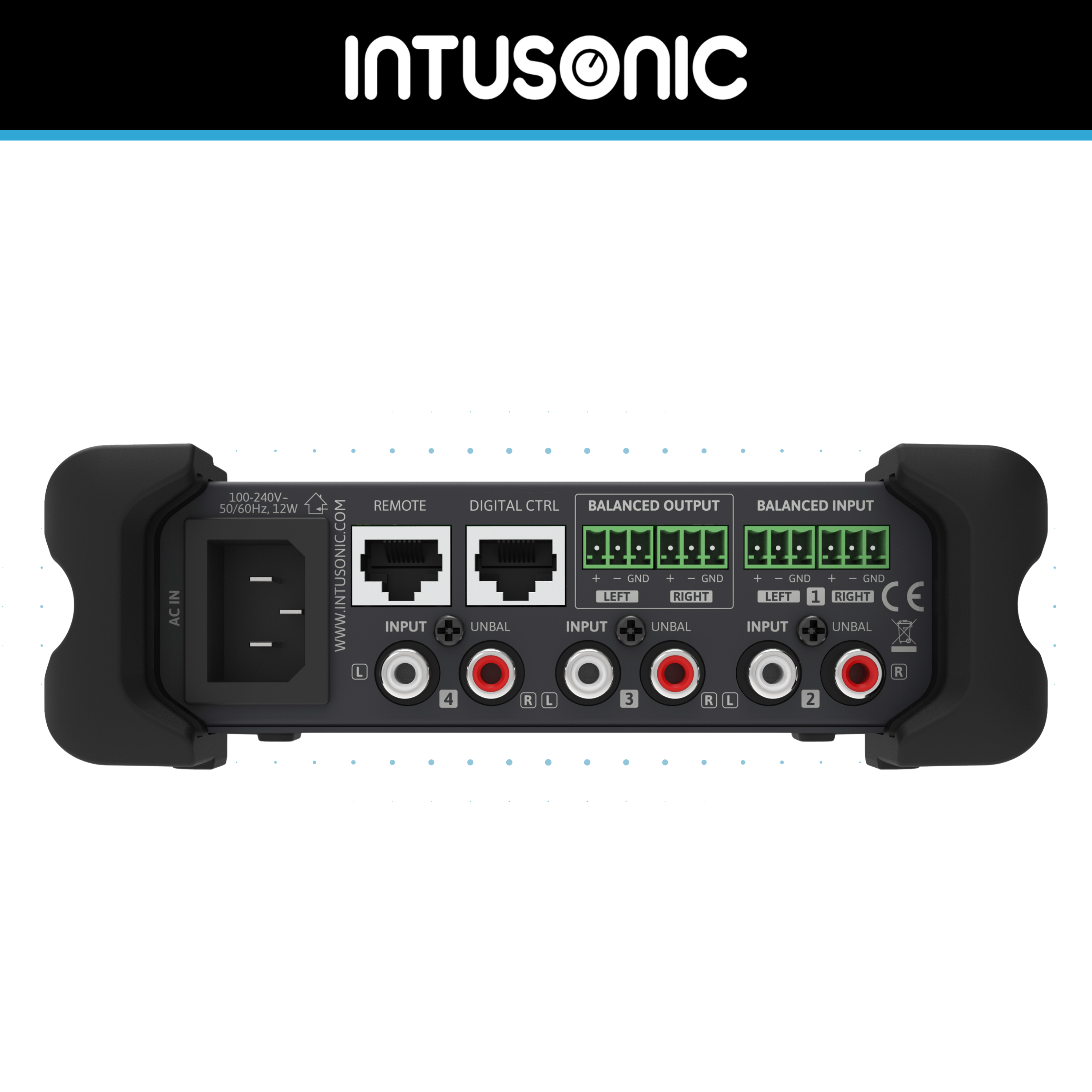

The VLA42 provides a balanced master output via terminal connection, allowing clean and reliable integration with amplifiers, mixers, DSP units or other professional audio equipment. Its high-headroom digital potentiometer circuitry helps maintain strong audio performance while providing smooth and accurate level control.

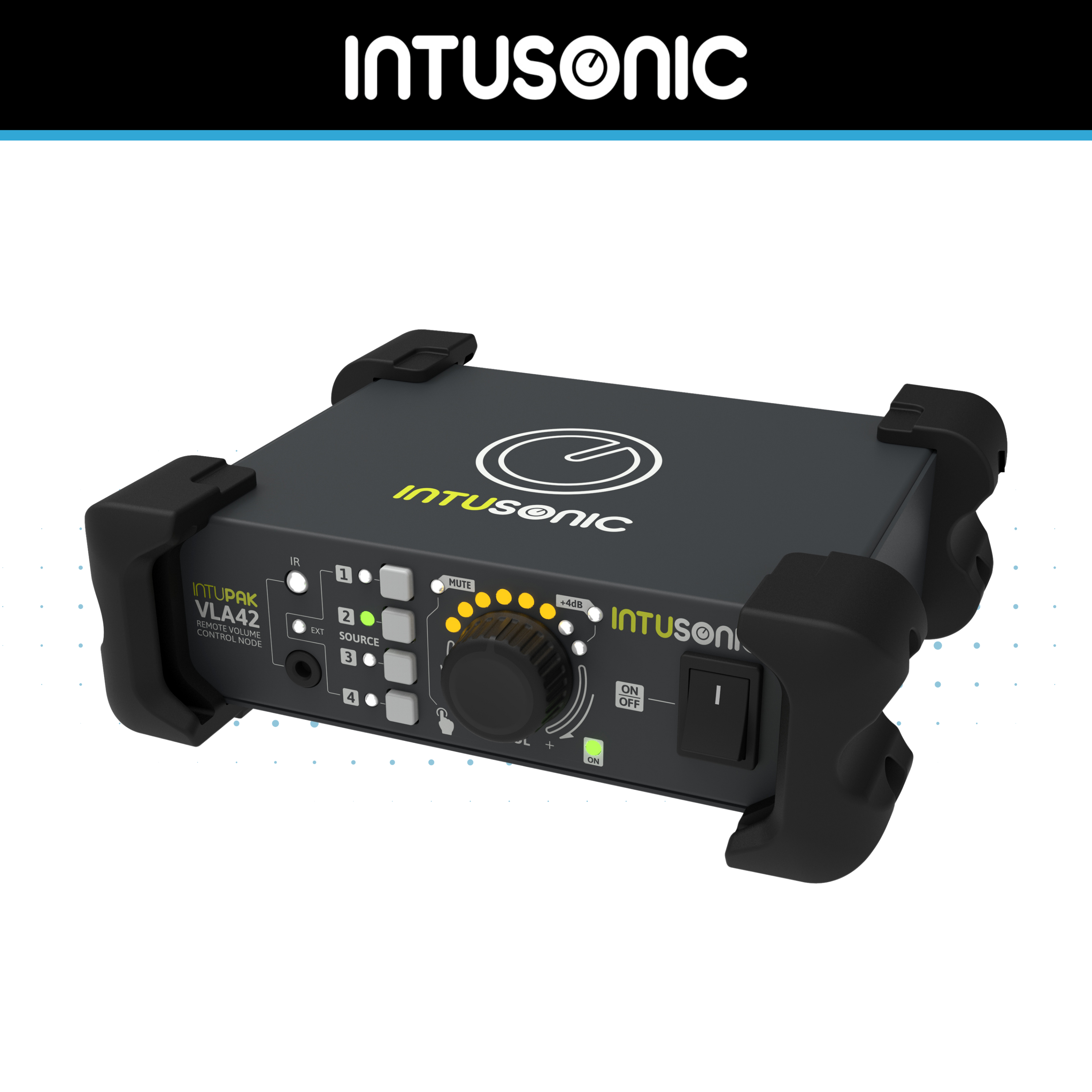

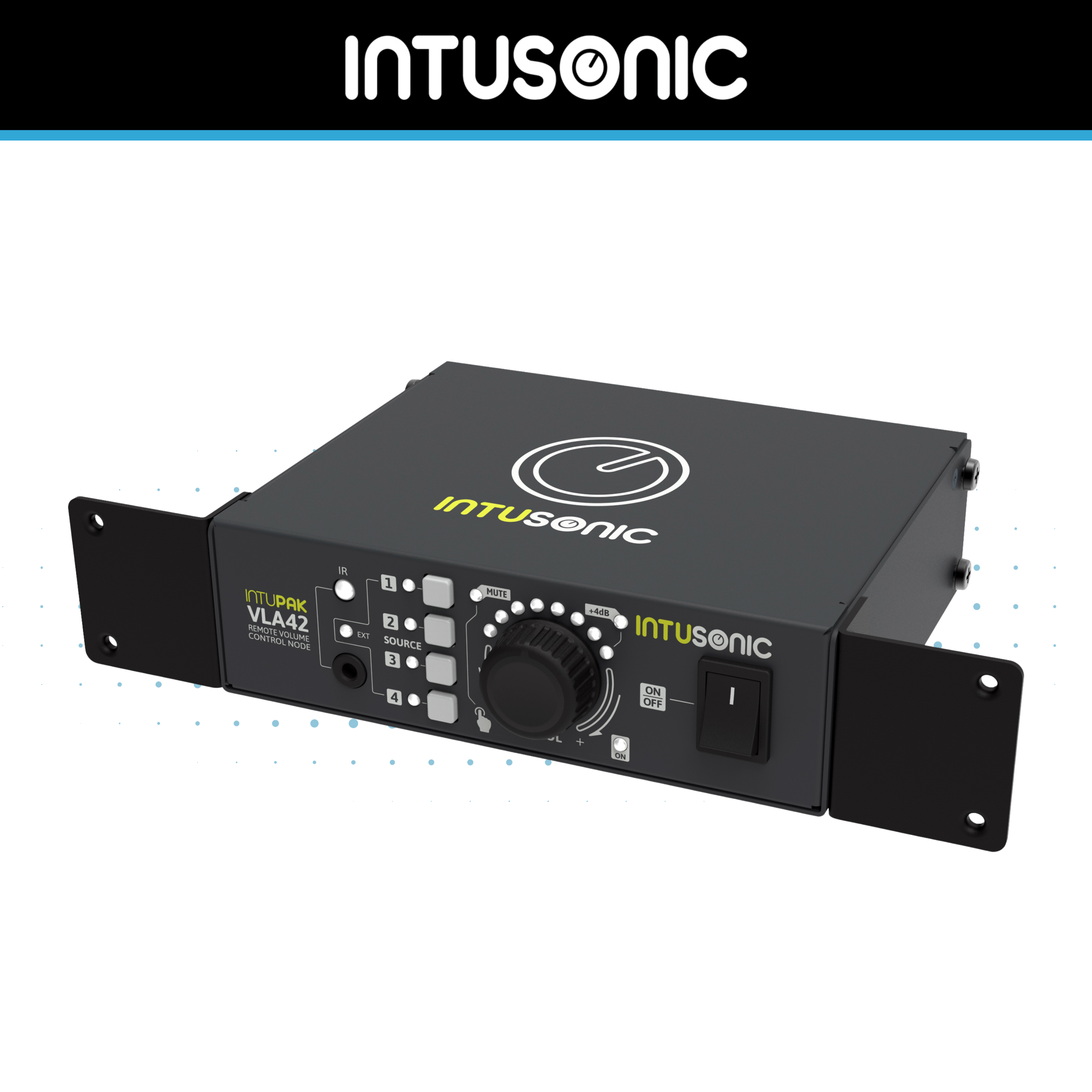

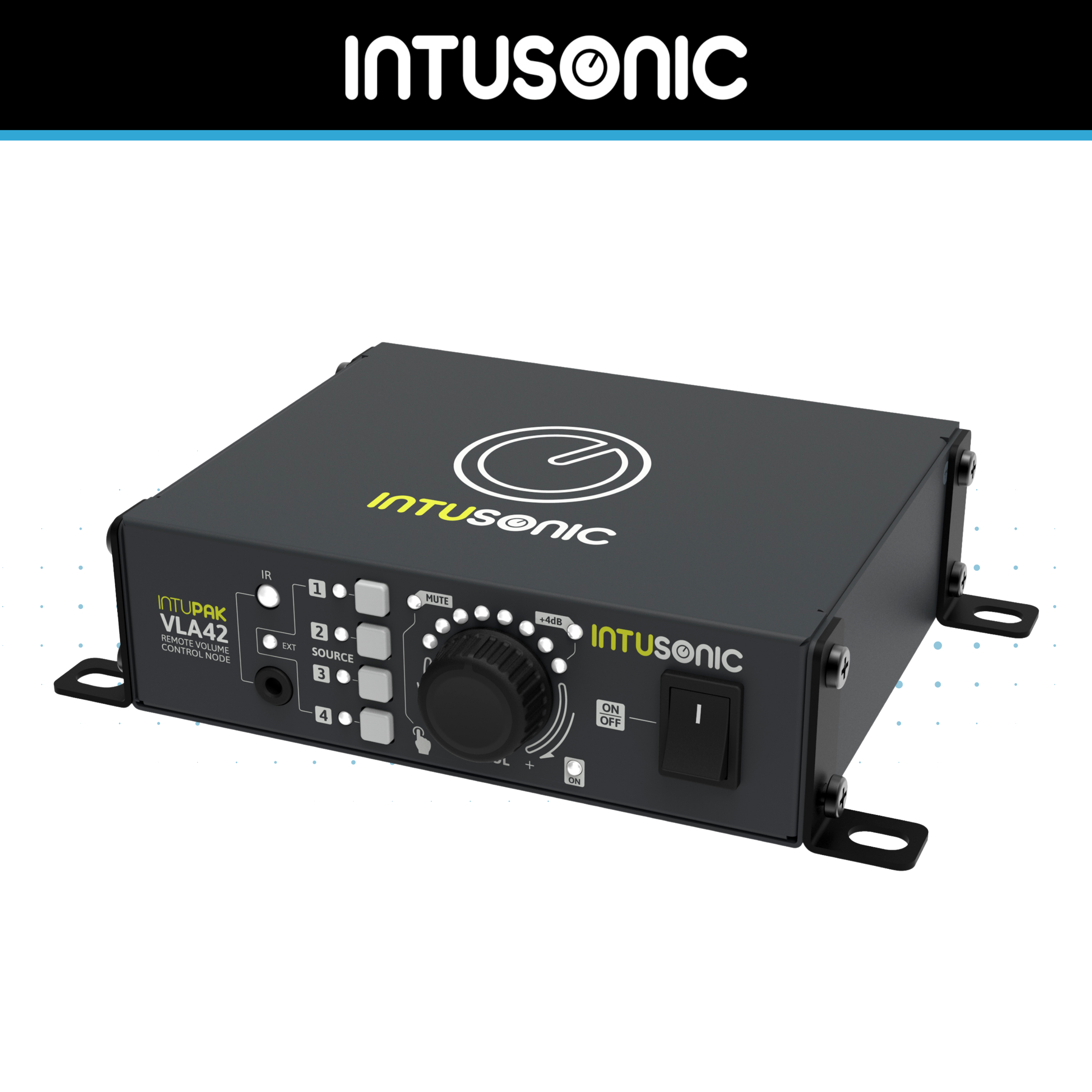

Housed in a full metal case, the VLA42 is designed for flexible installation in commercial environments. It can be used as a standalone control node, surface-mounted using compatible brackets, or rack-mounted with the optional JUP2 rackmount kit.
Its small footprint makes it ideal for installations where space is limited but professional control functionality is still required.
The INTUPAK VLA42 is well suited to projects requiring simple source selection, master volume control and remote operation within a compact audio control platform.
Typical applications include:
The INTUSONIC INTUPAK VLA42 delivers a practical and professional control solution for installed audio systems. With four source inputs, balanced output, infrared remote operation, RS485 wall panel support and long cable input capability, it provides a flexible way to add user-friendly source and volume control to commercial AV installations.
