Professional Power Distribution for LED Stage and Installation Lighting Internally wired lighting bars (IWB’s) provide a clean, efficient solution for... Read more
£320.00 Incl. VAT
Guaranteed secure & safe checkout.

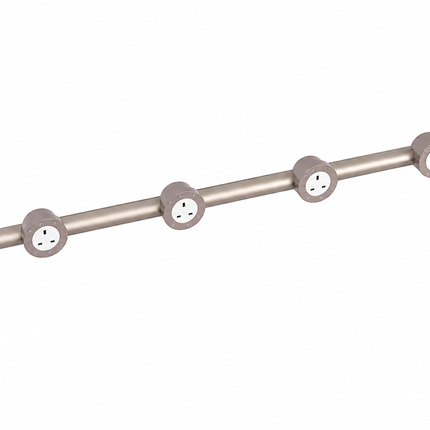

Internally wired lighting bars (IWB’s) provide a clean, efficient solution for distributing power across lighting fixtures in both permanent installations and temporary setups. Designed for professional AV installers, theatres and production environments, these bars integrate power directly within the structure, removing the need for external cabling and improving overall system presentation. These lighting bars are specific to LED lighting fixtures, not traditional dimmable fixtures.
By combining structural support with built-in power distribution, IWBs simplify rigging, reduce cable clutter and create a more organised lighting infrastructure.

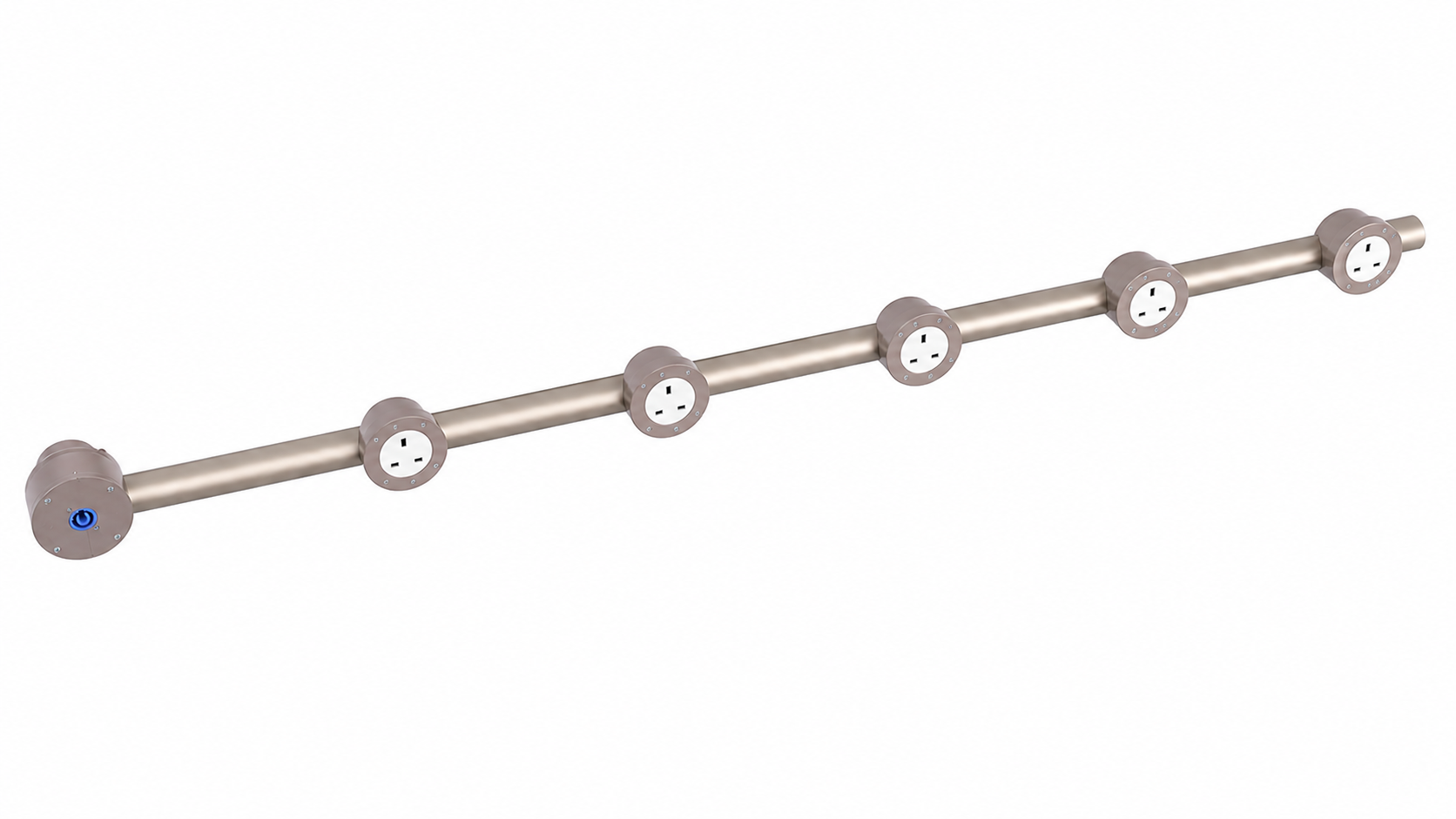

These lighting bars are available in Four standard lengths, allowing installers to select the most appropriate format for their application:

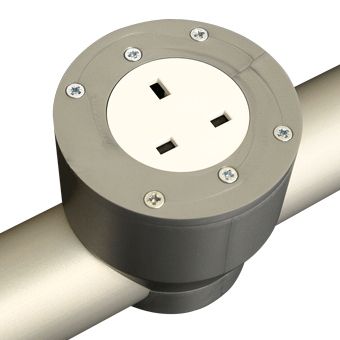

2 metre bar with 2 integrated 13A sockets + 1 Powercon input
4 metre bar with 4 integrated 13A sockets + 1 Powercon input
6 metre bar with 6 integrated 13A sockets + 1 Powercon input
8 metre bar with 8 integrated 13A sockets + 1 Powercon input
Each socket is evenly spaced along the bar, providing consistent power access across the full length. This ensures fixtures can be positioned flexibly without the limitations of external distribution systems.

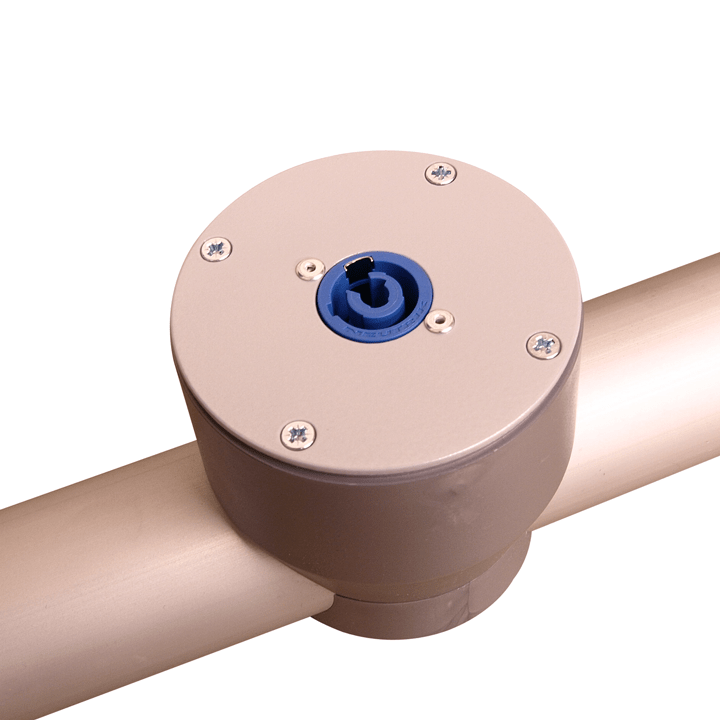

Each bar features a single Powercon input located at one end, delivering a secure and professional power connection. Powercon connectors are widely used in stage and event environments due to their locking design, ensuring reliable power delivery even in demanding conditions.
This integrated approach removes the need for separate distribution boxes and reduces setup time, making it particularly valuable in both touring and fixed installation scenarios.
One of the primary benefits of internally wired lighting bars is the ability to eliminate visible cabling along trusses or mounting positions. Power is distributed internally, resulting in a cleaner and more professional finish that aligns with modern installation standards.
For venues such as theatres, school halls and performance spaces, this enhances both aesthetics and safety by reducing loose cables and potential trip hazards. It also simplifies ongoing maintenance by keeping power distribution contained within the bar.
These IWBs are suited to a wide range of commercial applications. In education settings, they provide a structured and reliable solution for stage lighting in school halls and theatres. In live performance venues, they support efficient rigging and fast deployment of lighting fixtures.
In addition to the standard configurations, custom internally wired lighting bars can be manufactured to meet specific project requirements. This includes alternative input and output options, as well as the integration of internally wired DMX for combined power and control distribution.
This level of flexibility allows AV integrators to design systems that are tailored to the exact needs of the venue or project, reducing the need for additional external infrastructure.
For bespoke configurations, please contact us to discuss your requirements and receive a tailored quotation.
The lighting bars are available in both silver and black finishes, allowing them to blend into a variety of environments. Whether installed in a modern performance venue or a traditional theatre setting, the finish can be selected to complement the surrounding infrastructure.
This ensures that the bar not only performs effectively but also aligns with the visual requirements of the installation.
Internally wired lighting bars are designed to withstand the demands of professional use, offering a robust and reliable solution for power distribution. Their integrated design reduces wear on external cabling and connectors, contributing to long-term system reliability.
For installers and technical teams, this translates to fewer points of failure and a more dependable lighting setup.
Due to the size and nature of these products, additional shipping charges may apply depending on the selected length and delivery location.
All units are supplied to order with a lead time of up to 14-working days, and custom configurations are available on request to meet specific project requirements. Contact us to find out specific lead times.
