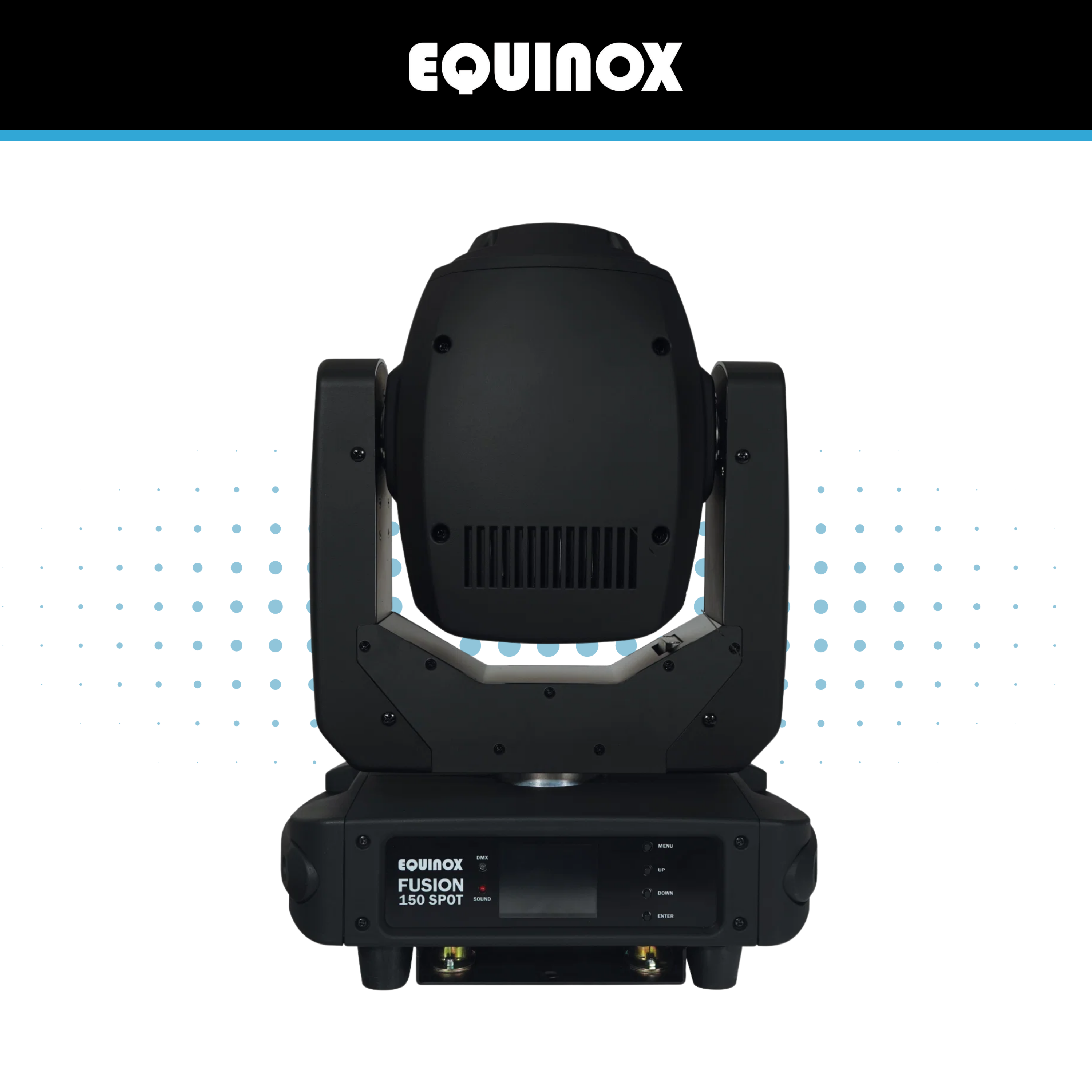

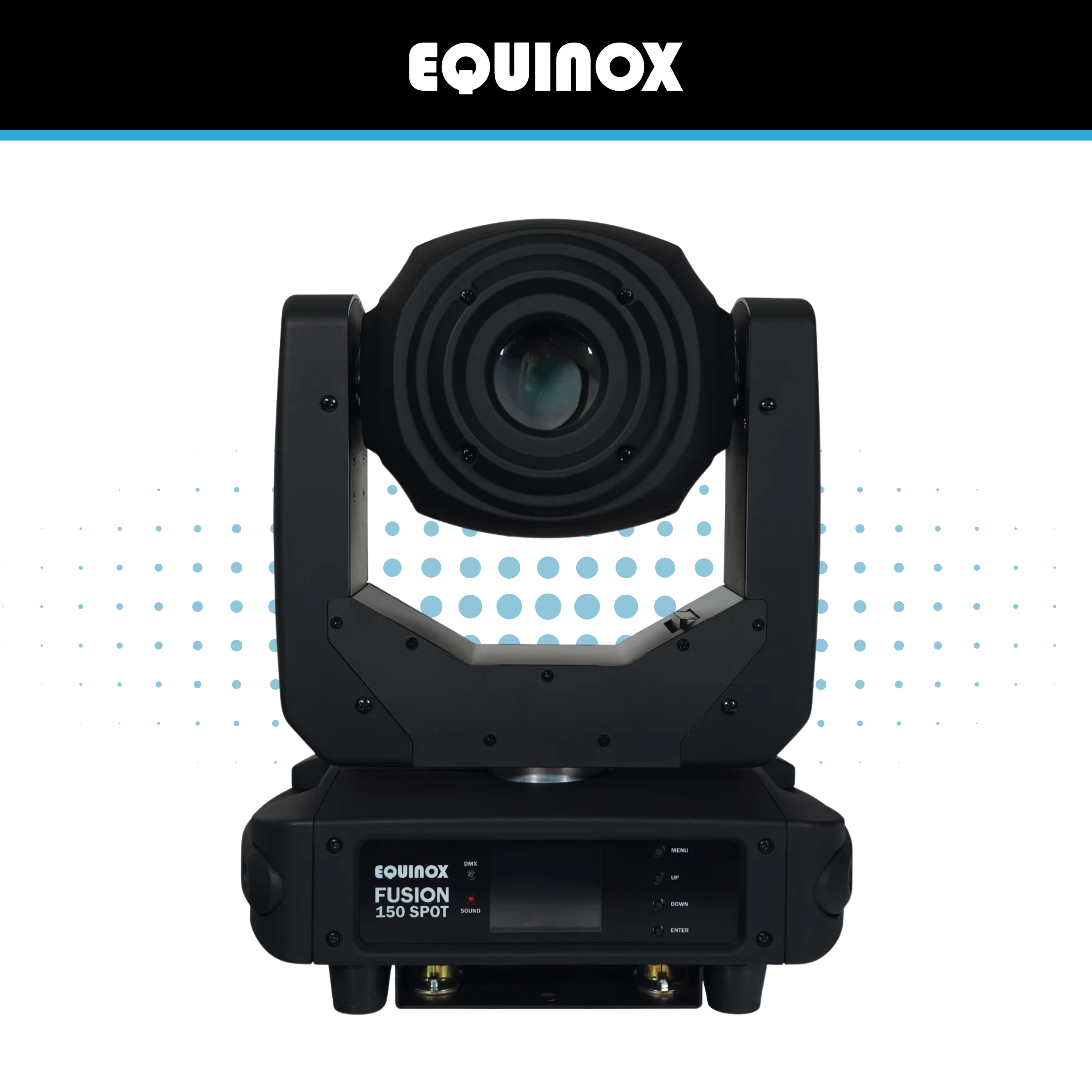

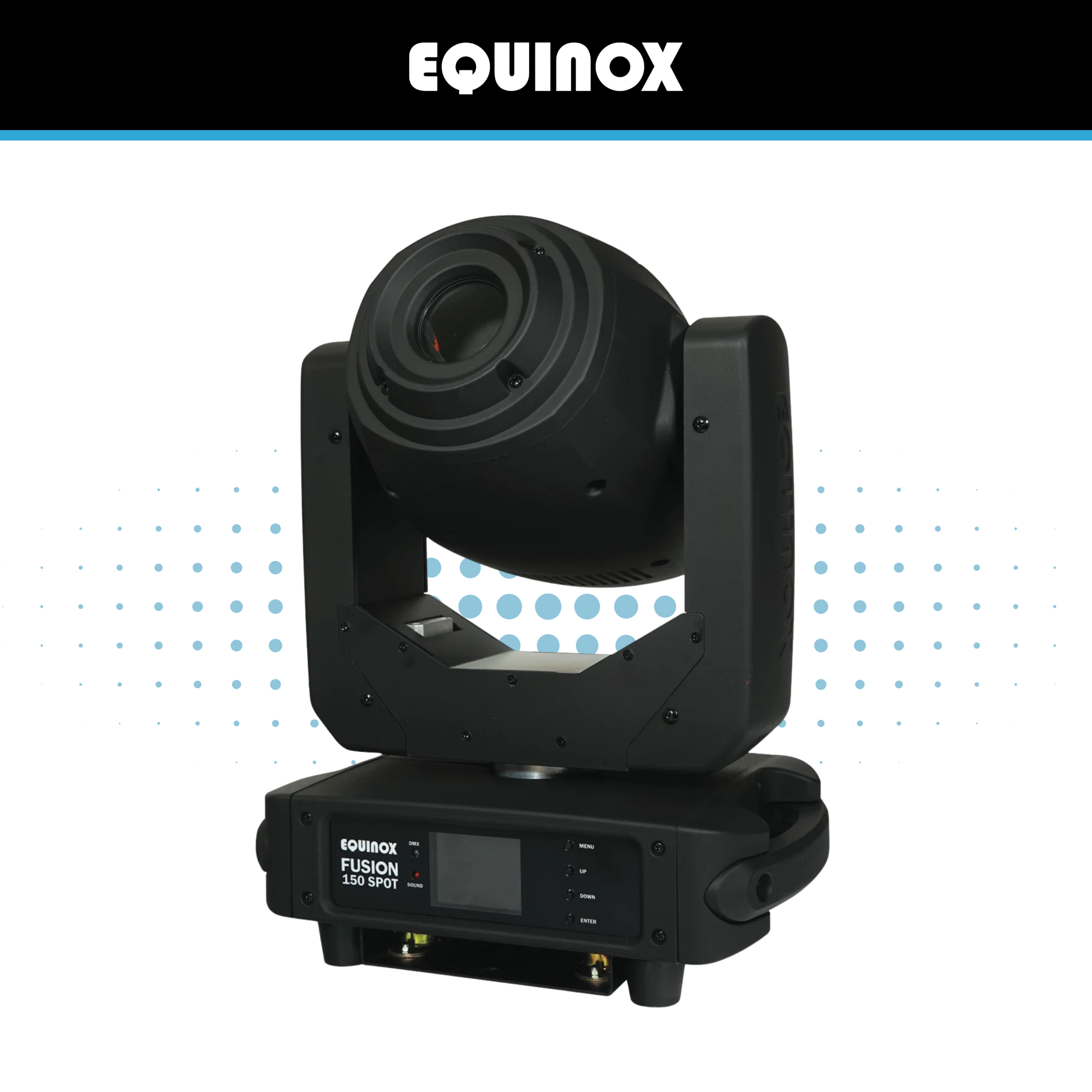

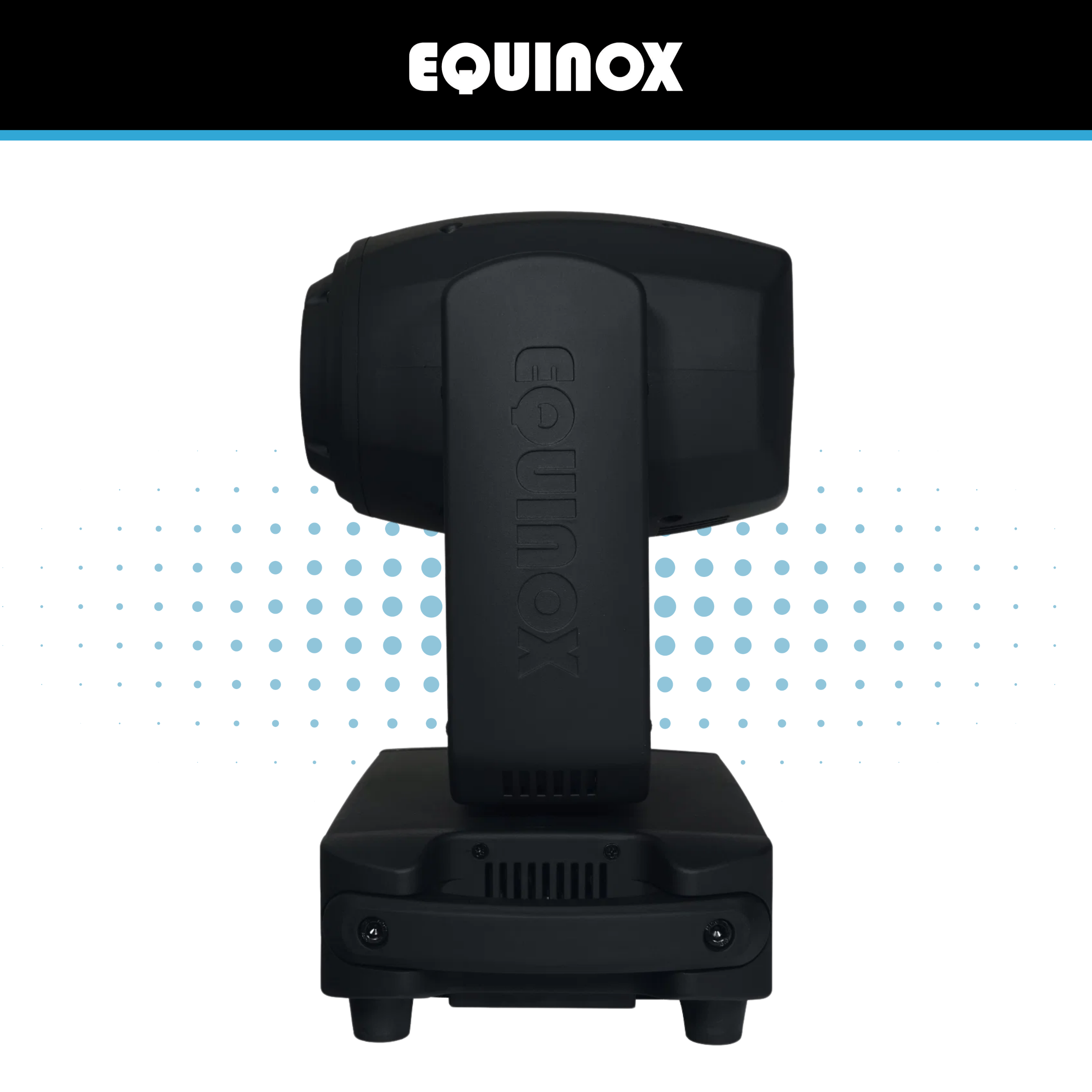

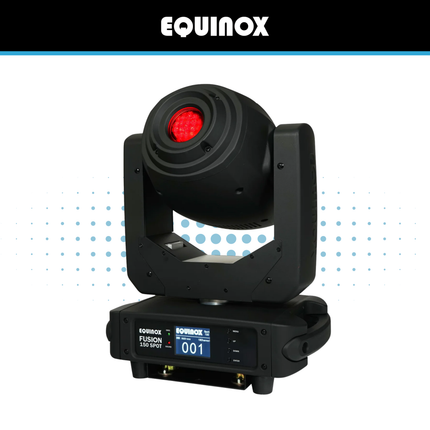

The Equinox Fusion 150 Spot is a compact LED moving head spot designed for venues, schools, theatres, live events, production companies and entertainment spaces requiring sharp beam effects, gobo projection and flexible control from a professional lighting fixture. Powered by a 150W white LED, it offers strong output in a practical moving head format, making it suitable for both installed stage lighting systems and portable event setups.

With a 16° beam angle and motorised focus, the Fusion 150 Spot is well suited to creating defined aerial effects, projected patterns and focused stage looks. The narrow beam provides a more precise output than a wash fixture, making it useful for adding movement, texture and visual impact across stages, dance floors, performance areas and event spaces.

The fixture includes two gobo wheels for creative projection options. The first gobo wheel features 6 rotating, replaceable gobos plus open, allowing customisable and animated pattern effects. The second gobo wheel includes 7 static gobos plus open, giving additional design options for stage scenes, performances, DJ sets and venue lighting programmes. This dual gobo arrangement makes the fixture more flexible than a basic moving head spot, particularly where different looks are needed across multiple productions or events.

A 7-colour wheel plus open provides a strong selection of beam colours, while the 3-facet circular rotating prism adds split-beam effects for more dynamic lighting scenes. The included 48° frost filter allows the output to be softened when a wider or less defined look is required, making the Fusion 150 Spot suitable for both crisp spot work and more atmospheric effects.

Movement is handled through 540° pan and 270° tilt, with 16-bit positioning for smoother and more accurate movement control. This gives lighting operators the ability to create precise movement cues, sweeping beam effects and controlled stage looks from a DMX desk or software-based lighting controller. Pan and tilt auto correction also helps maintain consistent positioning during operation.

The Fusion 150 Spot can be controlled via DMX, with selectable 2, 14 or 18 channel modes depending on the level of control required. For simple operation, it also supports auto, sound active, manual and master/slave modes, making it adaptable for both programmed lighting systems and standalone use. This flexibility makes it suitable for school halls, drama studios, small theatres, bars, clubs, mobile productions and live performance spaces.

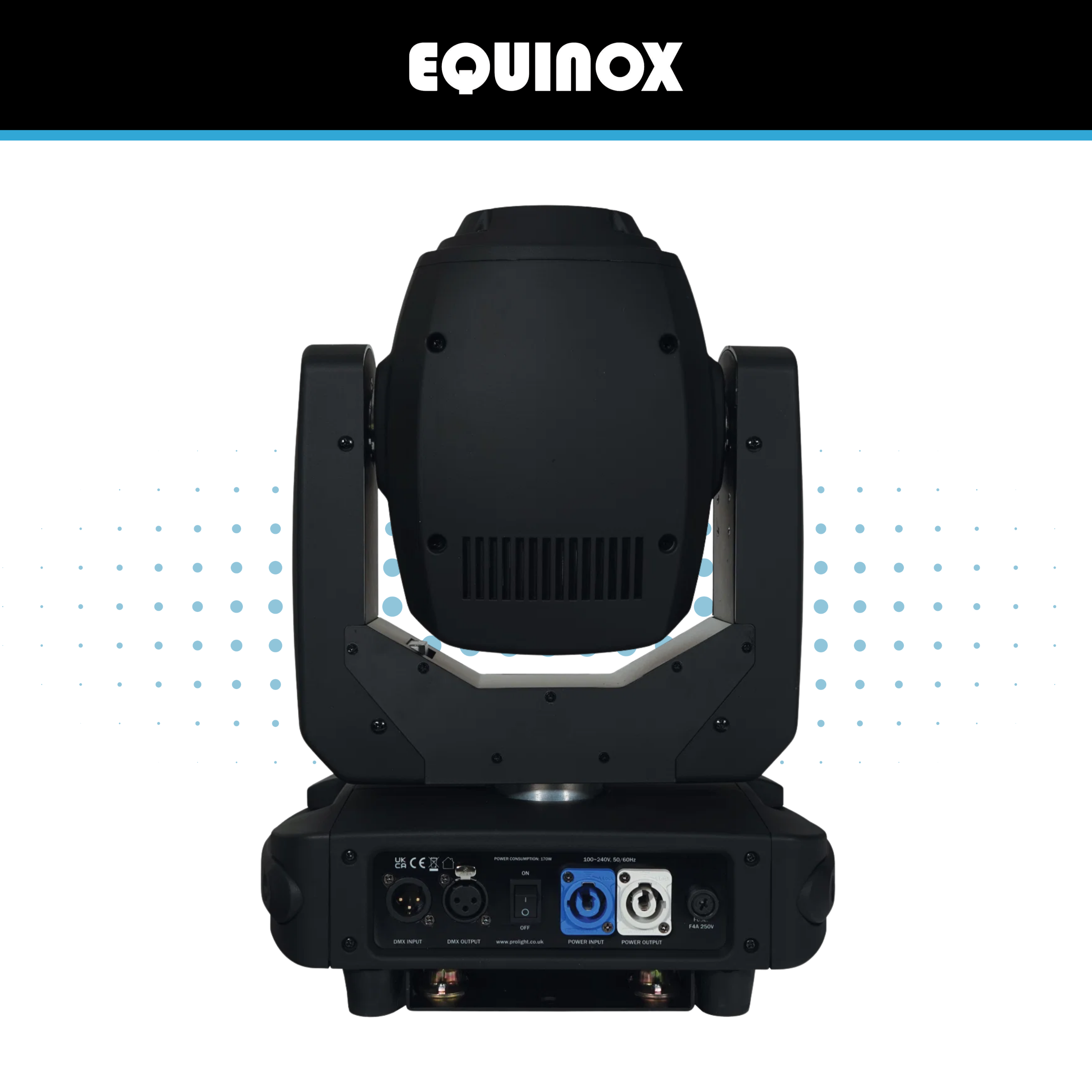

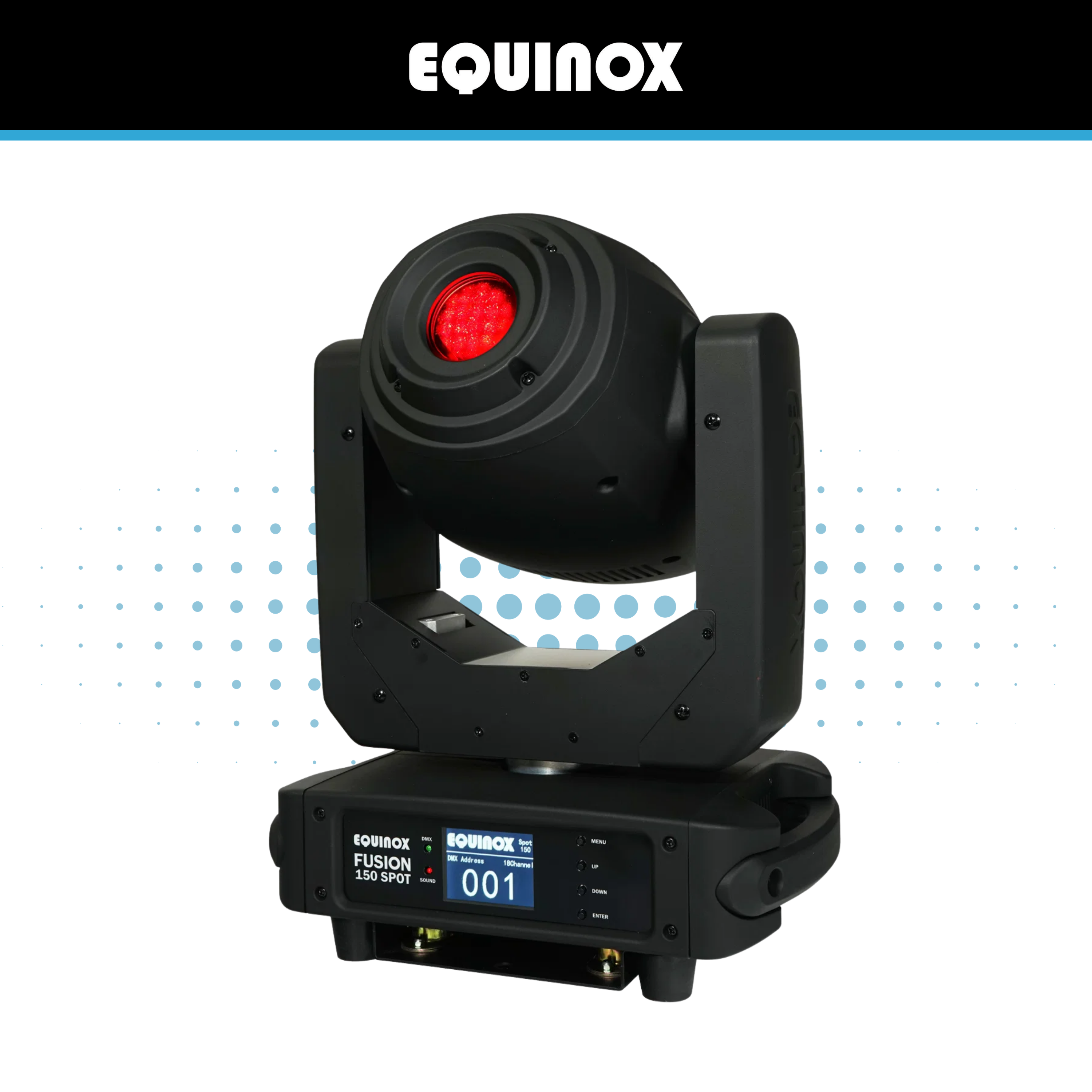

The fixture includes a 4-button menu with a 2.6” LCD display, allowing settings and modes to be adjusted directly from the unit. 3-pin XLR input and output connections provide standard DMX linking, while powerCON input and output connections support a robust professional power connection format.

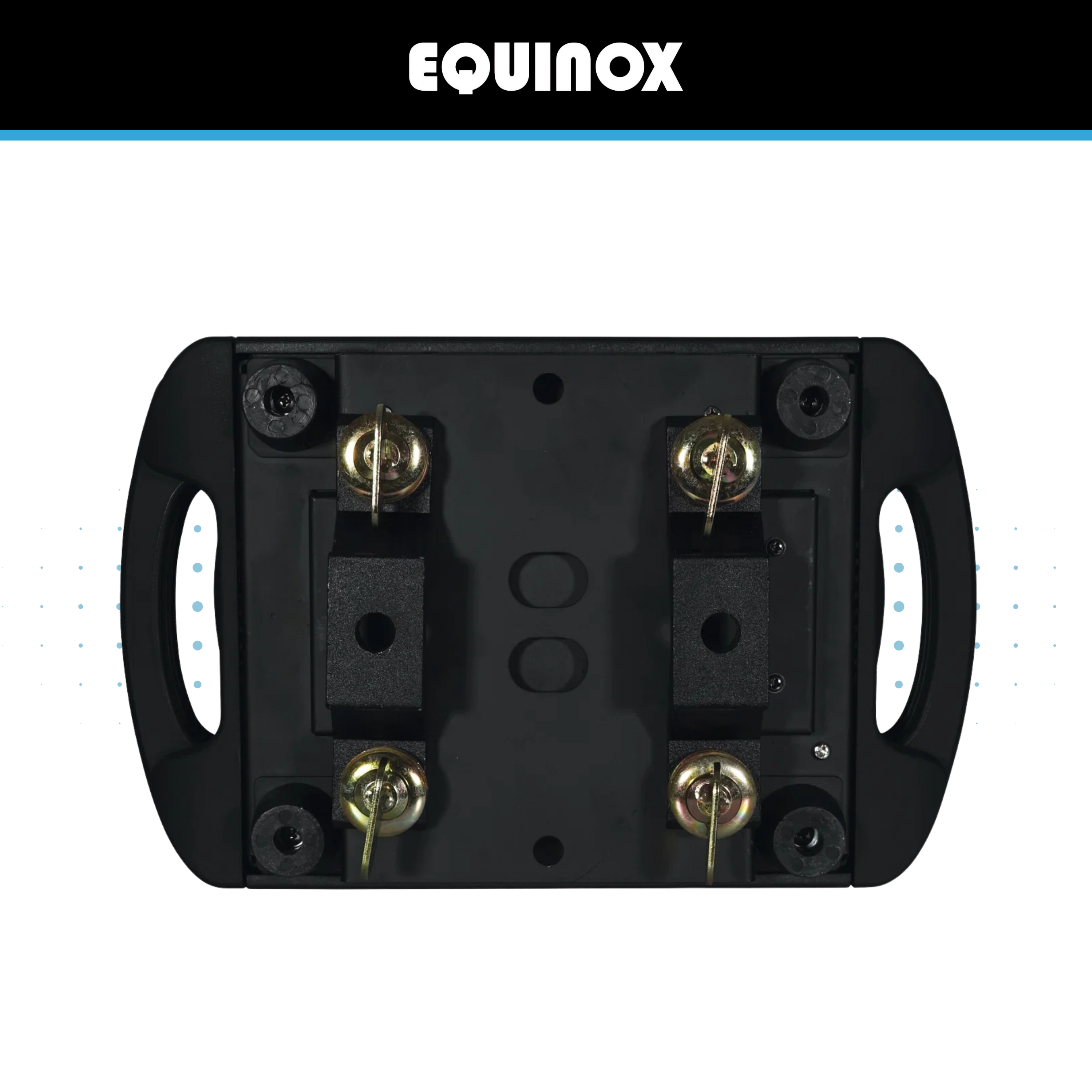

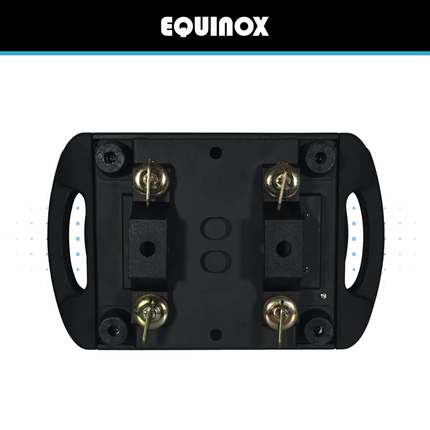

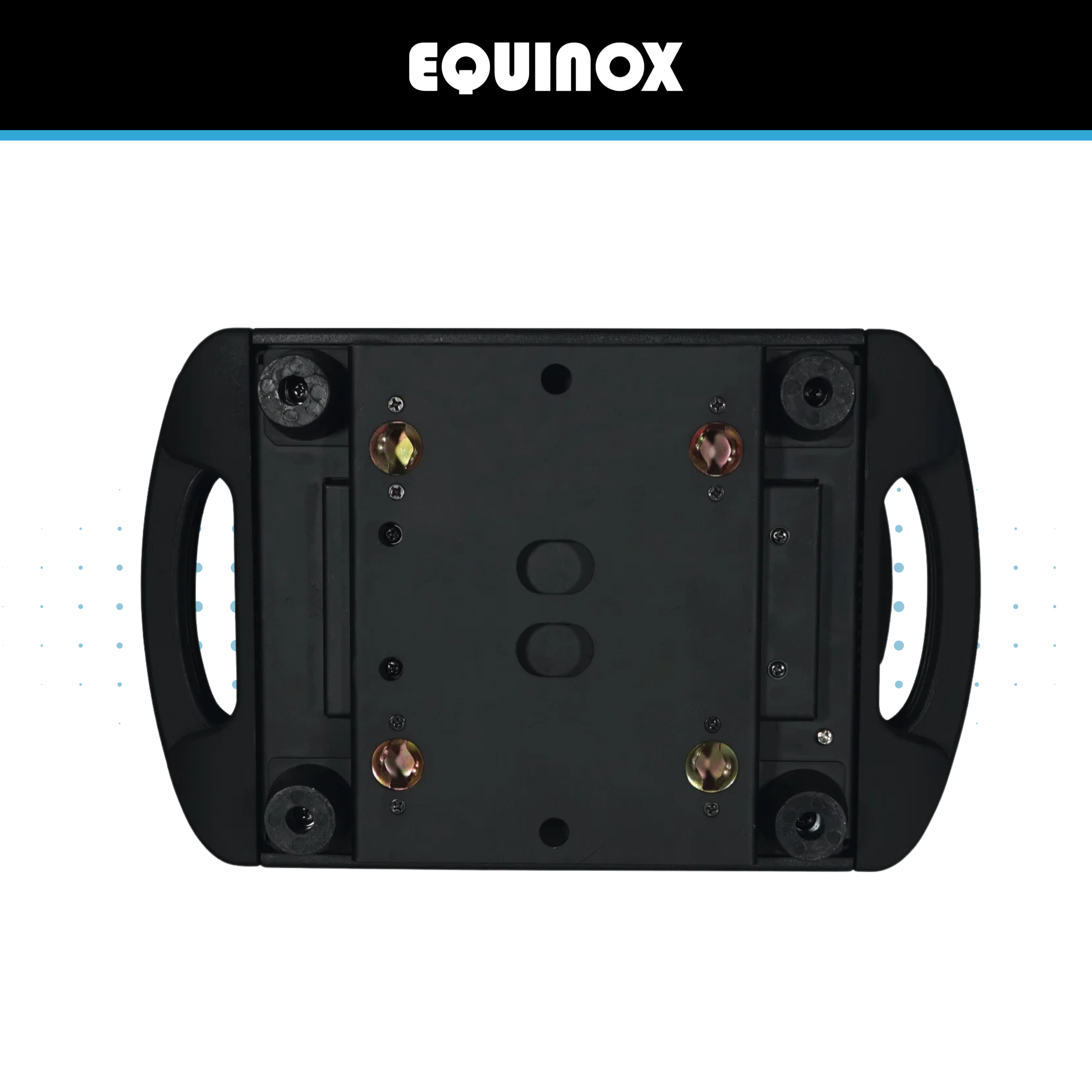

Supplied with quick-release omega clamps, the Fusion 150 Spot is ready for truss or lighting bar installation using appropriate clamps and a secondary safety cable. Its square hole spacing on the omega clamp receivers allows clamps to be fitted in different orientations, offering additional flexibility during rigging.

With a power consumption of 170W, universal 100–240V power supply, compact 410mm x 302mm x 195mm body and 9.2kg weight, the Equinox Fusion 150 Spot provides a strong balance of output, features and practicality. It is a capable option for professional lighting systems where moving spot effects, gobos, colour, prism and reliable control are required in one compact fixture.
