The DAP IMIX-7.3 is a professional 7 channel installation mixer designed for fixed audio systems where multiple sources need to... Read more
£259.00 Incl. VAT
Guaranteed secure & safe checkout.

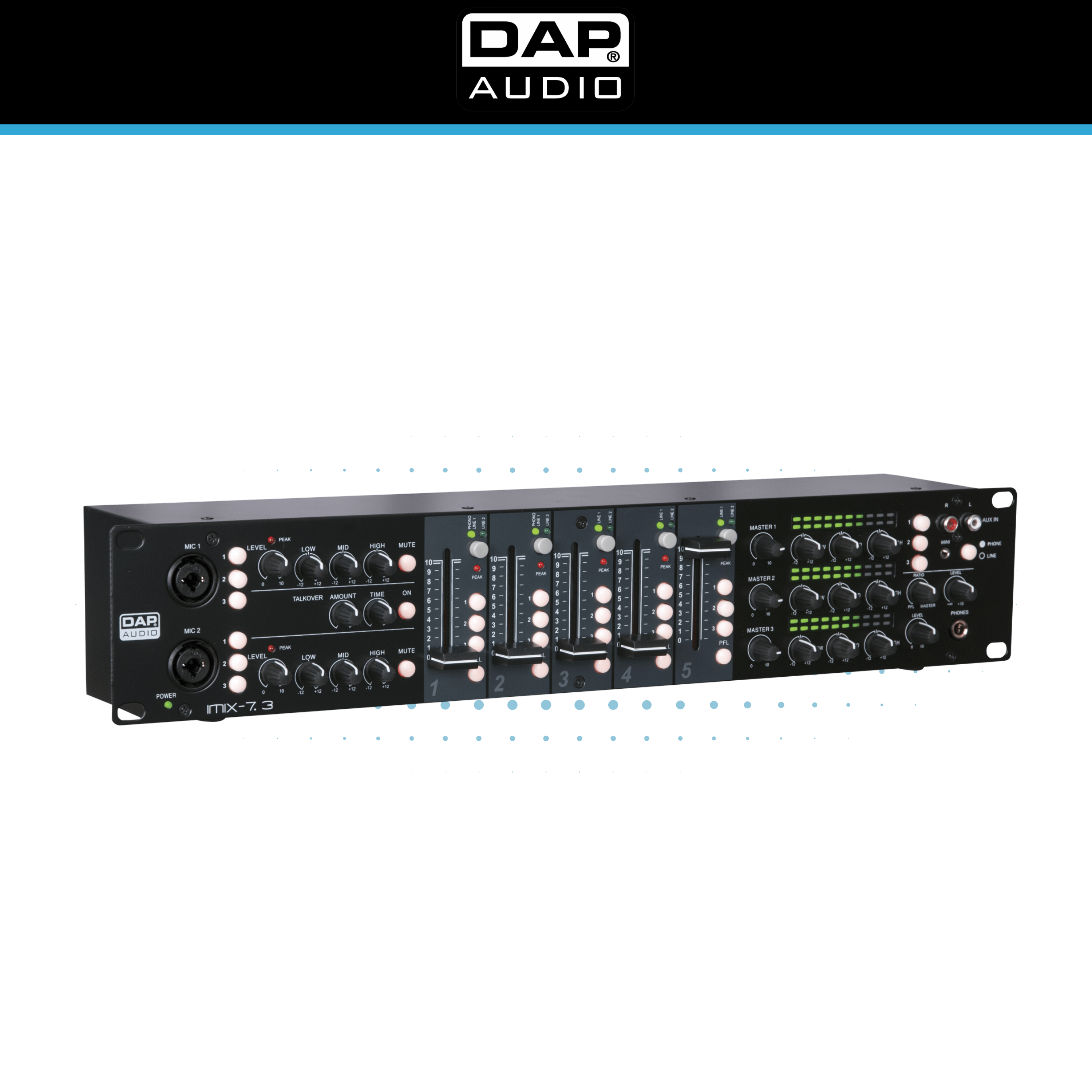

The DAP IMIX-7.3 is a professional 7 channel installation mixer designed for fixed audio systems where multiple sources need to be routed to separate output zones. Built in a 19" 2U rack format, it is well suited to bars, restaurants, hotels, retail spaces, gyms, leisure venues, conference rooms, schools, community buildings and commercial AV installations that require flexible multi-zone audio control from a compact rack-mounted mixer.
This mixer provides a practical way to manage background music, speech sources, DJ feeds, media players and other audio inputs across three independent master output zones. Each zone can be used to feed a different area of a building, allowing one system to support several rooms or spaces from a central audio rack. Typical applications include a bar with separate lounge and restaurant areas, a gym with different audio zones, or a venue where reception, function room and main space audio need to be managed independently.
The IMIX-7.3 includes two microphone input channels using combo XLR/jack connectors, making it suitable for wired microphones, paging microphones or speech sources. This is useful in commercial and venue environments where announcements, presentations or occasional microphone use need to be integrated into the background music system. Mic EQ is provided at 80Hz, 1kHz and 12kHz with ±12dB adjustment, allowing basic tonal control to help speech sit more clearly within the system.
For music and playback sources, the mixer provides a wide range of input options. It includes 11 RCA line inputs, 2 RCA phono inputs and a front 3.5mm jack input. This gives installers and users flexibility when connecting media players, DJ mixers, Bluetooth receivers, streaming devices, CD players, computers or other audio sources. The front 3.5mm input is particularly useful for quick temporary connection of portable devices where appropriate.

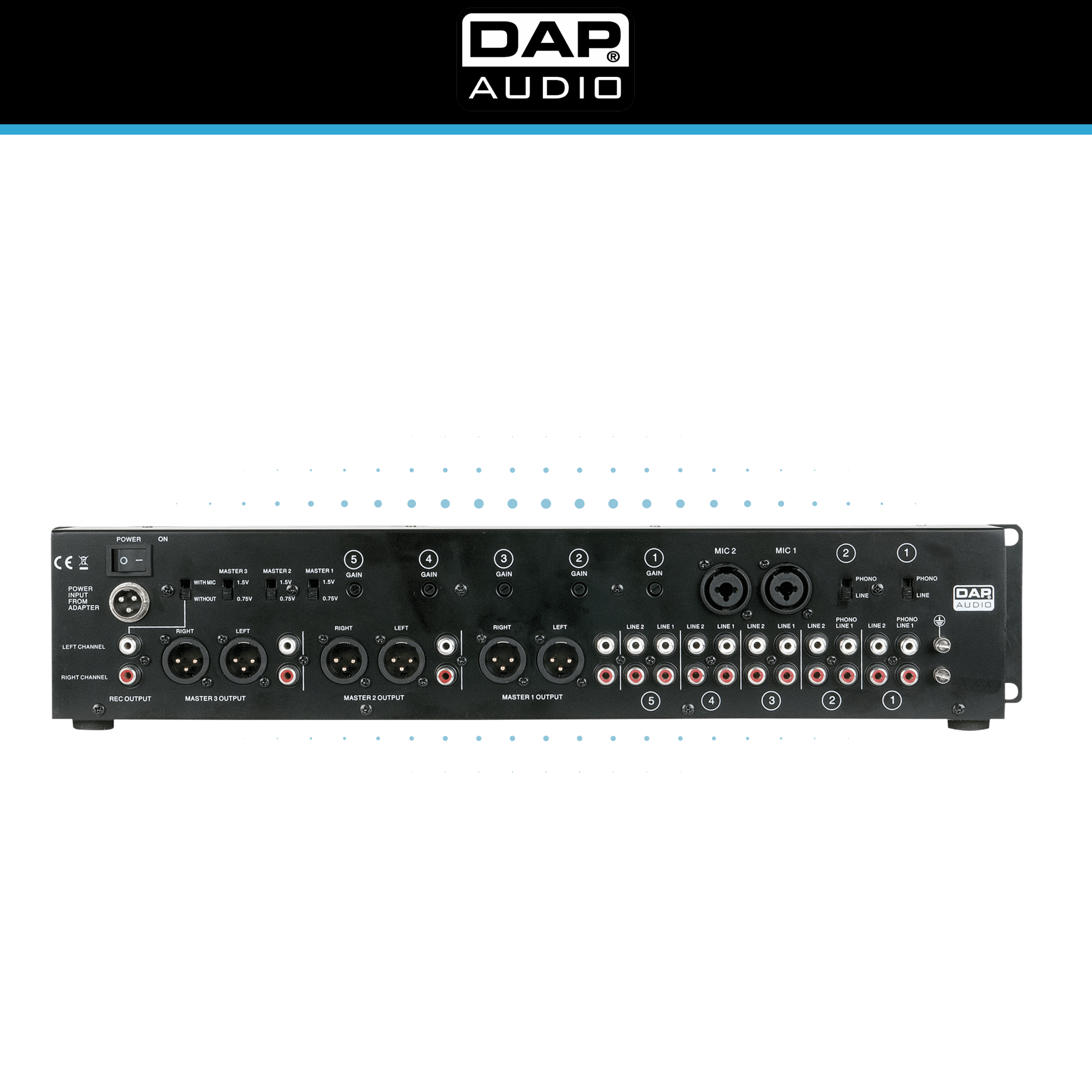

The three master outputs are balanced XLR connections, making the mixer suitable for professional audio systems where signals need to be routed to amplifiers, processors or powered loudspeakers. Balanced outputs are useful in fixed installations because they help support cleaner signal transmission over longer cable runs compared with unbalanced connections. A record output on RCA is also included, providing a simple feed for recording devices, external processors or additional audio distribution requirements.
Each master section includes tone control, allowing the output sound to be adjusted for the connected zone. Master EQ is provided at 80Hz, 1kHz and 12kHz with ±12dB adjustment. This is useful where different rooms or speaker systems require slightly different tonal balance. For example, a restaurant area may need a warmer background sound, while a bar or activity space may require a more forward and energetic presentation.
Headphone monitoring is included via a 6.3mm headphone output, supporting cue and checking functions during setup or operation. This is useful for installers, venue staff or operators who need to monitor sources before routing them through the system. The mixer also includes LED level metering, giving clear visual feedback during operation and helping users maintain suitable signal levels.
With a frequency response of 20Hz to 20kHz and total harmonic distortion listed below 0.05%, the IMIX-7.3 is suitable for commercial audio systems where reliable full-range playback is required. It operates from 230V AC at 50Hz and has a power consumption of 21W. The unit uses a 2U rack-mounted chassis, making it easy to install into standard 19" AV racks alongside amplifiers, processors, media players, wireless microphone receivers and other system hardware.

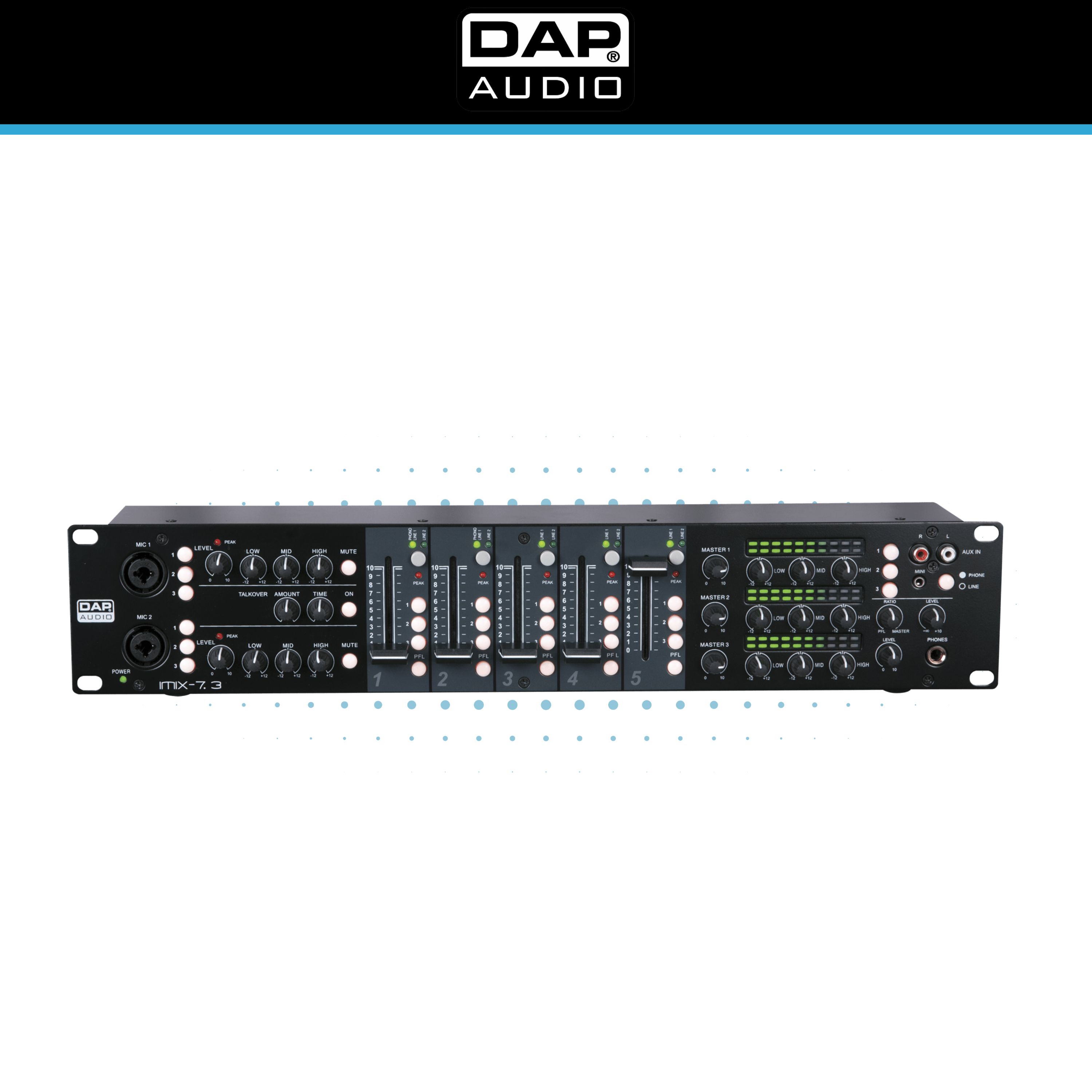

The mixer measures 483 x 89 x 89mm and weighs 3.4kg, making it compact enough for rack cabinets, AV cupboards and commercial equipment rooms. The 2U format is practical for installations where rack space is available but needs to be used efficiently. Once fitted into a rack, the front panel remains accessible for source level adjustment, zone control and monitoring.
The DAP IMIX-7.3 is a strong choice for commercial audio installations that need flexible source routing and independent control across three zones. With 7 channel operation, microphone inputs, multiple line and phono inputs, three balanced XLR master outputs, EQ control, headphone monitoring and a compact 19" rack format, it provides a practical mixer platform for bars, restaurants, retail spaces, gyms, schools, venues and multi-zone AV systems.
