The Cloud Z4 Mk4 is a professional 4-zone commercial audio mixer designed to provide centralised control of background music, paging,... Read more
£899.00 Incl. VAT
Guaranteed secure & safe checkout.
The Cloud Z4 Mk4 is a professional 4-zone commercial audio mixer designed to provide centralised control of background music, paging, and multiple audio sources across four independent zones. Built as part of Cloud’s industry-proven Z-Series, it delivers a reliable and flexible solution for hospitality, retail, corporate, and leisure environments.
Engineered for fixed installations, the Z4 Mk4 combines intuitive operation with installer-focused connectivity, making it an ideal master control unit for multi-zone sound systems.
The Z4 Mk4 enables audio to be distributed across four independent mono zones, each with its own source selection and volume control.
This allows:
Typical applications include bars, restaurants, retail spaces, offices, and multi-room environments.

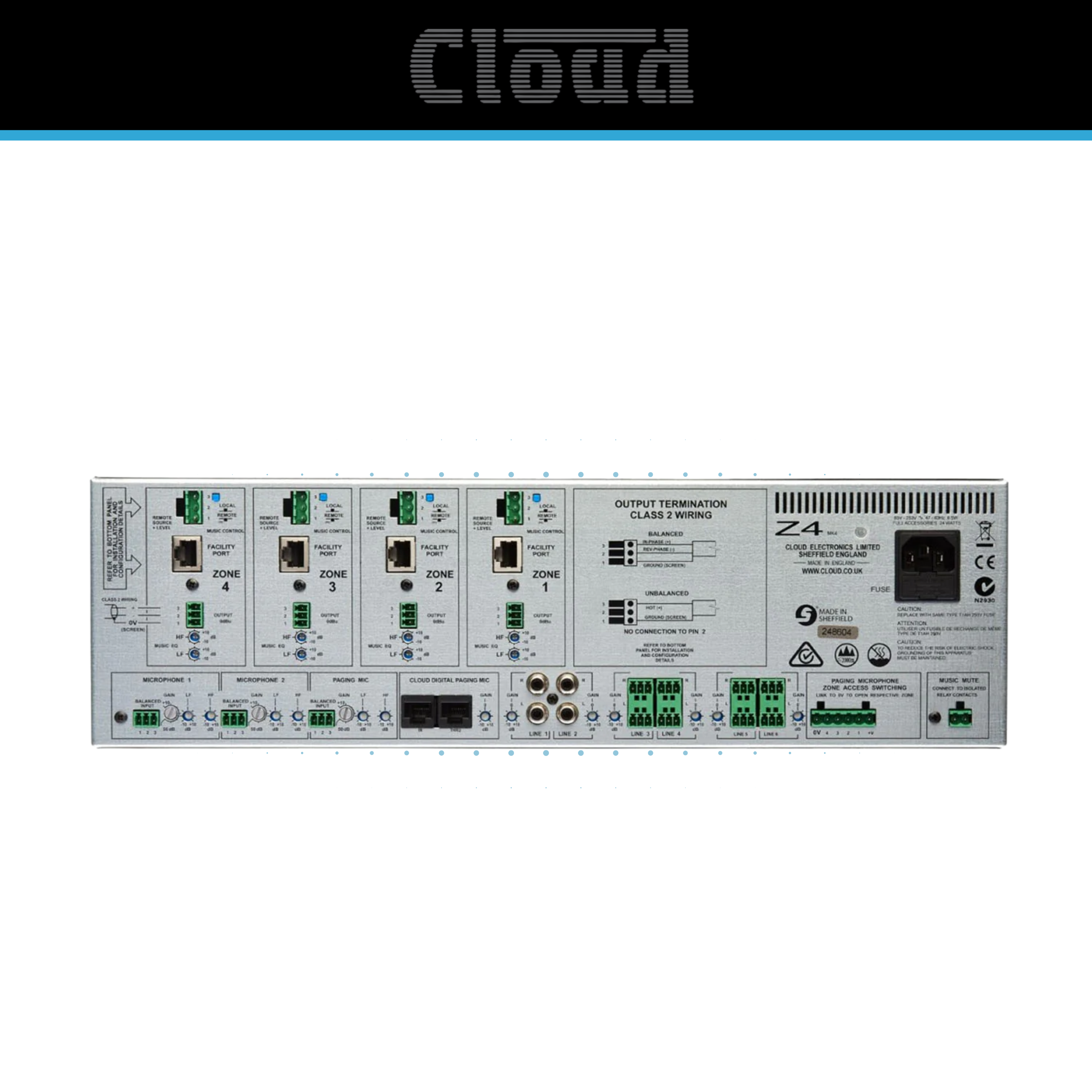

The mixer supports up to six stereo line inputs, including a combination of unbalanced (RCA) and balanced (Phoenix) connections, allowing integration with a wide range of audio sources.
This enables connection of:
Each input features gain control, ensuring compatibility with different signal levels.
The Z4 Mk4 includes two microphone inputs plus a dedicated paging microphone input with full priority and zone routing capability.
Key features include:
This makes it ideal for environments requiring clear communication alongside background music.
Each zone provides a three-channel mix consisting of:

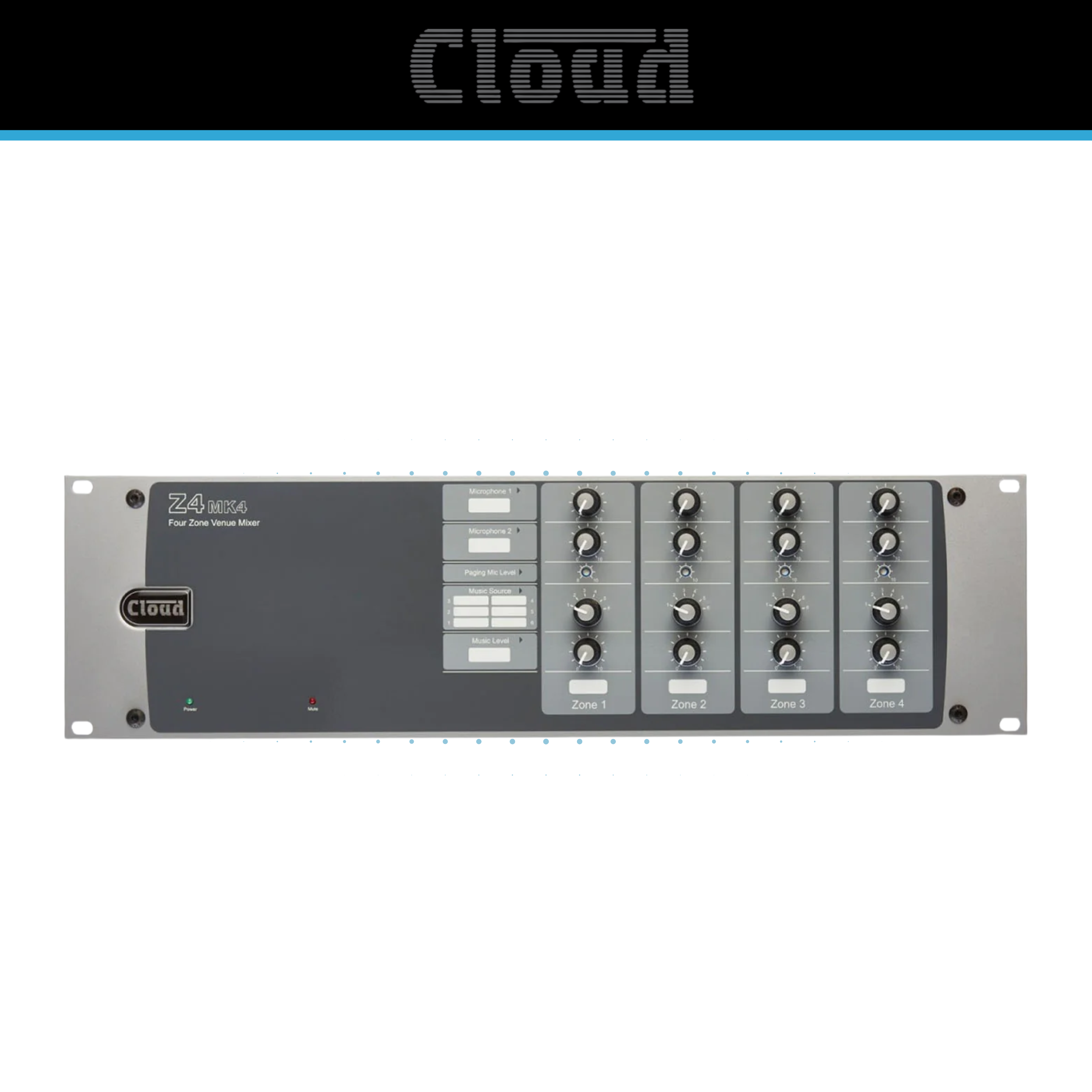

Front-panel controls allow users to adjust:
This ensures simple day-to-day operation for non-technical staff.
The Z4 Mk4 supports remote control via wall panels such as RL-1 or RSL-6, enabling local volume and source selection within each zone.
Additionally, facility port connectivity allows integration with remote input plates such as LM-2 modules, providing:
A built-in digital paging interface allows direct connection of Cloud paging microphones via RJ45, with IN/THRU connections enabling multi-mixer configurations.
This supports:
The mixer includes:
These features ensure compliance with commercial and public address requirements.
The Z4 Mk4 features a universal power supply (85–254V AC), allowing installation in any region without modification.
An uprated power supply also supports up to 600mA of external accessories, including remote input modules and paging systems.
Housed in a standard 19-inch rack chassis, the Z4 Mk4 is designed for straightforward installation into AV racks and equipment cabinets. Its robust construction ensures long-term reliability in commercial environments.
The Cloud Z4 Mk4 is widely used in:
Its four-zone capability makes it particularly suited to venues requiring independent audio control across multiple areas.
