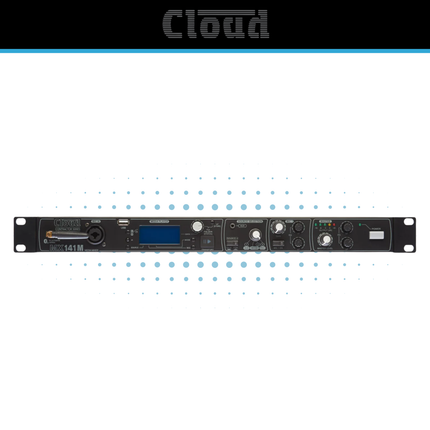

The Cloud MX141M is a compact, installation-focused audio mixer and media player designed to act as the central control hub for commercial sound systems. Combining multiple music sources, microphone input, and integrated media playback into a single 1U rack unit, the MX141M delivers a streamlined and cost-effective solution for venues requiring reliable audio management.
Engineered for simplicity, flexibility, and long-term reliability, the MX141M is ideally suited to hospitality, retail, fitness centres, and commercial environments where background music and announcements need to be managed efficiently.
The Cloud MX141M integrates a multi-source stereo mixer with a built-in media player, reducing the need for external devices and simplifying system design. It allows one microphone and up to four stereo music sources to be mixed and controlled from a single unit.
One of these sources is the internal media player, which includes:
This makes it possible to run a complete audio system without additional playback hardware, ideal for venues looking to minimise equipment footprint.
The MX141M offers a wide range of input connectivity to accommodate both modern and legacy audio sources:
This flexibility allows the system to be tailored to a wide variety of applications, from simple background music systems to more complex setups involving multiple sources and live input.
The microphone input includes dedicated level control, on/off switching, and HF/LF EQ adjustment directly on the front panel. Phantom power is available (via internal jumper), enabling compatibility with condenser microphones.
This makes the MX141M suitable for:
The mic channel is seamlessly mixed with the selected music source, ensuring smooth operation in real-world scenarios.
The MX141M provides multiple output options for flexible system integration:

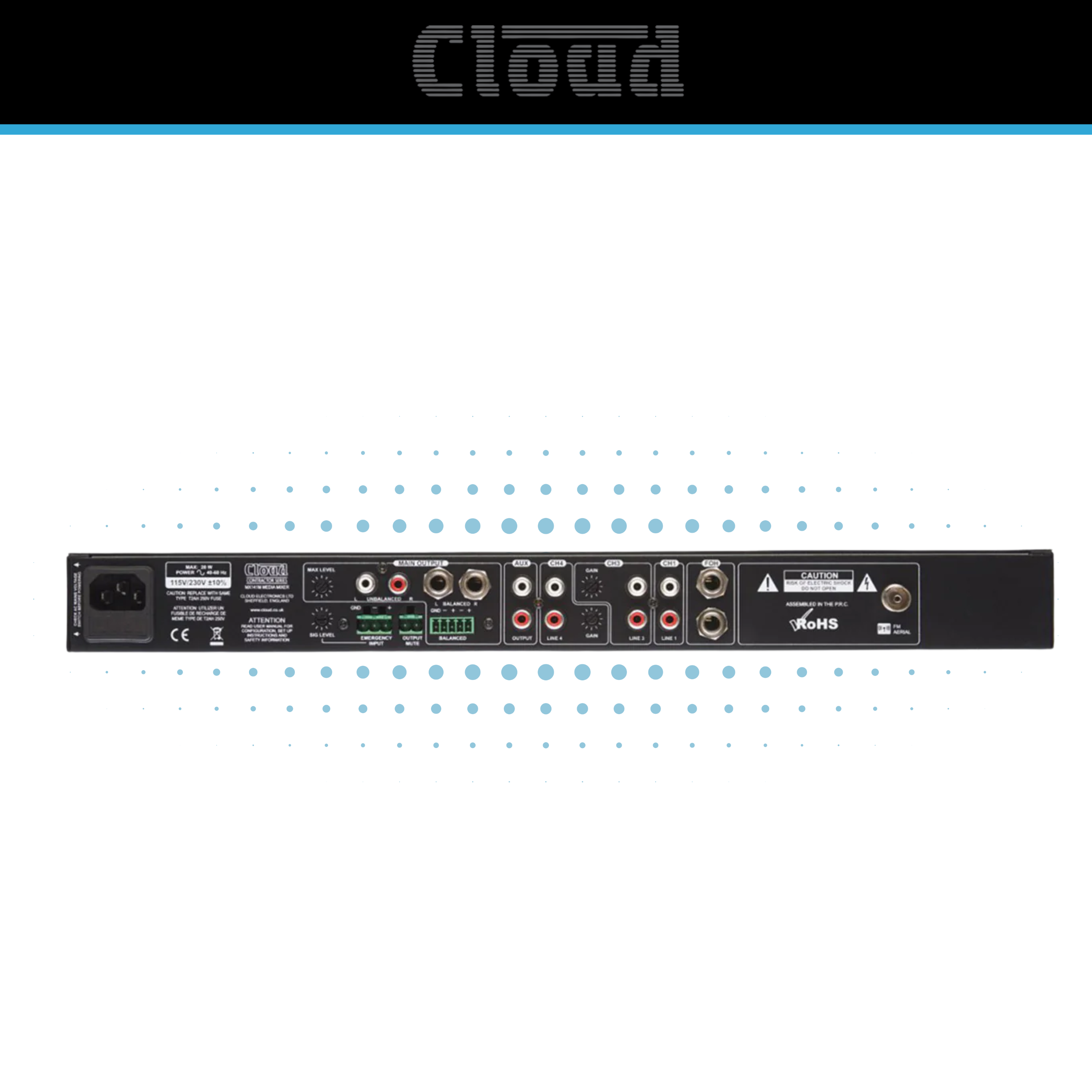

A rear-panel maximum output level control allows installers to limit signal levels, protecting downstream amplifiers and loudspeakers from overload.

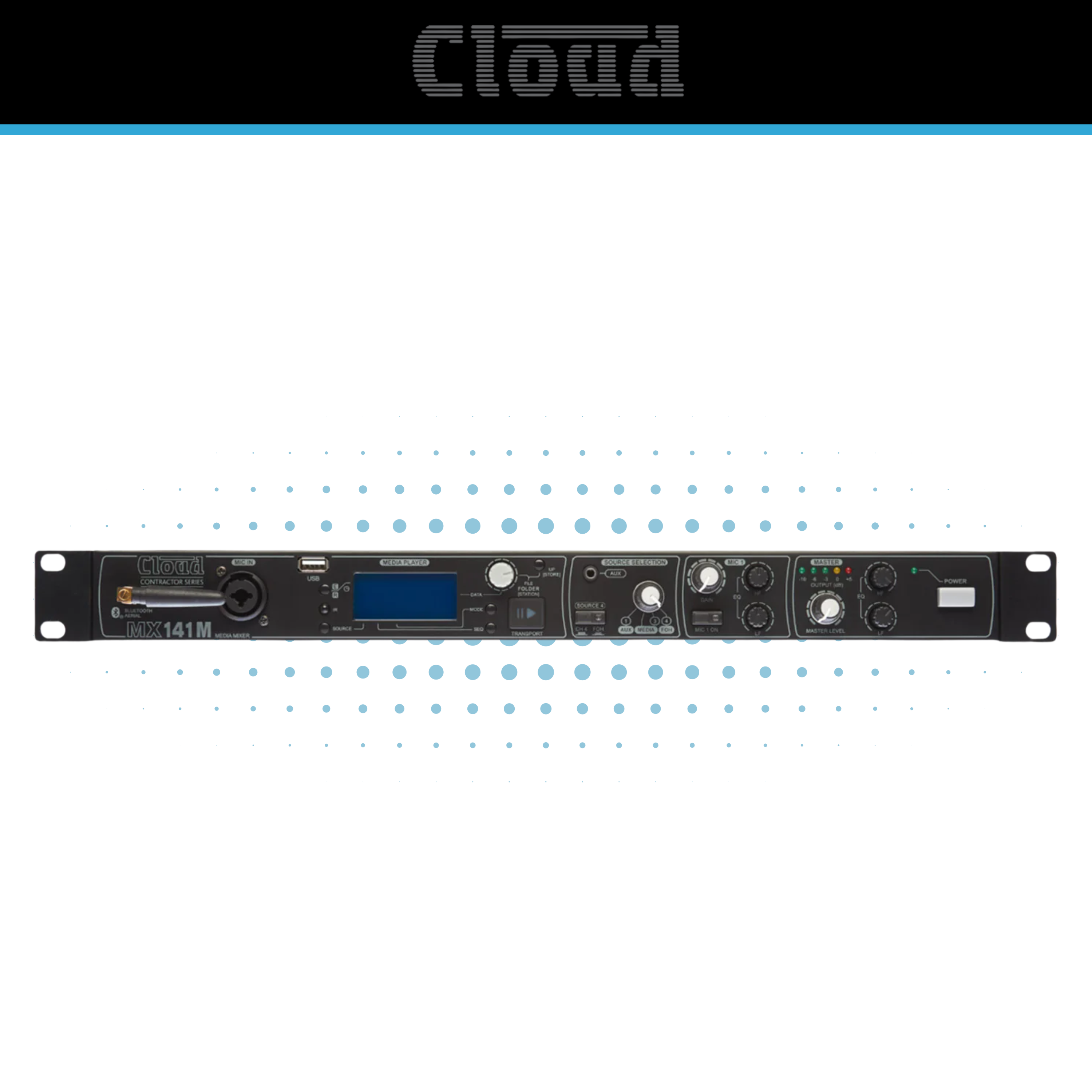

Front-panel controls include master volume, EQ adjustment, and LED metering for clear system monitoring.
For compliance with commercial and safety requirements, the MX141M includes a dedicated emergency input. When triggered, this automatically mutes all other audio sources and routes the emergency signal directly to the output.
A music mute control input is also provided, allowing external systems such as fire alarms to override audio playback when required.
This makes the MX141M suitable for:
Housed in a standard 19-inch 1U chassis, the MX141M is designed for straightforward installation into racks, cabinets, or comms enclosures. Its compact footprint and logical layout make it ideal for both new installations and retrofit projects.
With low power consumption and robust construction, it provides a dependable solution for long-term commercial use.
The Cloud MX141M is widely used across a range of commercial environments:
Its combination of built-in media playback and flexible inputs makes it a highly efficient solution for single-zone systems.
