Description
The Cloud CS-C6 In-Ceiling Speaker is a 6-inch coaxial two-way loudspeaker designed to deliver excellent speech intelligibility and high-quality musical performance in commercial audio installations. Using premium drivers and optimised electronics, the CS-C6 provides high sensitivity, smooth frequency response and consistent off-axis coverage, making it suitable for both background music and paging applications.

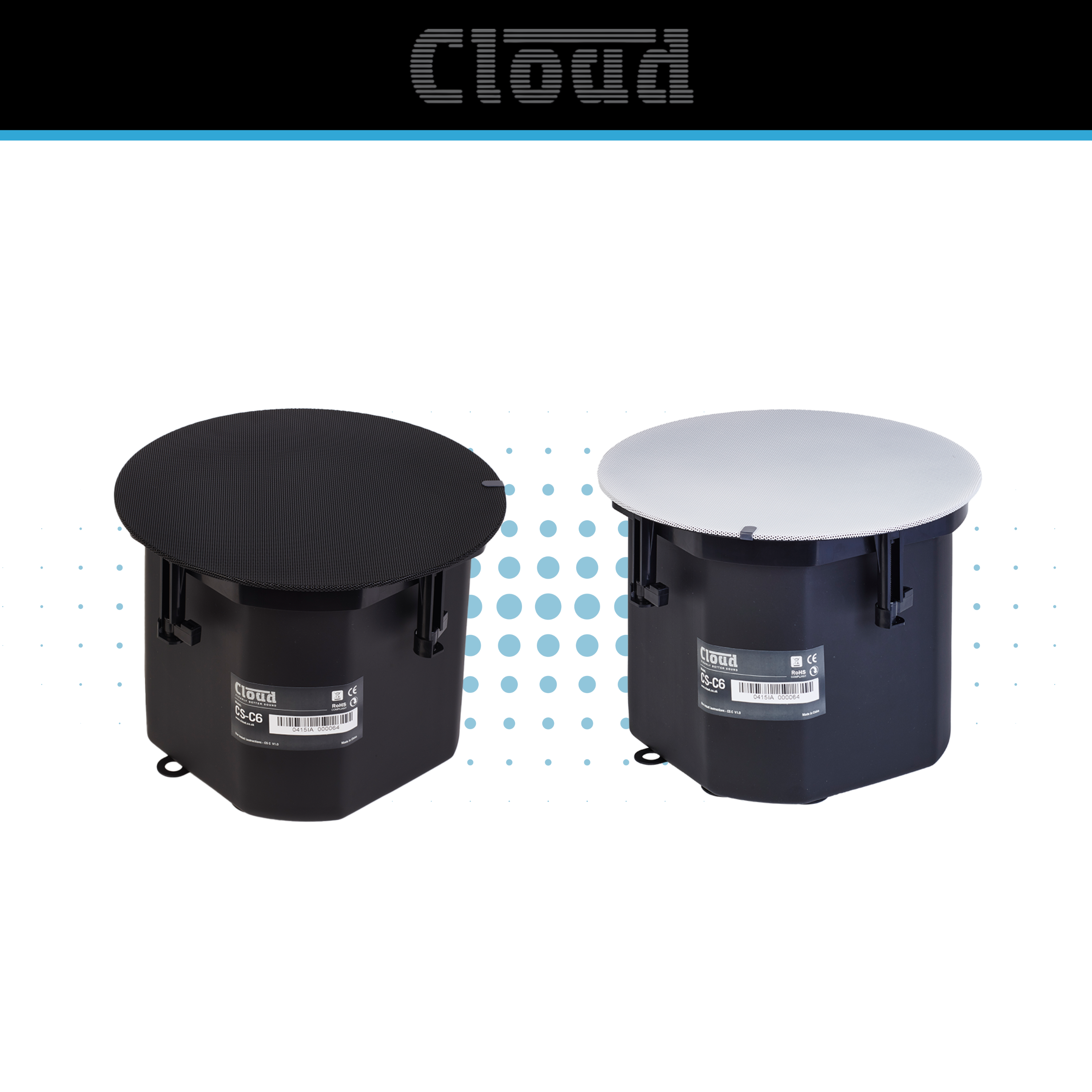

Available in black (CS-C6B) or white (CS-C6W), each model features Cloud’s ZeroEdge magnetic grille for a clean, discreet ceiling finish. The grille design also provides clear access to the high and low impedance switch settings, simplifying configuration for 70/100V distributed audio systems or low-impedance operation.
Developed exclusively for Cloud Electronics by a specialist loudspeaker design team in the USA, the CS-C Series speakers are acoustically tuned to complement the Cloud range of amplifiers and mixer amplifiers. This ensures balanced system performance and consistent sound quality across complete Cloud audio installations.
SPECIFICATION
- 2-way concentrically mounted drivers offering consistent dispersion across broad frequency ranges.
- 6.5" Treated Paper Woofer with Rubber Surround
- 1" Silk Dome Tweeter with phase plug
- Deep back can design (200mm)
- Magnetic speaker grilles available in Black or White.
- Accessible high-impedance or low impedance switch settings.
- Removable logos to allow for discrete use.
- 100v - 32W, 16W, 8W, 4W or 50W@16Ω.
- 70v - 32W, 16W, 8W, 4W, 2W or 50W@16Ω.
- 25v - 4W, 2W, 1W, 0.5W, 0.3W or 50W@16Ω.
- Nom SPL: 88dB@1mt Max SPL: 105db@1mt.
- Optional Tile Bridge.
- Dims: 286.0mm x 210.2mm.
- Weight: 3.3kg net, 4.1kg gross.
- Cut out: 271.0mm
