Description

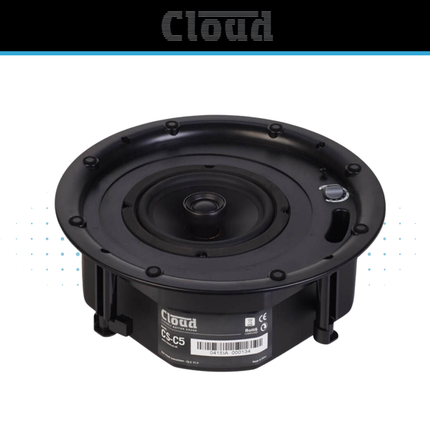

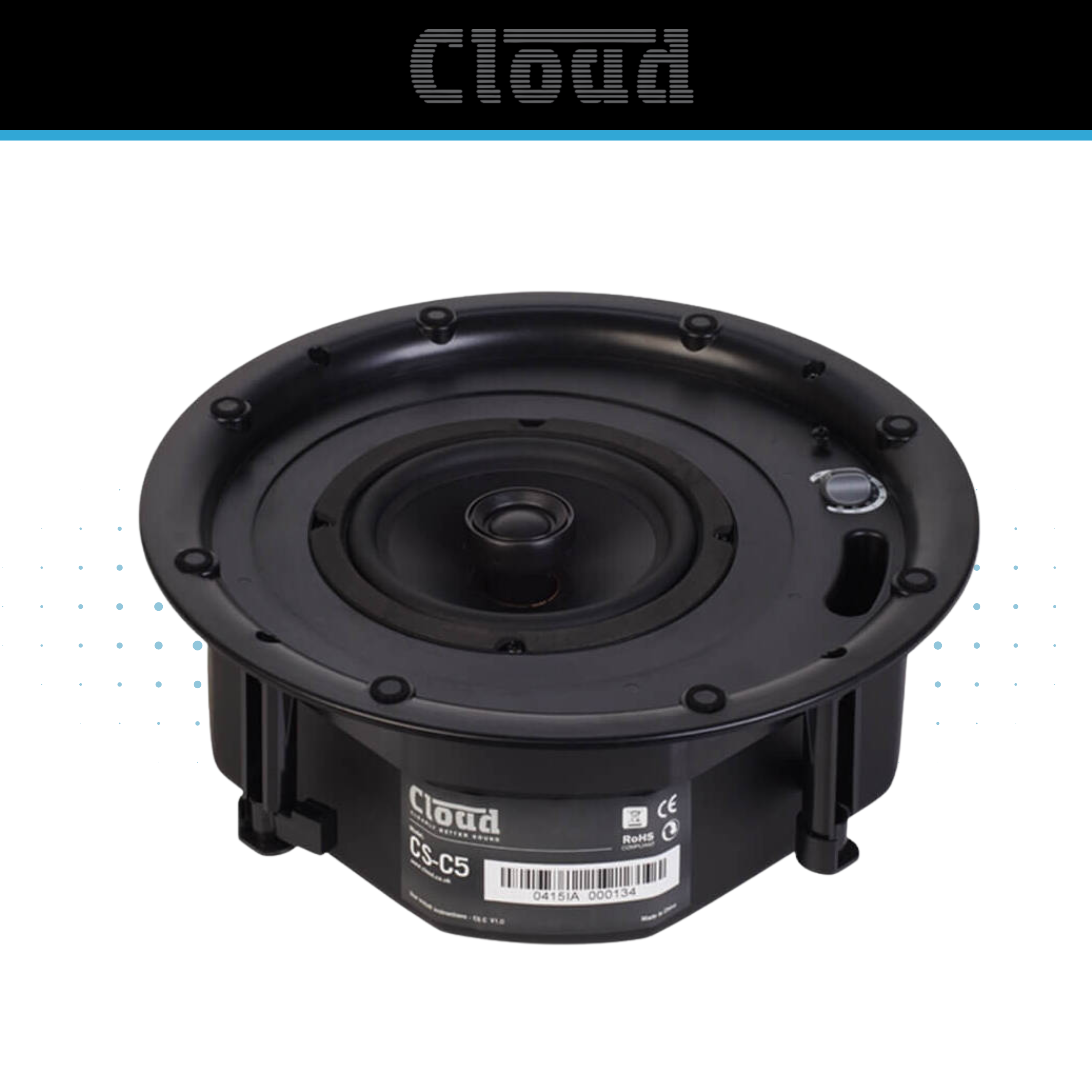

The Cloud CS-C5 In-Ceiling Speaker is a compact 5-inch coaxial two-way loudspeaker engineered for clear speech intelligibility and balanced musical performance in commercial audio installations. Using premium drivers and carefully matched electronics, the CS-C5 delivers high sensitivity, smooth frequency response and consistent off-axis coverage, making it ideal for background music and announcement systems.
Designed with installer efficiency in mind, the CS-C5 features Cloud’s ZeroEdge magnetic grille for a clean, discreet finish. The grille also provides easy access to the high and low impedance switch settings, simplifying configuration for 70/100V distributed audio or low-impedance systems.
Developed exclusively for Cloud Electronics by a specialist loudspeaker design team in the USA, the CS-C Series is acoustically tuned to complement Cloud amplifiers and mixer amplifiers. This ensures optimal system performance when used as part of a complete Cloud audio solution.
Built for long-term reliability, the CS-C5 is manufactured and tested to a high commercial standard and is backed by a comprehensive 5-year warranty. It is well suited to retail, hospitality, education and corporate environments where discreet aesthetics and dependable audio performance are essential.
SPECIFICATION
- 2-way drivers offering consistent dispersion across broad frequency ranges.
- 525" Treated Paper Woofer with Rubber Surround
- 0.75" Silk Dome Tweeter with phase plug

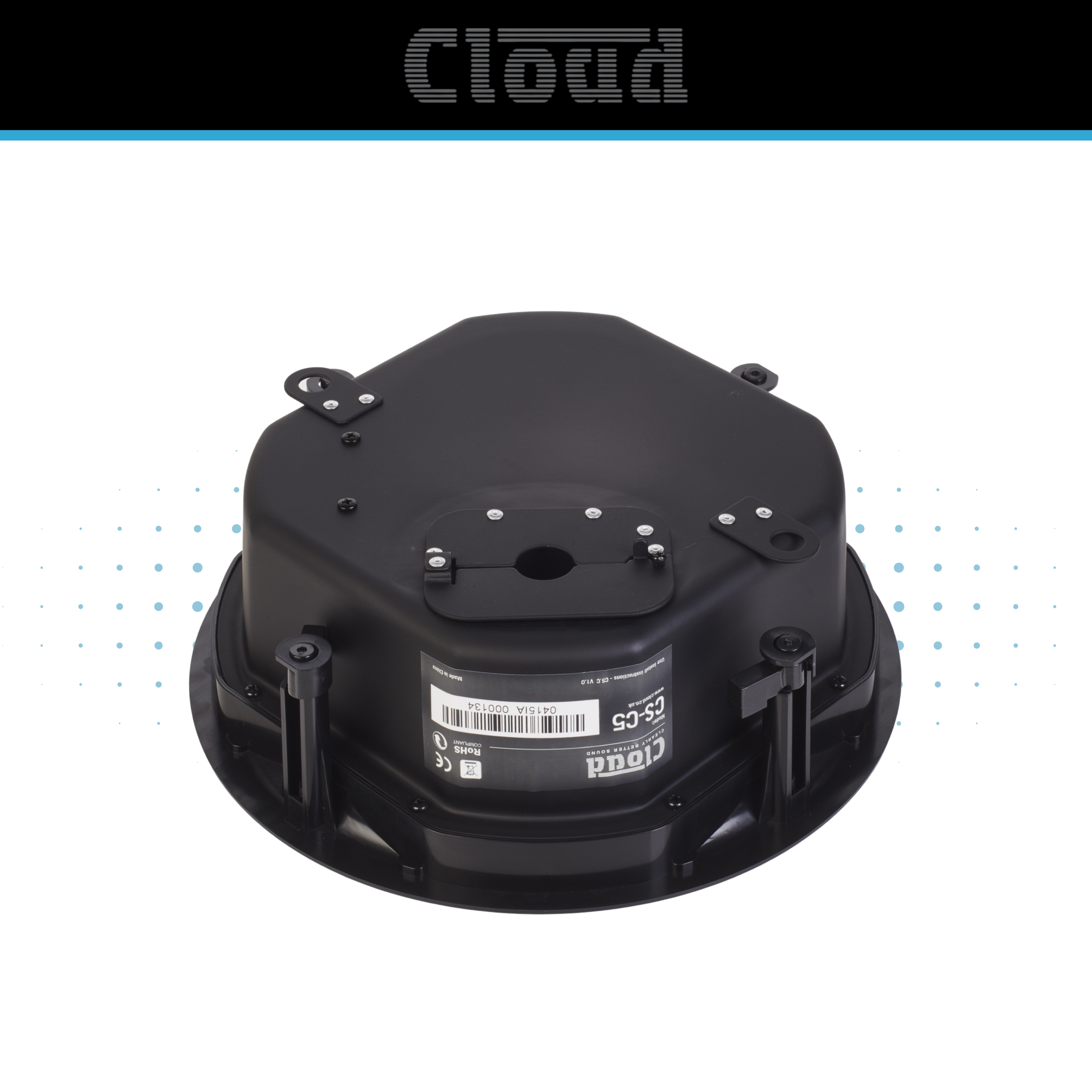

- Shallow backcan design (100mm).

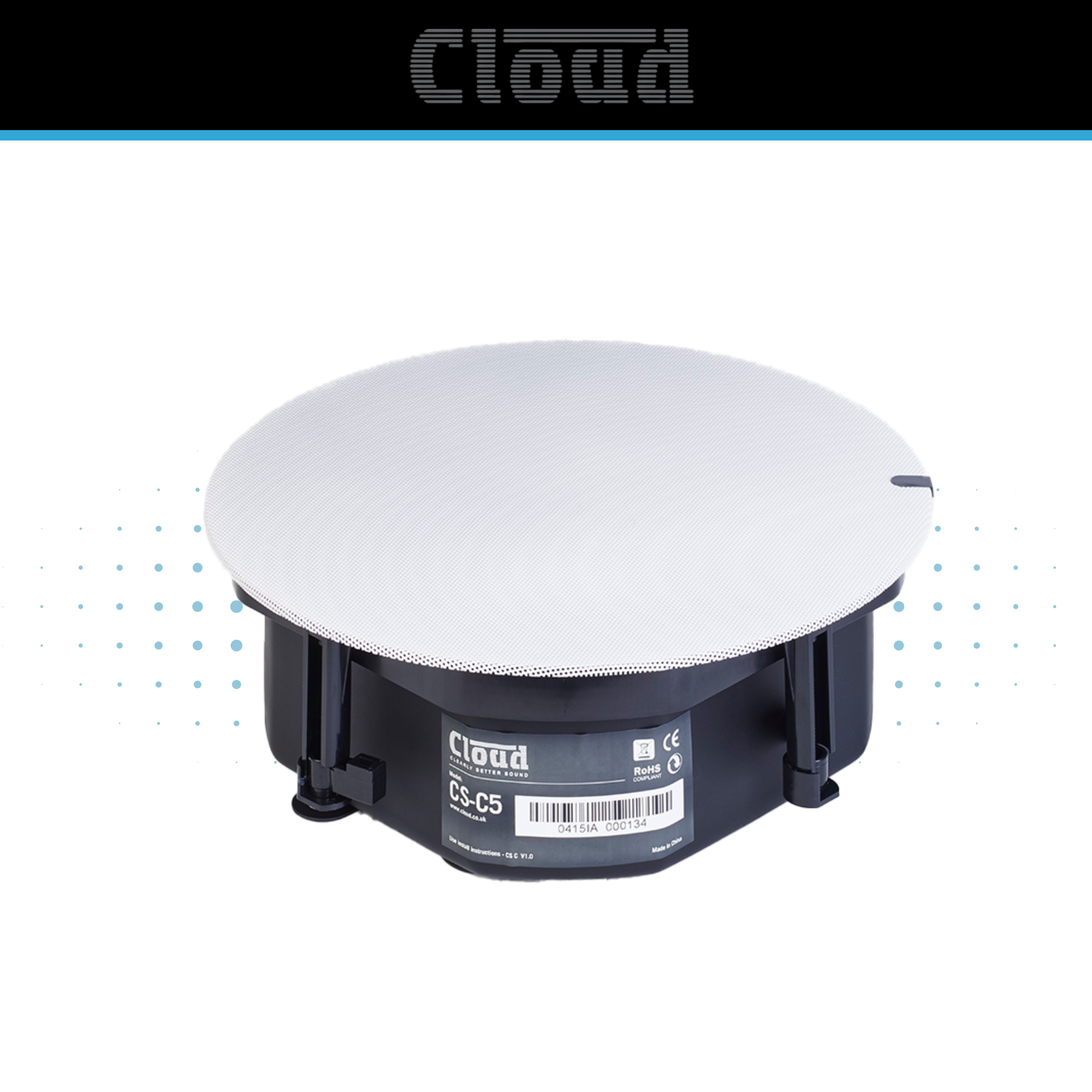

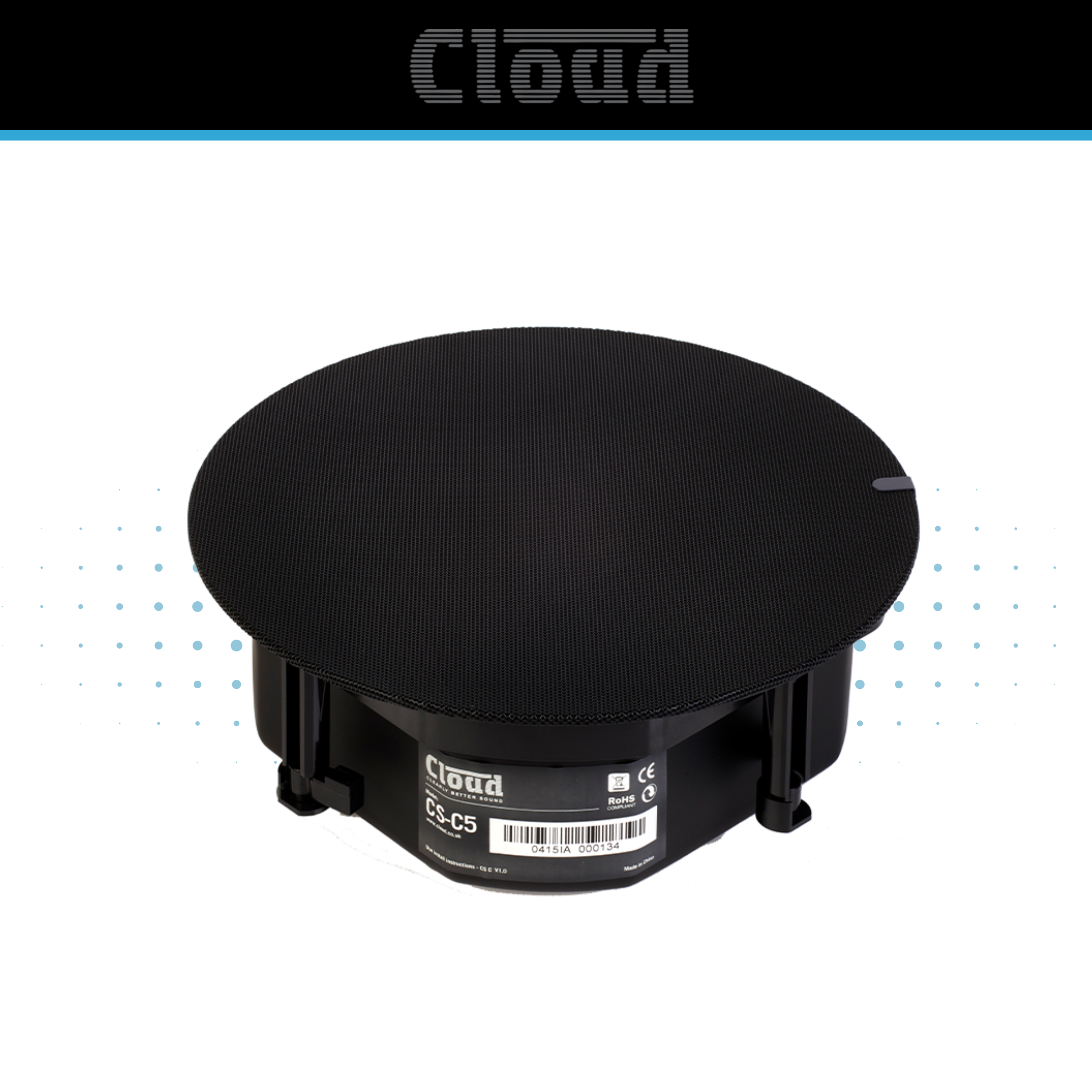

- Magnetic speaker grilles available in Black or White.
- Accessible high-impedance or low impedance switch settings.
- Removable logos to allow for discrete use.
- 100v - 20W, 10W, 5W, 2.5W or 32W@16Ω.
- 70v - 20W, 10W, 5W, 2.5W, 1.25W or 32W@16Ω.
- 25v - 2.5W, 1.3W, 0.6W, 0.3W, 0.2W or 32W @ 16Ω.
- Nom SPL: 88dB@1mt Max SPL: 103db@1mt.
- Optional Tile Bridge.
- Dims: 286.0mm x 100.5mm.
- Weight: 2.3kg net, 2.9kg gross.
- Cut out: 271.0mm
