Description

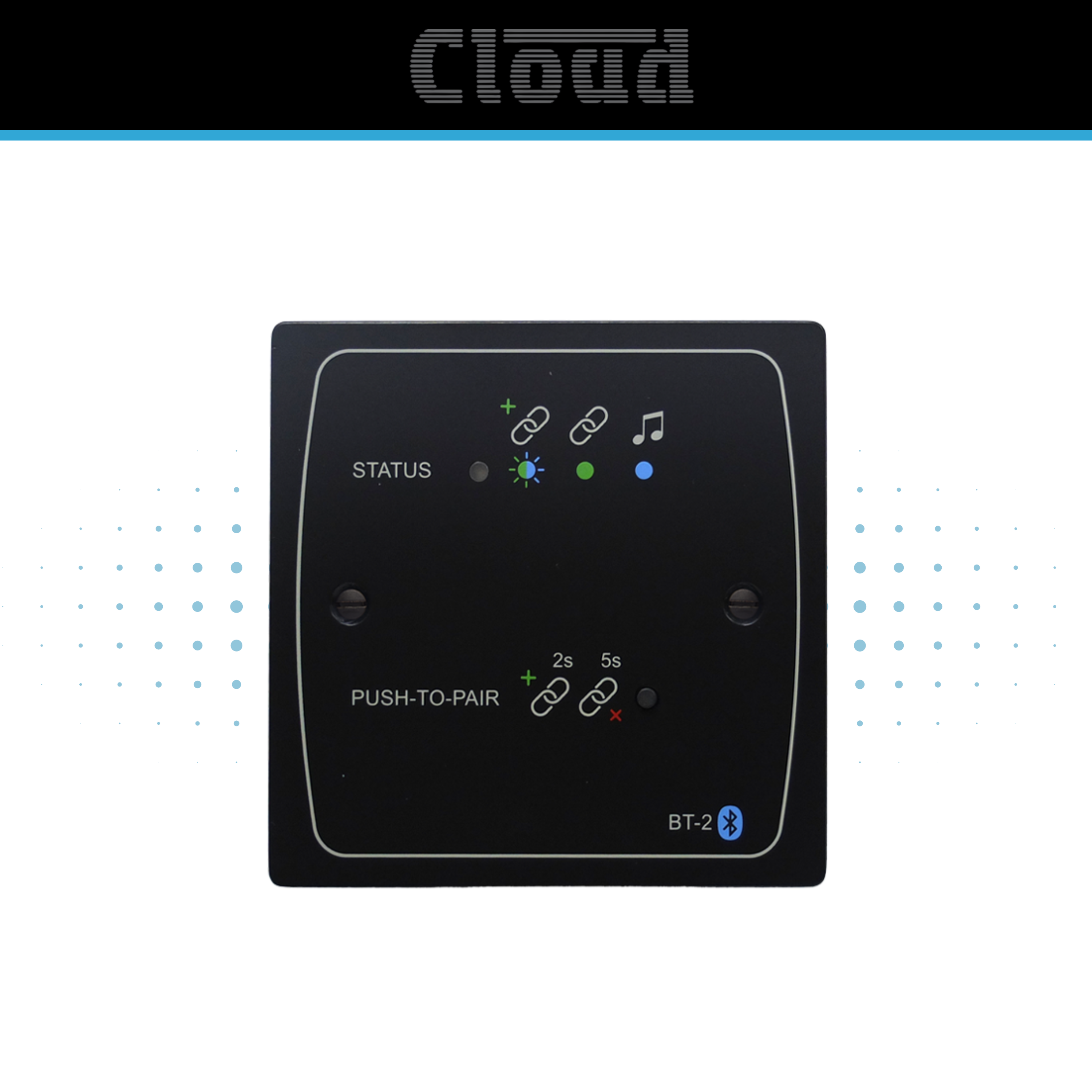

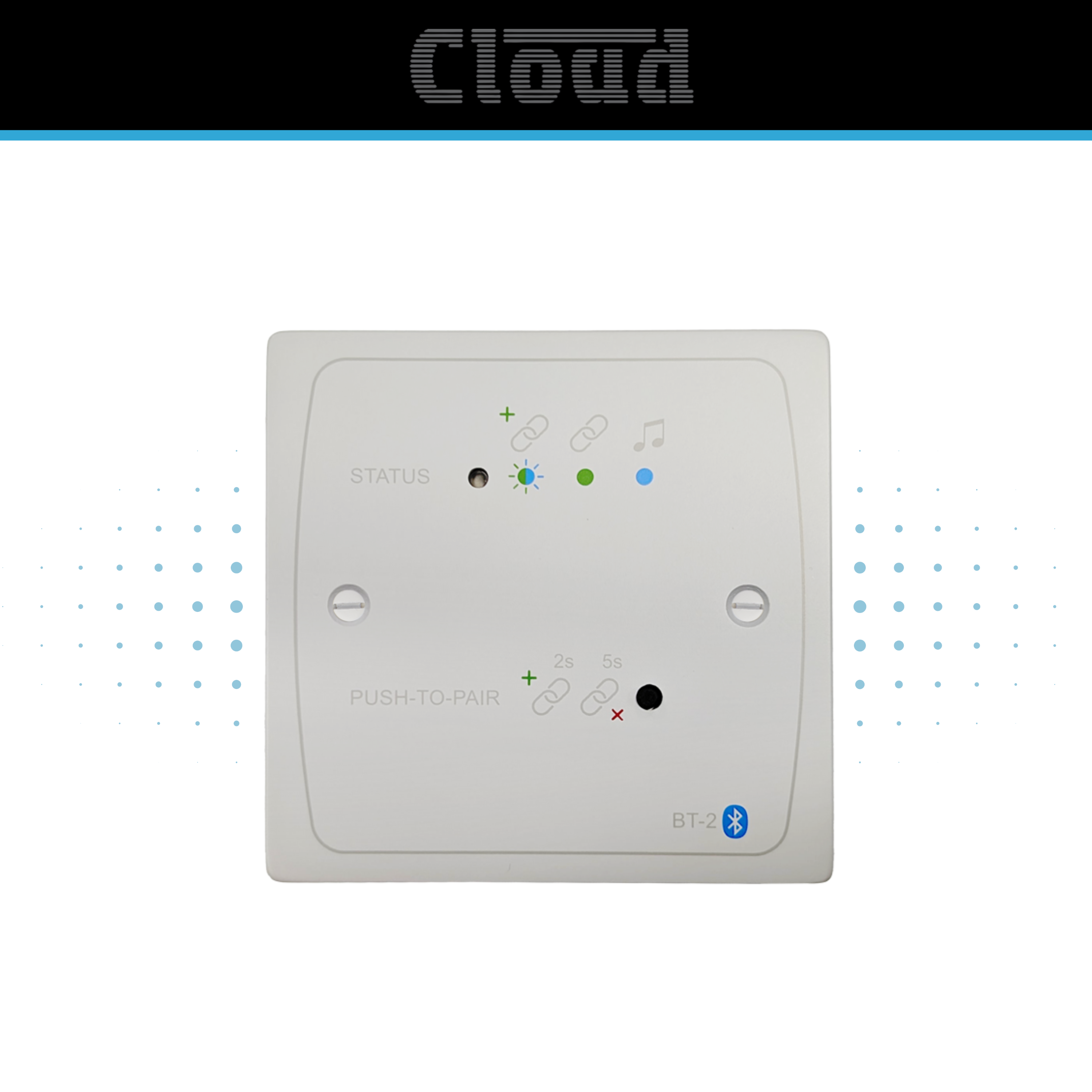

The Cloud BT-2F Bluetooth Wall Input Module is a discreet, wall-mounted wireless audio input designed for Cloud audio systems equipped with an RJ45 Facility Port. Available in black (BT-2FB) or white (BT-2FW), it allows laptops, tablets and smartphones to stream audio wirelessly into an installed audio zone, providing convenient local connectivity for users.

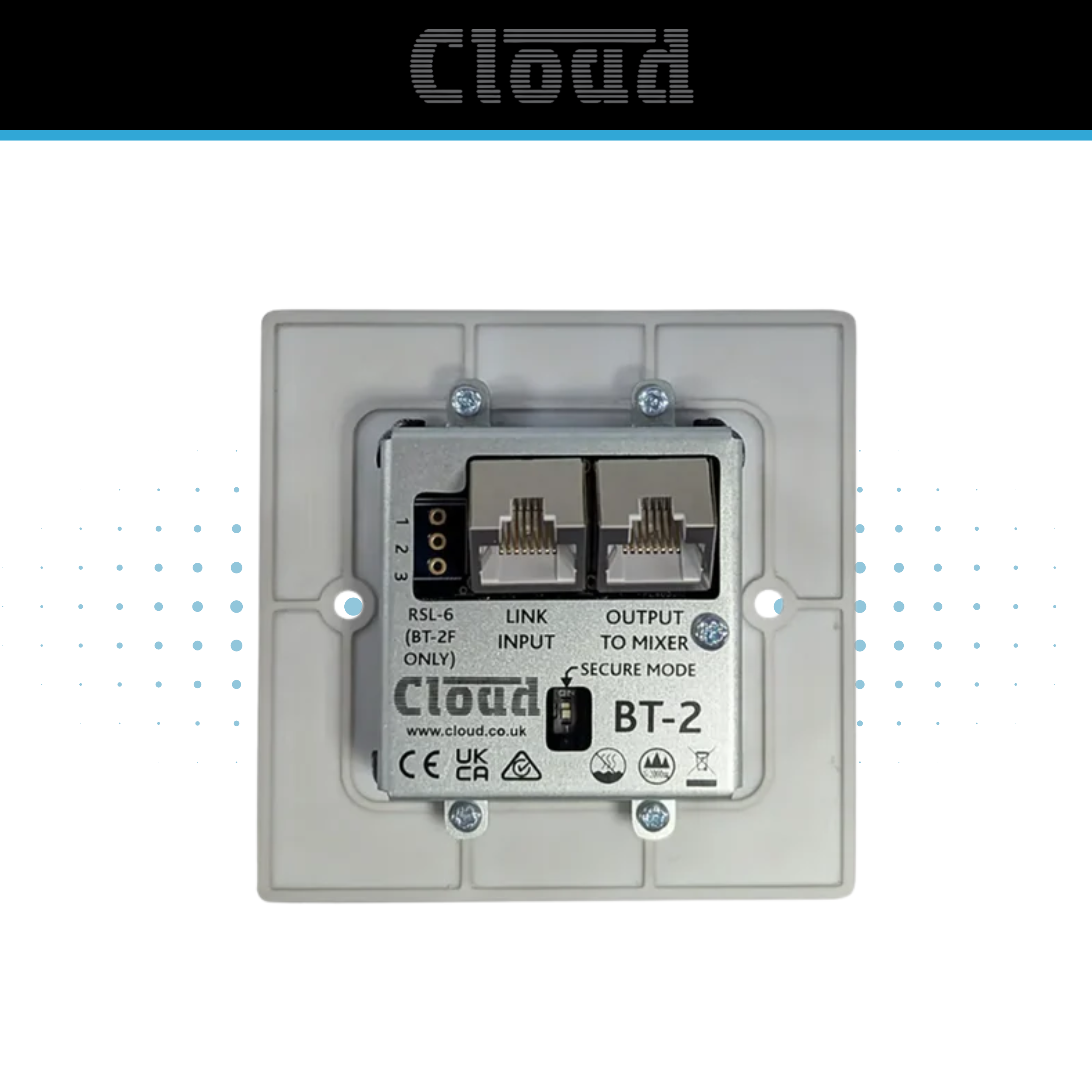

Installation is fast and installer-friendly, using a single screened Cat5 cable connected via standard shielded RJ45 connectors. The RJ45 connection supplies DC power and carries balanced audio, eliminating the need for additional local power sources and simplifying wiring requirements.
The BT-2F delivers a summed mono (L+R) audio signal to the host unit and is compatible with a wide range of Cloud mixers and mixer amplifiers featuring Facility Port connectivity. By default, it operates as a single-zone priority input, ideal for presentations and local playback.
For increased system flexibility, the optional FPA-1 adaptor allows the BT-2F to be configured as a global line input, enabling priority audio across multiple zones depending on the host system’s capabilities. The FPA-1 can also be used with Cloud products that do not include a Facility Port, allowing per-zone integration where required.
Designed and engineered by Cloud Electronics, the BT-2F is an ideal wireless audio solution for retail, education, hospitality and corporate AV installations.
SPECIFICATIONS
- BT-2FB (Black) & BT-2FW (White).
- Remote Bluetooth input module for Cloud host units with with Facility Port Capability .
- Easy connection to host unit via screened Cat 5 cable.
- Uses single-button Bluetooth “pairing” mode for secured operation.
- Alternative “unsecured” mode: configurable at installation.
- Micro USB Connection for plate naming
- Bicolour LED indicating connection progress and streaming activity.
- May be daisy-chained to remote input modules (e.g., LM-2) in same Zone.
- RSL-6 or RL-1 remote plates may be daisy-chained to BT-2.
- UK versions mount into a standard single-gang UK-style electrical back box (85 x 85 mm) and require a back box depth of 35 mm minimum.
