Description

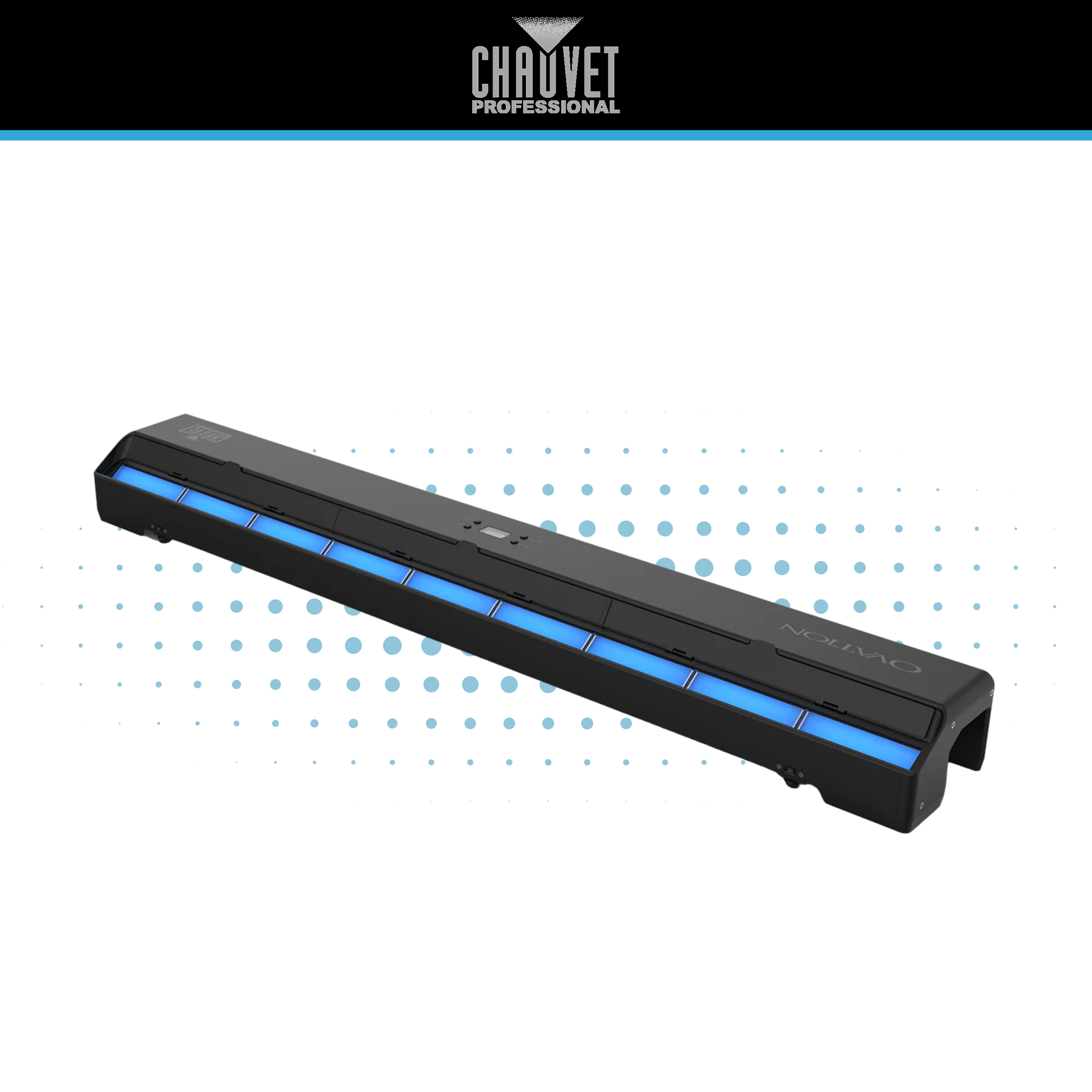

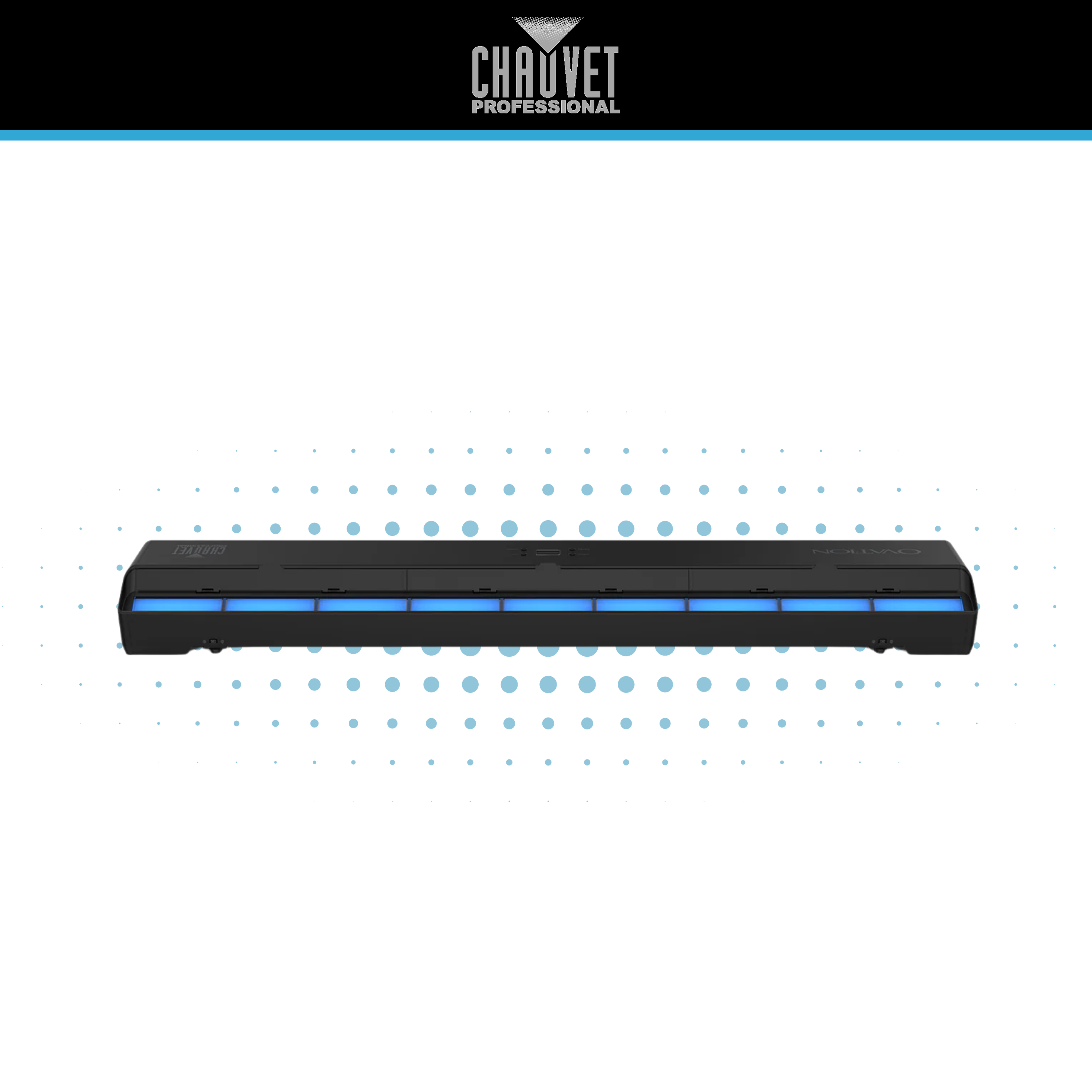

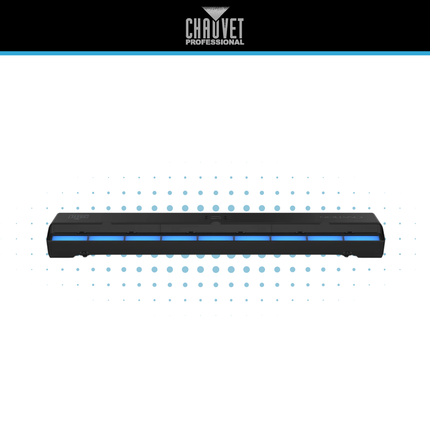

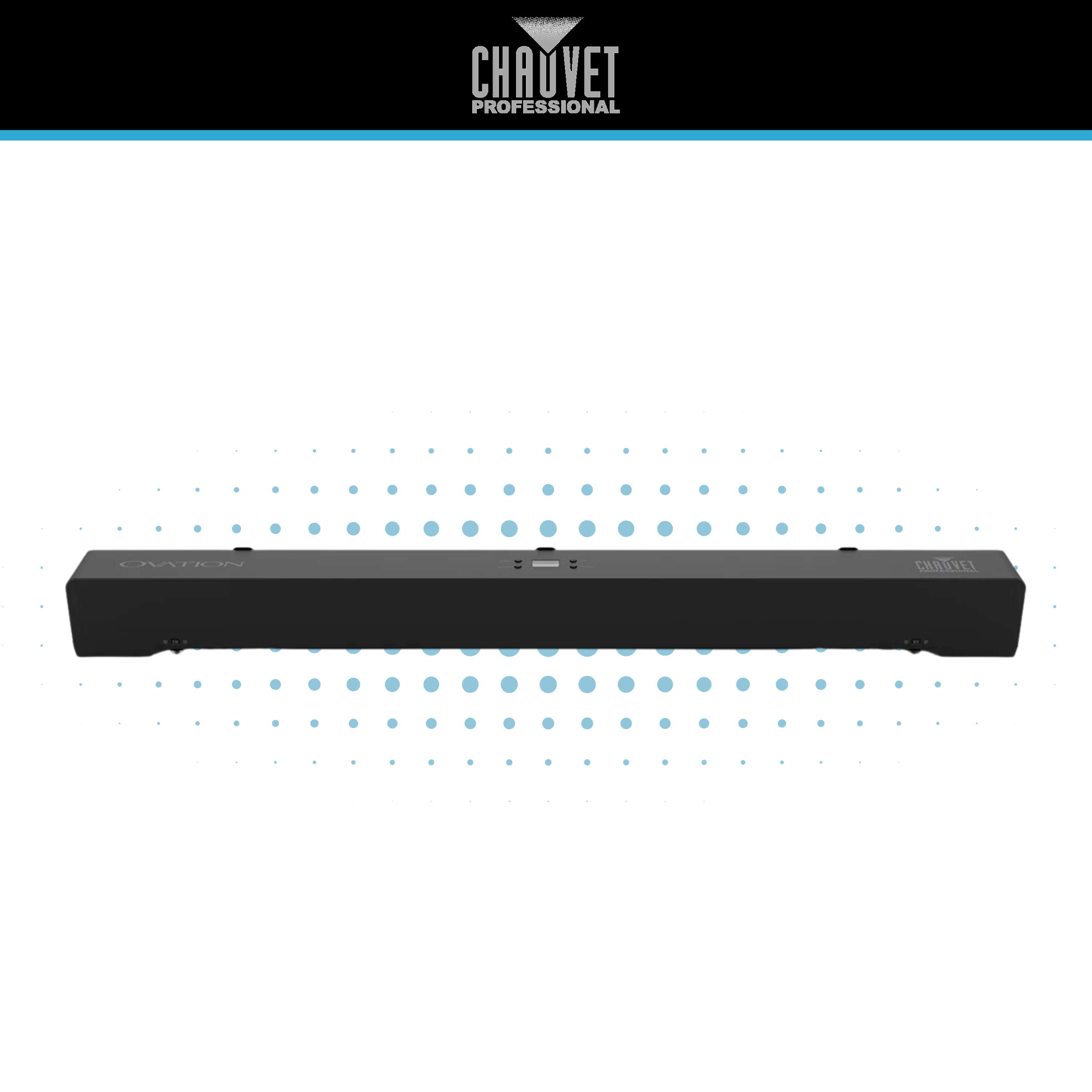

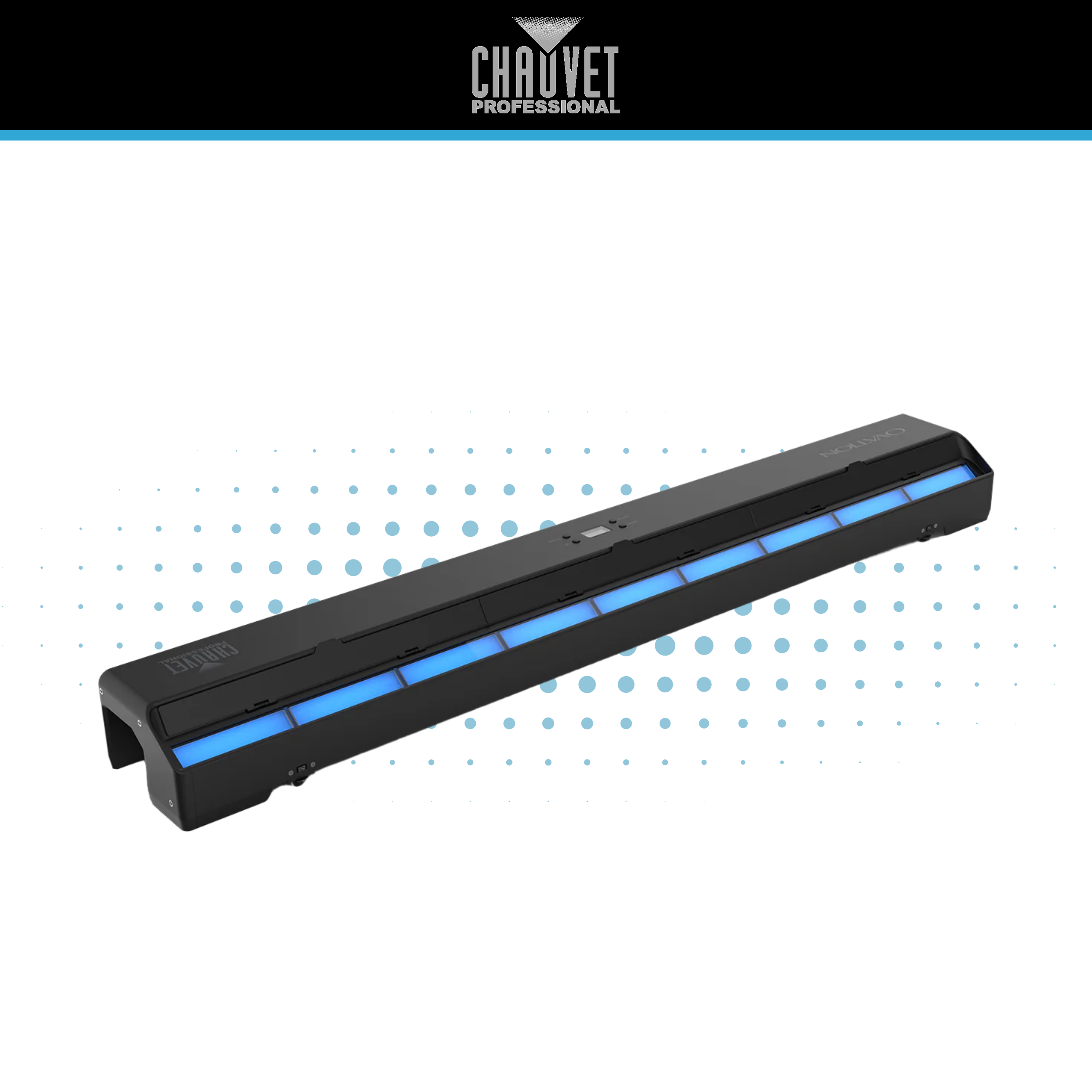

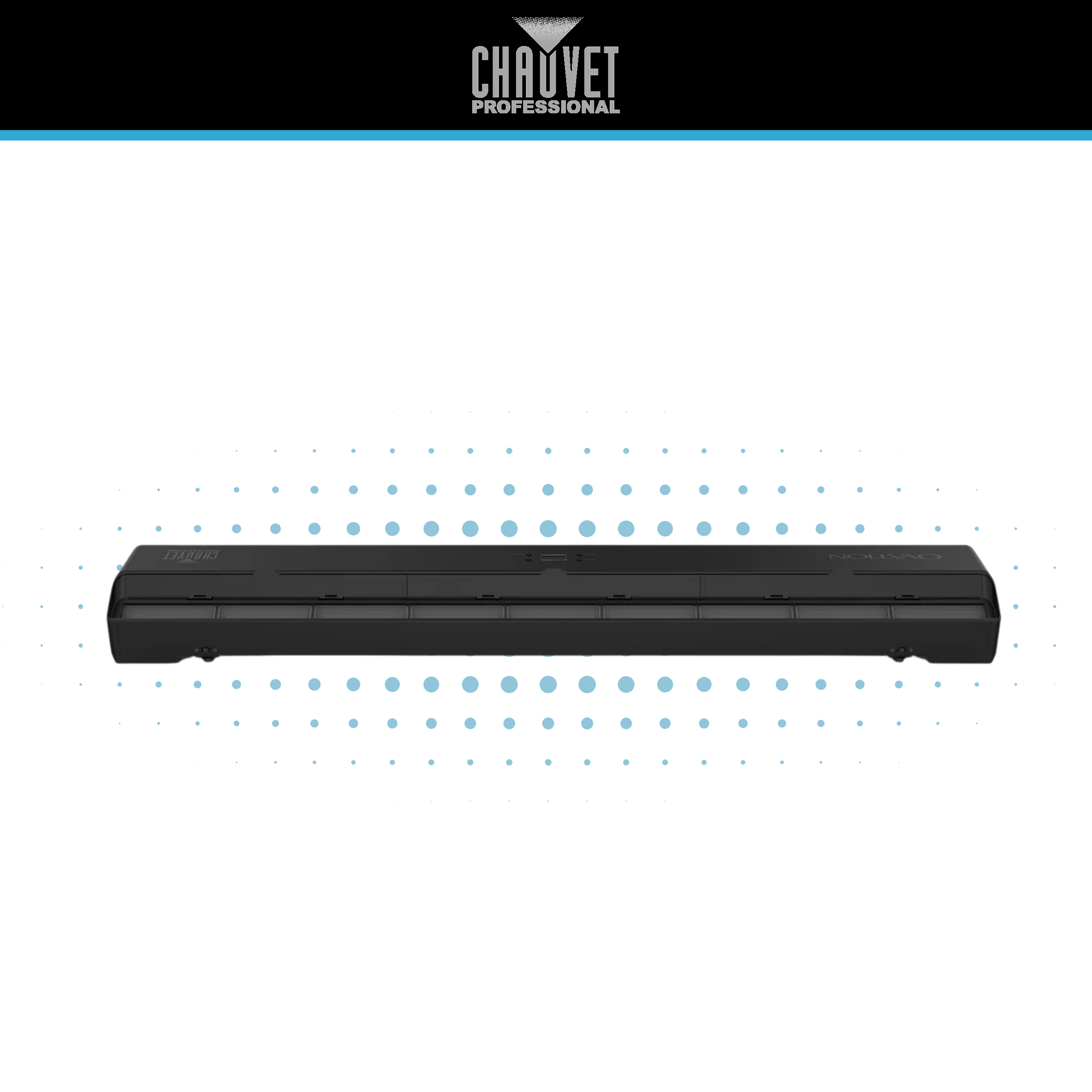

The Ovation CYC 3 FC is a premium 3-way bank cyc and footlight fixture engineered for exceptional colour uniformity and extended throw performance. Featuring three powerful 60W RGBAL LEDs, it delivers a smooth, homogeneous field of light across cycloramas, backdrops and scenic elements with outstanding consistency.

Its refined, low-profile chassis integrates seamlessly into stage environments, whether deployed as a traditional cyc wash or as a front-of-stage footlight. For scalable coverage, it pairs effortlessly with the Ovation CYC 1 FC, enabling modular system builds with uniform output and colour matching across fixtures.

A fully convection-cooled design ensures silent operation, making it particularly suited to theatre, broadcast, corporate presentation and acoustic-sensitive applications.

The advanced RGBAL colour-mixing system produces an extensive colour palette with superior saturation and realistic tonal rendering, allowing designers to achieve precise pastels, deep hues and natural whites without compromise.

Specifications

• Source: 180x RGBAL LEDs
• Colour Temperature (range): 2800 to 6500 K
• CRI (3200K): 90
• Beam Angle (Horizontal): 111.4°
• Beam Angle (Vertical): 76.7°
• Lumens: 19,575
• Illuminance (total): 280 lux @ 5 m
• Dim Modes: 4
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16, or HSV
• Power Linking: 7 units @ 230 V
• Dimensions: 1197 x 160 x 110 mm
• Weight: 24.6 lb (11.2 kg)
