The Bose Panaray MA12EX is a modular column array loudspeaker engineered to deliver exceptional speech intelligibility and consistent coverage in acoustically challenging environments. Designed for both indoor and outdoor applications, it builds on the MA12 platform with extended frequency response and weather-resistant construction, making it a versatile solution for commercial audio installations requiring clarity, coverage, and durability.
With its slim architectural design and scalable modular format, the MA12EX is ideally suited to spaces where controlled dispersion and visual integration are essential.

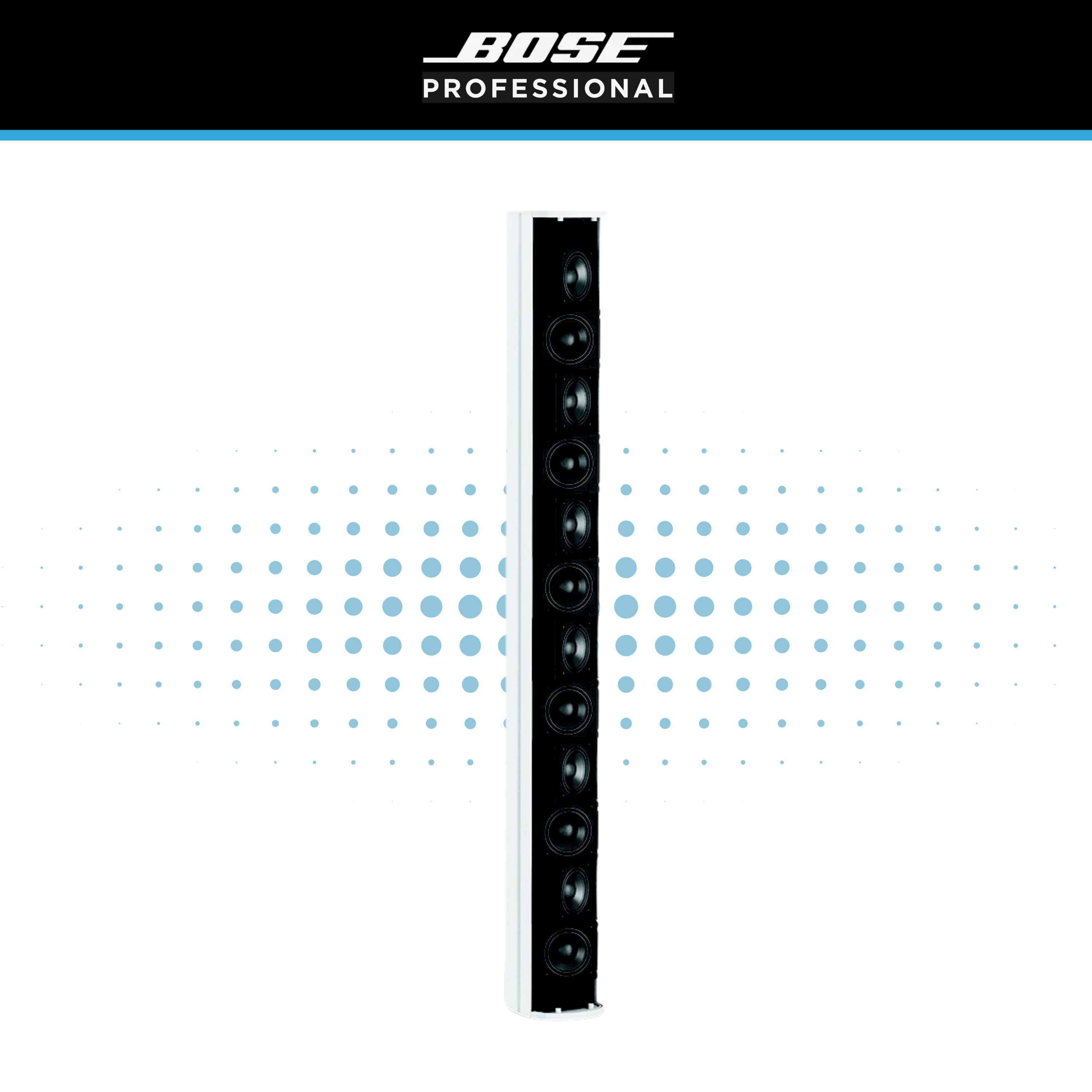

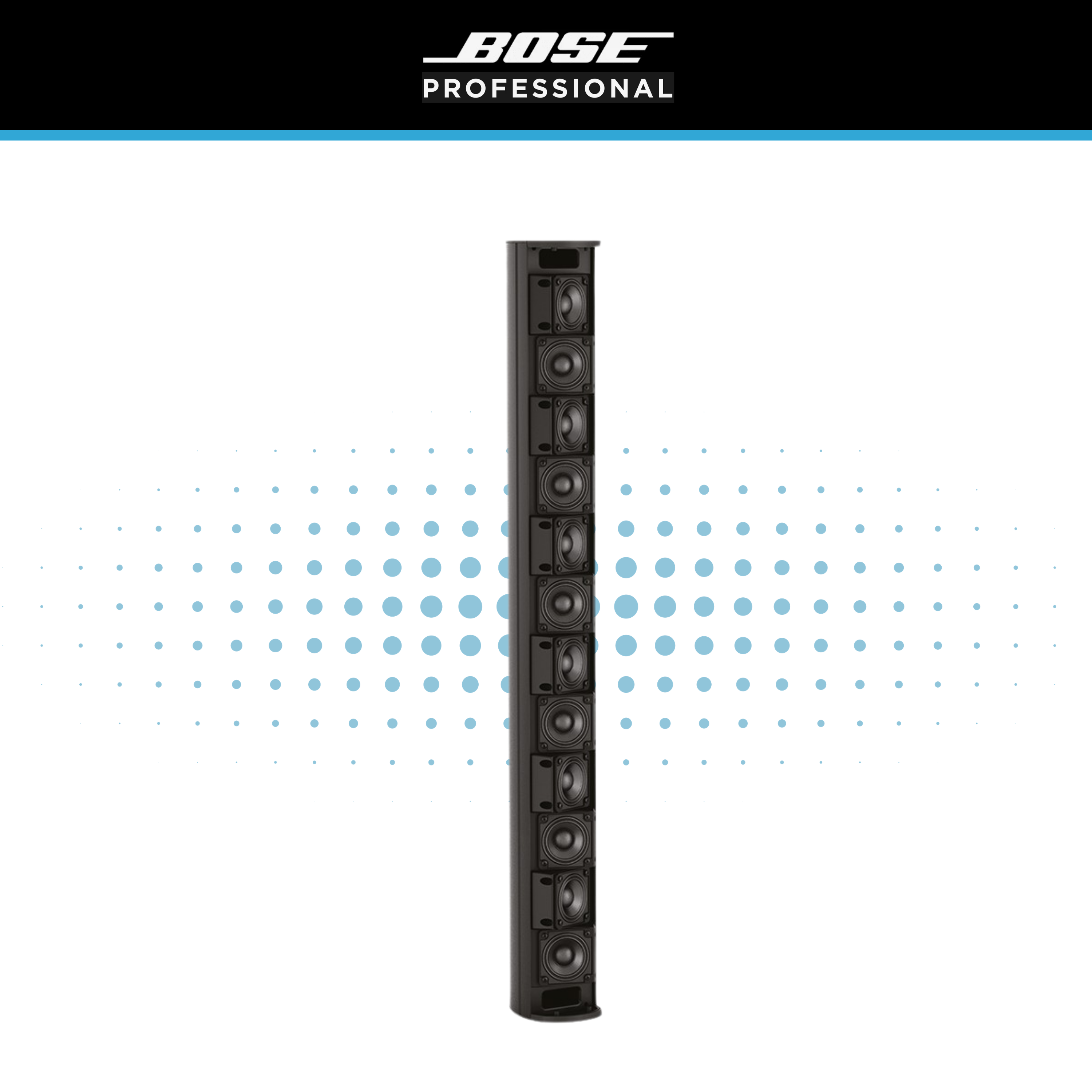

The MA12EX features twelve 2.25-inch full-range drivers arranged in a vertical line array, delivering wide horizontal dispersion with tightly controlled vertical coverage
This configuration enables:
The modular design allows multiple units to be stacked vertically, increasing throw distance and further refining vertical coverage control
Utilising Bose Articulated Array technology, the MA12EX delivers ultra-wide horizontal coverage of approximately 160° with a narrow vertical dispersion pattern
This ensures:
This makes it particularly effective in acoustically difficult spaces.
Unlike the standard MA12, the MA12EX offers extended low-frequency performance, delivering usable response down to approximately 58 Hz and a full-range response between 75 Hz and 13 kHz (±3 dB)
This allows:
For higher output or enhanced bass, it can still be paired with Bose modular bass loudspeakers.
Configured for 8 ohm operation, the MA12EX is designed for use with professional amplification, enabling flexible system design and scalable deployment
This allows:
The MA12EX is designed with weather-resistant components, making it suitable for both indoor and outdoor environments
This ensures:
Its robust aluminium construction supports durability while maintaining a clean, architectural finish.

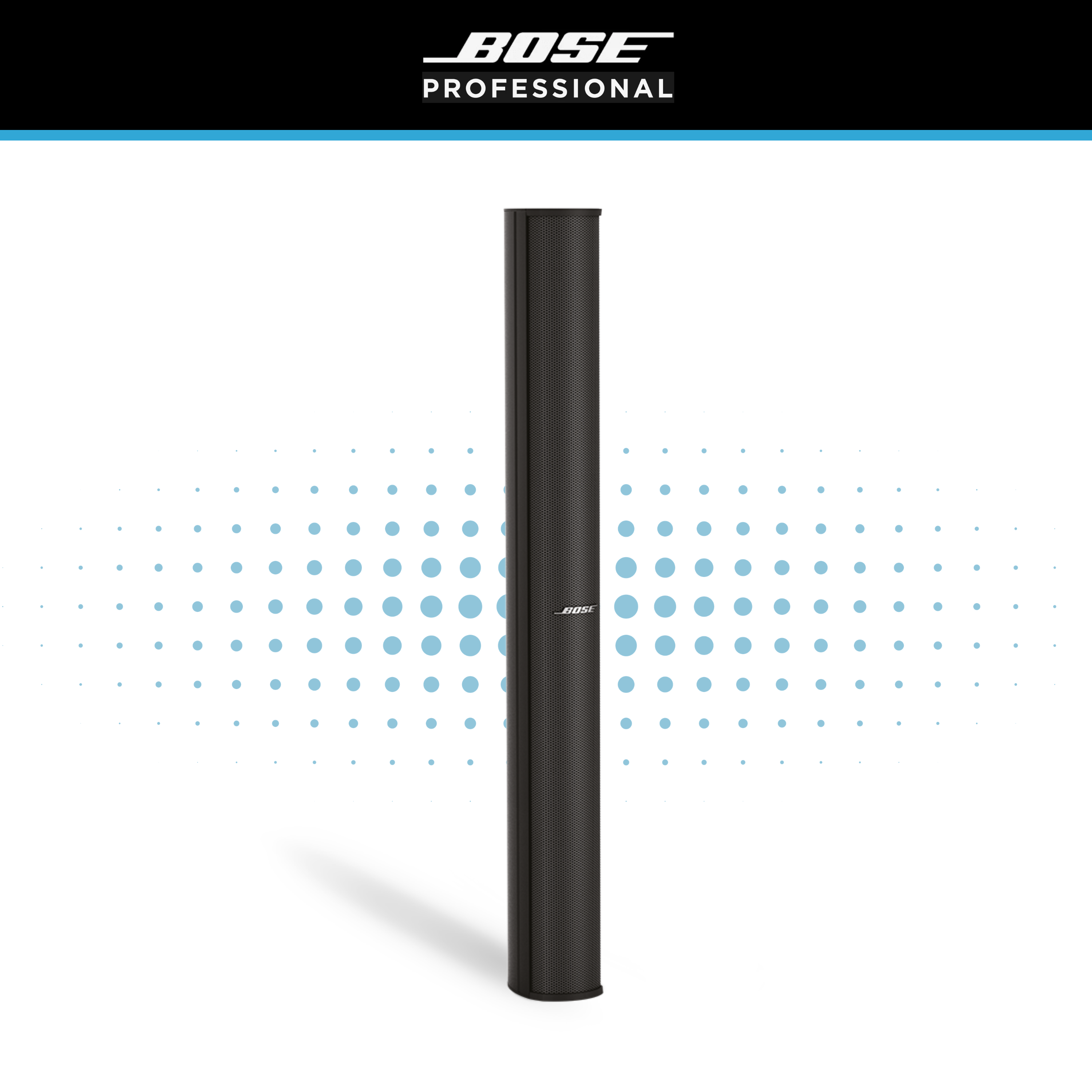

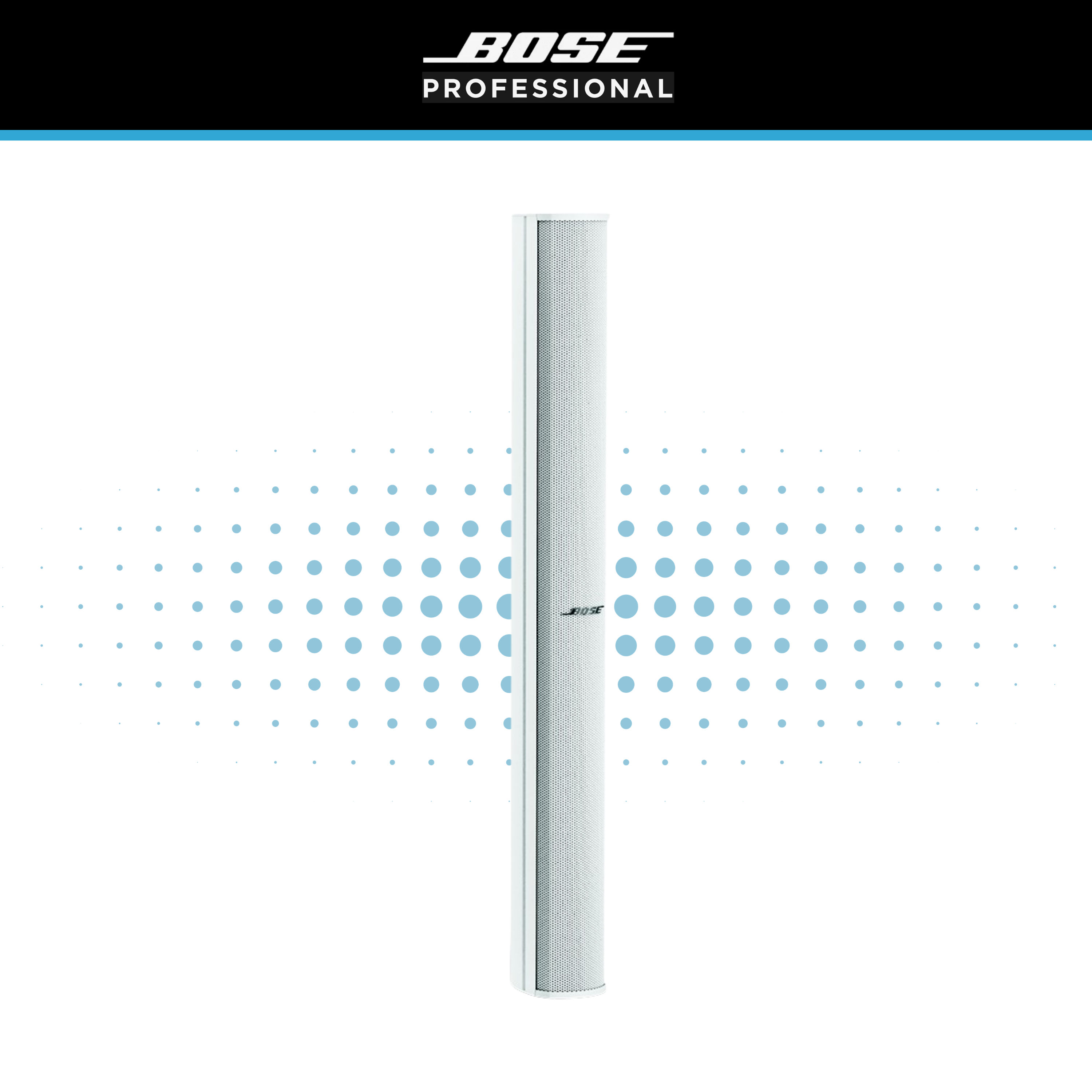

The slim column enclosure allows discreet installation, blending seamlessly into modern architectural spaces. Multiple mounting options and stacking configurations provide flexibility for a wide range of applications
This enables:
The MA12EX is ideally suited to:
Its controlled dispersion and modular scalability make it particularly effective in large or reverberant spaces.
The Bose Panaray MA12EX delivers a powerful combination of clarity, coverage, and scalability in a slim column array design. Its extended frequency response, wide dispersion, and outdoor capability make it a highly effective solution for professional audio systems requiring precise control and consistent performance across a wide range of commercial applications.
