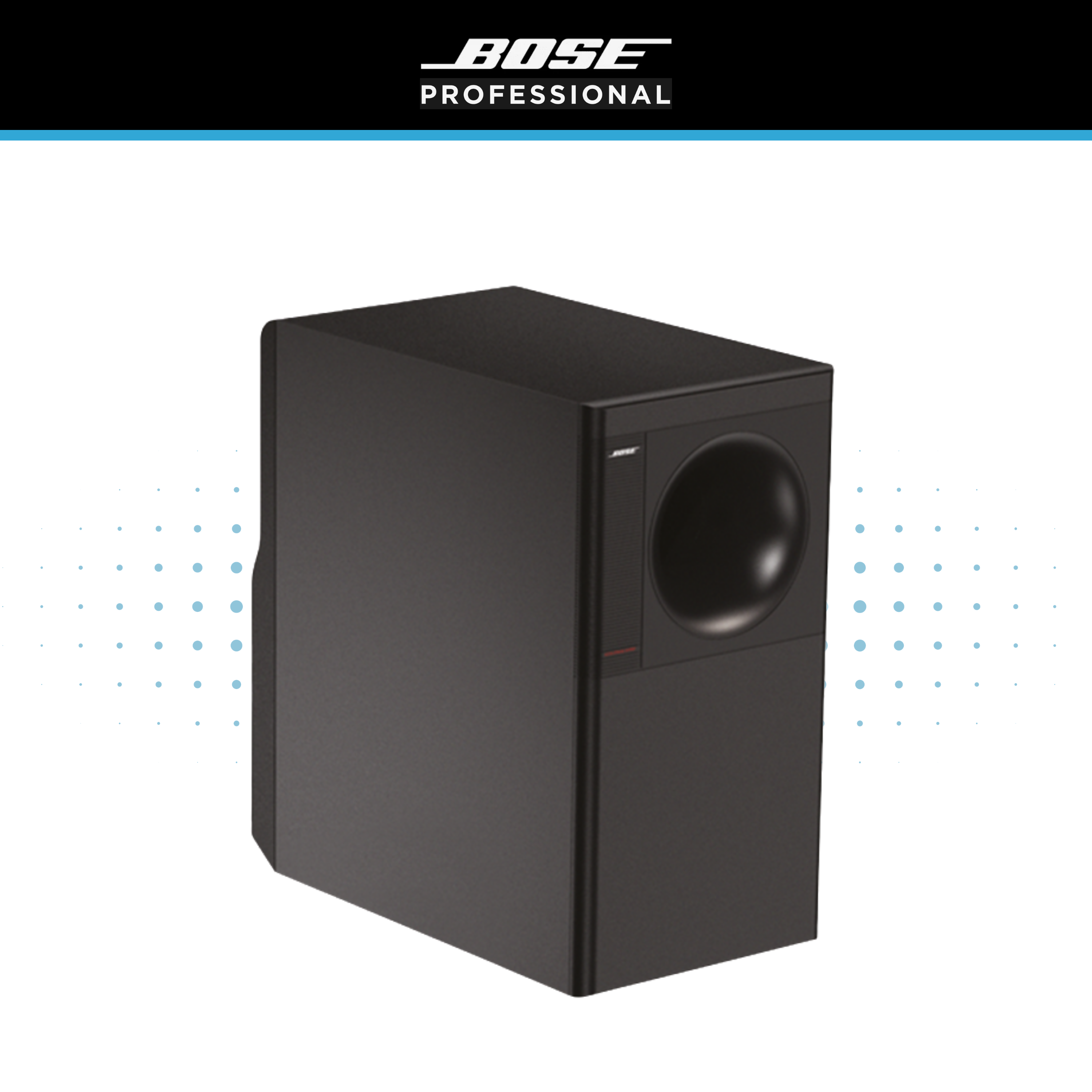

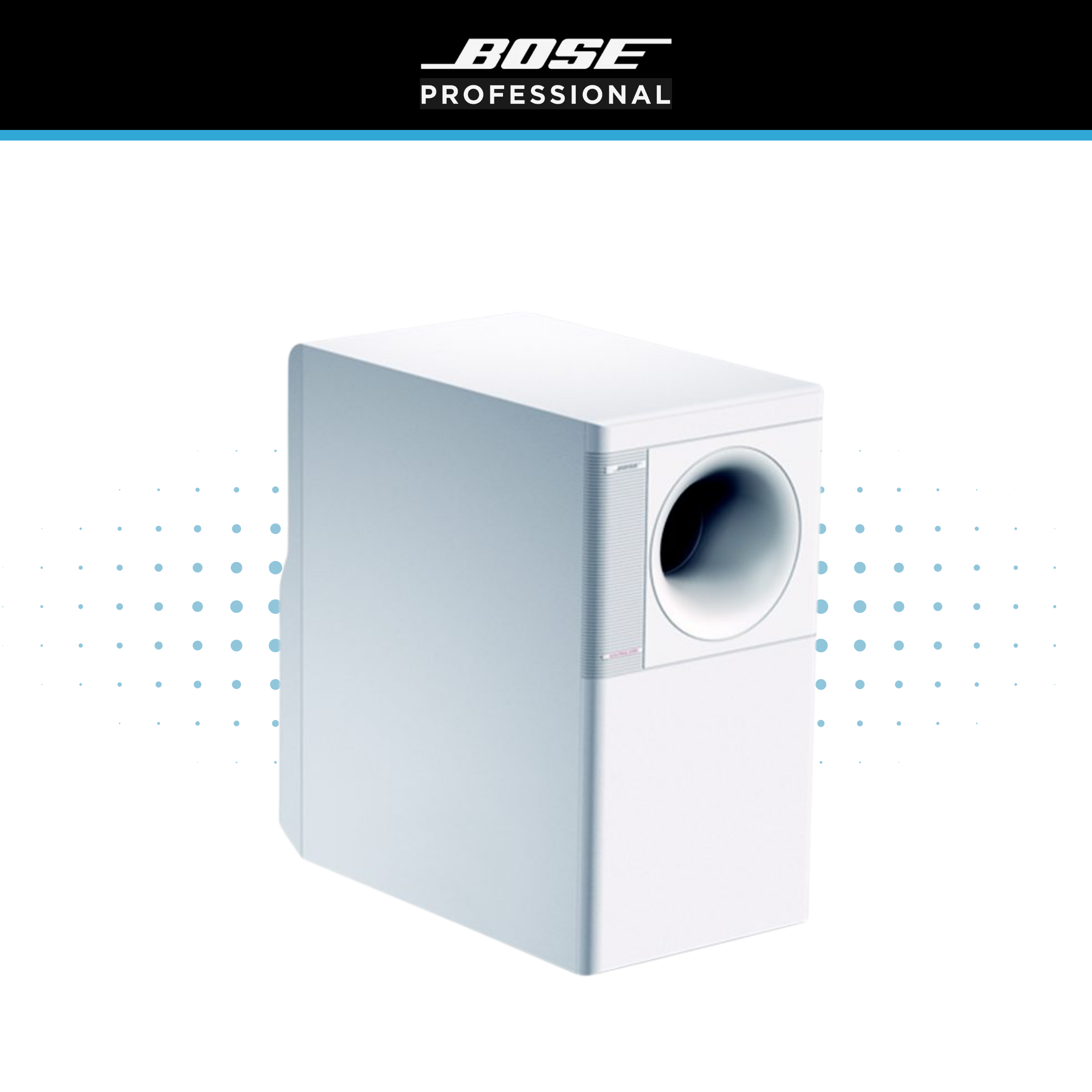

Bose FreeSpace 3 Surface Mount Bass Module

Product form

The Bose FreeSpace 3 surface mount bass module is a compact commercial subwoofer designed to enhance low frequency performance in... Read more

Delivery in 1-3 days

£519.00 Incl. VAT

    • Seen it cheaper? Contact us to see if we can price match.
    • Free shipping on all orders above £150
    • Guaranteed secure & safe checkout.

      shop pay

    Description

    The Bose FreeSpace 3 surface mount bass module is a compact commercial subwoofer designed to enhance low frequency performance in background music and voice systems. Engineered for indoor applications, it delivers deep, controlled bass while maintaining a discreet and professional appearance within installed audio environments.

    Featuring a 5.25 inch woofer, the FreeSpace 3 bass module provides low frequency response down to 40 Hz with minimal distortion. Its design ensures non localised bass distribution, allowing low frequencies to blend seamlessly throughout the space without drawing attention to the subwoofer location.

    The module is designed to integrate with Bose FreeSpace 3 satellite loudspeakers, forming a complete modular audio system. Each bass module can support two or four satellite speakers, providing flexibility in system design and allowing installations to be tailored to different room sizes and coverage requirements.

    Multiple bass modules can be connected in parallel for larger systems requiring increased low frequency reinforcement. This scalable approach makes the system suitable for a variety of commercial environments, including retail spaces, hospitality venues, and corporate settings.

    The bass module supports both low impedance and 70V or 100V line operation, offering compatibility with a wide range of commercial amplifiers and distributed audio systems.

    Designed for surface mounting, the enclosure allows for flexible placement while maintaining a clean and unobtrusive installation. Its compact form factor ensures it can be integrated easily into a variety of interior spaces.

    With its combination of compact design, scalable configuration, and reliable low frequency performance, the Bose FreeSpace 3 surface mount bass module provides a practical solution for enhancing commercial audio systems.

    Specifications

    • LF Driver: 1× 5.25" Dual Voice Coil
    • Power: 100W (mono)
    • 50W (per ch.): 50W (per ch.)
    • Maximum SPL: 102dB (@1m)
    • Impedance: 5Ω Mono Direct
    • 100V Taps.: 25W, 50W, 100W, 200W
    • Frequency Range: 40Hz - 315Hz -10dB
    • Weight: 7.9Kg
    • Dimensions: 356 x 191 x 345mm
