Description

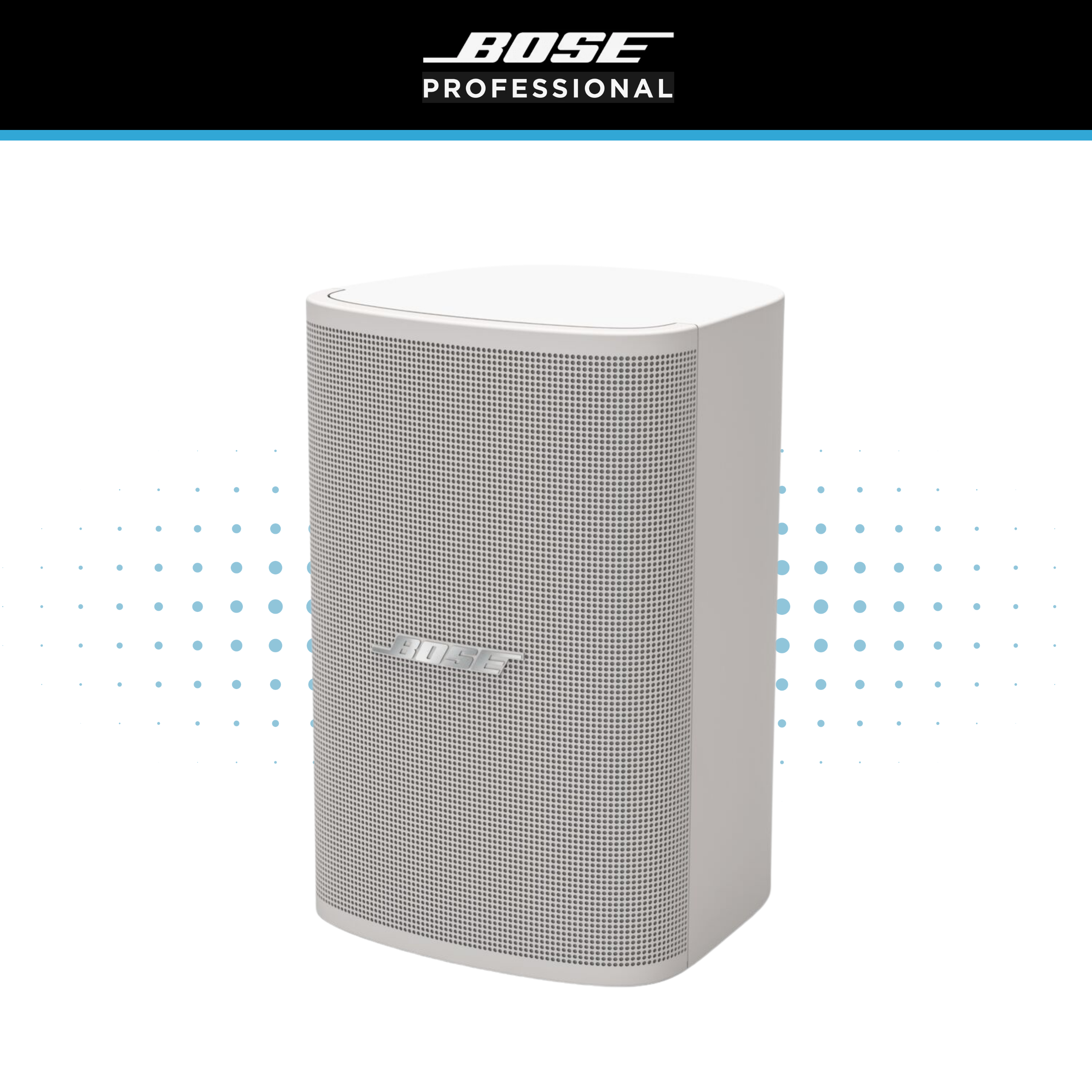

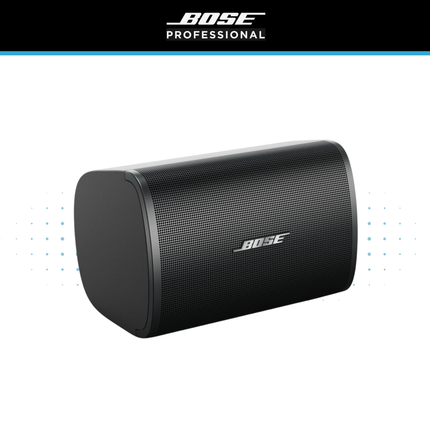

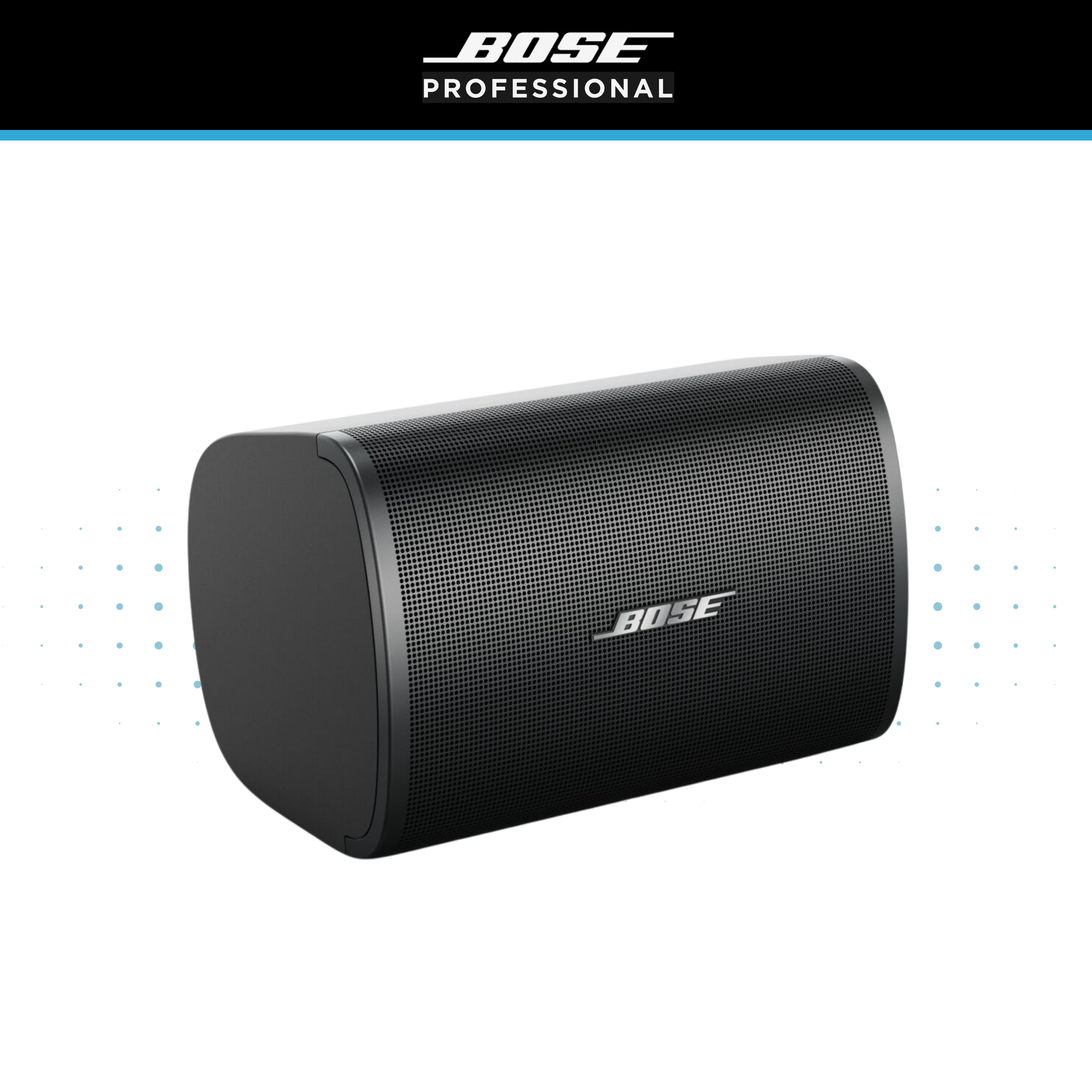

The Bose DesignMax DM3SE surface mount loudspeakers are compact, high-performance speakers designed to deliver clear, intelligible speech and balanced background music in commercial audio systems. Supplied as a pair, they form part of the Bose DesignMax range, combining premium acoustic performance with a modern aesthetic and installation-friendly design.
Engineered for both indoor and outdoor use, the DM3SE provides a discreet yet highly capable solution for distributed audio applications across hospitality, retail, corporate, and leisure environments.
Compact Design with Premium Audio Performance
The DM3SE features a 2-way coaxial design with a 3.5-inch low-frequency driver and a 0.75-inch tweeter, delivering smooth frequency response and excellent clarity across the listening area
This design ensures:
- Clear and intelligible speech reproduction
- Balanced musical performance
- Consistent tonal response throughout the space
Its compact enclosure allows it to integrate seamlessly into visually sensitive environments.
100V Line and Low Impedance Flexibility
The loudspeaker supports both distributed and low impedance systems, allowing operation on:
- 70V / 100V line systems
- 8 ohm low impedance systems
Selectable transformer taps enable flexible system design, making it suitable for:
- Multi-speaker installations
- Zoned commercial audio systems
- Scalable system configurations
Wide Dispersion for Even Coverage
The DM3SE delivers wide coverage of approximately 140° x 140°, ensuring consistent sound distribution across the listening area
This enables:
- Fewer speakers required per space
- Even audio levels throughout the environment
- Improved overall listening experience
IP55 Rated for Indoor and Outdoor Use
With an IP55 rating, the DM3SE is designed for both indoor and outdoor installations, offering protection against dust and water ingress
This allows deployment in:
- Outdoor seating areas
- Covered walkways
- Hospitality and retail exteriors
Installation-Friendly and Discreet

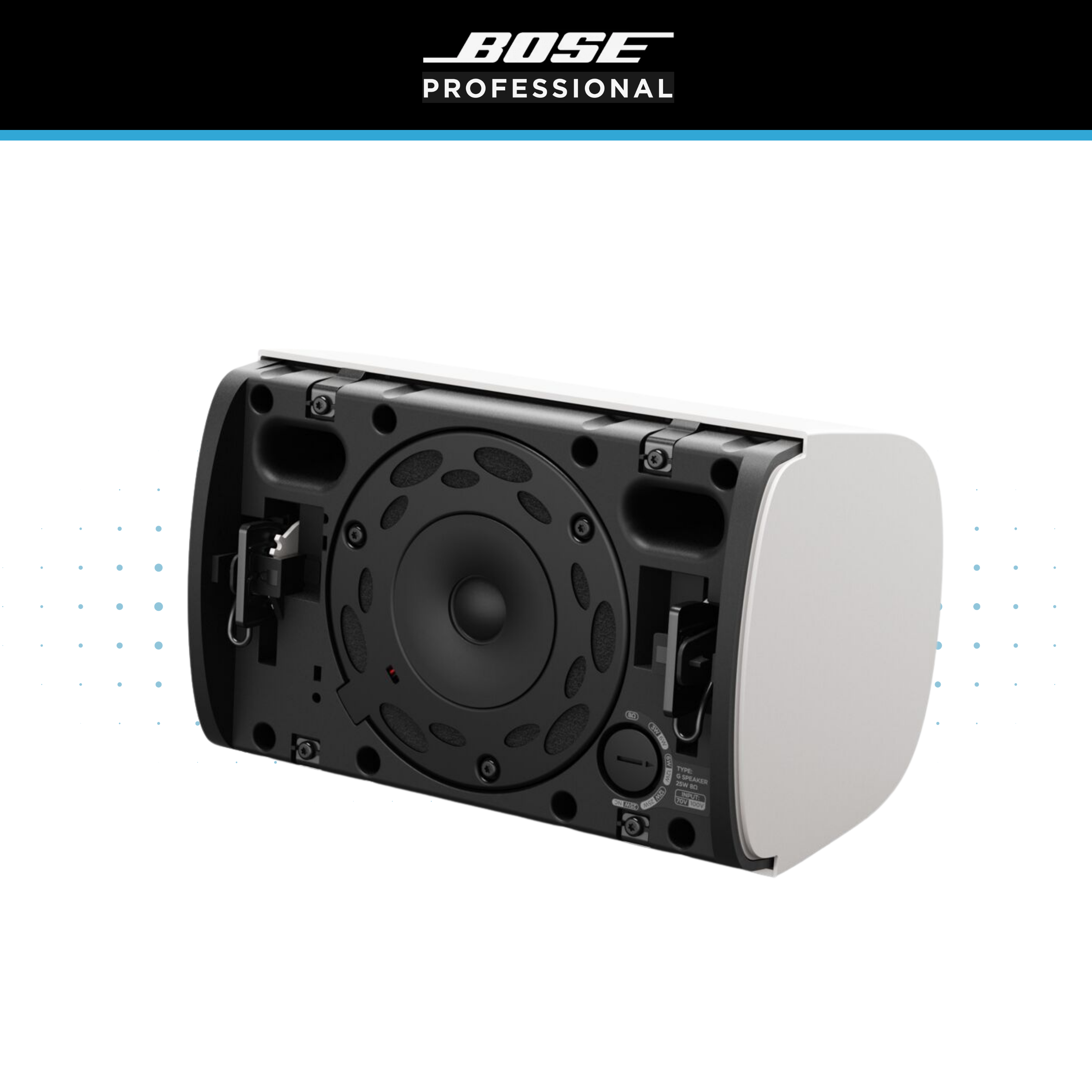

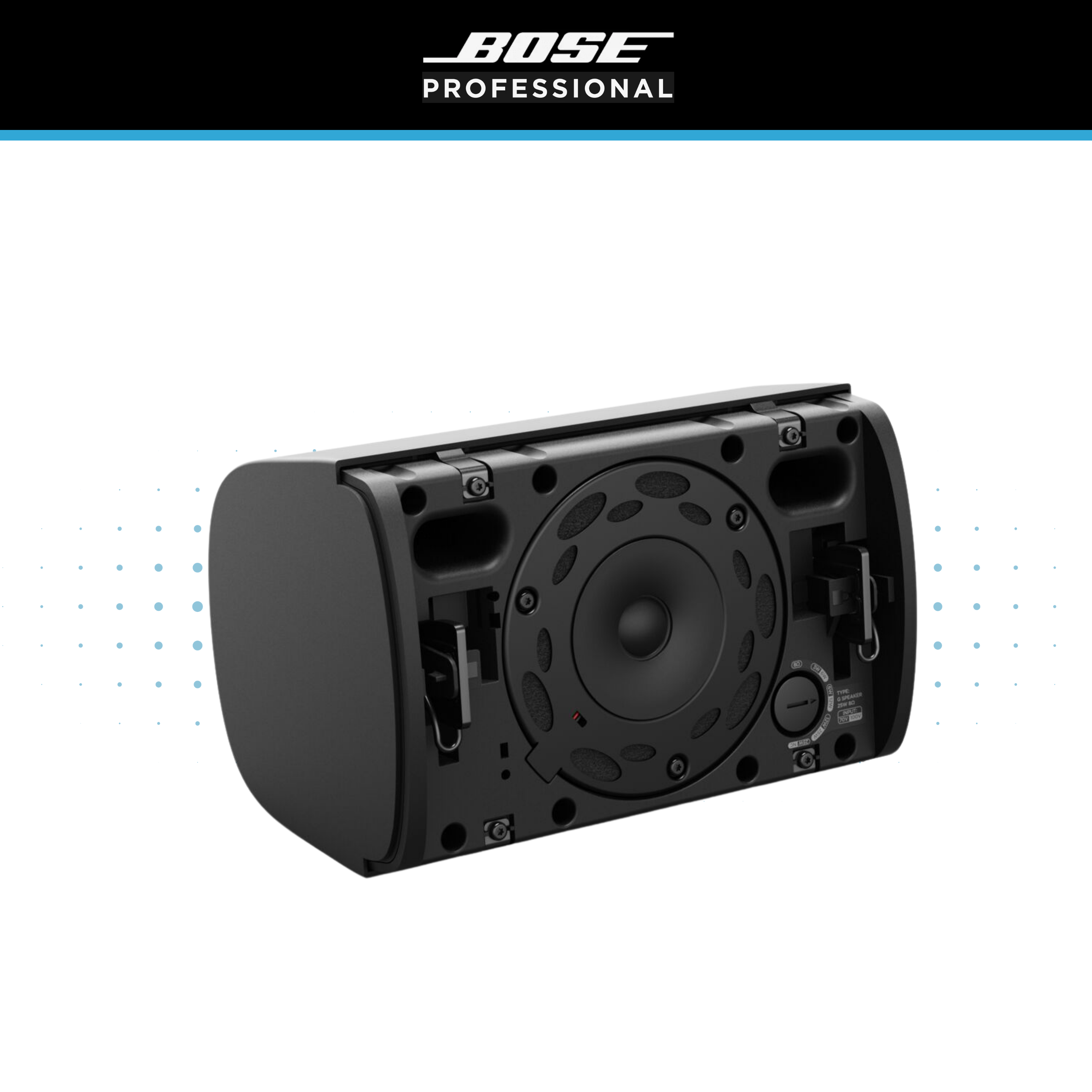

The DM3SE features Bose’s QuickHold mounting system, allowing fast and secure installation without visible brackets
Additional installation benefits include:
- Clean, modern design with minimal visual impact
- Removable and rotatable logo for flexible orientation
- Euroblock connectors for secure wiring

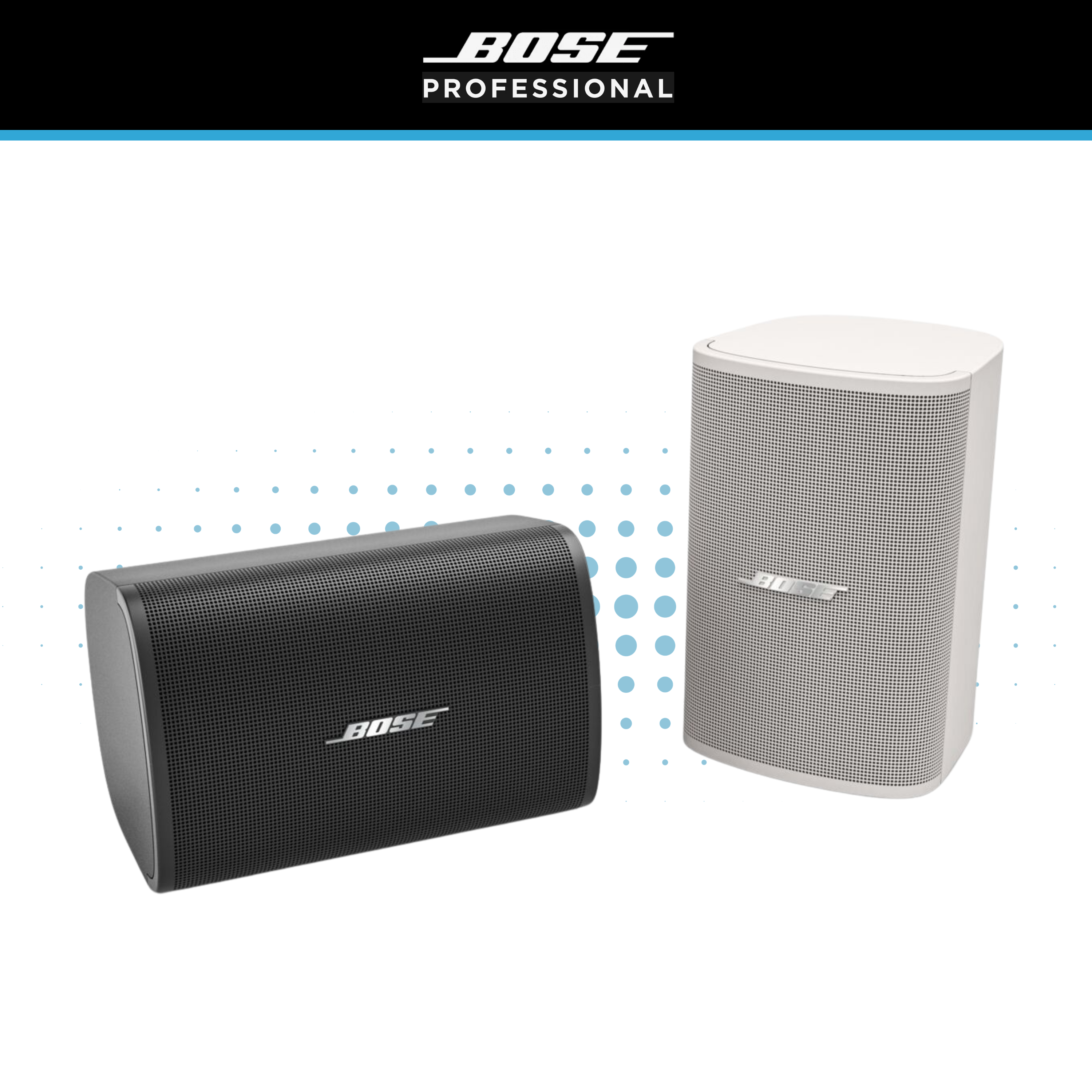

Available in black or white, the speaker integrates easily into a wide range of interior and exterior designs.
Designed for Commercial Audio Systems
As part of the DesignMax range, the DM3SE is engineered to provide consistent tonal balance across multiple models, allowing it to be integrated into larger systems while maintaining uniform sound quality.
Typical applications include:
- Bars and restaurants
- Retail stores and showrooms
- Offices and corporate spaces
- Hotels and leisure venues
A Compact Solution for Premium Distributed Audio
The Bose DesignMax DM3SE delivers a strong combination of clarity, coverage, and installation efficiency in a compact enclosure. Its wide dispersion, flexible operation, and durable design make it a reliable choice for professional audio systems requiring discreet yet high-quality loudspeakers.
