The AV:Link Adjustable Ceiling Projector Bracket is a practical projector mounting solution designed for installations where a projector needs to... Read more
£22.50 Incl. VAT
Guaranteed secure & safe checkout.

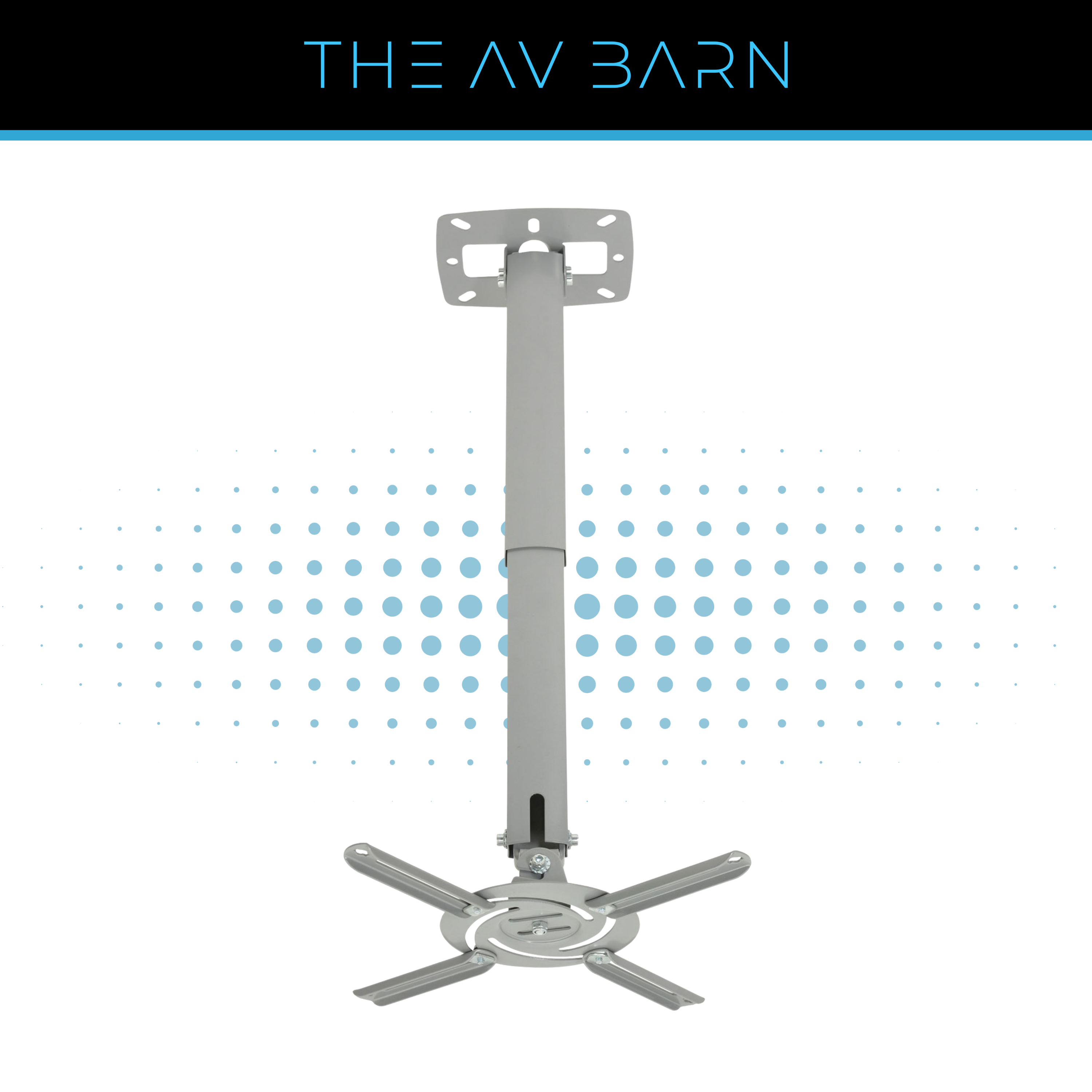

The AV:Link Adjustable Ceiling Projector Bracket is a practical projector mounting solution designed for installations where a projector needs to be positioned lower from the ceiling for correct image alignment. With an adjustable drop pole offering a ceiling drop of 380–620mm, this bracket is well suited to home cinemas, pubs, clubs, boardrooms, classrooms, training rooms, meeting spaces and presentation environments where a compact fixed mount may not provide the correct projector height.
This bracket is designed with four adjustable mounting arms, allowing it to accommodate a wide range of projector fixing patterns. The maximum supported projector hole spacing is 310 x 310mm, making it suitable for many compact and mid-sized projector models. Before installation, the projector’s weight and mounting hole layout should always be checked against the bracket specification to confirm compatibility. The bracket supports a maximum load of 8kg, which makes it suitable for many common presentation and entertainment projectors.
The adjustable drop pole is the key advantage of this projector bracket. In many real-world AV installations, the ceiling height, projector lens position and screen location will not align perfectly with a short fixed ceiling mount. The 380–620mm drop range gives installers more flexibility when setting the projector height, helping position the unit correctly in relation to the projection screen or display surface. This can be particularly useful in rooms with higher ceilings, exposed beams, sloped layouts, awkward mounting positions or existing ceiling services.

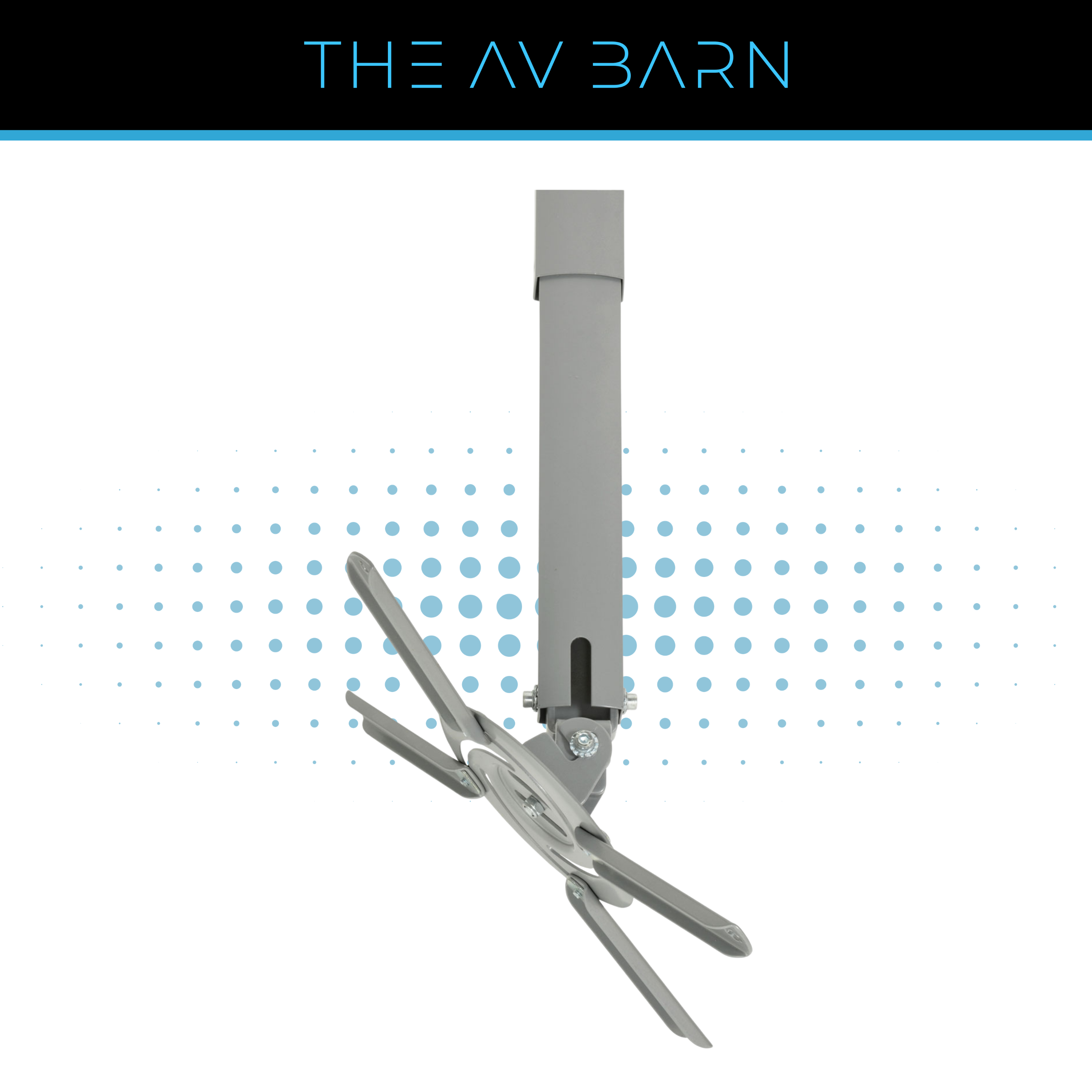

The mount also provides ±15° tilt adjustment in both horizontal and vertical planes. This allows the projector angle to be fine-tuned after installation, helping achieve a more accurate projected image. Tilt adjustment is especially valuable where the projector cannot be mounted in the perfect location due to ceiling structure, joist positions, lighting fixtures, cable routes or other site limitations. Correct mechanical alignment at the bracket can also help reduce the amount of digital correction required within the projector settings, supporting a cleaner image setup.
For education environments, this adjustable ceiling projector bracket is a useful option for classrooms, school halls, lecture rooms and training spaces. Ceiling mounting keeps the projector securely installed and helps prevent it being moved, knocked or disconnected during everyday use. The adjustable drop can help position the projector below ceiling-mounted obstructions or closer to the correct projection angle, which is often important in older rooms or buildings where ceiling height and screen placement are not ideal.
In commercial spaces, the bracket is well suited to boardrooms, meeting rooms, pubs, clubs and hospitality venues. A fixed ceiling projector installation creates a more professional AV setup than placing a projector on a table, shelf or temporary stand. It also helps improve cable management, reduce setup time and provide a more consistent image position for regular presentations, entertainment use or customer-facing display applications.
The ceiling fixing bracket can also be fixed at 90°, making it suitable for mounting to the side of beams or joists where required. This gives installers additional flexibility on sites where a standard flat ceiling fixing point is not available or where the building structure makes side mounting more practical. This feature can be particularly useful in venues with exposed timber, steelwork or non-standard ceiling arrangements.

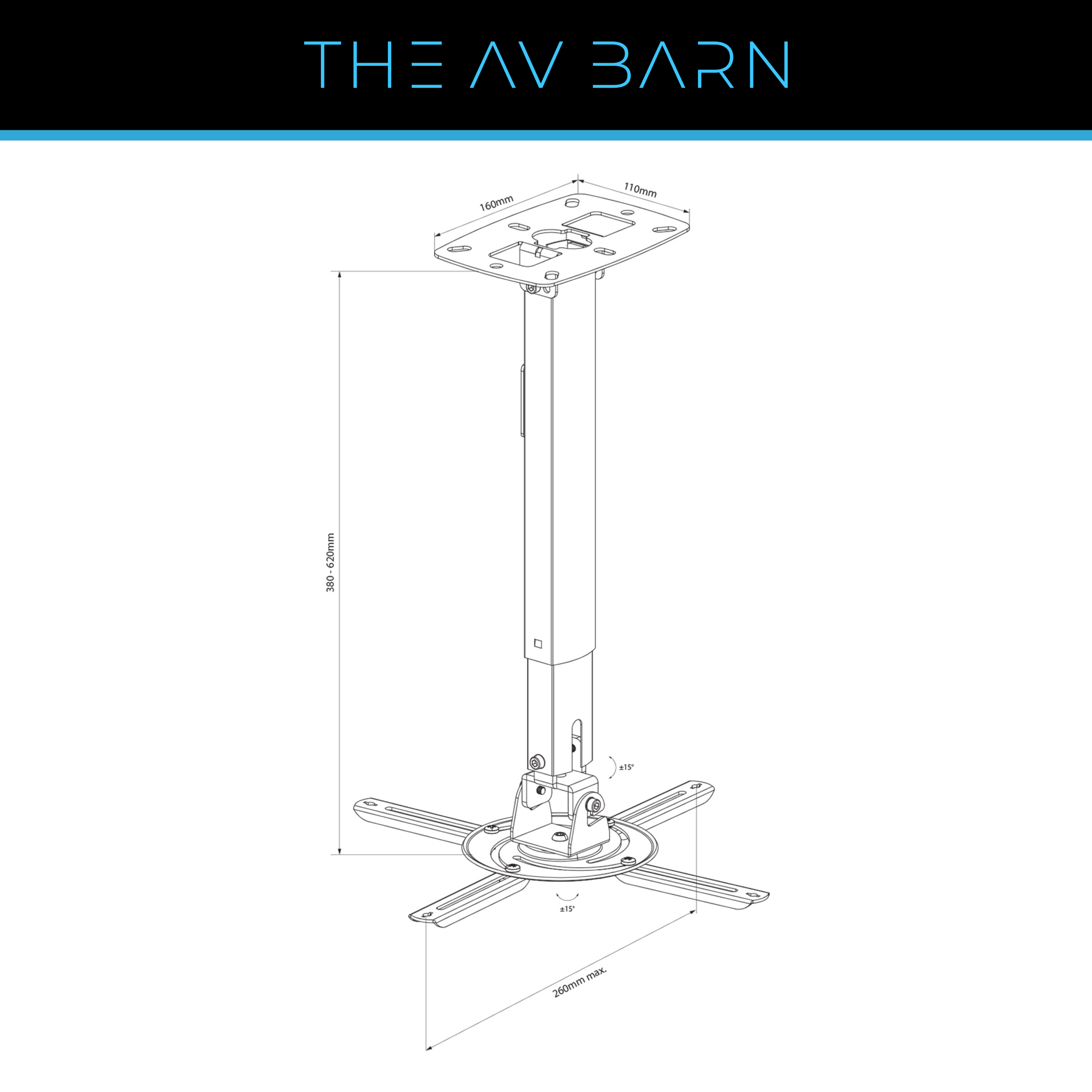

The ceiling mount plate measures 160 x 110mm, providing a compact but practical fixing footprint. Installation hardware is included, although the installer should always ensure the supplied fixings are suitable for the mounting surface and structural load. For ceiling-mounted equipment, secure fixing into an appropriate substrate is essential, particularly in schools, commercial buildings and public-facing environments.
The bracket weighs 1.1kg and is designed as a practical installation accessory for a broad range of projector mounting projects. When specifying the product, cable routing should also be considered, including HDMI, power, control or network cabling depending on the projector and system design. Suitable cable strain relief and safe routing will help support a clean, reliable and professional installation.
For AV installers, electricians and facilities teams looking for a flexible projector ceiling mount, the AV:Link Adjustable Ceiling Projector Bracket provides a strong balance of adjustability, compatibility and installation practicality. With an 8kg load capacity, 380–620mm adjustable drop, ±15° tilt adjustment, four adjustable mounting arms and the option to mount the ceiling bracket at 90°, it is a versatile choice for projector installations in classrooms, meeting rooms, hospitality venues and home cinema spaces.
