The AV:Link 4:3 Electric Projector Screens are designed for fixed projection installations where a clean, professional and easy-to-use motorised screen... Read more
£109.00 Incl. VAT
Guaranteed secure & safe checkout.
The AV:Link 4:3 Electric Projector Screens are designed for fixed projection installations where a clean, professional and easy-to-use motorised screen is required. Available in 86 inch, 100 inch and 120 inch 4:3 formats, this range is well suited to classrooms, school halls, meeting rooms, training spaces, churches, auditoriums, conference rooms and presentation environments where a traditional 4:3 projection surface is still preferred.

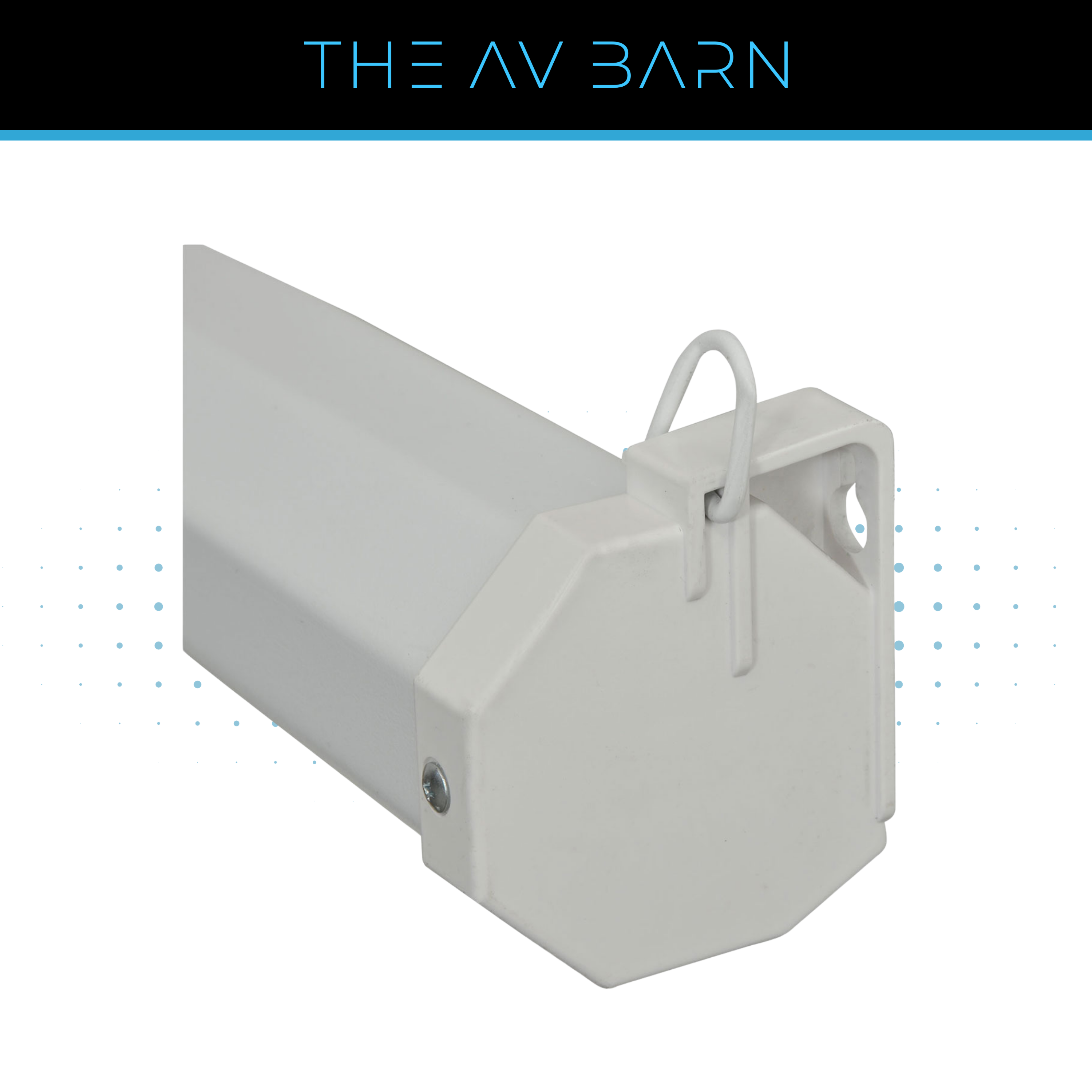

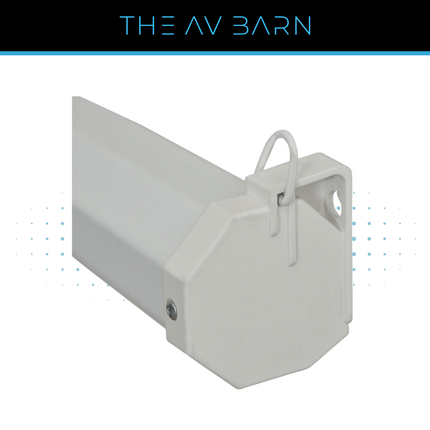

These electric projector screens are housed in a white steel case with mounting brackets positioned at either end, allowing the screen to be installed onto a ceiling or wall. This gives installers flexibility when planning a room layout, particularly in spaces where wall space, ceiling height, projector position or furniture placement affect where the screen can be located. The white housing provides a clean and neutral finish that suits most education, commercial and presentation spaces.

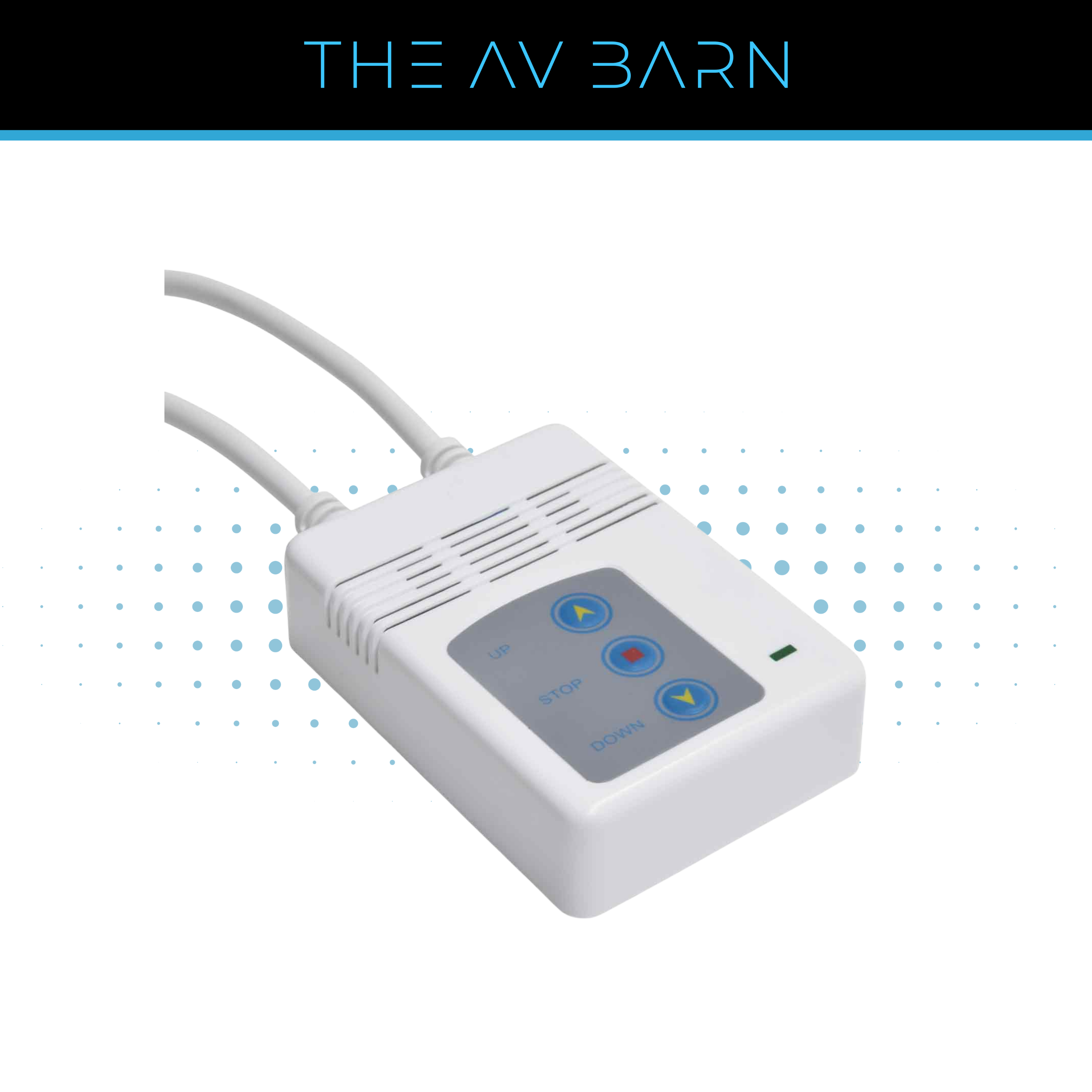

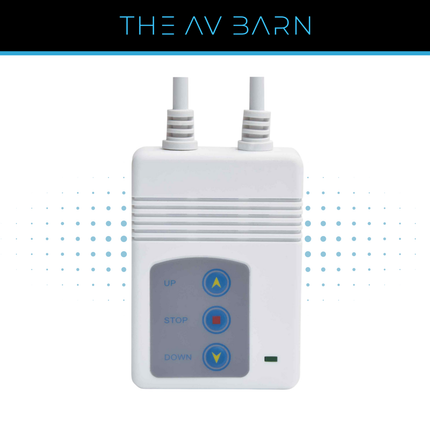

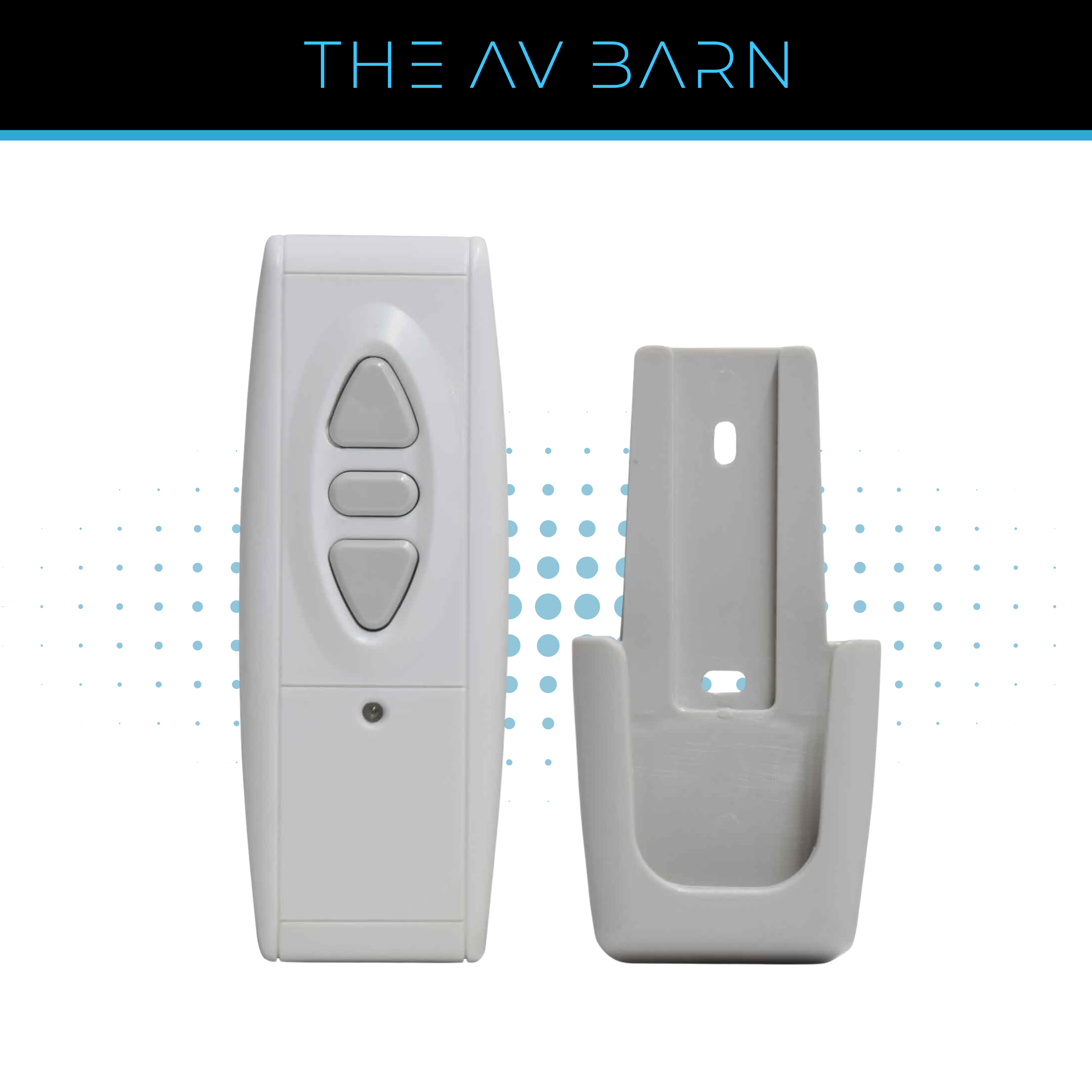

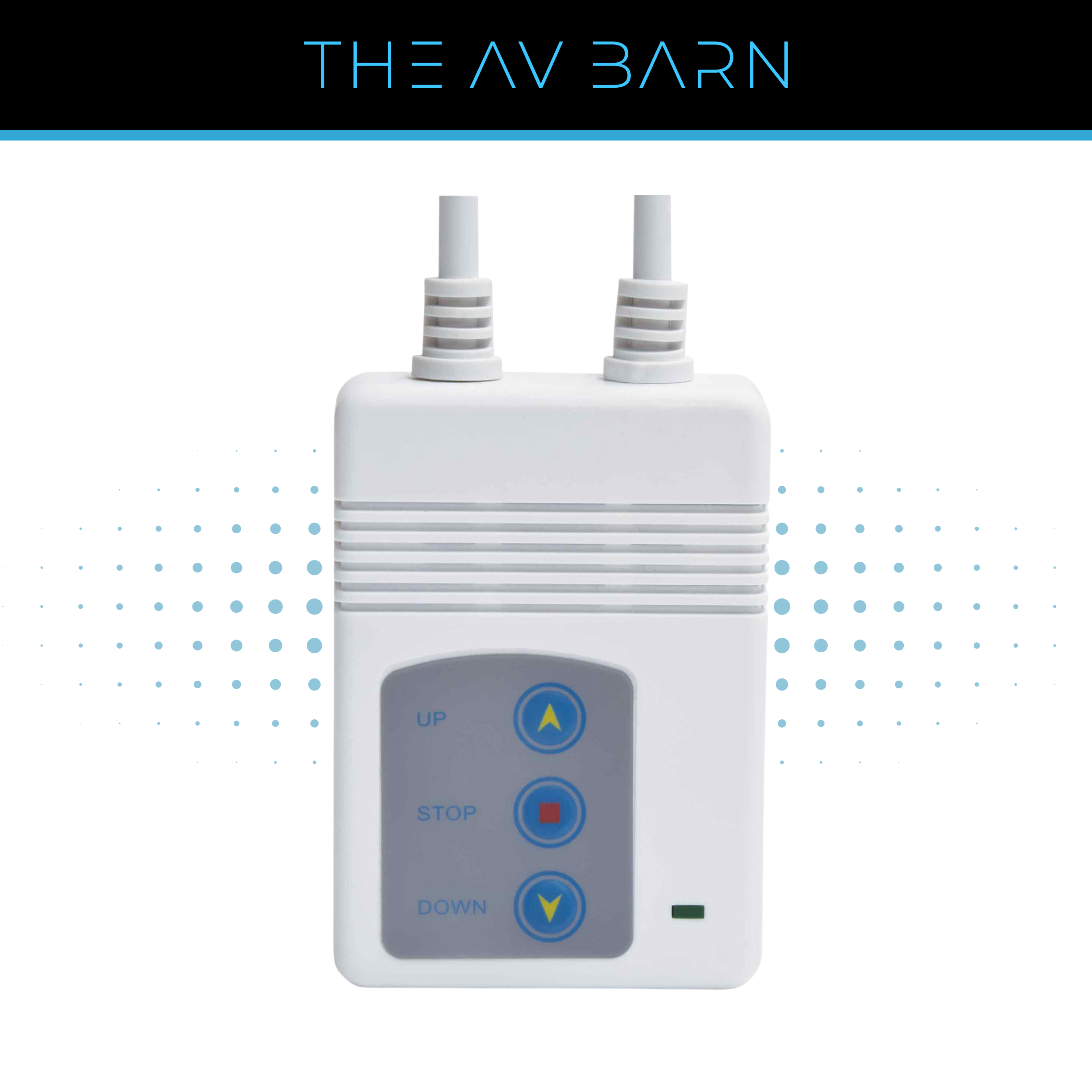

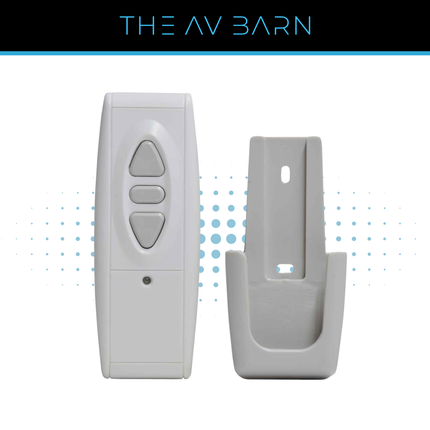

The built-in electric motor allows the screen to be lowered and retracted without manual handling. Operation is available through the fitted in-line control switch or the supplied RF remote control, making the screen practical for regular day-to-day use. In a classroom or meeting room, this allows teachers, presenters or staff to lower the projection screen quickly at the start of a session and retract it neatly when not required. AVSL lists the range with an in-line control switch, RF remote control, low-noise electric motor and adjustable drop and retract distance limiter.
The 4:3 aspect ratio makes this range especially useful for legacy projector systems, education setups, traditional presentation formats and rooms where existing content or projector hardware is designed around a 4:3 image. While 16:9 widescreen is now common for modern video, many schools, community venues and meeting spaces still use 4:3 projection for PowerPoint, classroom software, older projectors or general presentation material. Offering dedicated 4:3 screen sizes ensures the projected image can be displayed correctly without unnecessary unused screen space.

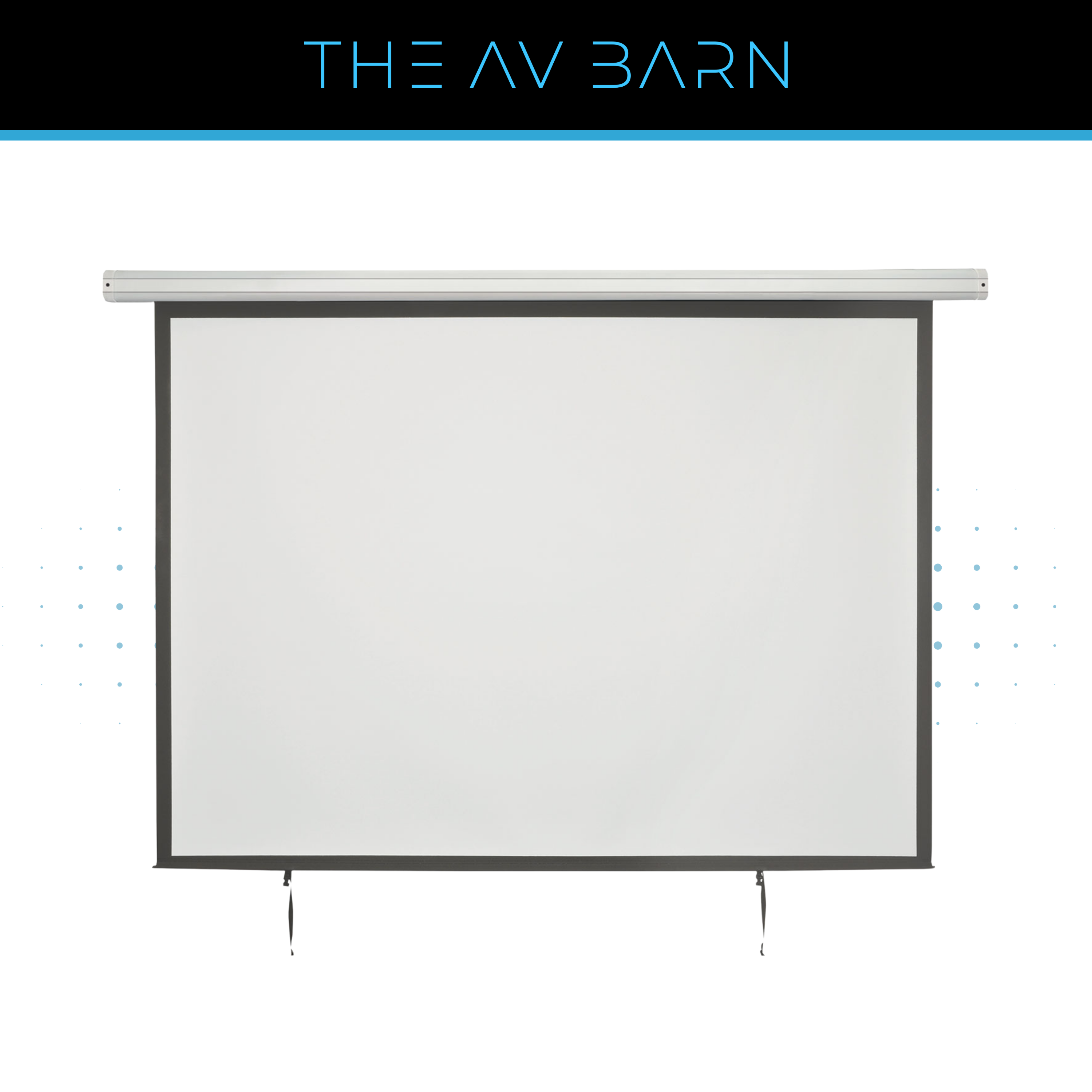

The matte white projection surface provides a clean viewing area for text, graphics, images and video content. A gain of 1.1 and 100° viewing angle make the screens suitable for typical classroom and presentation environments where viewers may be seated across a range of positions. The black border helps improve the perceived definition of the projected image, giving the screen a more framed and professional appearance during use. AVSL also states that the screen material is flame retardant and mildew proof, supporting suitability for fixed installations in shared-use spaces.
Each screen includes a weighted bottom bar, designed to help prevent the screen from jamming in the housing or curling when lowered. This is a useful feature in regular-use installations where the screen may be raised and lowered frequently. A stable, weighted lower edge helps the screen sit more evenly, supporting a cleaner projected image and reducing operational issues over time.
The range includes three 4:3 size options. The 86 inch version has a 1660mm x 1230mm viewing area, 2040 x 88 x 88mm housing dimensions and weighs 10kg. The 100 inch version has a 1980mm x 1470mm viewing area, 2320 x 88 x 88mm housing dimensions and weighs 12kg. The 120 inch version has a 2360mm x 1750mm viewing area, 2720 x 88 x 88mm housing dimensions and weighs 14kg. These options allow the correct screen size to be selected based on viewing distance, room size, projector brightness and audience layout.
For education environments, these screens are a strong choice for classrooms, training rooms, lecture spaces and multi-purpose rooms where projection is used regularly. Wall or ceiling mounting keeps the screen permanently available while allowing it to retract when not in use, helping keep the teaching space tidy and flexible. In commercial spaces, the range is suitable for presentations, client meetings, staff training and conference room AV setups.
The mains cable entry is on the right-hand side of the unit, which should be considered during installation planning. This is particularly important when coordinating power outlets, cable routes, containment or ceiling void access. Each screen is supplied with the electric screen and in-line control switch, RF remote control and wall mount bracket, screen drop adjusting tool and user guide.
For installers and customers looking for a reliable fixed projection solution, the AV:Link 4:3 Electric Projector Screen range provides a practical balance of screen size options, motorised operation, remote control convenience and professional installation flexibility. With 86 inch, 100 inch and 120 inch variants available, this listing is ideal for rooms that require a traditional 4:3 motorised projection screen for education, business, worship or presentation use.
