The AV:Link 16:9 UK Electric Projector Screens are designed for fixed widescreen projection installations where a clean, professional and easy-to-operate... Read more
£129.00 Incl. VAT
Guaranteed secure & safe checkout.

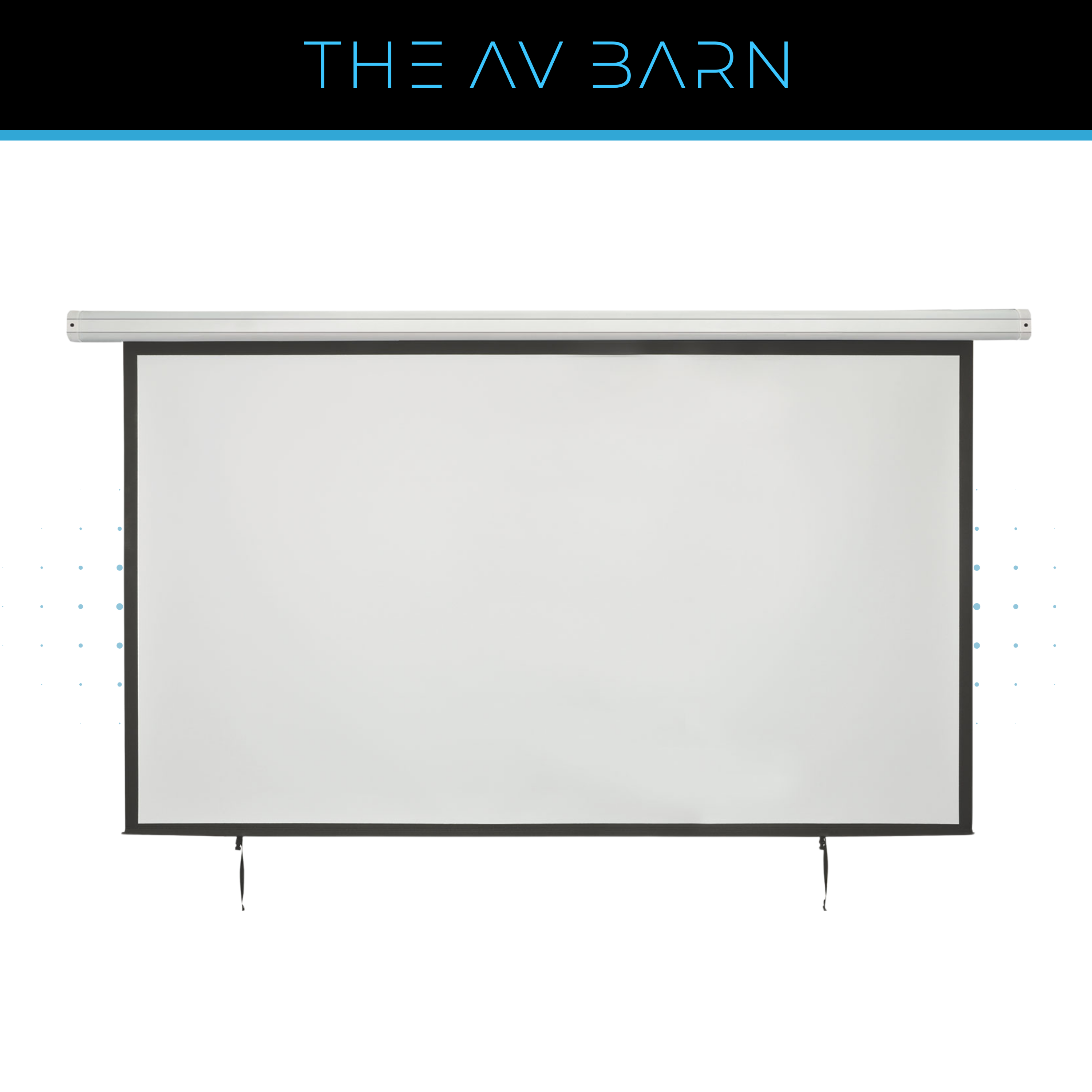

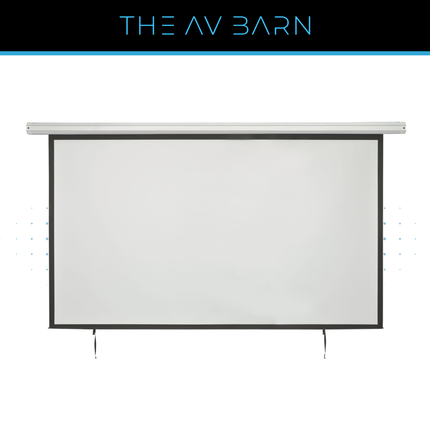

The AV:Link 16:9 UK Electric Projector Screens are designed for fixed widescreen projection installations where a clean, professional and easy-to-operate motorised screen is required. This listing is specifically for the UK 16:9 versions only, covering the 100 inch and 120 inch widescreen models. These screens are well suited to classrooms, meeting rooms, boardrooms, training spaces, churches, auditoriums, hospitality venues, community spaces and presentation environments where modern widescreen projection is required.
The 16:9 aspect ratio is the standard format for most modern video content, laptops, media players and presentation systems. This makes these screens a practical choice for installations using current projectors, HDMI presentation sources, digital signage players, video conferencing equipment and multimedia playback devices. Compared with a traditional 4:3 screen, the widescreen format provides a more suitable image shape for modern content, reducing unused screen space and helping presentations, video and graphics appear in the correct proportions.

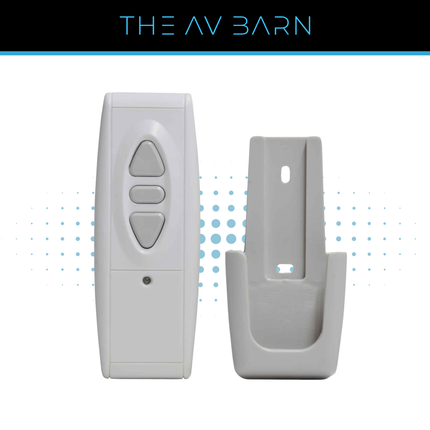

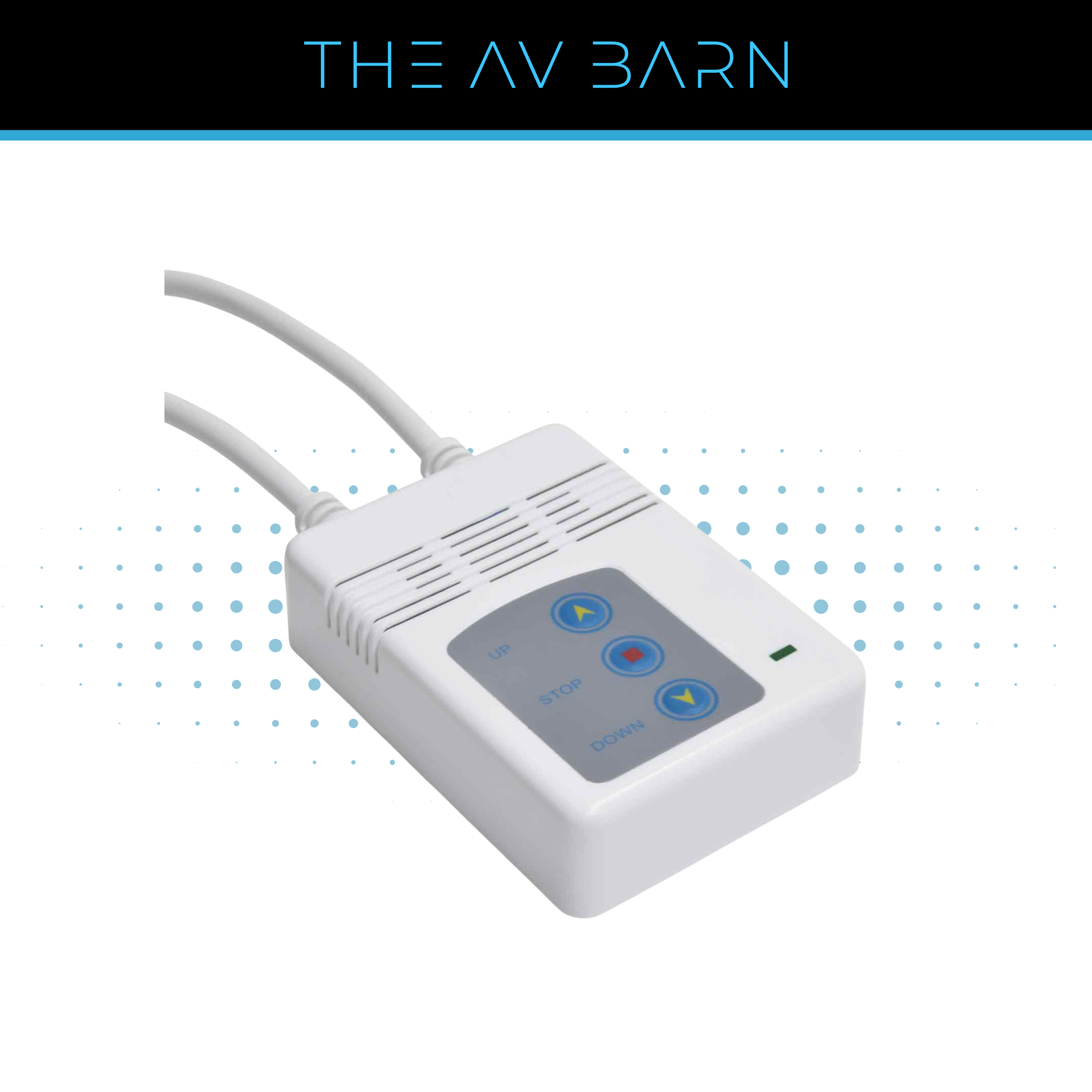

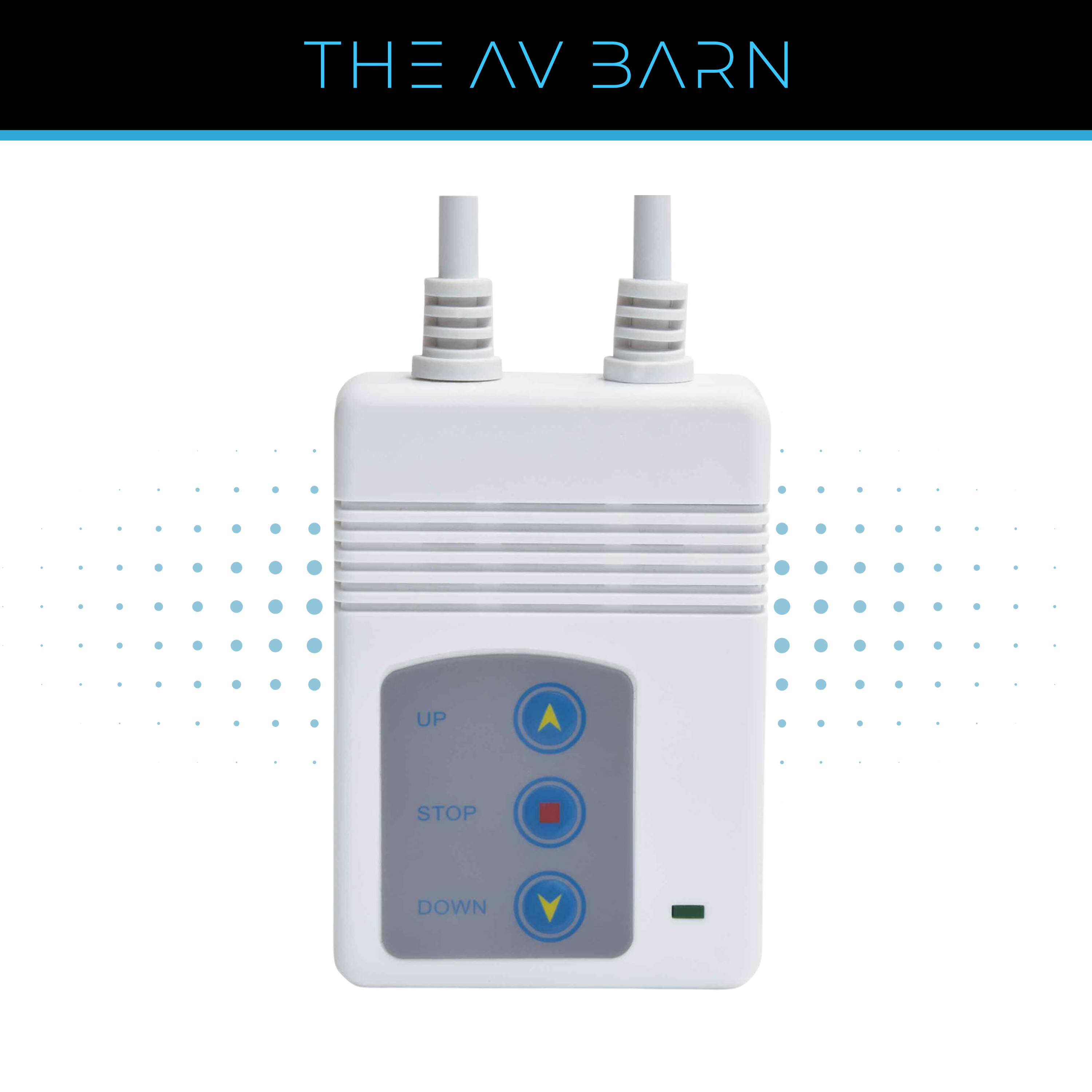

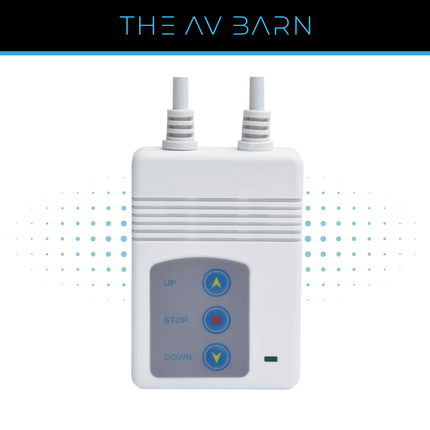

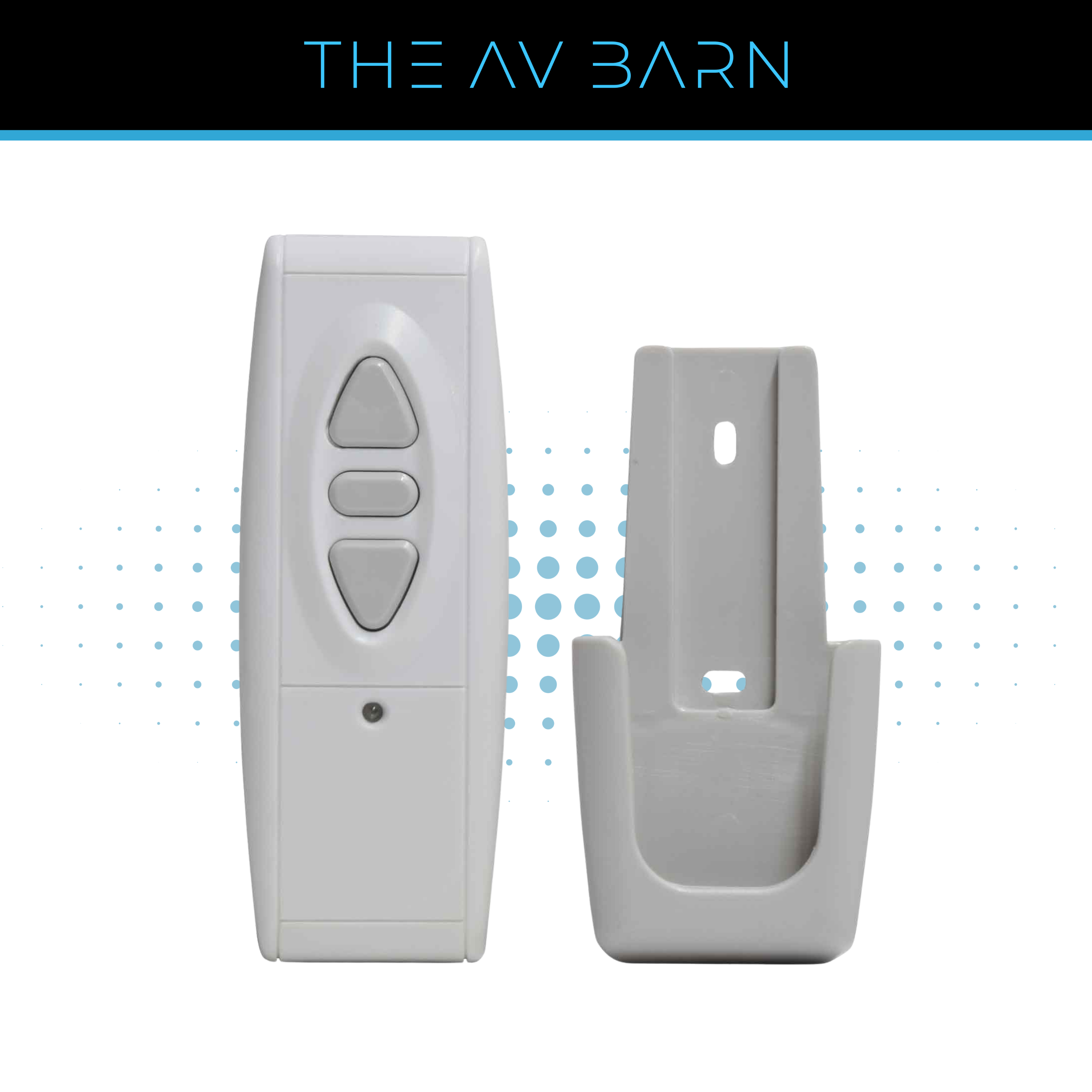

Each screen features a built-in electric motor and can be controlled using either the fitted in-line control switch or the supplied RF remote control. This makes operation simple for everyday users, whether installed in a classroom, meeting room or venue. Users can lower the screen when required and retract it neatly when not in use, helping keep the room tidy and flexible. The range also includes an adjustable drop and retract distance limiter, allowing the screen position to be set according to the room layout and projector alignment.
The screens are housed in a white steel case with mounting brackets positioned at either end, allowing installation onto a wall or ceiling. This gives installers flexibility when planning the final screen location, particularly in rooms where ceiling height, wall space, lighting, windows or projector throw distance need to be considered. The white case provides a neutral appearance that suits most UK education, commercial and presentation environments.
The matte white screen surface provides a clear projection area for text, images, graphics and video. With a gain of 1.1 and a 100° viewing angle, these screens are suitable for typical classroom, boardroom and presentation spaces where viewers may be seated across a range of positions. The black border helps enhance the perceived definition of the projected image, giving the screen a more professional appearance during use.
The weighted bottom bar helps keep the screen flat and reduces the risk of curling or jamming when the screen is lowered or retracted. This is particularly useful in regular-use environments such as schools, training rooms and meeting spaces, where the screen may be operated frequently. The screen material is also listed as flame retardant and mildew proof, supporting suitability for fixed installations in shared-use and commercial spaces.
The 100 inch UK 16:9 version has screen dimensions of 2210 x 1230mm, housing dimensions of 2520 x 88 x 88mm, a maximum drop of 1545mm and a listed weight of 13kg. The 120 inch UK 16:9 version has screen dimensions of 2650 x 1480mm, housing dimensions of 2980 x 88 x 88mm, a maximum drop of 1800mm and a listed weight of 16kg. Both versions use a 230Vac, 50Hz power supply and include the electric screen with in-line control switch, RF remote control and wall mount bracket, screen drop adjusting tool and user guide.
For UK classrooms and training spaces, these screens are a strong choice where a fixed projection surface is needed but wall space must remain usable when the screen is not in operation. In commercial environments, they are suitable for presentations, staff training, client meetings and conference rooms. In hospitality and community spaces, the widescreen format works well for video playback, event presentations, worship visuals and general AV display requirements.
Installation planning should allow for the housing length, screen drop, power position and cable route. The manufacturer notes that mains cable entry is on the right-hand side of the unit, which should be considered when coordinating power outlets, containment or ceiling void access. Secure fixing into a suitable wall or ceiling structure is essential, particularly for the 120 inch version due to its larger housing and 16kg weight.
For customers looking for a clean, professional and UK-specified widescreen projection solution, the AV:Link 16:9 UK Electric Projector Screen range provides a practical balance of motorised operation, remote control convenience and fixed installation quality. With 100 inch and 120 inch sizes available, matte white screen material, 1.1 gain, wall or ceiling mounting and supplied control accessories, this range is well suited to modern projection systems across education, business, hospitality and community venues.
